Product Description
Available now in Zhejiang—this 2018 Doosan DX60 mini excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a reliable Yanmar 4TNV94L engine producing 39.7 kW at 2200 rpm, this 6-ton workhorse combines proven performance with rapid deployment capability. Skip the lead times and put this machine to work today.
- Operating weight: 5,700 kg with 0.21 m³ bucket capacity
- Maximum digging reach: 6,150 mm; digging depth: 3,805 mm
- Bucket digging force: 44 kN; rod digging force: 28 kN
- Compact transport dimensions: 5,850 mm (L) × 2,000 mm (W) × 2,575 mm (H)
- Dual main pump flow: 60.5 × 2 + 36 L/min for responsive hydraulics
- 115-liter fuel capacity for extended operation
Fast deployment means faster project completion. Located in Zhejiang, this joint venture-manufactured excavator is ready for immediate inspection and delivery. Secure your equipment advantage now—contact us today to arrange site delivery and bypass months of factory scheduling delays.
| Specifications | Value |
|---|---|
| No. | 1007527 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

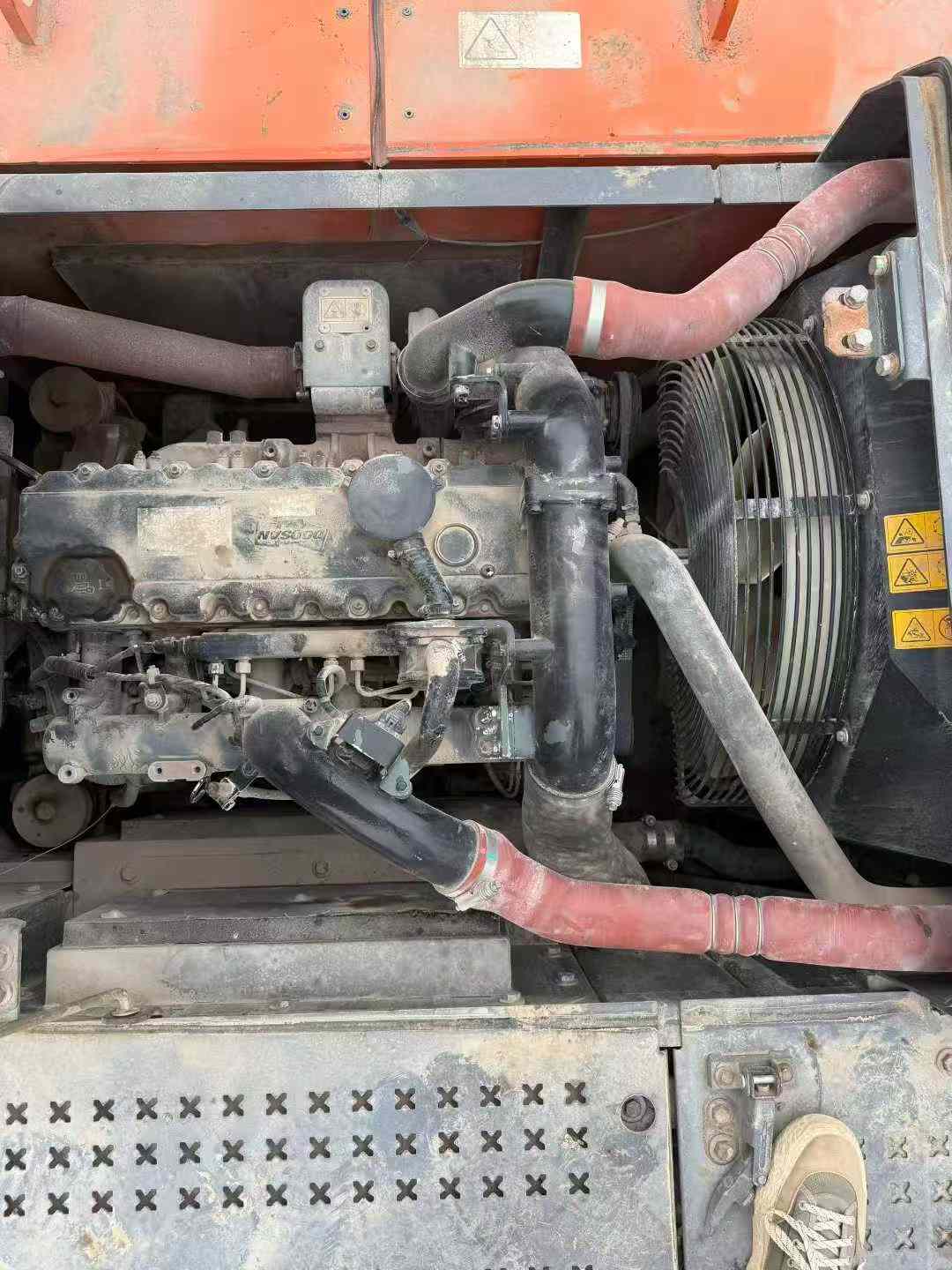

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
