Product Description

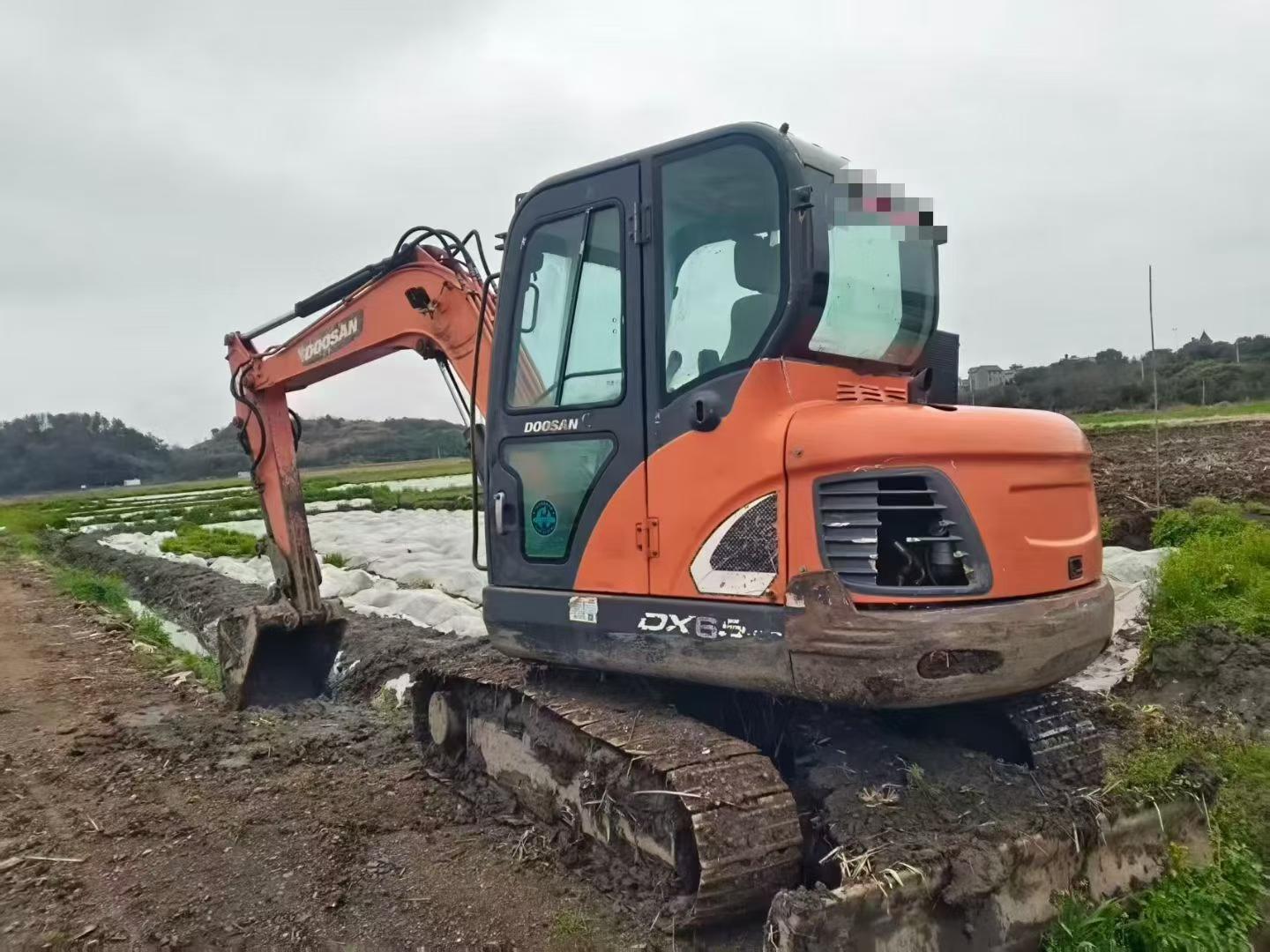

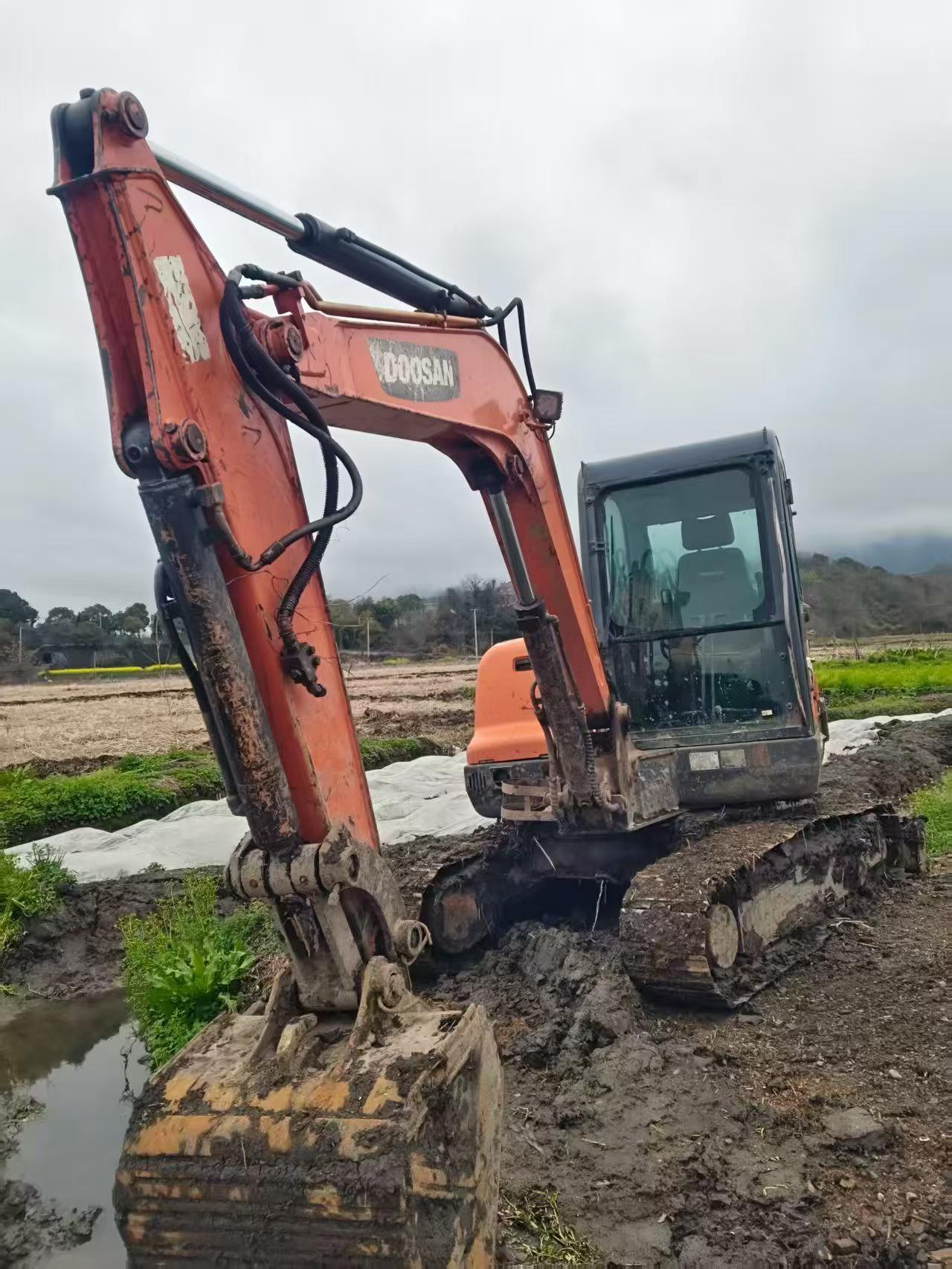

Expand your fleet capacity with this 2018 Doosan DX60 mini excavator, currently located in Maoming, Guangdong. Built at Doosan's Yantai facility, this 6-ton workhorse delivers reliable backup performance when your primary machines are deployed across multiple job sites. The Yanmar 4TNV94L engine produces 39.7 kW at 2200 rpm, providing consistent hydraulic flow through dual 60.5 l/min main pumps plus auxiliary 36 l/min circuit—enough muscle for trenching, foundation prep, and utility installation.
- Operating Weight: 5,700 kg with 0.21 m³ bucket capacity
- Reach Specs: 6,150 mm max digging radius, 3,805 mm digging depth
- Compact Footprint: 2,000 mm width, 1,650 mm rear swing radius for confined sites
- Digging Force: 44 kN bucket force, 28 kN arm force
- Boom Configuration: 3,000 mm boom, 1,600 mm arm length
- Transport Dimensions: 5,850 × 2,000 × 2,575 mm (fits standard trailers)
Ideal for contractors needing immediate deployment capability without disrupting current project schedules. Ready to ship worldwide from Guangdong.
| Specifications | Value |
|---|---|
| No. | 1024139 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

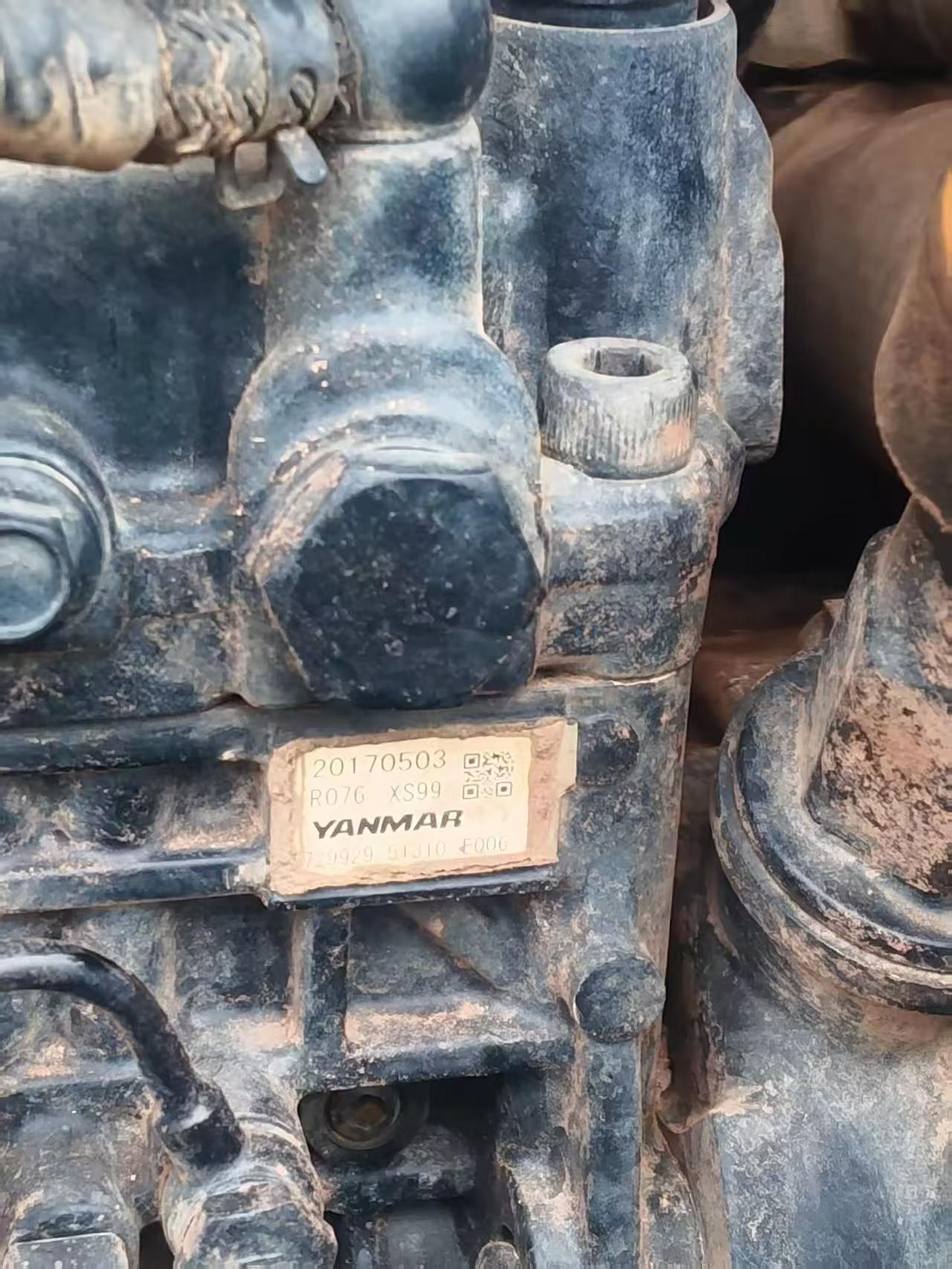

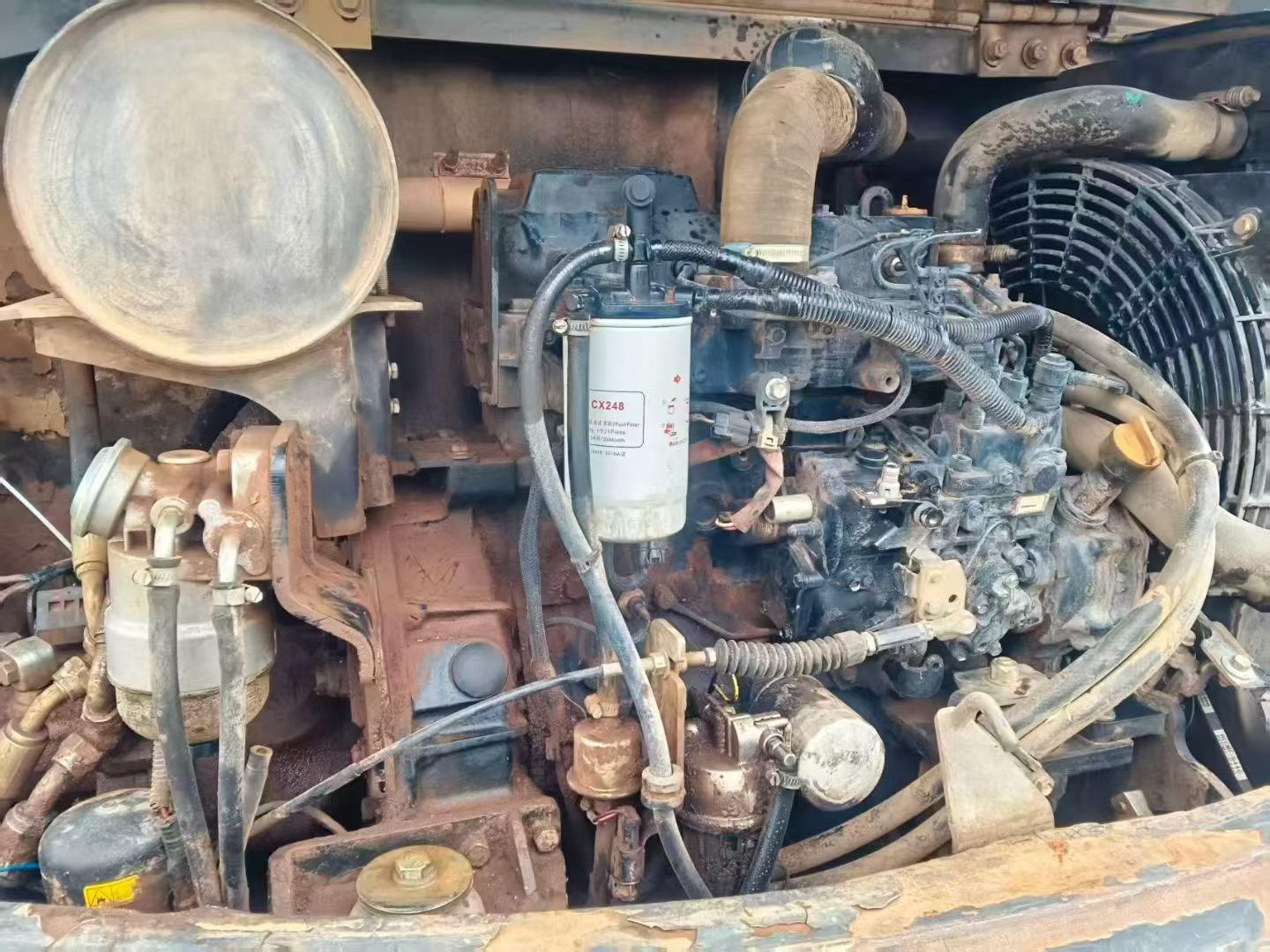

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |

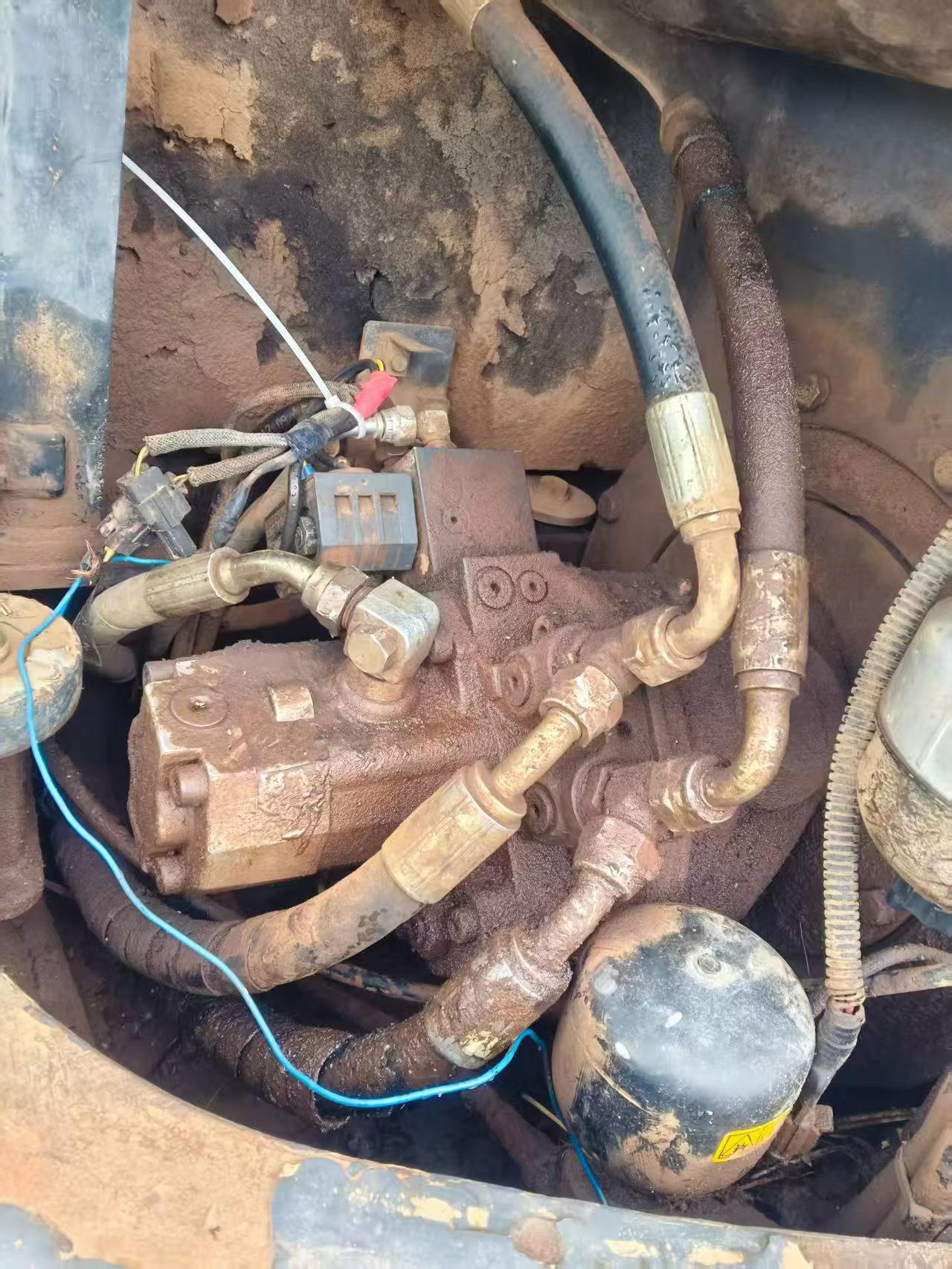

| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
