HOME>>Doosan>>Doosan DX60

2018 Doosan DX60

1/9

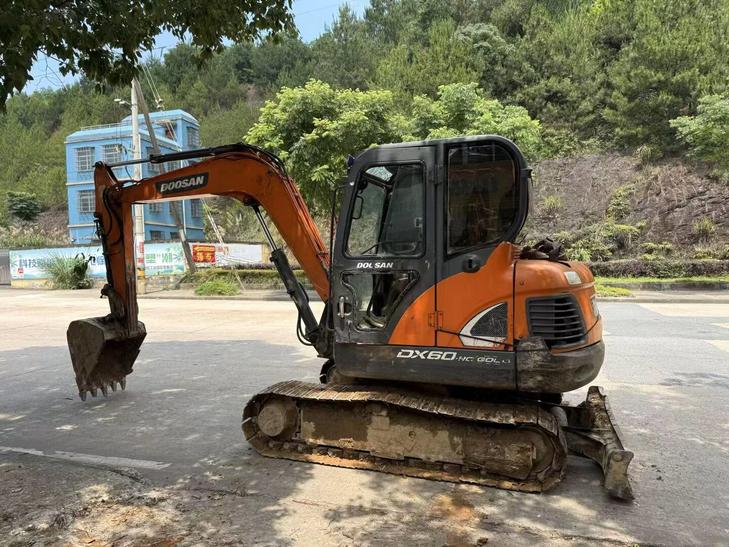

Buy Doosan DX60 Used Excavator / 1
Buy Doosan DX60 Used Excavator / 2
Buy Doosan DX60 Used Excavator / 3
Buy Doosan DX60 Used Excavator / 4
Buy Doosan DX60 Used Excavator / 5
Buy Doosan DX60 Used Excavator / 6
Buy Doosan DX60 Used Excavator / 7
Buy Doosan DX60 Used Excavator / 8
Buy Doosan DX60 Used Excavator / 9

Product Description

Built for serious work, this 2018 Doosan DX60 mini excavator delivers proven 6-ton performance at a fraction of new equipment cost. Powered by a Yanmar 4TNV94L engine producing 39.7 kW at 2,200 RPM, it combines reliable hydraulic output with a 44 kN bucket digging force — capability that holds up job after job without the depreciation hit of buying new.

Sourced from Zhejiang, China, this unit is ready for import with a compact transport footprint of 5,850 × 2,000 × 2,575 mm and a working weight of 5,700 kg, making logistics straightforward for international buyers.

  • Engine: Yanmar 4TNV94L — 39.7 kW / 2,200 RPM
  • Bucket Digging Force: 44 kN | Rod Digging Force: 28 kN
  • Maximum Digging Depth: 3,805 mm
  • Maximum Digging Radius: 6,150 mm
  • Bucket Capacity: 0.21 m³ (backhoe)
  • Travel Speed: 4.1 / 3.0 km/h | Climbing Ability: 78% / 30°
  • Fuel Tank: 115 L | Main Pump Flow: 60.5 × 2 + 36 L/min
  • Working Weight: 5,700 kg | Transport Dimensions: 5,850 × 2,000 × 2,575 mm

Smart operators know that a well-maintained 2018 DX60 performs the same trench, the same grade, and the same lift as a new machine — for significantly less capital outlay. This is the cost-efficient path to reliable excavation output.

SpecificationsValue
No.1077251
Tonnage (tons)6
Working weight (kg)5700
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar YANMAR 4TNV94L
Rated power (kw/rpm)39.7 / 2200
Maximum torque (N.m)20-22/1100
Rotation speed (rpm)9.5
Climbing ability (%)78/30 degrees
Bucket digging force (kN)44
Rod digging force (kN)28
Maximum tractive force (kN)58
Travel speed (km/h)4.1 / 3.0
Turning torque (Nm)20 ~ 22
Maximum flow of main pump (l/min)60.5 x 2 + 36
Traveling Hydraulic Circuit (Mpa)21.6
Working Hydraulic Circuit (Mpa)21.6
Fuel Tank (L)115
Total transport length (mm)5850
Total transport width (mm)2000
Total transport height (mm)2575(to top of cab)
Minimum ground clearance (mm)400
Back end turning radius (mm)1650
Total track length (mm)2540
Maximum digging radius (mm)6150
Maximum digging depth (mm)3805
Maximum excavation height (mm)5790
Maximum unloading height (mm)4065
Maximum vertical digging depth (mm)3038
Dodging plate width × height (mm)2000 x 350
see more

Overview

No.1077251

Brand Name:

Doosan

Model Number:

DX60

Year:

2018

Location:

Zhejiang China
