Product Description

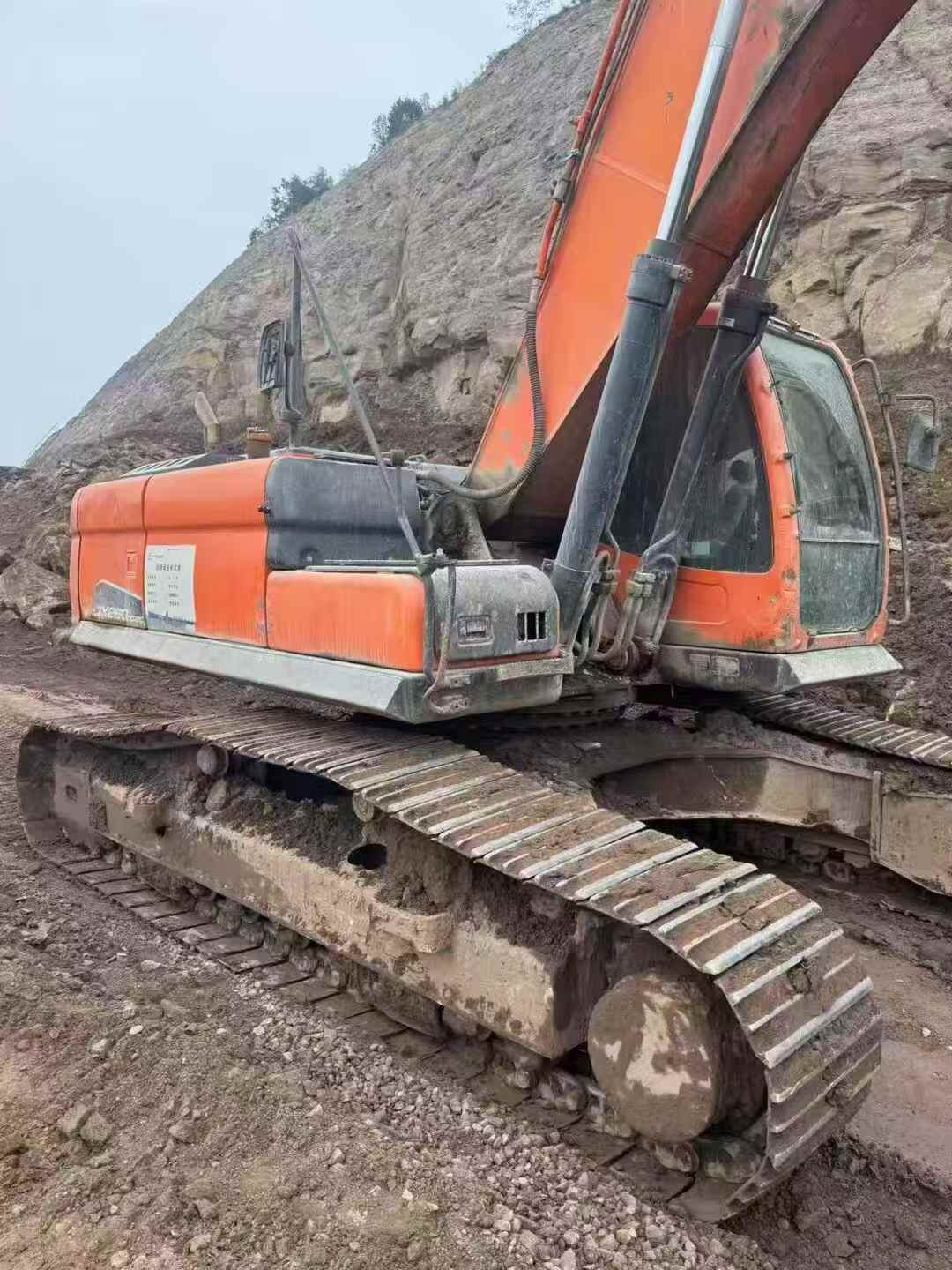

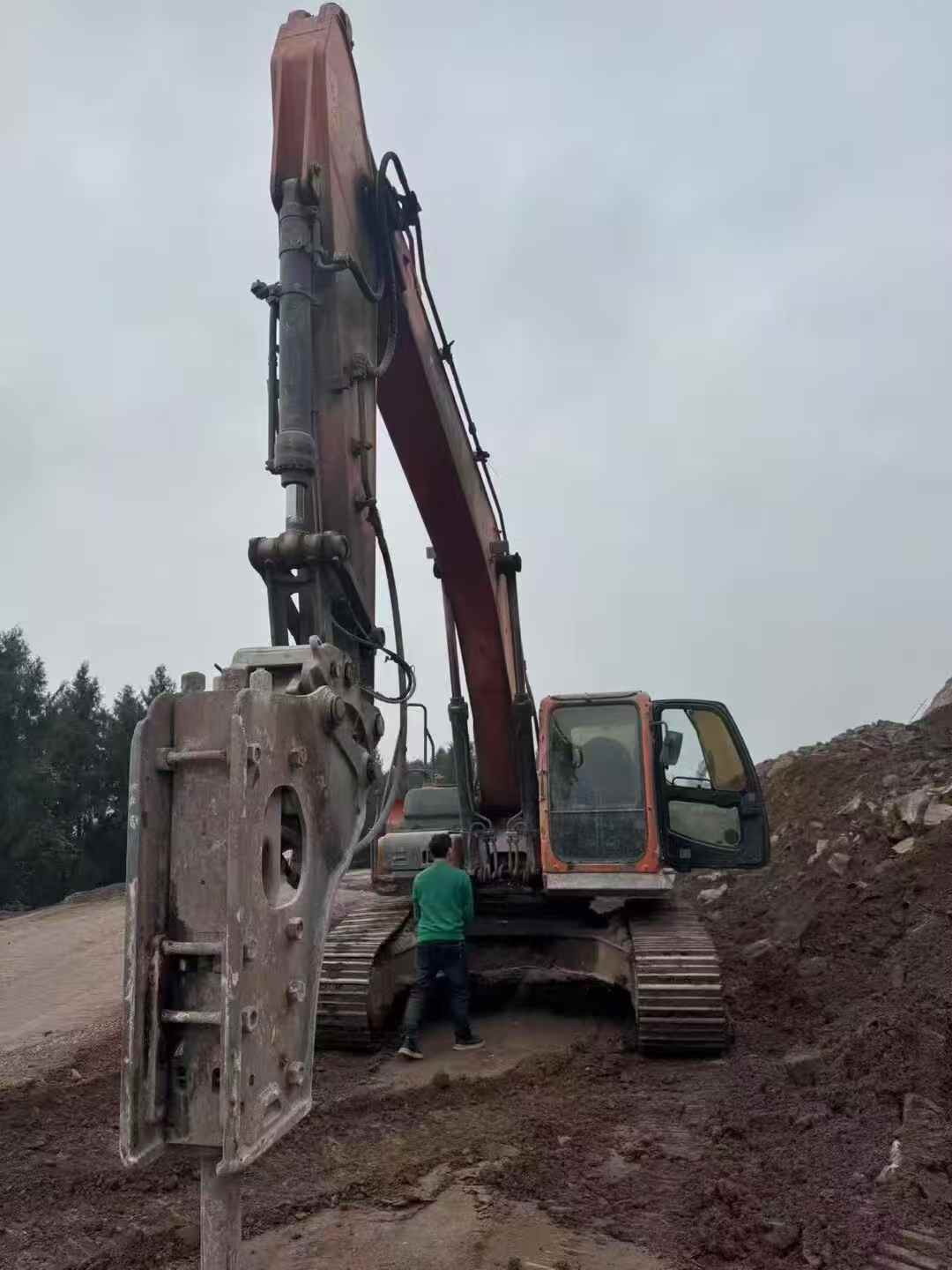

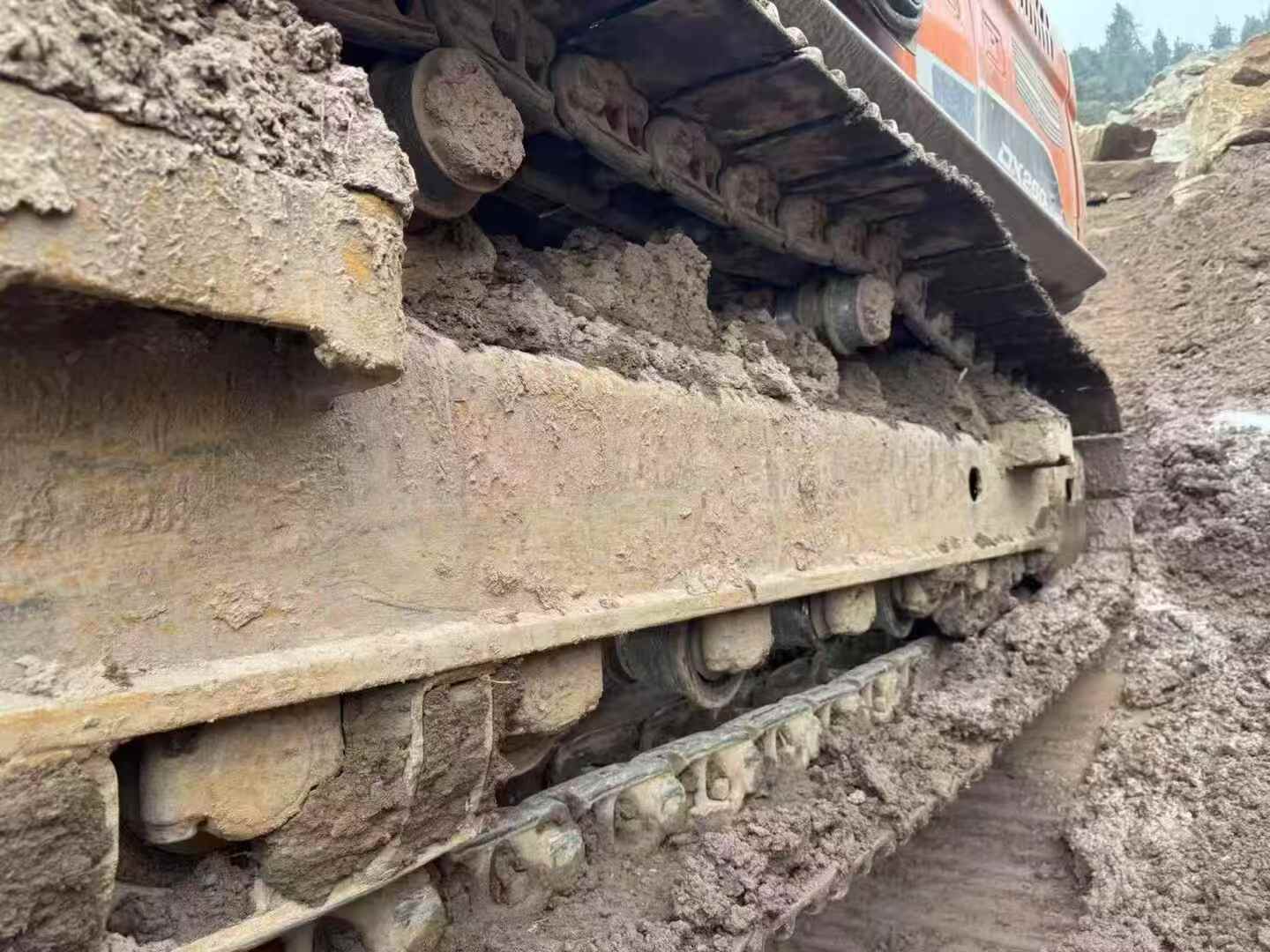

Maximize your construction budget with this 2018 Doosan DX60 excavator, delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW, this 6-ton machine handles demanding jobsites with 44kN bucket digging force and 28kN rod digging force.
Built for versatility, the DX60 features a 0.21m³ bucket capacity and impressive reach specifications: 6150mm maximum digging radius and 3805mm maximum digging depth. With 78% climbing ability and 4.1km/h travel speed, this excavator tackles challenging terrain efficiently.
- Compact dimensions (5850mm length, 2000mm width) for tight spaces

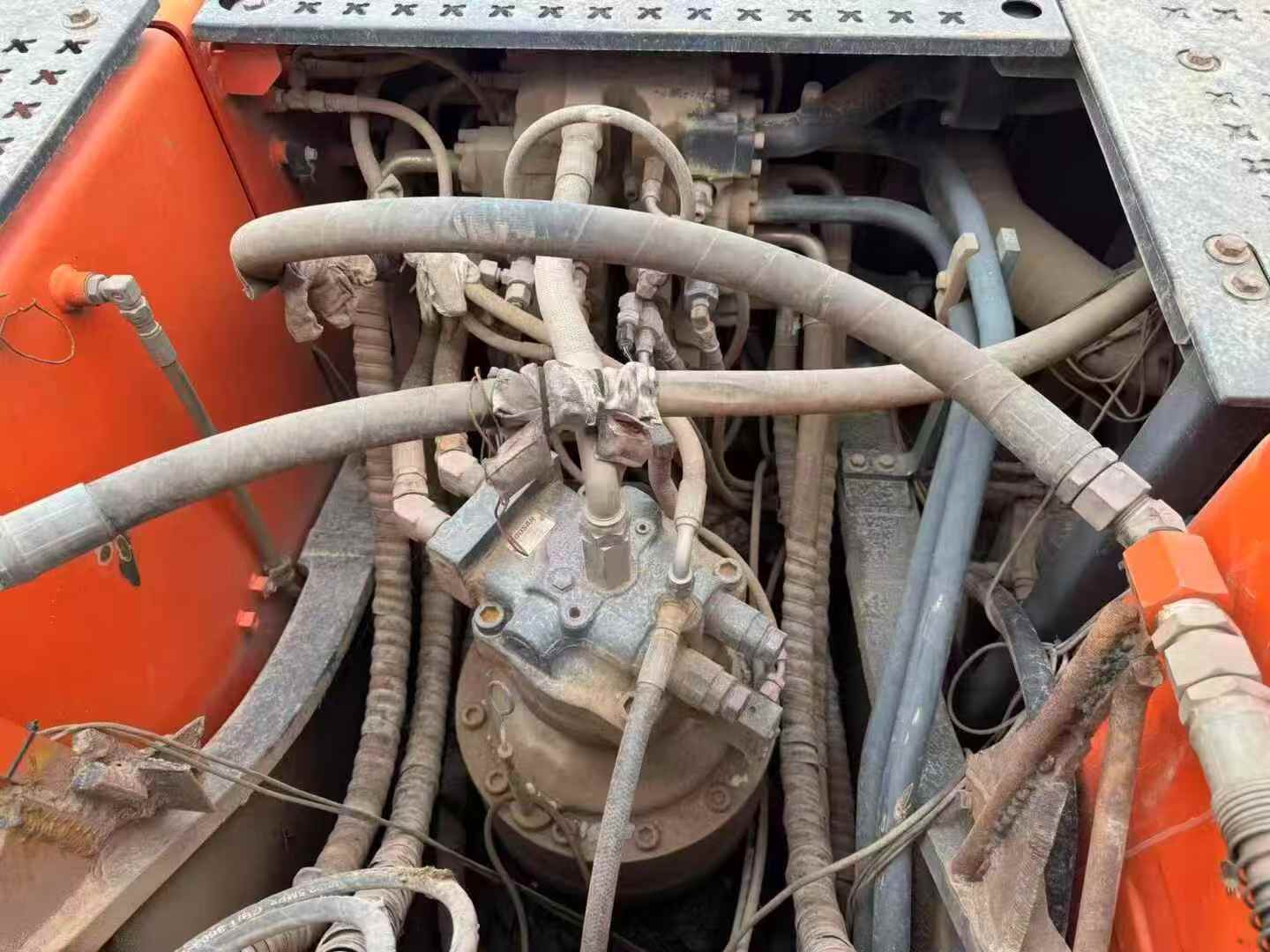

- Dual hydraulic pumps (60.5L/min each) ensure smooth operation
- 115L fuel tank minimizes downtime
- Currently located in Guizhou province
Smart contractors choose proven equipment that delivers results without the premium price tag. This DX60 combines Doosan's engineering excellence with significant cost savings, making it an intelligent investment for growing operations.
| Specifications | Value |
|---|---|
| No. | 991395 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
