Product Description

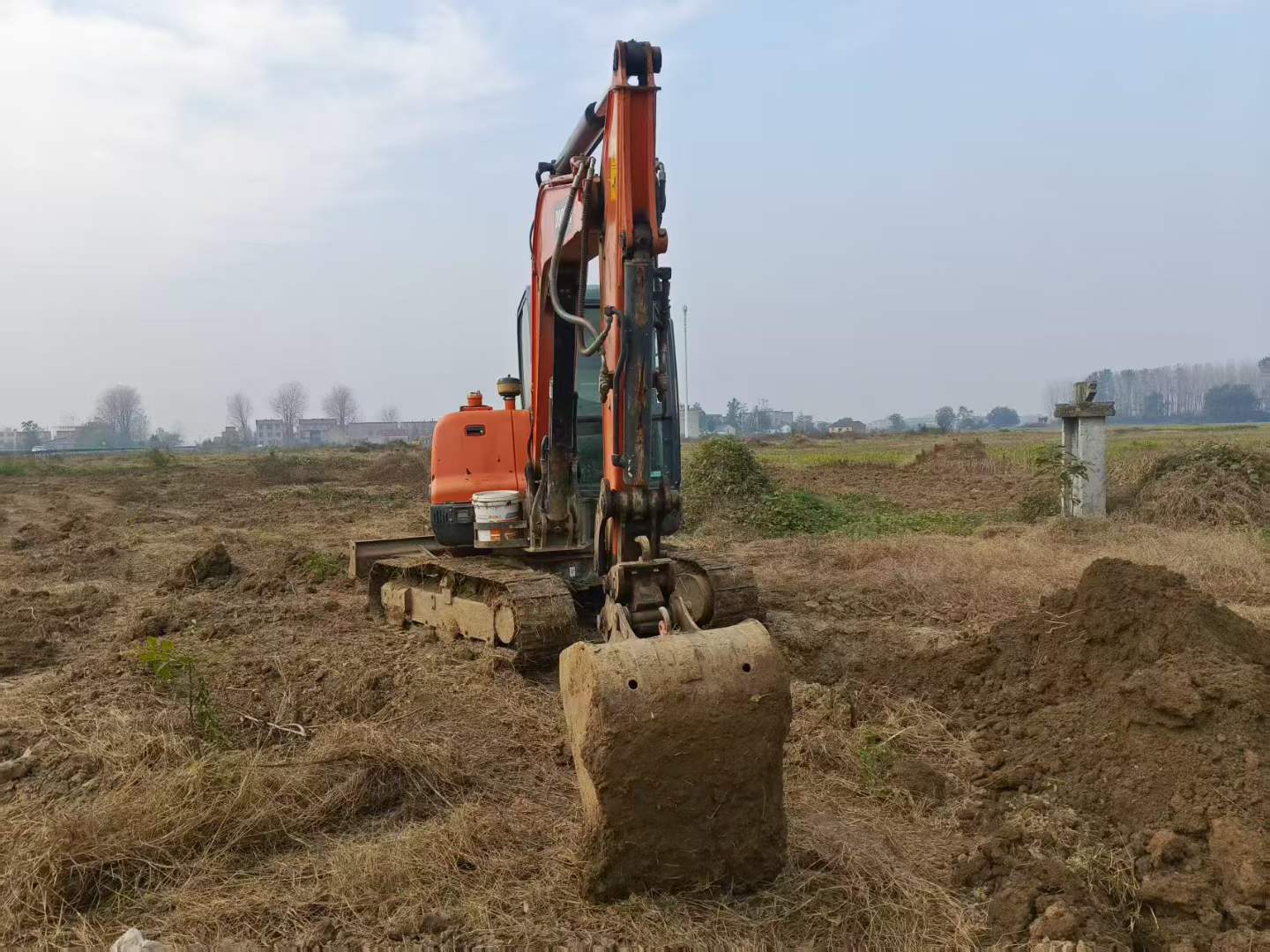

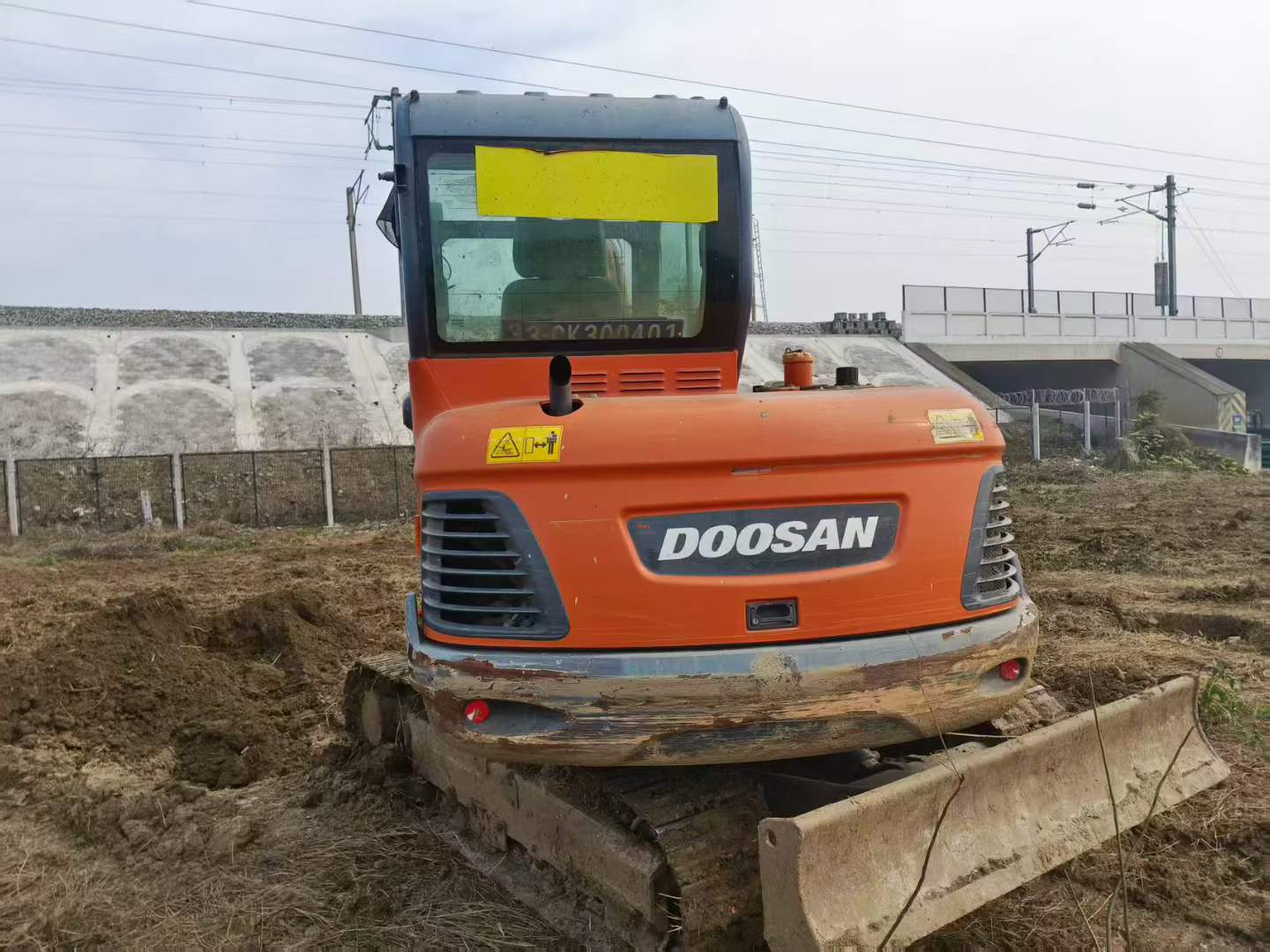

Maximize your excavation budget with this 2019 Doosan DX60 mini excavator from Anhui Fuyang—delivering proven performance at a fraction of new equipment cost. Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW, this 6-ton workhorse combines efficiency with impressive capabilities: 6150mm maximum digging radius, 3805mm digging depth, and 44kN bucket digging force. Built by a joint venture manufacturer in Yantai, China, this compact machine offers exceptional maneuverability with just 1650mm rear turning radius and 400mm ground clearance.

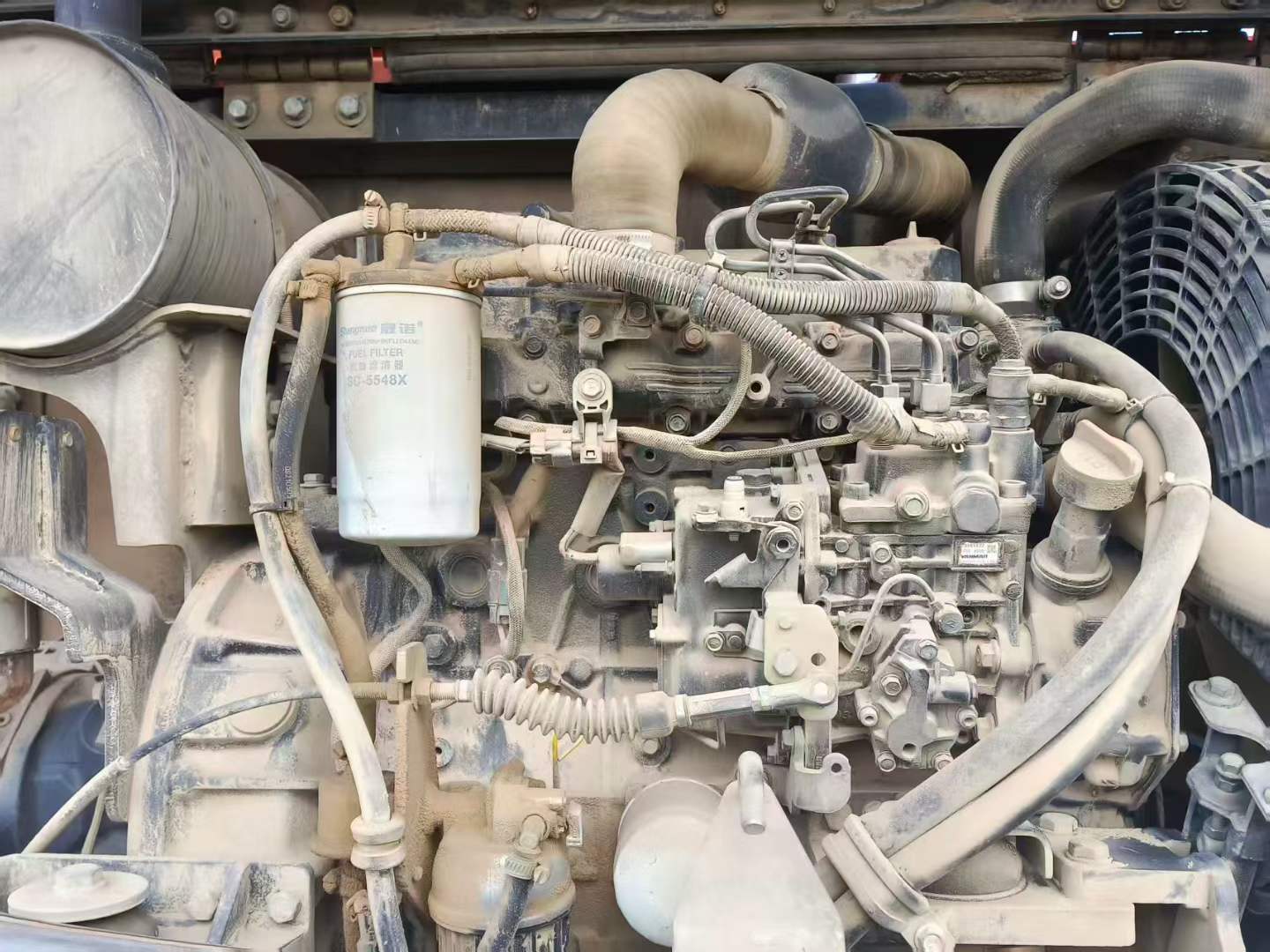

- Engine: Yanmar 4TNV94L, 39.7kW @ 2200rpm
- Operating Weight: 5700kg with 0.21m³ bucket capacity
- Digging Performance: 6150mm reach, 3805mm depth, 44kN bucket force
- Hydraulics: Dual 60.5 L/min pumps + 36 L/min auxiliary, 21.6 MPa circuits
- Dimensions: 5850mm (L) × 2000mm (W) × 2575mm (H) transport size
- Mobility: 78% grading ability, 4.1/3.0 km/h travel speeds
Ideal for construction, landscaping, and utility work requiring compact access without sacrificing power. Smart buyers choose proven used equipment—superior value, im
| Specifications | Value |
|---|---|
| No. | 1013341 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
