Product Description

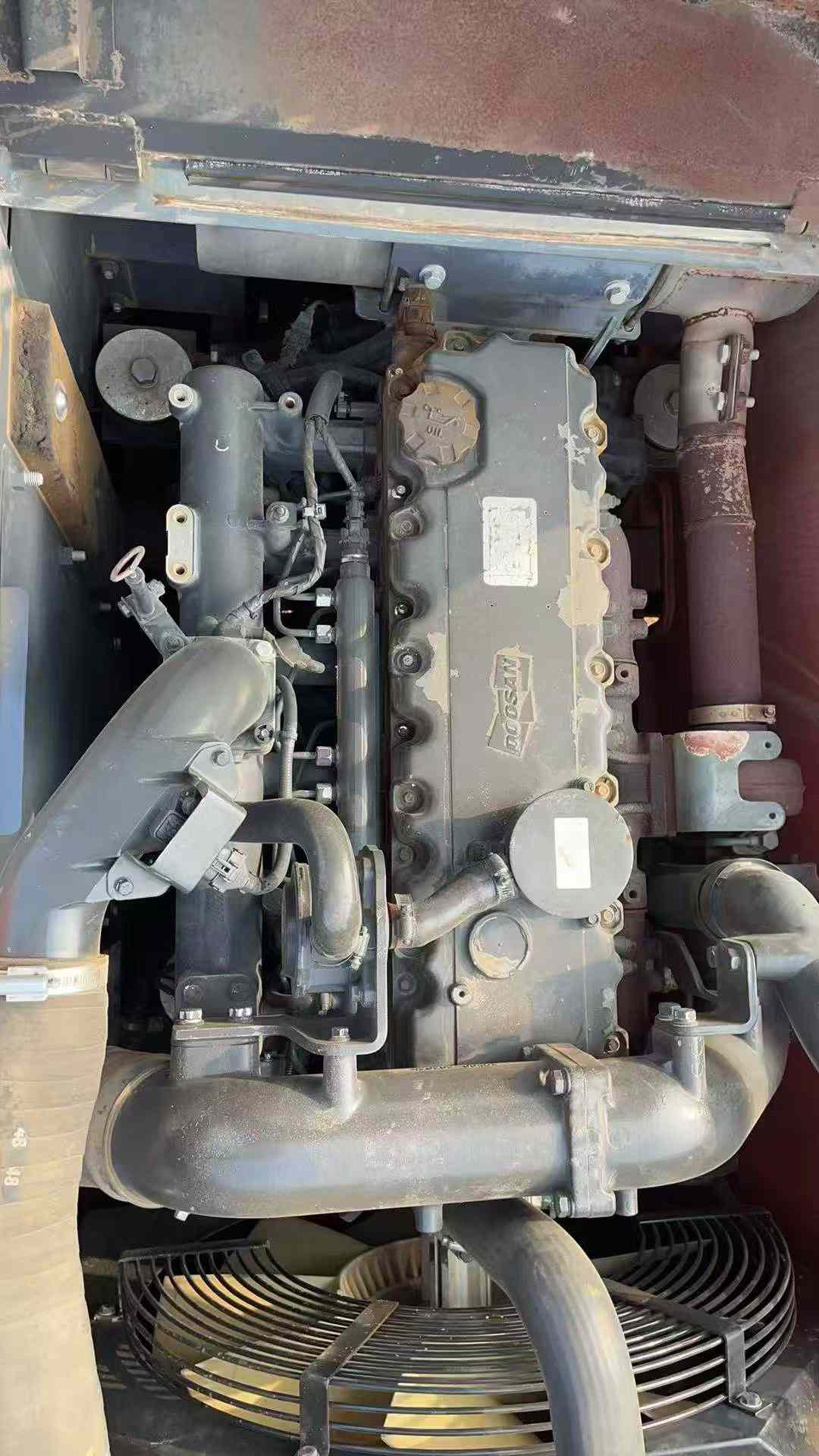

Skip the factory lead times with this 2019 Doosan DX60 excavator, available now in 广西 for immediate deployment to your construction site. Built with proven Yanmar 4TNV94L engine technology, this 6-ton compact excavator delivers 39.7kW of reliable power and exceptional fuel efficiency from its 115L tank.
Engineered for versatility in tight spaces, the DX60 combines a compact 2000mm transport width with impressive reach capabilities:
- Maximum digging radius of 6150mm for extended operational range
- 3805mm maximum digging depth for deep excavation projects
- 44kN bucket digging force ensuring efficient material handling
- Fast 4.1 km/h travel speed for rapid site positioning

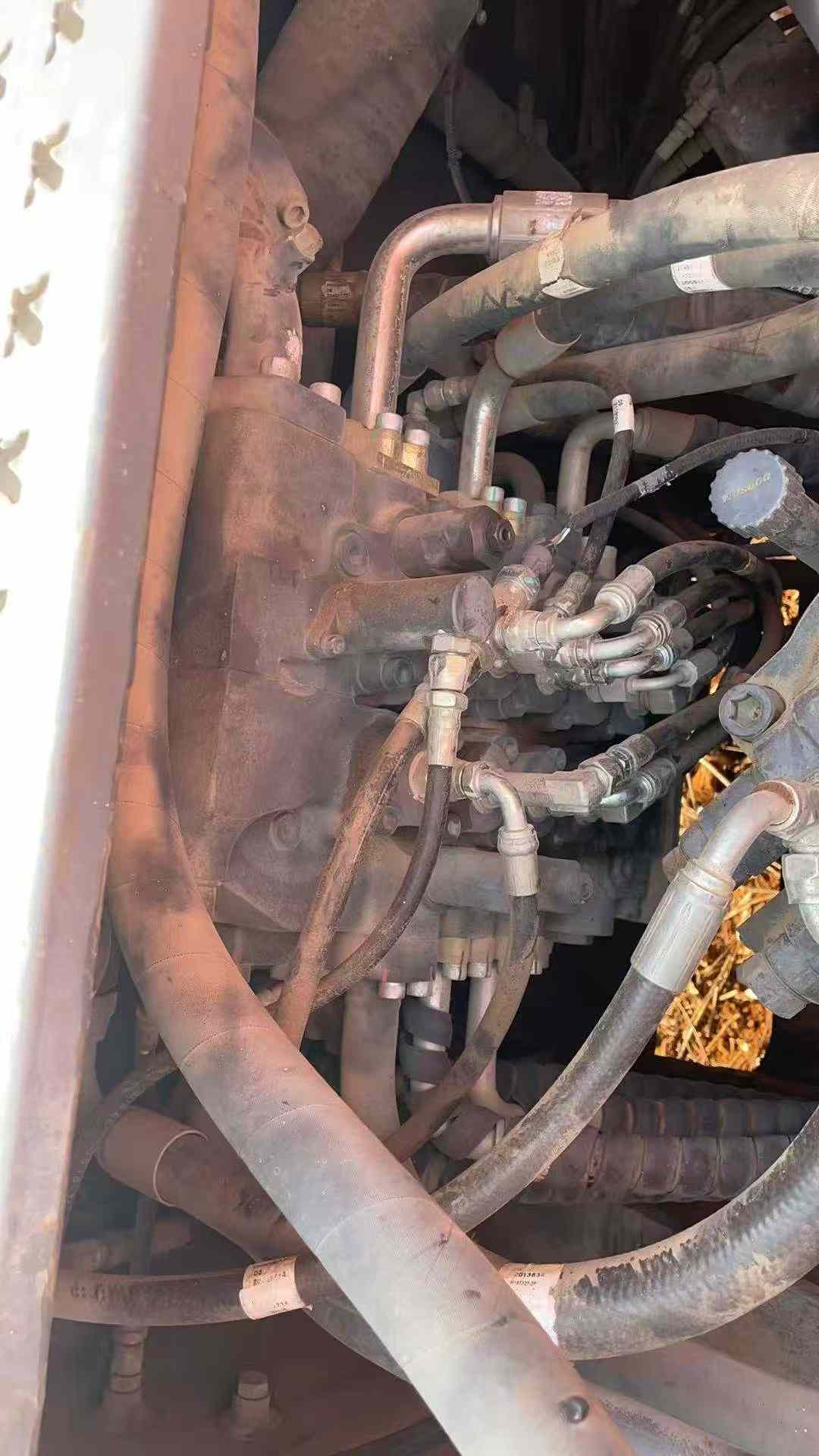

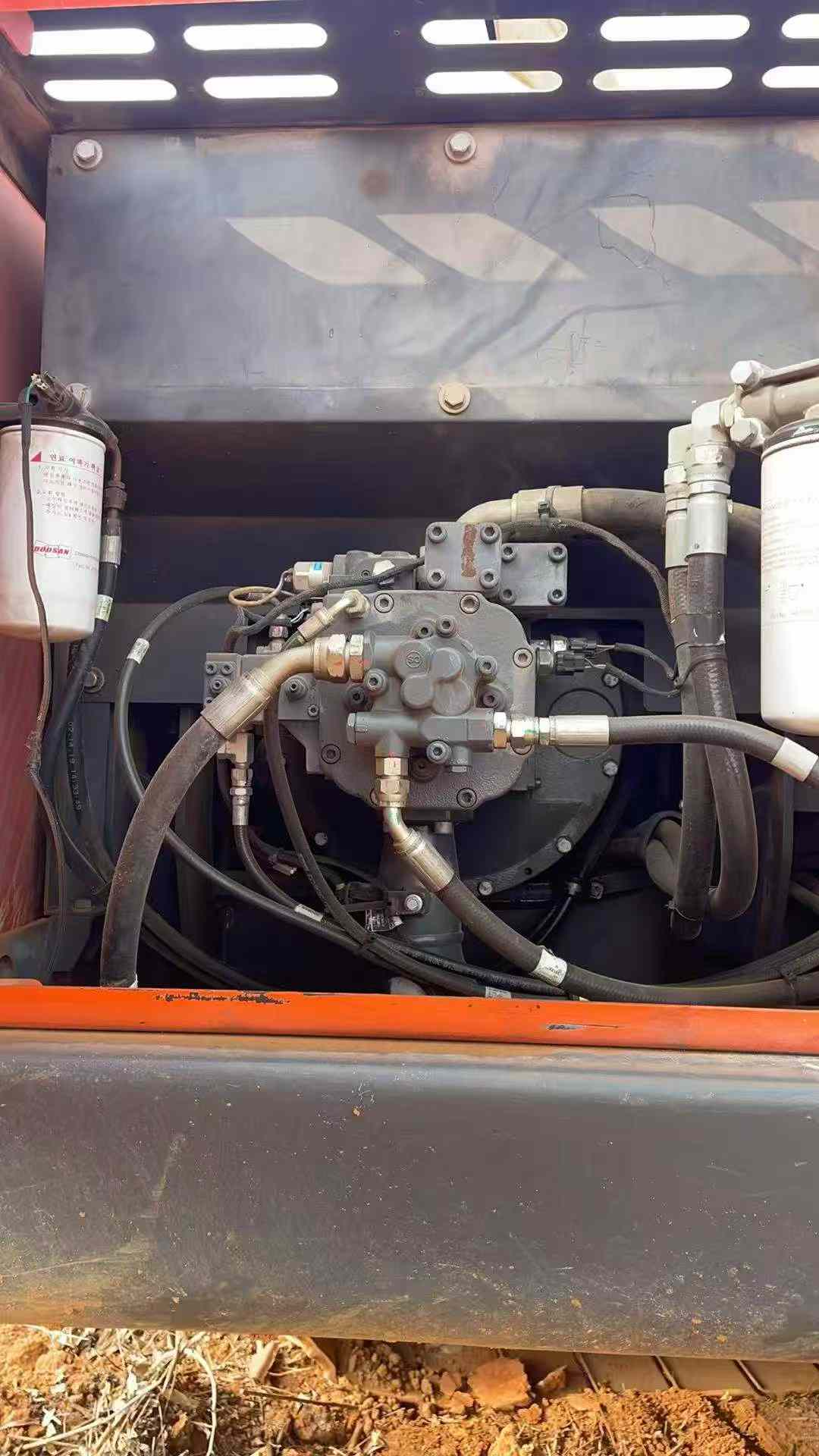

Located strategically in 广西, this machine offers immediate availability without manufacturing delays. The dual hydraulic pump system (60.5L/min x2 + 36L/min) provides smooth, responsive operation while the 400mm ground clearance ensures reliable performance across varied terrain conditions. Ready for immediate dispatch to your project location.
| Specifications | Value |
|---|---|
| No. | 991846 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
