Product Description

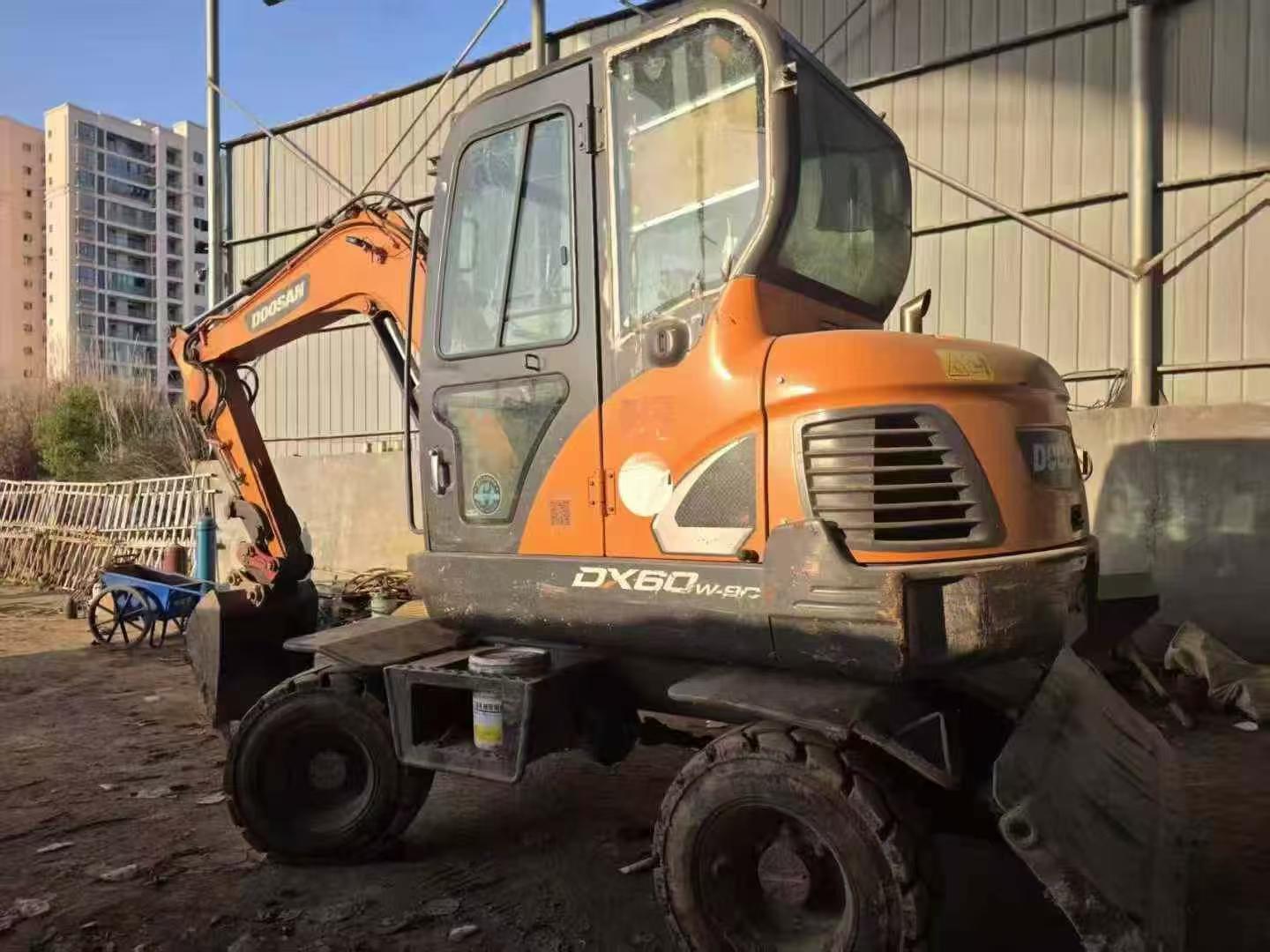

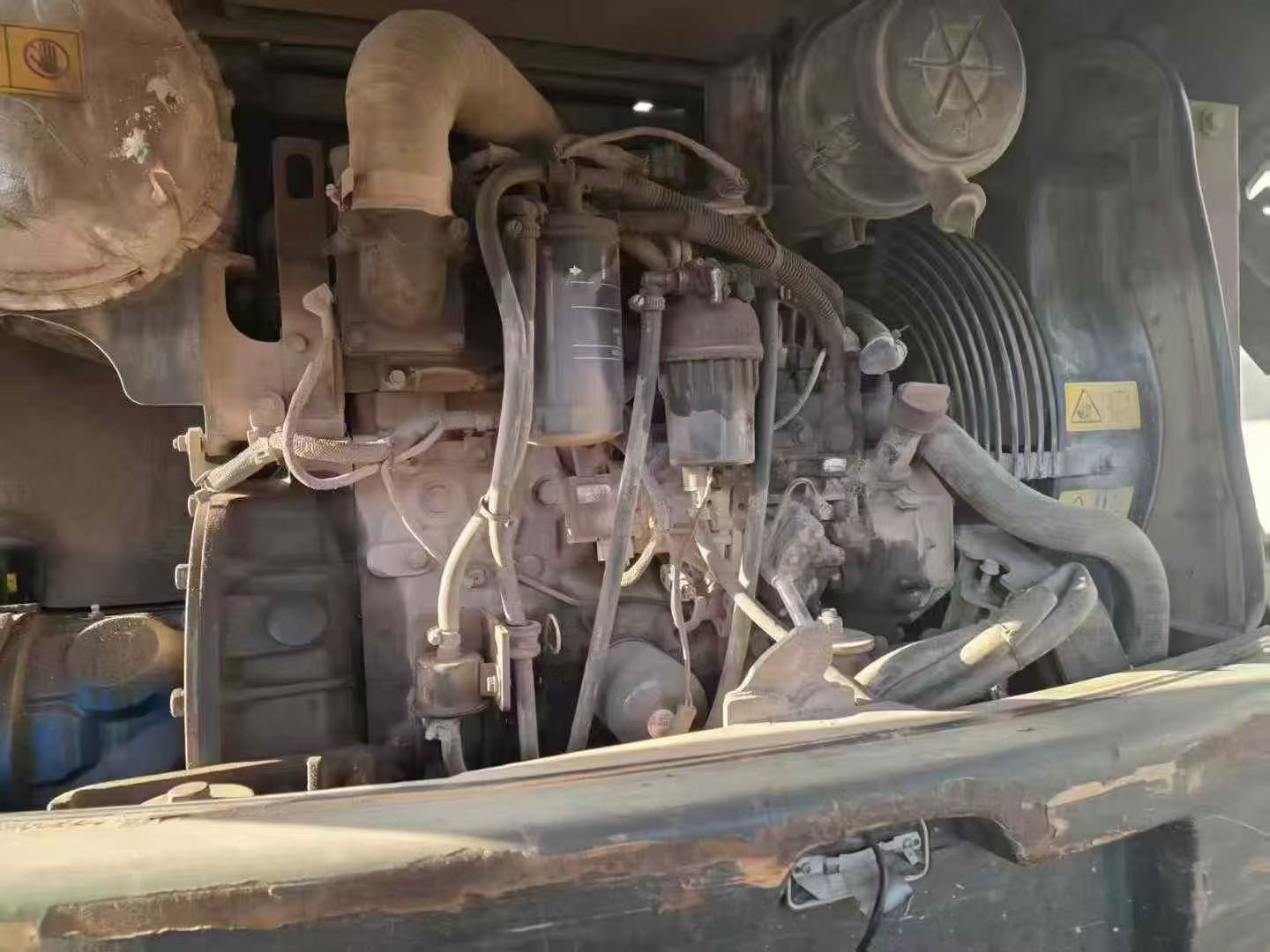

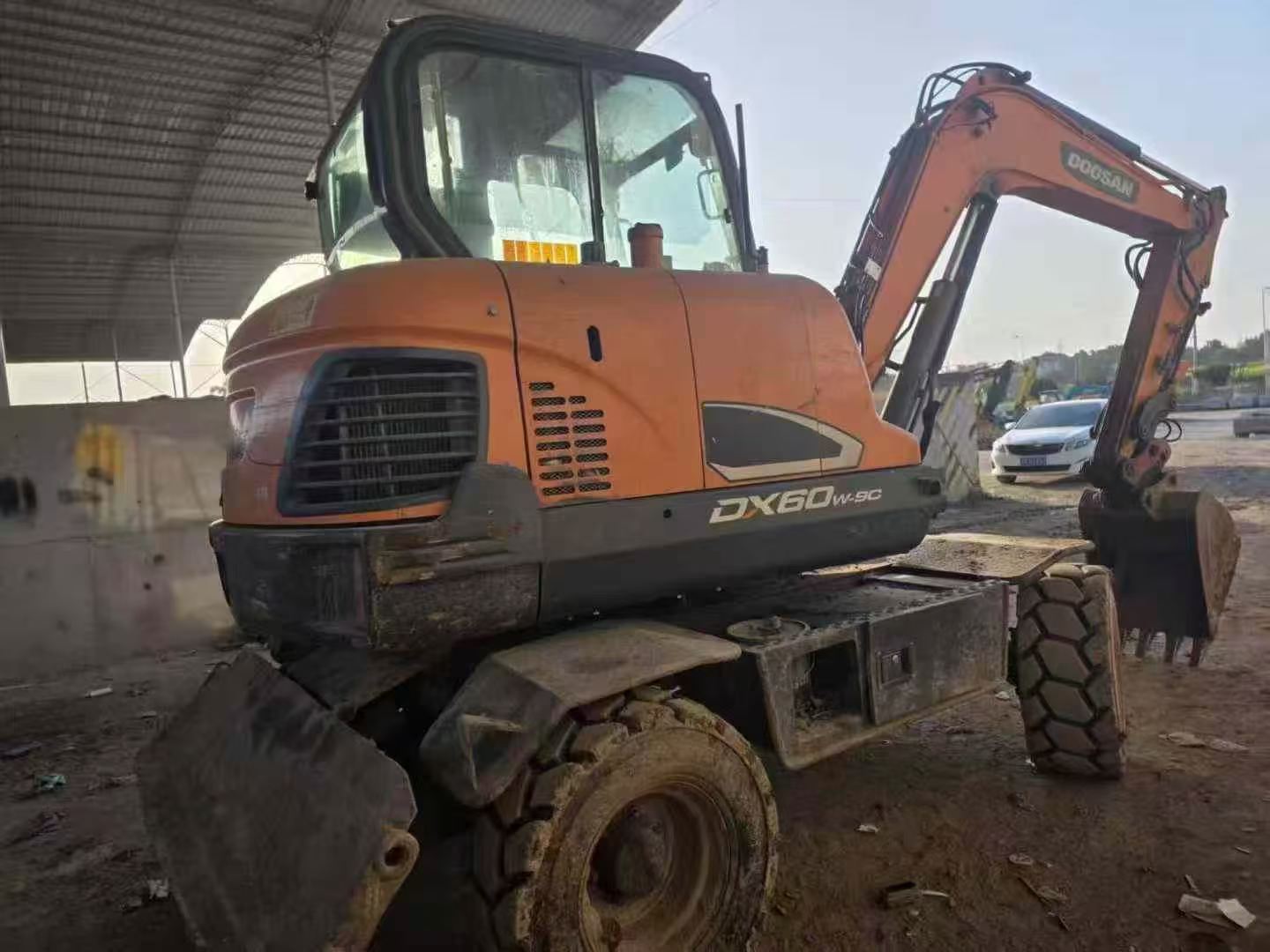

Engineered with precision hydraulics and proven Yanmar 4TNV94L power, this 2020 Doosan DX60 delivers 39.7 kW at 2,200 rpm with exceptional fuel efficiency from its 115L tank. Dual main pumps supply 60.5 l/min each, operating at 21.6 MPa across both travel and working circuits for consistent performance under load. The 6-ton class excavator generates 44 kN bucket digging force and 28 kN arm force, backed by a maximum tractive force of 58 kN for challenging terrain.
- Working Weight: 5,700 kg with 0.21 m³ bucket capacity
- Reach & Depth: 6,150 mm maximum digging radius, 3,805 mm digging depth
- Boom/Arm: 3,000 mm / 1,600 mm for optimal breakout geometry
- Mobility: 1,650 mm rear turning radius, 78% gradeability (30°)
- Transport Dimensions: 5,850 × 2,000 × 2,575 mm
- Location: Lianyungang, Jiangsu Province
Joint-venture manufacturing standards ensure reliable component integration and serviceability across global markets.
| Specifications | Value |
|---|---|
| No. | 1015320 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
