Product Description

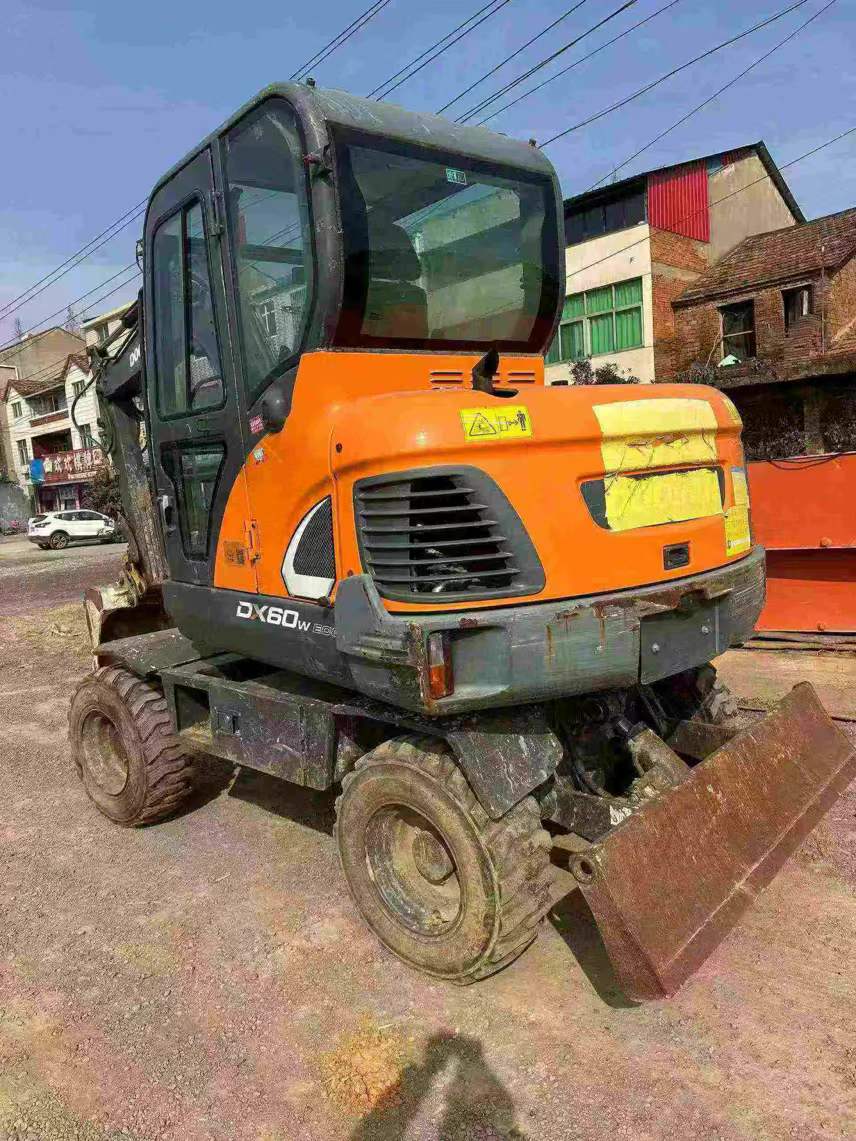

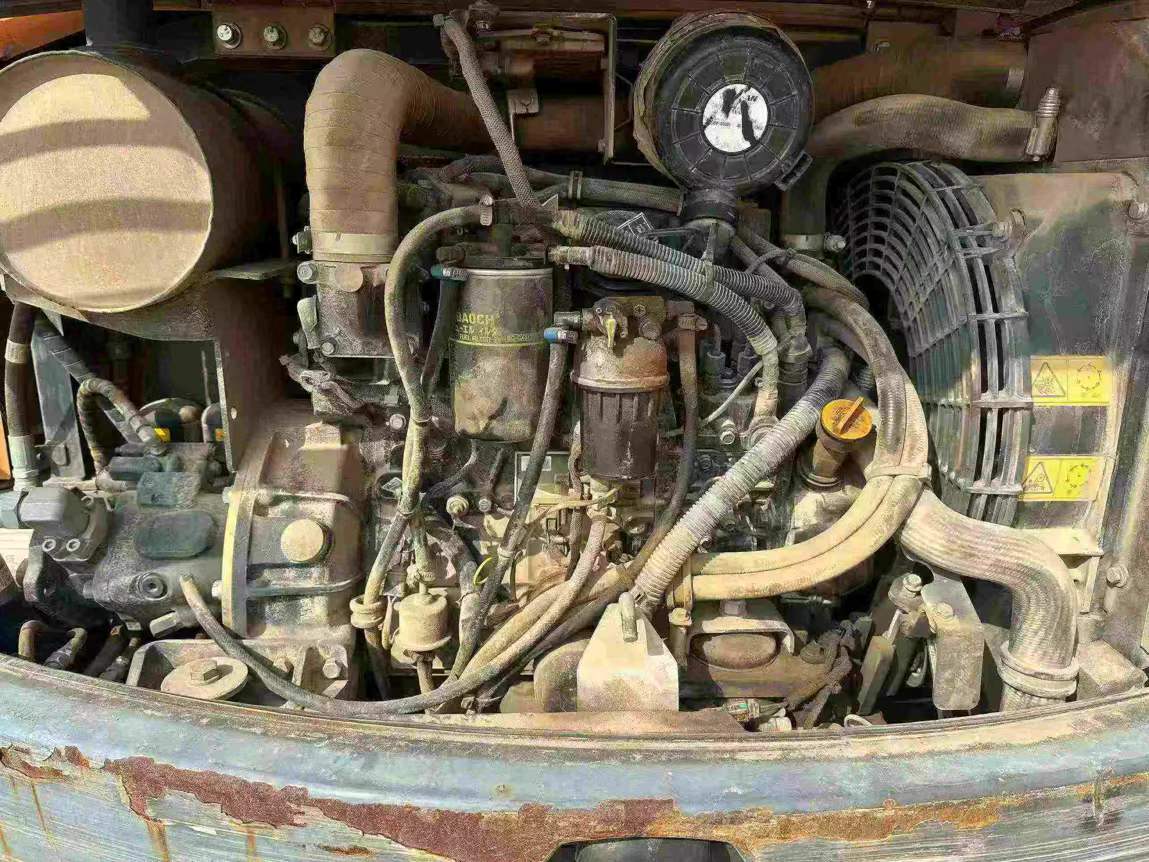

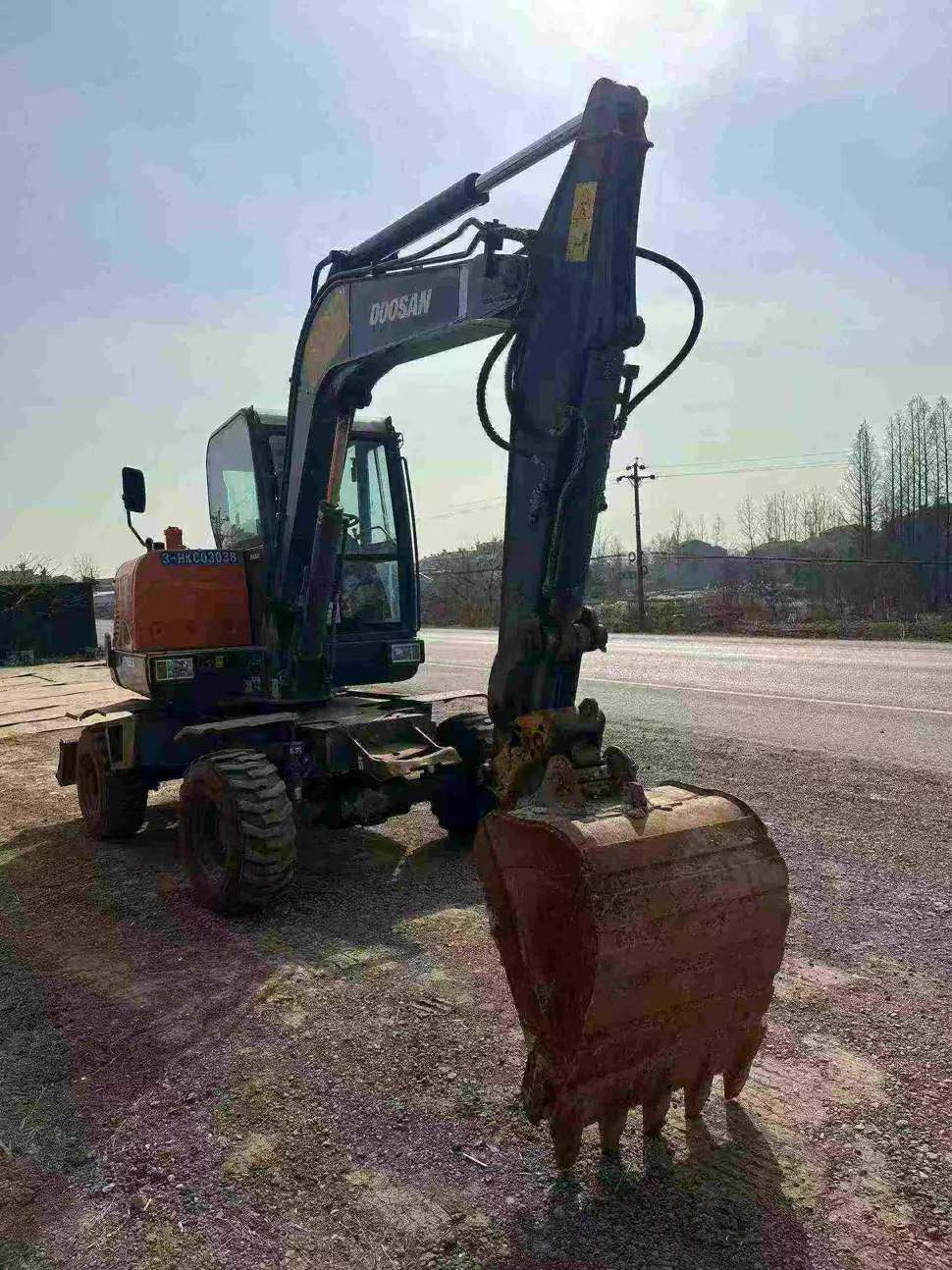

Ready to ship from 福建宁德 (Fujian Ningde), this 2021 Doosan DX60 mini excavator eliminates factory wait times and delivers immediate productivity to your project. Powered by a reliable Yanmar 4TNV94L engine producing 39.7 kW at 2200 rpm, this 6-ton workhorse combines compact dimensions (2000 mm width) with serious digging capability—3805 mm maximum depth and 6150 mm reach ensure versatility across construction, landscaping, and utility applications.
- Working Weight: 5700 kg with 0.21 m³ bucket capacity
- Digging Performance: 44 kN bucket force, 28 kN arm force

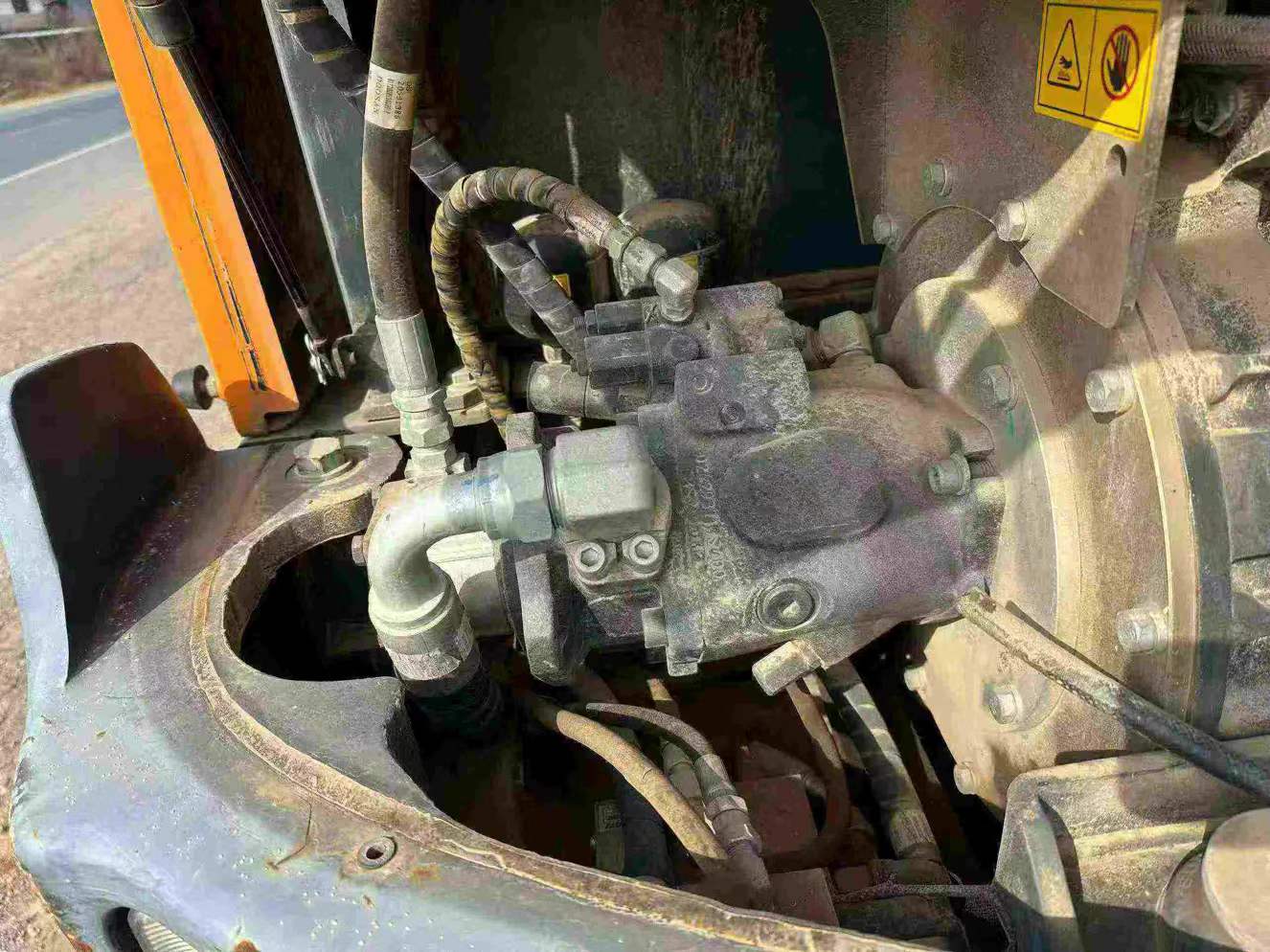

- Hydraulic System: Dual 60.5 L/min pumps + 36 L/min auxiliary, 21.6 MPa circuit pressure
- Mobility: 1650 mm rear swing radius, 400 mm ground clearance, 78% gradeability
- Transport Dimensions: 5850 × 2000 × 2575 mm
- Availability: In-stock in 福建宁德—fast deployment to your site
Skip months of lead time. This joint-venture manufactured unit is inspected, serviced, and available now for immediate delivery across domestic and international markets.
| Specifications | Value |
|---|---|
| No. | 1013863 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |

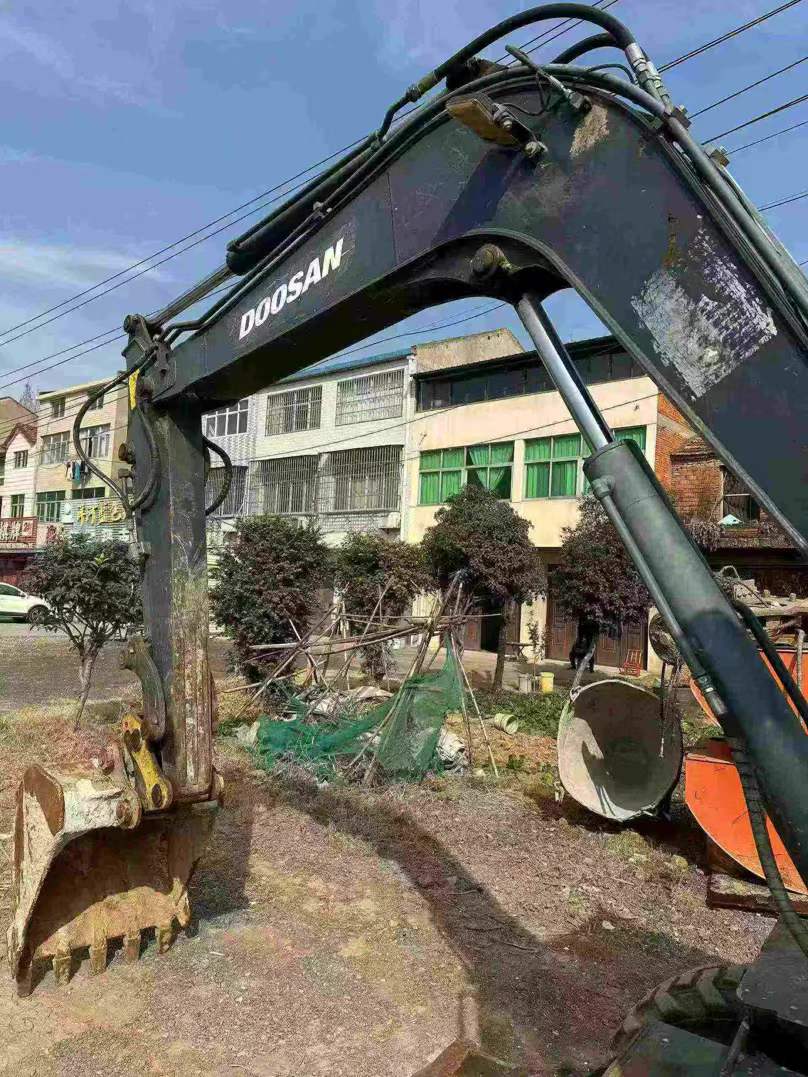

| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
