Product Description

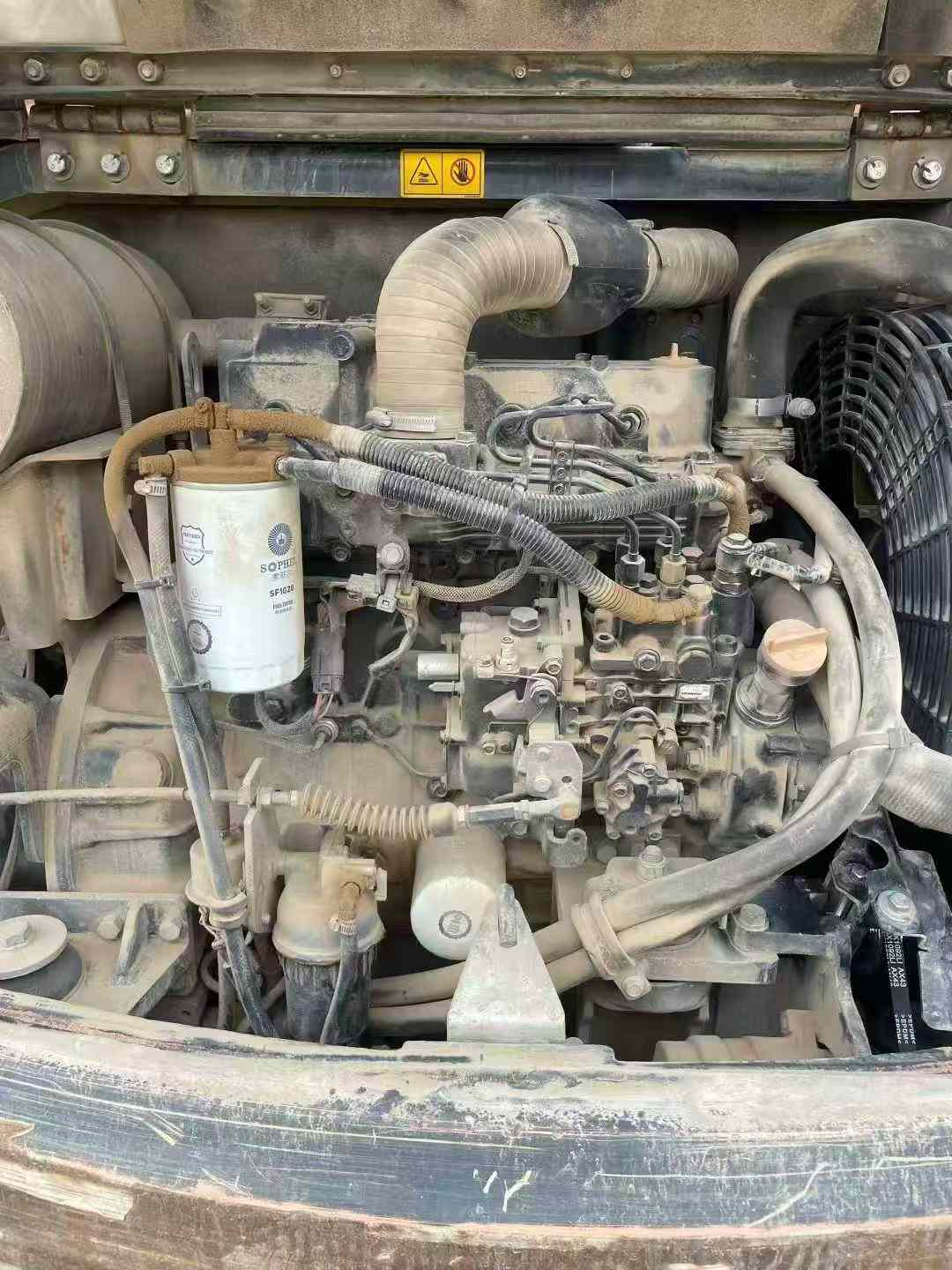

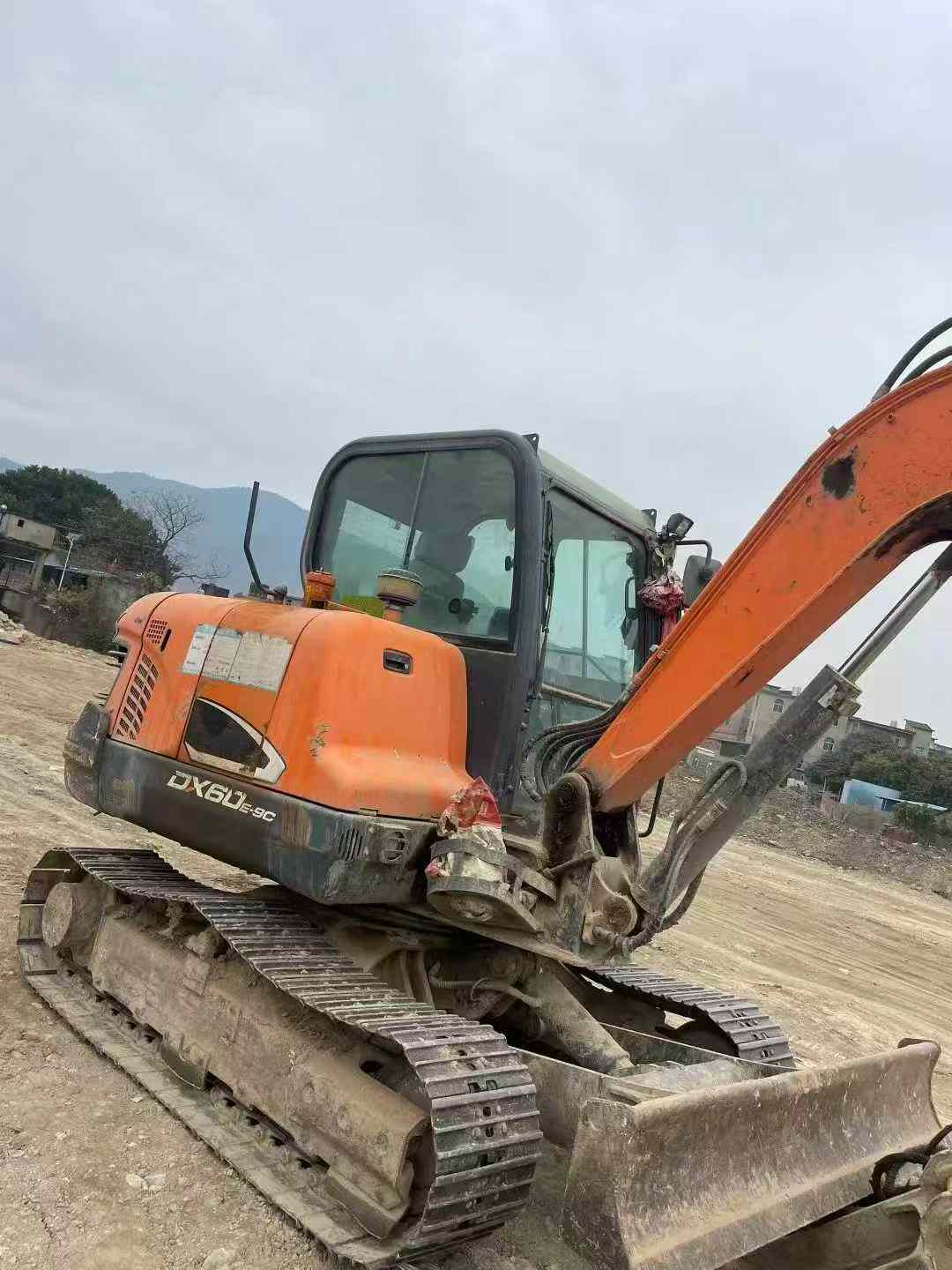

Engineered for precision and reliability, this 2021 Doosan DX60 excavator delivers exceptional performance in the 6-ton class. At its core sits the proven Yanmar 4TNV94L engine, generating 39.7 kW at 2200 rpm with consistent torque delivery of 20-22 N·m. Dual main pumps supply 60.5 l/min each, complemented by an auxiliary 36 l/min circuit, ensuring responsive hydraulic performance across all functions at 21.6 MPa operating pressure.
Performance specifications demonstrate superior capability:
- Bucket digging force: 44 kN with 0.21 m³ capacity
- Maximum digging reach: 6,150 mm with 3,805 mm depth
- Working weight: 5,700 kg with optimal stability
- Rotation speed: 9.5 rpm for efficient cycle times
- Climbing ability: 78% gradient (30 degrees)
Built to joint venture/import standards in Yantai, this machine combines compact dimensions (5,850 mm transport length, 2,000 mm width) with impressive reach and power. The 115-liter fuel tank supports extended operation, while the 400 mm ground clearance and 1,650 mm rear turning radius provide versatility in confined spaces. Currently located in Lishui, Zhejiang, this DX60 represents proven Doosan engineering quality.
| Specifications | Value |
|---|---|
| No. | 996524 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
