Product Description

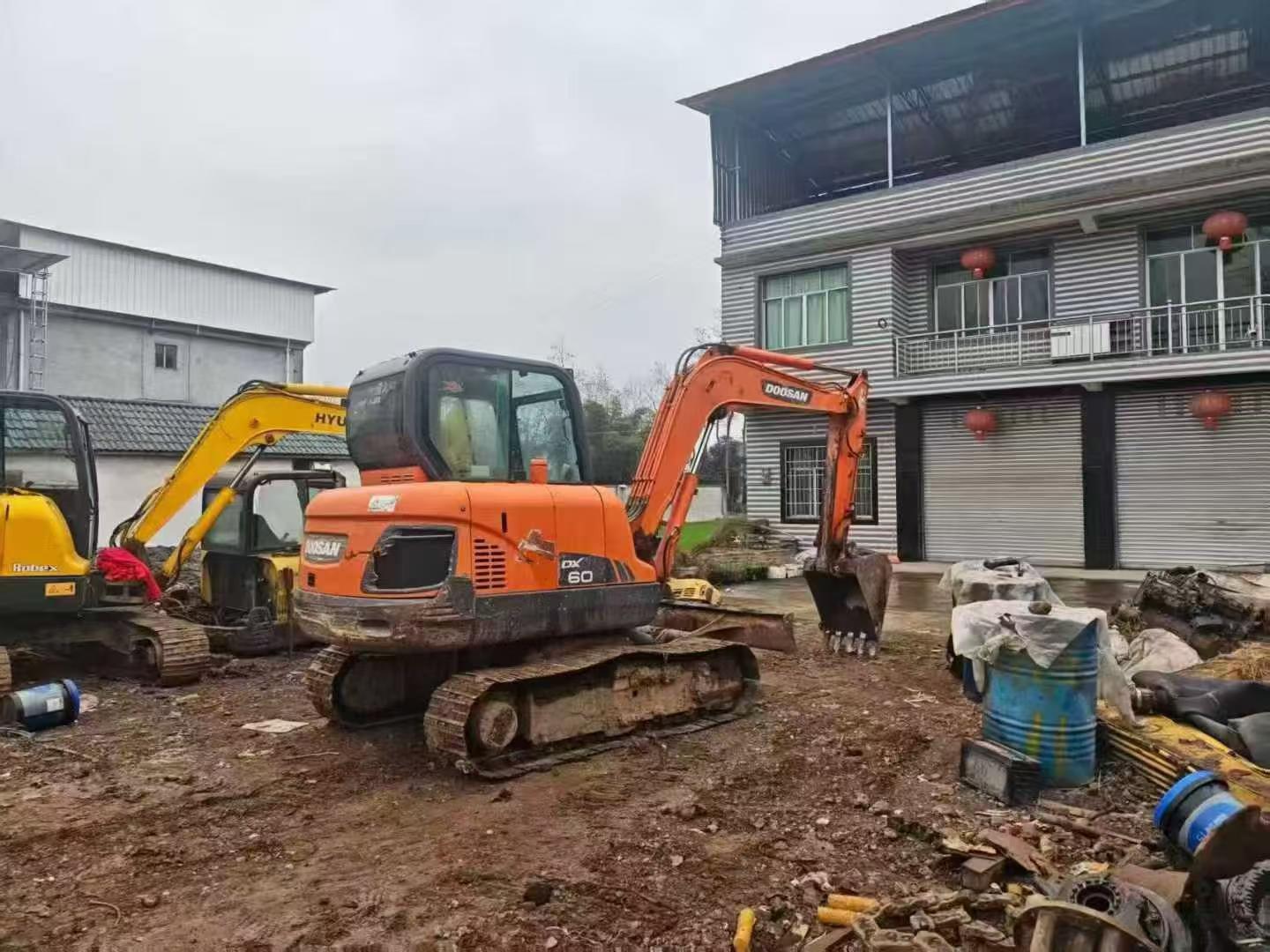

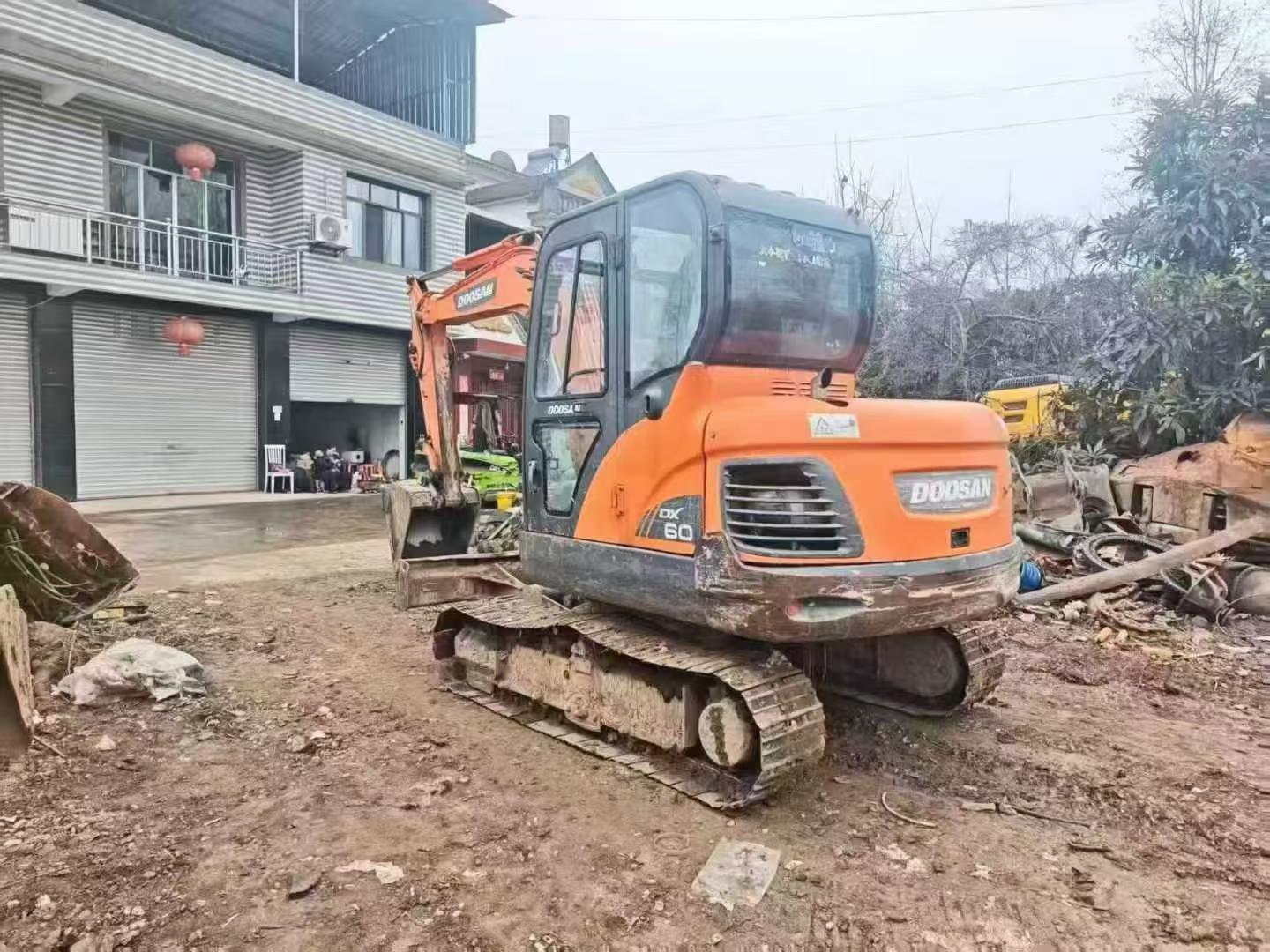

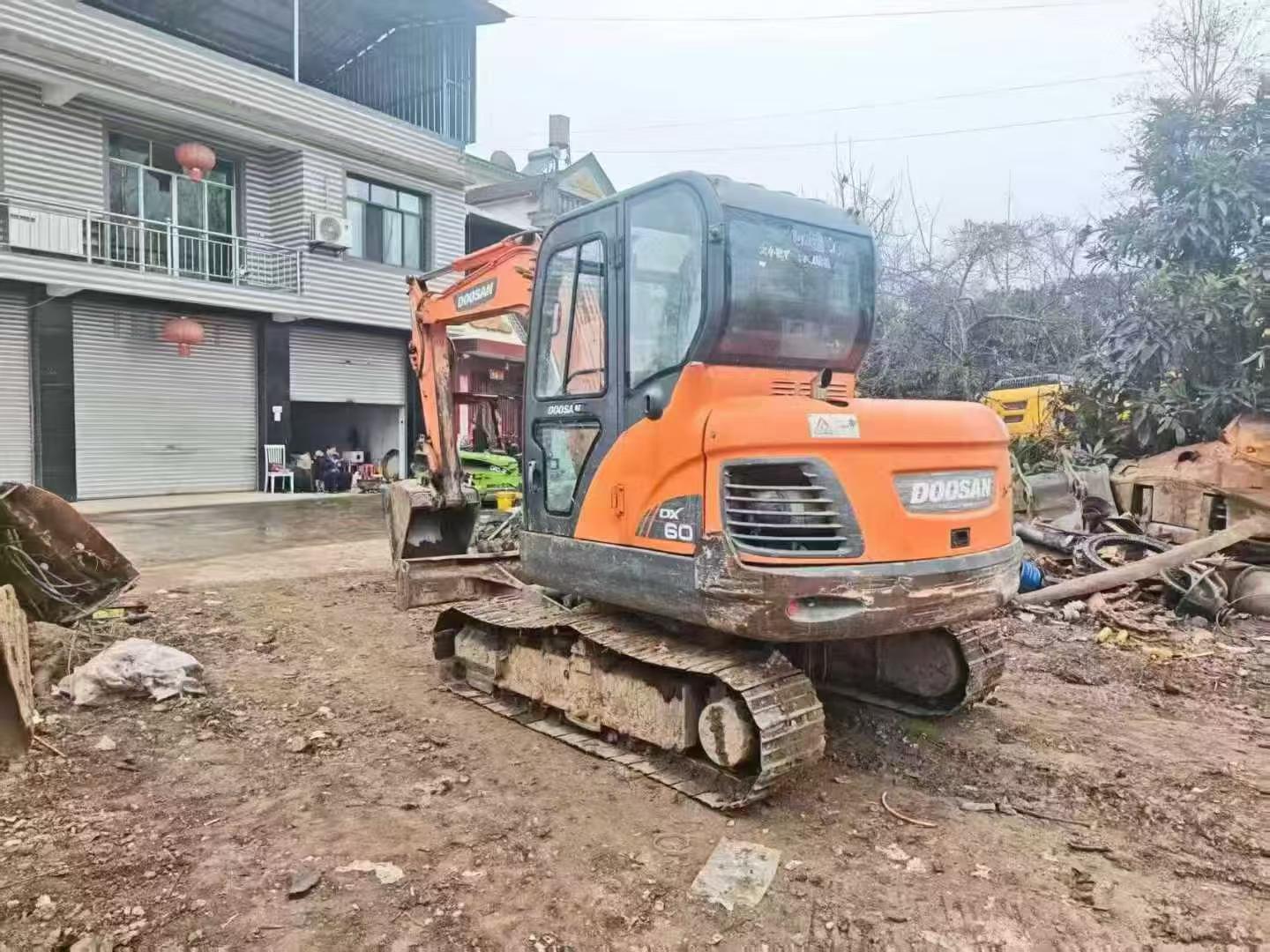

With a robust 6-ton working weight and a reliable YANMAR 4TNV94L engine, this 2016 Doosan DX60-9 excavator is an ideal fleet addition for busy contractors. Boasting a bucket capacity of 0.21 m³ and a maximum digging depth of 3820 mm, it ensures efficient performance on various job sites. The machine's 54 kW rated power at 2200 rpm and 20-22 N.m torque at 1100 rpm provide the necessary strength for demanding tasks.
- Maximum digging force: 4.4/2.9 kN
- Travel speed: 4.1/2.5 km/h
- Fuel tank capacity: 115 L
- Total transport dimensions: 5850 mm (length) x 2000 mm (width) x 2580 mm (height)
- Minimum ground clearance: 400 mm
- Back end turning radius: 1650 mm
Located in Hunan, this DX60-9 is ready to integrate into your fleet, offering dependable backup and enhancing your operational flexibility. Its versatile capabilities and durable construction make it a valuable asset for any contractor looking to expand their equipment lineup.
| Specifications | Value |
|---|---|
| No. | 1020170 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5.7 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | YANMAR 4TNV94L |
| Rated power (kw/rpm) | 54/2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 4.4/2.9 |
| Maximum tractive force (kN) | 5.8 |
| Travel speed (km/h) | 4.1/2.5 |
| Main overflow set pressure (Mpa) | 220/220 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2580 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4060 |
| Dodging plate width × height (mm) | 2000*350 |
