Product Description

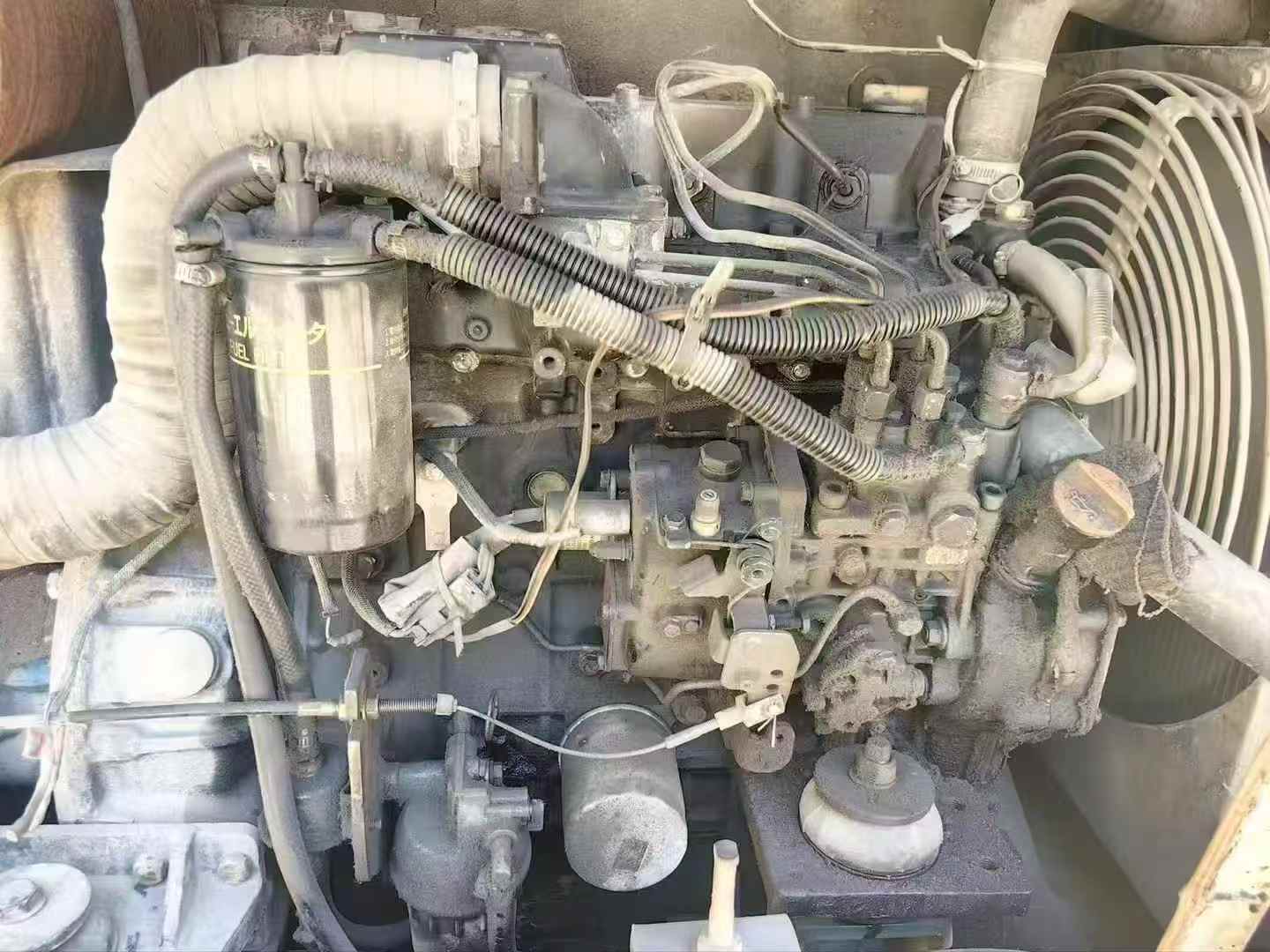

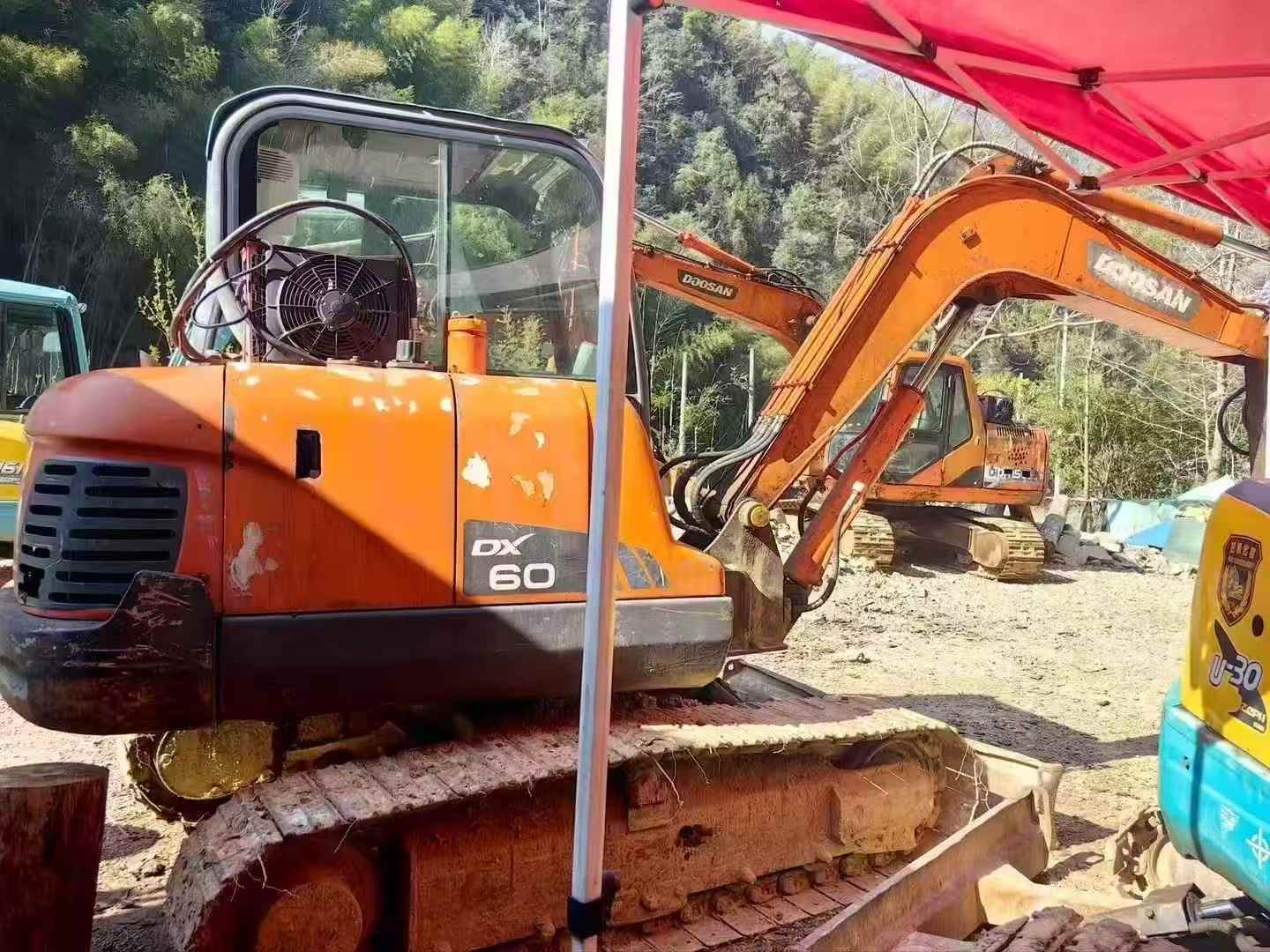

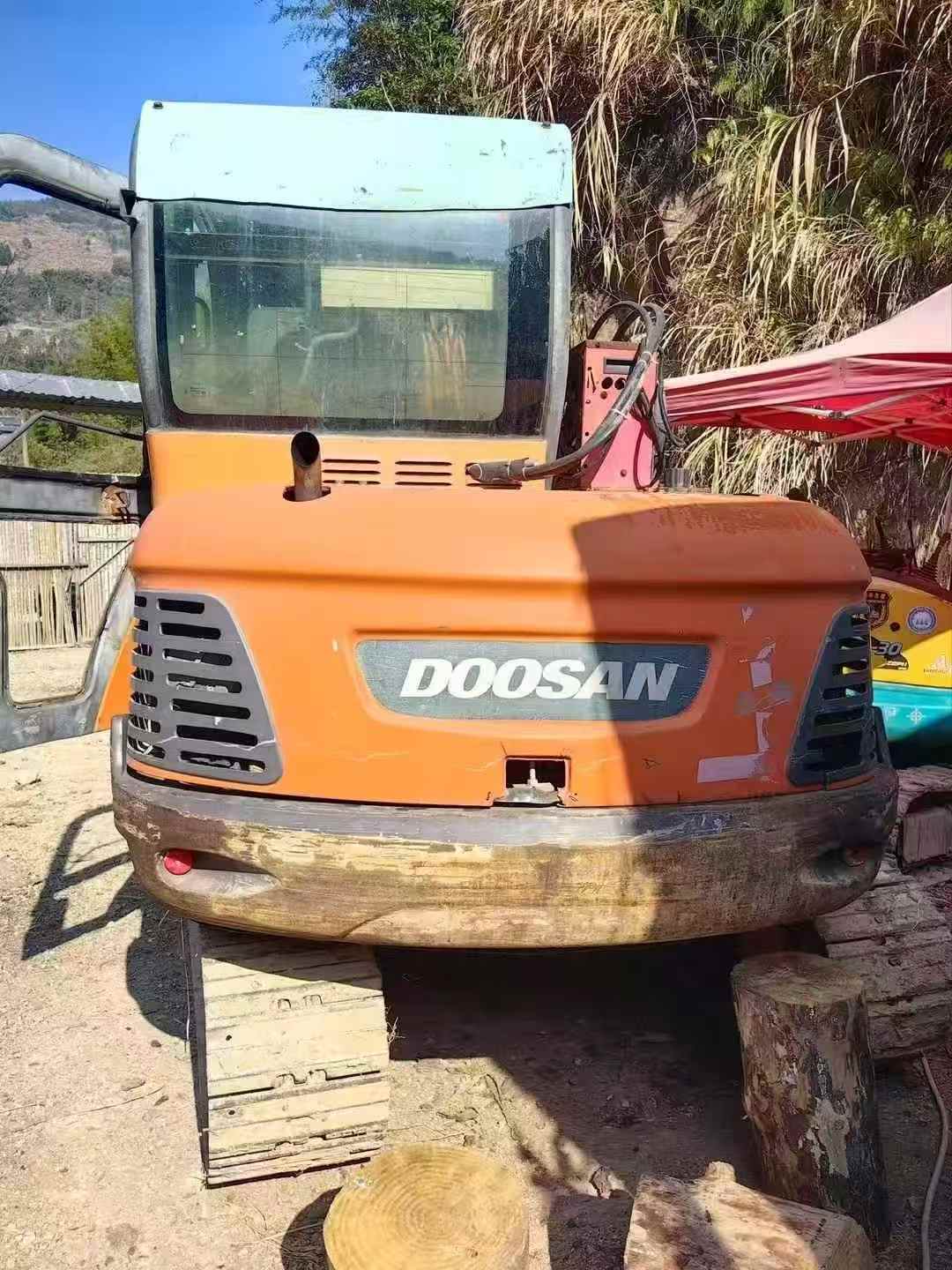

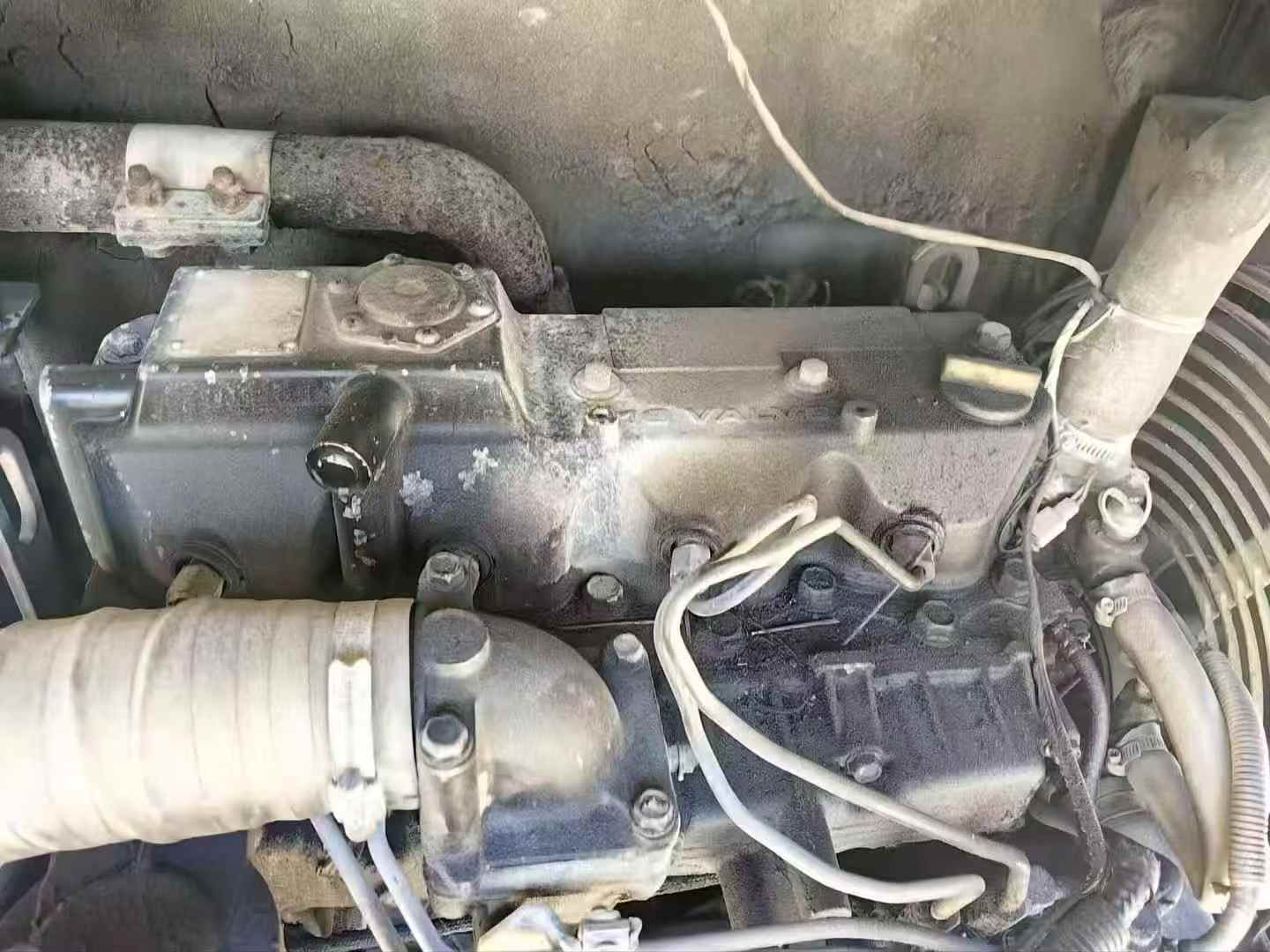

Available now in Guizhou, this 2016 Doosan DX60-9C compact excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a reliable YANMAR 4TNV94L engine producing 54kW at 2200rpm, this 5.7-ton machine offers the perfect balance of power and maneuverability for urban construction, utility work, and tight-access projects across Southwest China.
- Maximum digging depth of 3,820mm with 6,150mm operating reach
- Compact 2,000mm transport width navigates confined sites easily
- Strong 44kN bucket digging force handles tough soil conditions
- 1,650mm rear turning radius enables zero-tail operation near walls
- 115L fuel tank supports extended operation between refills
- 30% grading ability tackles challenging terrain confidently
Skip months of lead time—this ready-to-deploy excavator ships directly from Guizhou to your location. Backed by Doosan's proven joint-venture quality and YANMAR diesel reliability, it's engineered for operators who need performance today, not next quarter. Inspect remotely or arrange immediate on-site evaluation.
| Specifications | Value |
|---|---|
| No. | 1032251 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5.7 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | YANMAR 4TNV94L |
| Rated power (kw/rpm) | 54/2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 4.4/2.9 |
| Maximum tractive force (kN) | 5.8 |
| Travel speed (km/h) | 4.1/2.5 |
| Main overflow set pressure (Mpa) | 220/220 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2580 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4060 |
| Dodging plate width × height (mm) | 2000*350 |
