Product Description

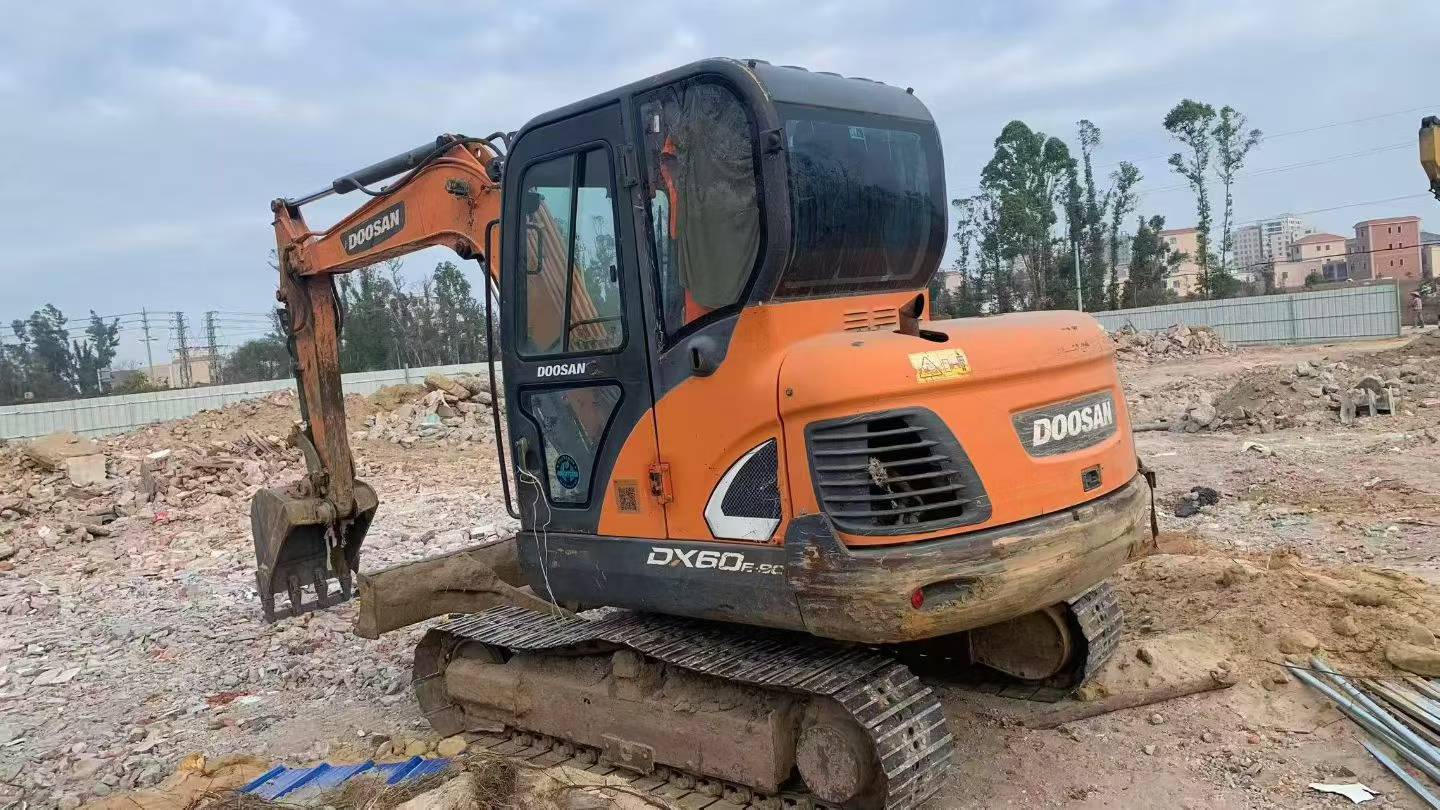

Powered by a robust D24C turbocharged diesel engine delivering 38.9 kW at 2100 rpm, this 2020 Doosan DX60-9C mini excavator combines proven engineering with operational efficiency. The dual variable piston pump system provides 2 × 57.8 l/min maximum flow, ensuring responsive hydraulic performance across all functions. With a 240 MPa working hydraulic circuit and 971 Nm turning torque, this 6-ton machine handles demanding excavation tasks with precision.
Built on joint venture manufacturing standards, this model features a 5,700 kg working weight optimized for versatility without sacrificing stability. Key specifications include:
- Maximum digging reach: 6,136 mm with 3,807 mm depth capability
- Bucket digging force: 42 kN (4.2 tons) for tough ground conditions
- Compact transport dimensions: 5,870 × 2,000 × 1,983 mm
- Low ground pressure: 30 kPa for reduced surface impact
- Efficient fuel capacity: 115L tank for extended operation
Currently located in Shenzhen, Guangdong, this DX60-9C represents Doosan's commitment to hydraulic efficiency and mechanical reliability in the compact excavator segment.
| Specifications | Value |
|---|---|
| No. | 1004921 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D24C DIESEL |
| Rated power (kw/rpm) | 38.9/2100 |
| Cylinder diameter × stroke (mm) | 90 x 94 |
| Number of cylinders (PCS) | 4 |
| Working form | In-line, turbocharged |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 9 |
| Bucket digging force (kN) | 4.2ton |
| Rod digging force (kN) | 2.8ton |
| Travel speed (km/h) | 4.2/2.3 |
| Turning torque (Nm) | 971 |
| Type of walking hydraulic motor | Axial piston hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 57.8 |
| Traveling Hydraulic Circuit (Mpa) | 240 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 240 |
| Fuel Tank (L) | 115 |
| Hydraulic System (L) | 62 |
| Total transport length (mm) | 5870 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 1983 |
| Full cab height (mm) | 2565 |
| Counterweight ground clearance (mm) | 350 |
| Minimum ground clearance (mm) | 700 |
| Minimum turning radius of front working device (mm) | 2365 |
| Back end turning radius (mm) | 1660 |
| Onboard width (mm) | 1850 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6136 |
| Maximum digging depth (mm) | 3807 |
| Maximum excavation height (mm) | 5788 |
| Maximum unloading height (mm) | 4064 |
| Maximum vertical digging depth (mm) | 3037 |
| Dodging plate width × height (mm) | 2000 x 350 |
| Maximum excavation radius of stop surface (mm) | 6000 |
| Maximum effective digging depth (mm) | 3388 |
