Product Description

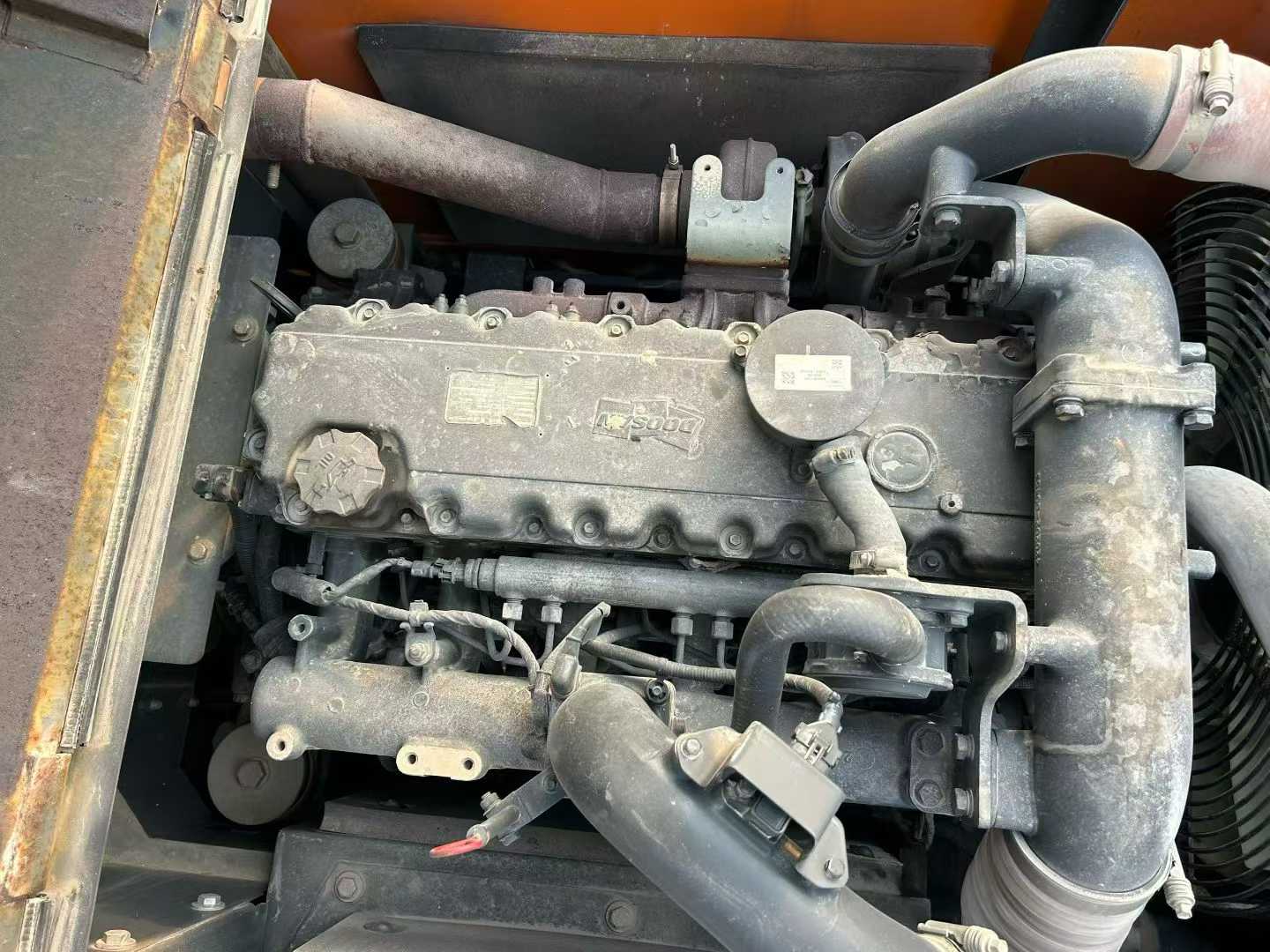

Built for immediate deployment on demanding jobsites, this 2020 Doosan DX60-9C mini excavator delivers reliable performance across digging, grading, and trenching operations. Operating at 5,700 kg working weight with a 0.21 m³ bucket capacity, this 6-ton machine combines compact dimensions with serious digging power. The D24C diesel engine generates 38.9 kW at 2100 rpm, providing consistent hydraulic flow through its dual variable piston pumps rated at 2 x 57.8 l/min.
Performance specifications include:
- Maximum digging depth of 3,807 mm and reach extending to 6,136 mm
- Bucket digging force of 42 kN with 28 kN rod force for tough soil conditions
- 3,000 mm boom and 1,600 mm arm configuration for versatile positioning
- Compact transport dimensions: 5,870 mm length x 2,000 mm width
- 240 MPa working hydraulic circuit with turbocharged in-line engine
Currently located in Sichuan, this joint venture-manufactured excavator features axial piston hydraulic motors, 115L fuel capacity, and 400 mm track plates for stable operation. Ready to tackle site preparation, utility installation, and material handling tasks without delay.
| Specifications | Value |
|---|---|
| No. | 1007845 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D24C DIESEL |
| Rated power (kw/rpm) | 38.9/2100 |
| Cylinder diameter × stroke (mm) | 90 x 94 |
| Number of cylinders (PCS) | 4 |
| Working form | In-line, turbocharged |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 9 |
| Bucket digging force (kN) | 4.2ton |
| Rod digging force (kN) | 2.8ton |
| Travel speed (km/h) | 4.2/2.3 |
| Turning torque (Nm) | 971 |
| Type of walking hydraulic motor | Axial piston hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 57.8 |
| Traveling Hydraulic Circuit (Mpa) | 240 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 240 |
| Fuel Tank (L) | 115 |
| Hydraulic System (L) | 62 |
| Total transport length (mm) | 5870 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 1983 |
| Full cab height (mm) | 2565 |
| Counterweight ground clearance (mm) | 350 |
| Minimum ground clearance (mm) | 700 |
| Minimum turning radius of front working device (mm) | 2365 |
| Back end turning radius (mm) | 1660 |
| Onboard width (mm) | 1850 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6136 |
| Maximum digging depth (mm) | 3807 |
| Maximum excavation height (mm) | 5788 |
| Maximum unloading height (mm) | 4064 |
| Maximum vertical digging depth (mm) | 3037 |
| Dodging plate width × height (mm) | 2000 x 350 |
| Maximum excavation radius of stop surface (mm) | 6000 |
| Maximum effective digging depth (mm) | 3388 |
