2020 Doosan DX60-9C

1/9
Buy Doosan DX60-9C Used Excavator / 1
Buy Doosan DX60-9C Used Excavator / 2
Buy Doosan DX60-9C Used Excavator / 3
Buy Doosan DX60-9C Used Excavator / 4
Buy Doosan DX60-9C Used Excavator / 5
Buy Doosan DX60-9C Used Excavator / 6
Buy Doosan DX60-9C Used Excavator / 7
Buy Doosan DX60-9C Used Excavator / 8
Buy Doosan DX60-9C Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Doosan DX60-9C, available for immediate purchase in Zhejiang, China. This used excavator, originally a local first-hand unit, has been a trusted workhorse on construction sites, ensuring robust performance and durability. Priced at 73,000 RMB, it offers an excellent cost-to-performance ratio for your project needs. Ideal for a variety of applications, this model is known for its strong digging force, efficient fuel consumption, and operator comfort, making it a valuable addition to any fleet.

  • Year: 2020
  • Brand: Doosan
  • Model: DX60-9C
  • Location: Zhejiang, China
  • Price: 73,000 RMB
SpecificationsValue
No.1119653
Tonnage (tons)6
Working weight (kg)5700
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

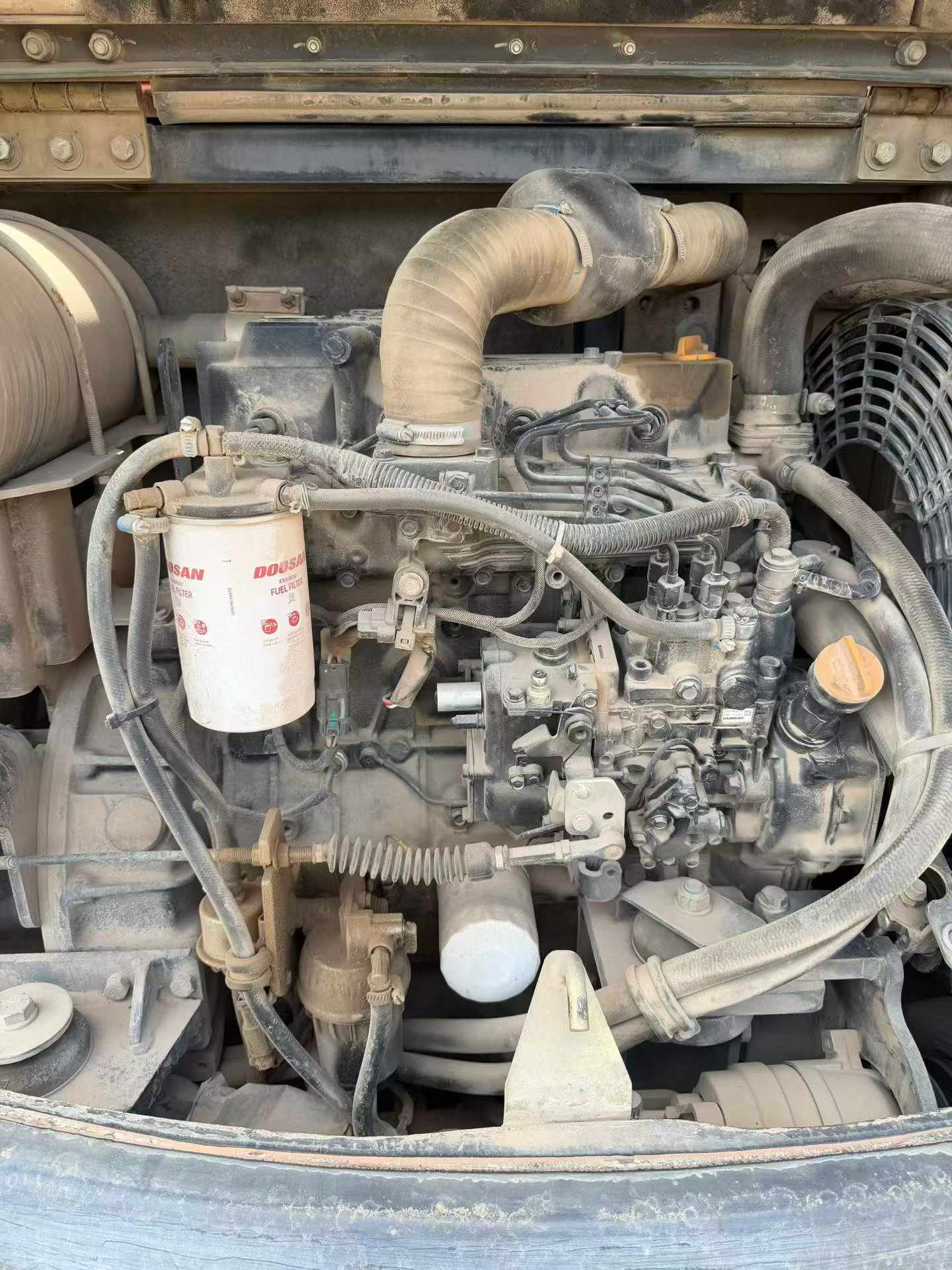

Engine typeD24C DIESEL
Rated power (kw/rpm)38.9/2100
Cylinder diameter × stroke (mm)90 x 94
Number of cylinders (PCS)4
Working formIn-line, turbocharged
Ground specific pressure (Kpa)30
Rotation speed (rpm)9
Bucket digging force (kN)4.2ton
Rod digging force (kN)2.8ton
Travel speed (km/h)4.2/2.3
Turning torque (Nm)971
Type of walking hydraulic motorAxial piston hydraulic motor
Maximum flow of main pump (l/min)2 x 57.8
Traveling Hydraulic Circuit (Mpa)240
Rotary Hydraulic Circuit (Mpa)220

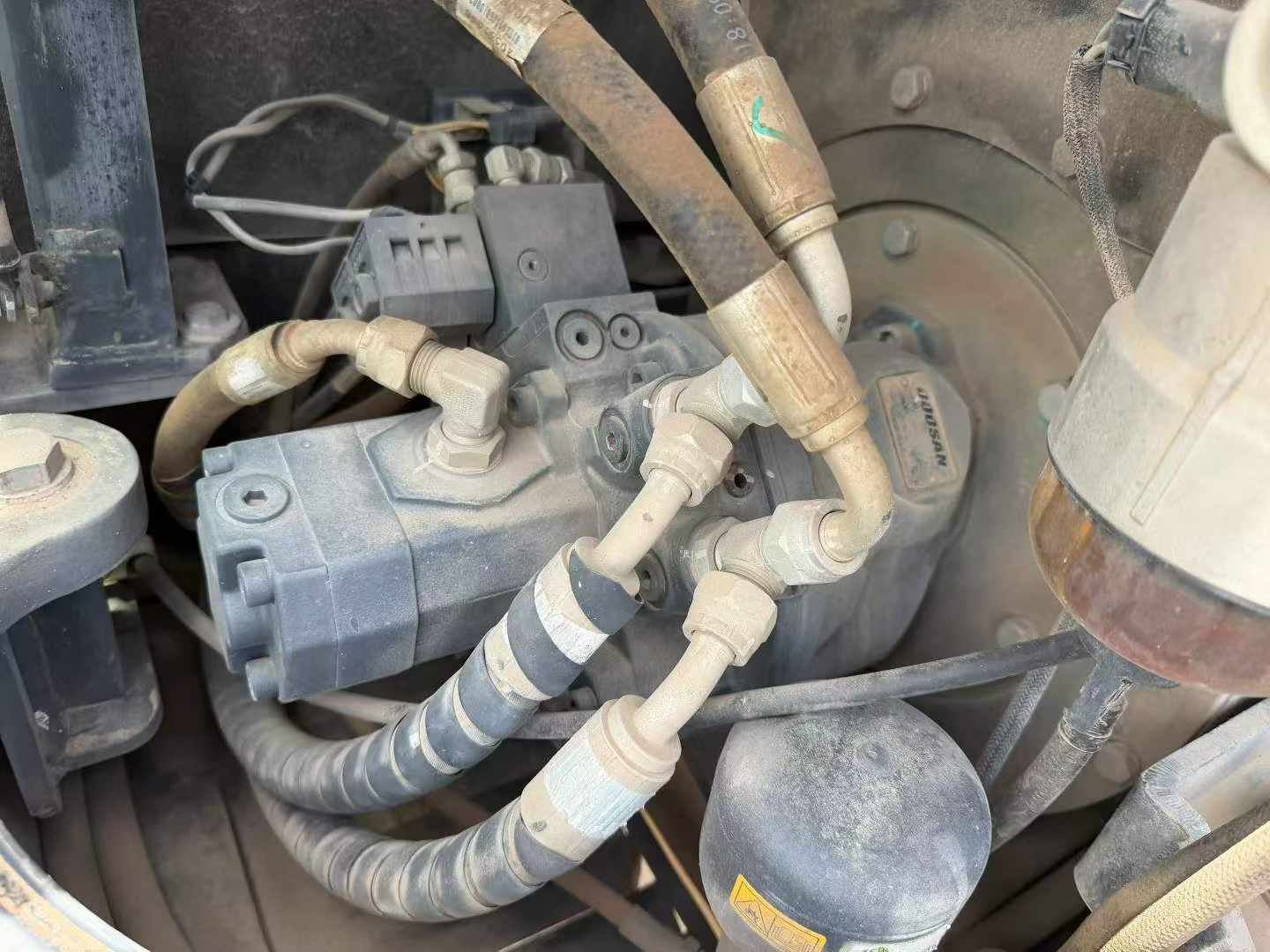

Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)240
Fuel Tank (L)115
Hydraulic System (L)62
Total transport length (mm)5870
Total transport width (mm)2000
Total transport height (mm)1983
Full cab height (mm)2565
Counterweight ground clearance (mm)350
Minimum ground clearance (mm)700
Minimum turning radius of front working device (mm)2365
Back end turning radius (mm)1660
Onboard width (mm)1850
Total track length (mm)2540
Track plate width (mm)400
Total track width (mm)2000
Maximum digging radius (mm)6136
Maximum digging depth (mm)3807
Maximum excavation height (mm)5788
Maximum unloading height (mm)4064
Maximum vertical digging depth (mm)3037
Dodging plate width × height (mm)2000 x 350
Maximum excavation radius of stop surface (mm)6000
Maximum effective digging depth (mm)3388
see more

Overview

No.1119653

Brand Name:

Doosan

Model Number:

DX60-9C

Year:

2020

Location:

Zhejiang China
