Product Description

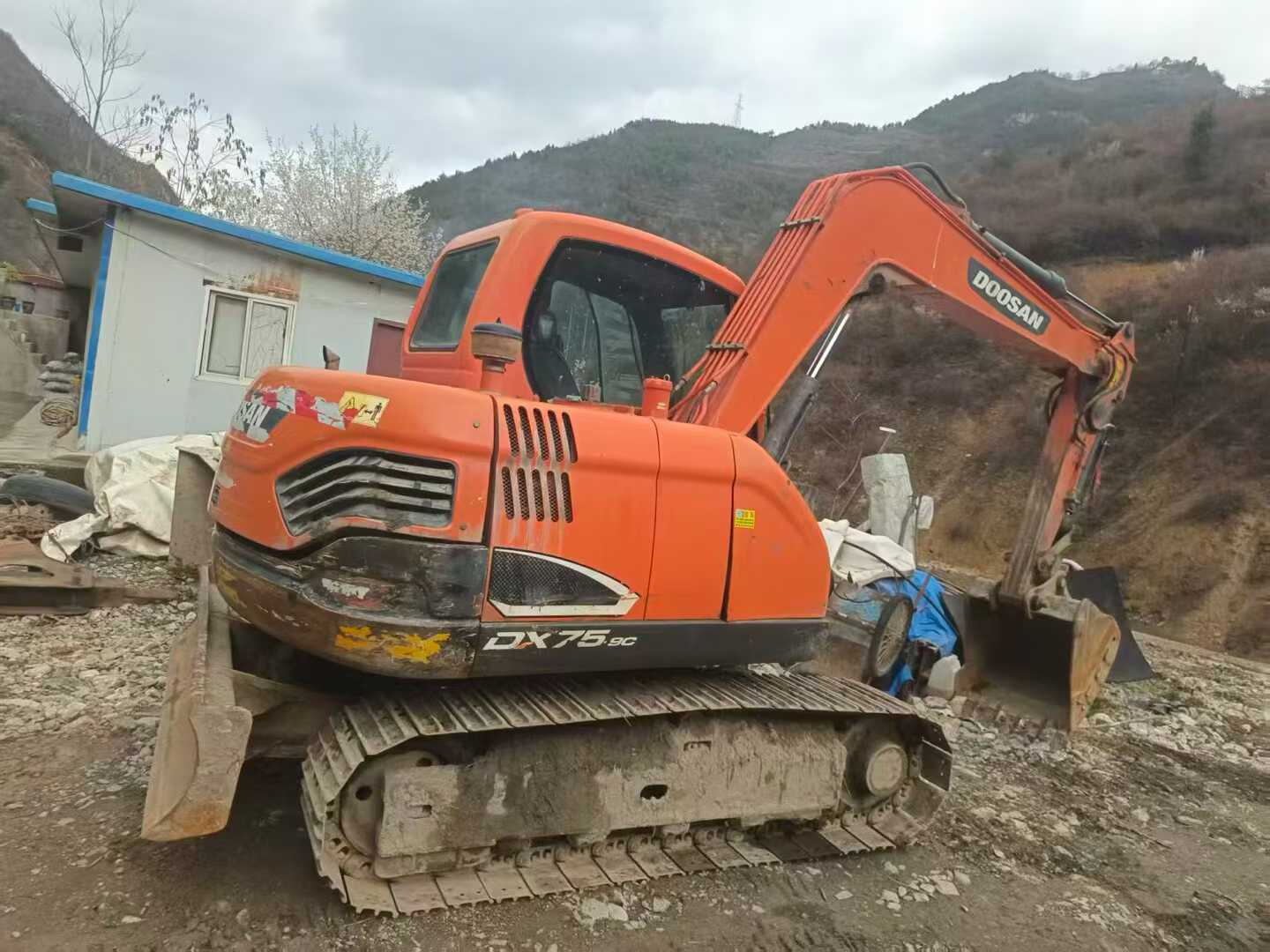

Equipped with the YANMAR 4TNV94L engine, this 2017 Doosan DX75-10 excavator delivers a robust 36.2 kW of power at 2200 rpm, ensuring efficient and reliable performance. With a working weight of 7500 kg and a bucket capacity of 0.3 m³, it is designed to handle a variety of tasks with precision and strength.

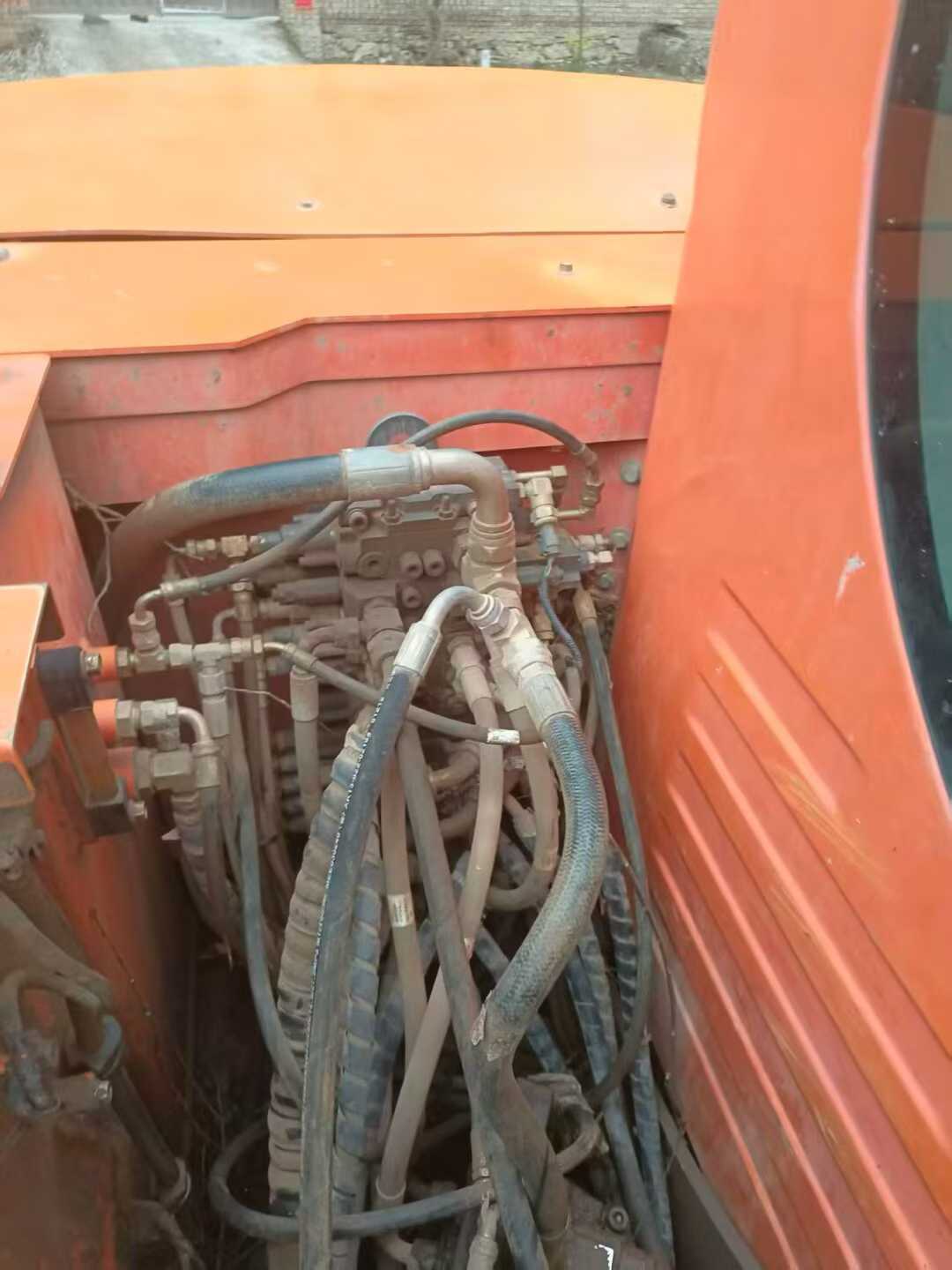

- Hydraulics: Features a hydraulic system that provides a bucket digging force of 52.3 kN and a rod digging force of 36.2 kN, enhancing its capability in tough conditions.
- Engine: The 4-cylinder engine, with a cylinder diameter × stroke of 94*110 mm, meets Country IV emission standards, offering both power and environmental compliance.
- Dimensions: Boasts a total transport length of 6030 mm, width of 2180 mm, and height of 2680 mm, making it suitable for various job sites.
- Performance: Achieves a maximum digging depth of 4080 mm and a maximum unloading height of 5170 mm, ideal for deep excavation and high dumping needs.
Located in 浙江丽水, this Doosan DX75-10 is a prime example of engineering excellence, built to meet the demands of rigorous construction environments.
| Specifications | Value |
|---|---|
| No. | 1033718 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7500 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3620 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | YANMAR 4TNV94L |
| Rated power (kw/rpm) | 36.2/2200 |
| Cylinder diameter × stroke (mm) | 94*110 |
| Number of cylinders (PCS) | 4 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 10.4 |
| Bucket digging force (kN) | 52.3 |
| Rod digging force (kN) | 36.2 |
| Travel speed (km/h) | 4.5/2.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2180 |
| Total transport height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 4080 |
| Maximum excavation height (mm) | 7100 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 2670 |
| Dodging plate width × height (mm) | 2100*418 |
| Maximum excavation radius of stop surface (mm) | 6115 |
