Product Description
Available now from our Hunan facility, this 2018 Doosan DX75-10 excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a reliable YANMAR 4TNV94L engine producing 36.2kW at 2200rpm, this 7.5-ton machine combines proven joint-venture engineering with Country IV emission compliance for regulated markets.
Compact dimensions—6030mm transport length and 2180mm width—enable rapid mobilization through urban corridors and confined sites. With a maximum digging depth of 4080mm and reach extending to 6270mm, operators tackle foundation work, utility trenching, and material handling with precision. The 0.3m³ backhoe bucket, backed by 52.3kN digging force, moves through dense soil efficiently while the 10.4rpm rotation speed maintains cycle productivity.
- Dual-speed travel: 4.5/2.9 km/h for varied terrain
- 130L fuel capacity extends runtime between refills
- 370mm ground clearance navigates uneven surfaces
- 1750mm rear turning radius optimizes tight-space maneuverability
Ready for immediate deployment from Hunan. Skip the lead times—secure this field-proven excavator and start operations within days, not months.
| Specifications | Value |
|---|---|
| No. | 1022475 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7500 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3620 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

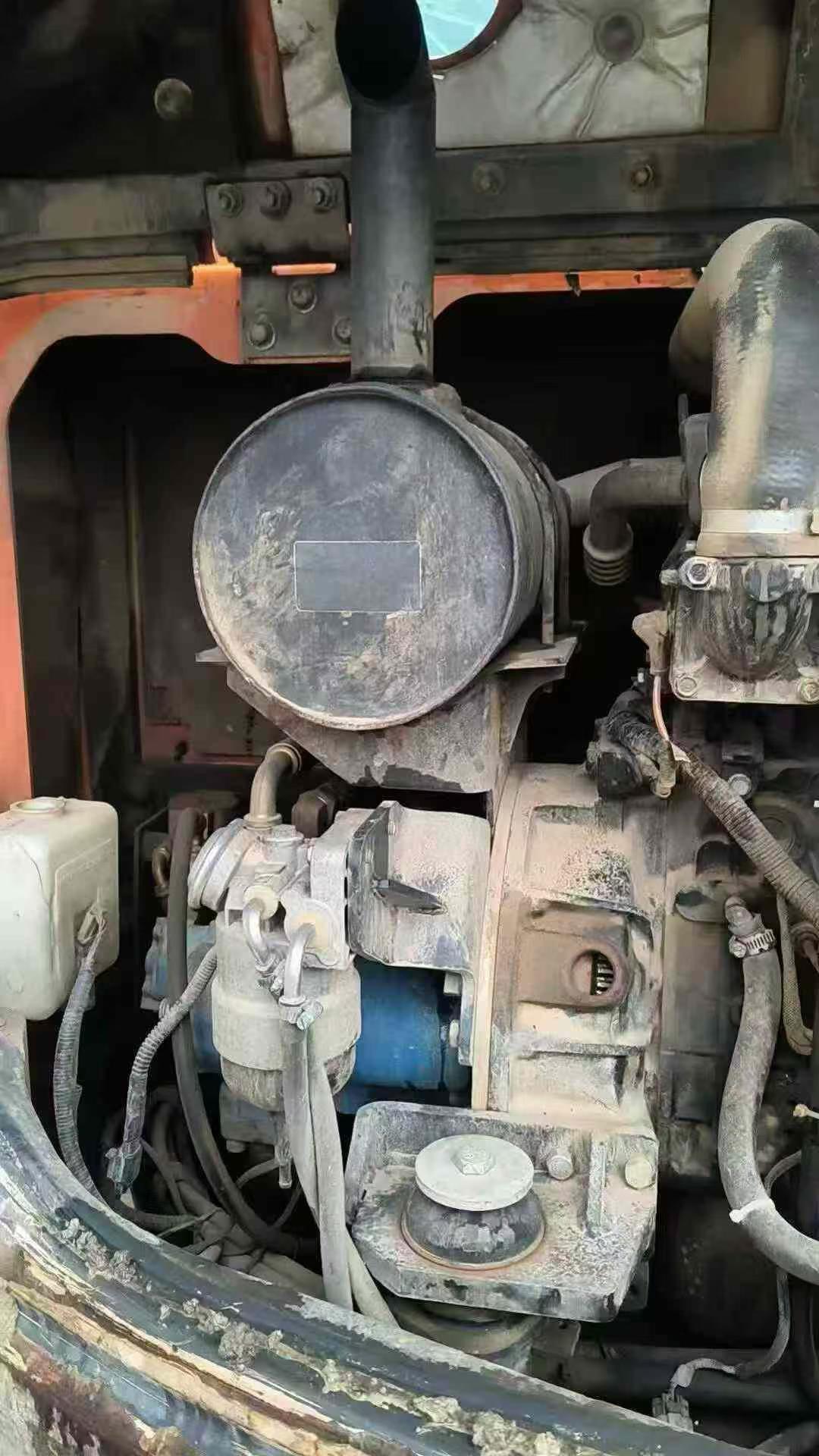

| Engine type | YANMAR 4TNV94L |
| Rated power (kw/rpm) | 36.2/2200 |
| Cylinder diameter × stroke (mm) | 94*110 |
| Number of cylinders (PCS) | 4 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 10.4 |
| Bucket digging force (kN) | 52.3 |
| Rod digging force (kN) | 36.2 |
| Travel speed (km/h) | 4.5/2.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2180 |
| Total transport height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 4080 |
| Maximum excavation height (mm) | 7100 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 2670 |
| Dodging plate width × height (mm) | 2100*418 |
| Maximum excavation radius of stop surface (mm) | 6115 |
