Product Description
Built to endure the toughest jobsite conditions, this 2015 Doosan DX75 excavator demonstrates proven reliability through years of consistent performance. Operating at 7 tons with a robust 7,350 kg working weight, this machine combines the precision engineering of a joint venture manufacturer with the dependable Yanmar 4TNV94L engine, delivering 39.7 kW of rated power at 2200 rpm. Currently located in Hebei, this workhorse has established itself as a dependable asset for medium-duty excavation projects.
Key performance specifications include:
- Maximum digging depth of 3,930 mm with 6,270 mm reach radius
- Powerful bucket digging force of 53.4 kN and rod force of 36.9 kN
- 0.28 m³ bucket capacity for optimal material handling
- 30° climbing ability for challenging terrain navigation
- 111-liter fuel tank supporting extended operation cycles
- Compact transport dimensions: 6,030 mm length × 2,100 mm width
With its 4-stroke water-cooled direct injection system and variable piston pump, this DX75 represents Doosan's commitment to manufacturing equipment that withstands the test of time while maintaining operational efficiency across diverse applications.
| Specifications | Value |
|---|---|
| No. | 1009060 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

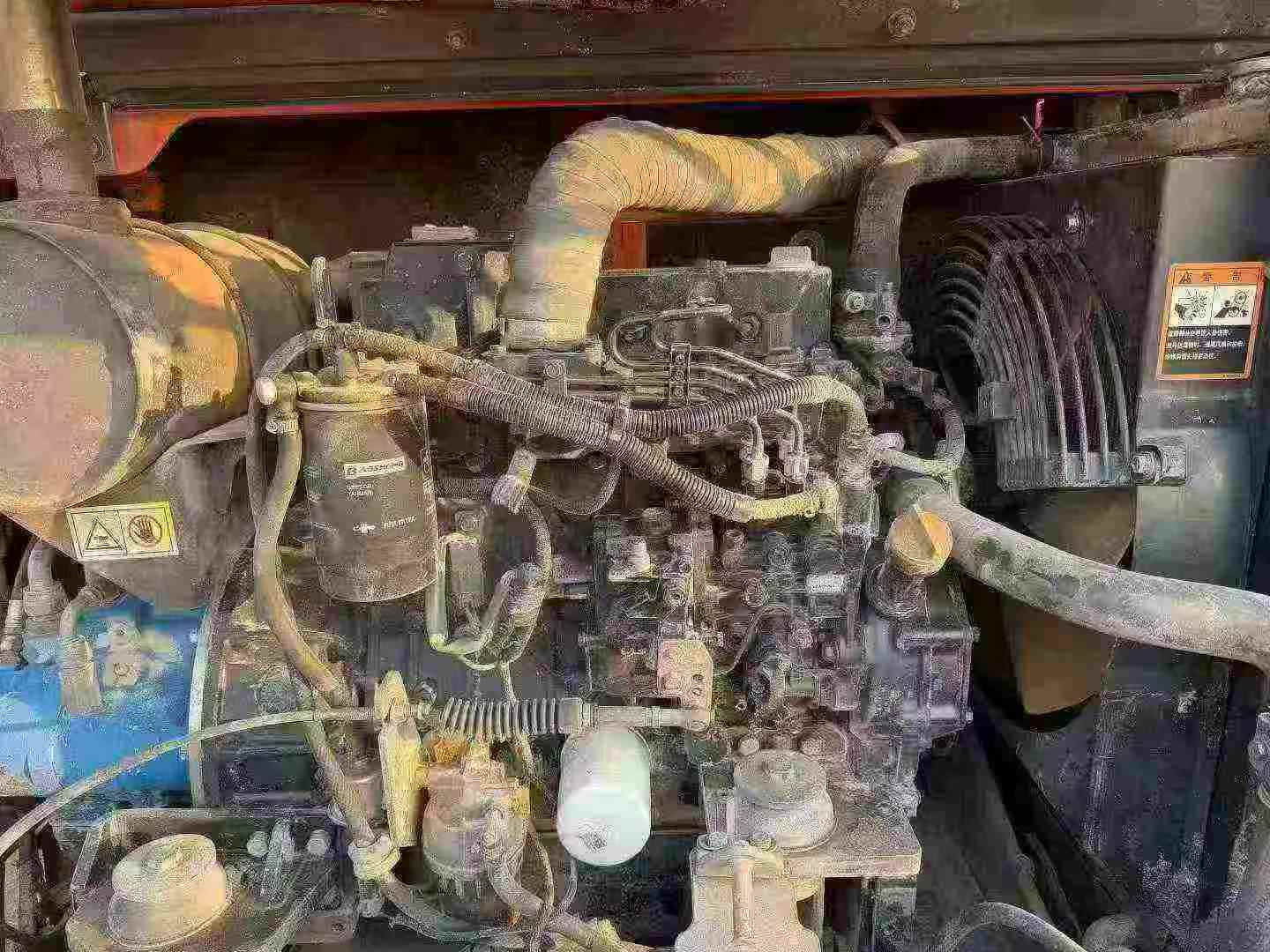

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

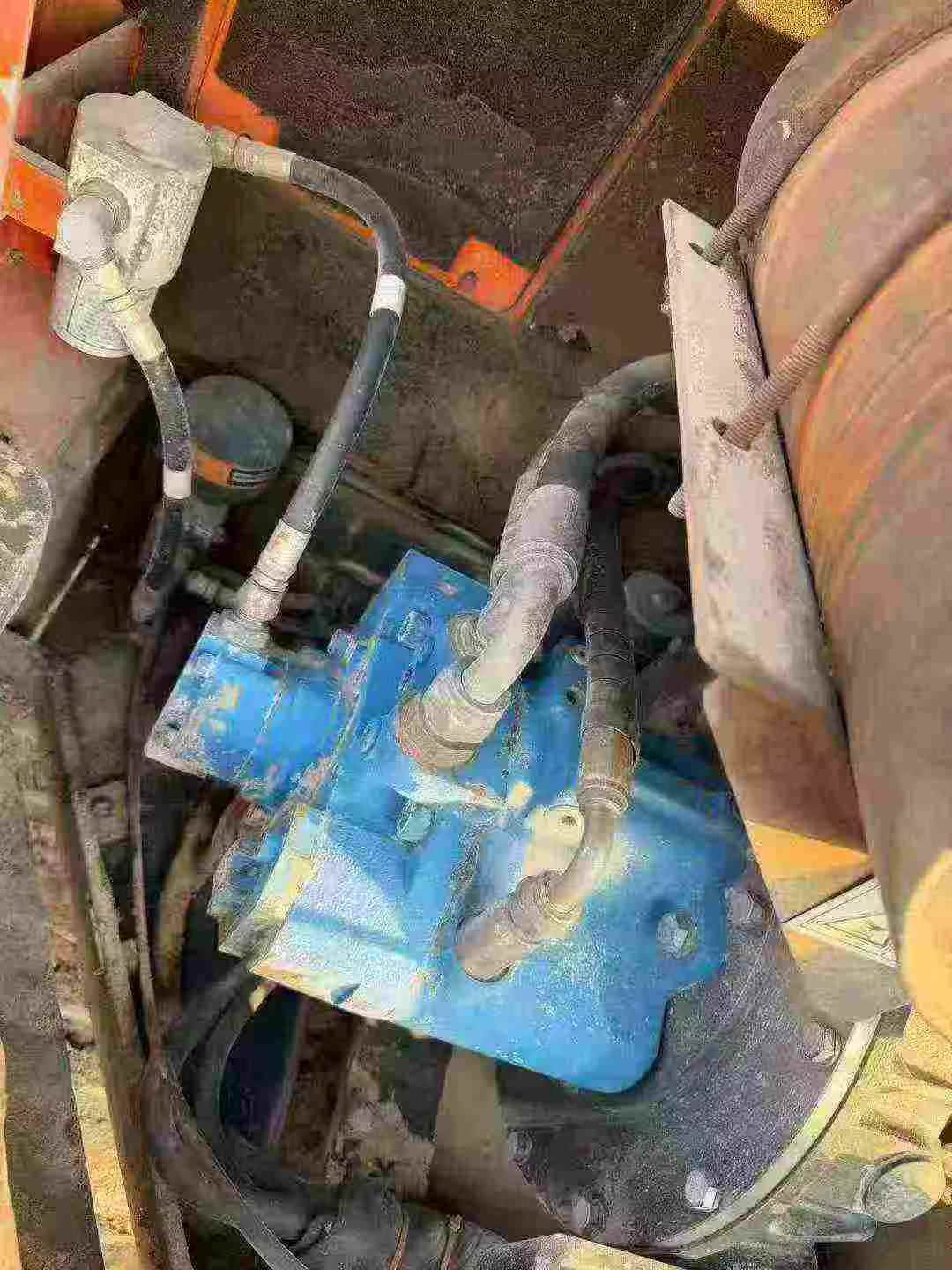

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
