Product Description

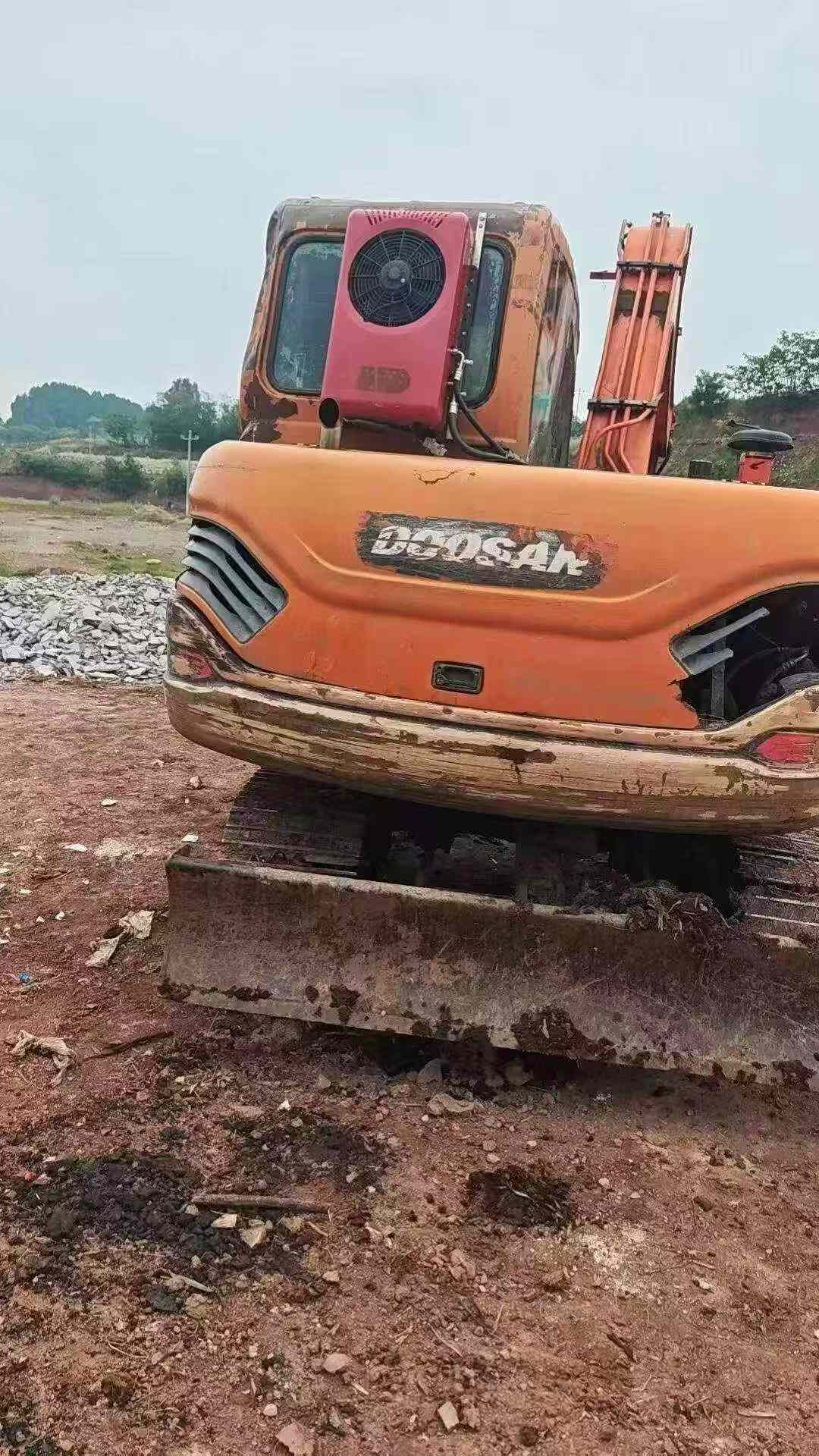

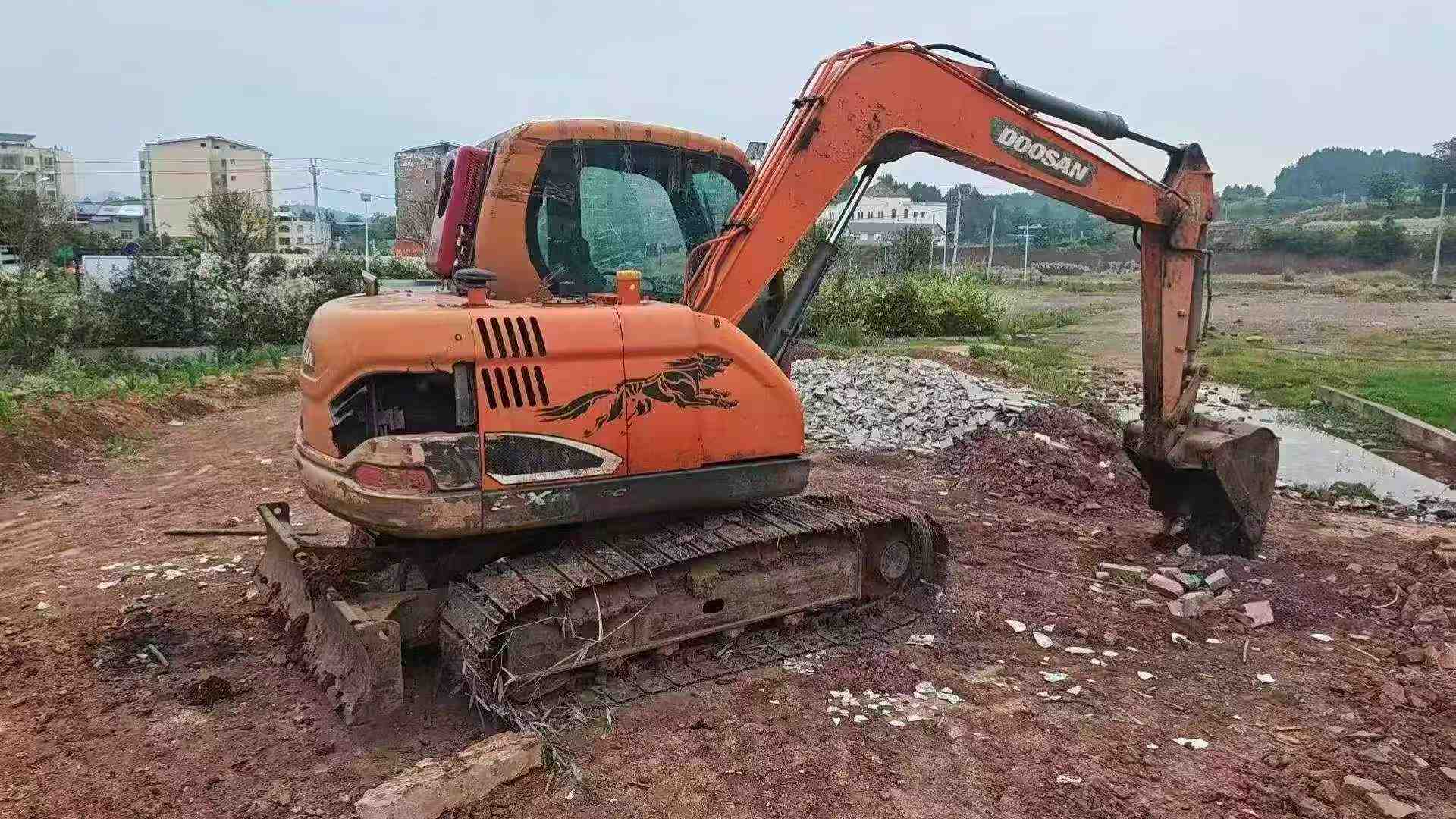

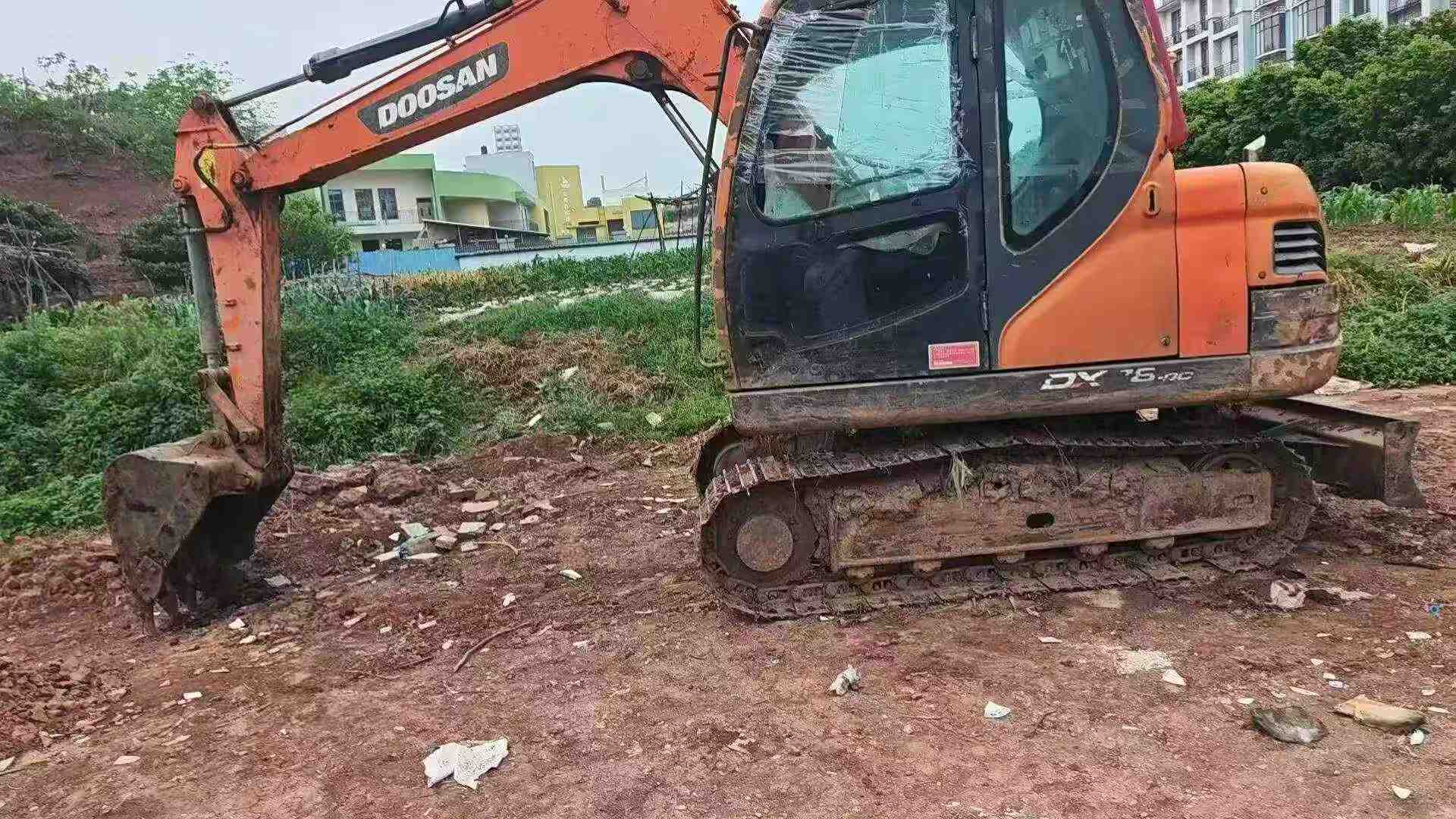

This 2017 Doosan DX75 midi excavator represents a reliable option for contractors seeking proven performance in the 7-ton class. Currently located in Sichuan, China, this machine offers approximately six years of operational history with the dependability expected from Doosan's engineering.
The DX75 is well-suited for urban construction, utility work, and general excavation projects where maneuverability and efficiency are essential. This model balances compact dimensions with productive digging capabilities, making it adaptable to various jobsite conditions.
- Year of Manufacture: 2017
- Operating Weight: Approximately 7.5 metric tons
- Location: Sichuan Province, China
- Category: Midi Excavator
Available for inspection in Sichuan, this machine is positioned competitively for buyers requiring immediate equipment availability in the Chinese market. Contact us for detailed technical specifications and current condition assessment.
| Specifications | Value |
|---|---|
| No. | 1094619 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

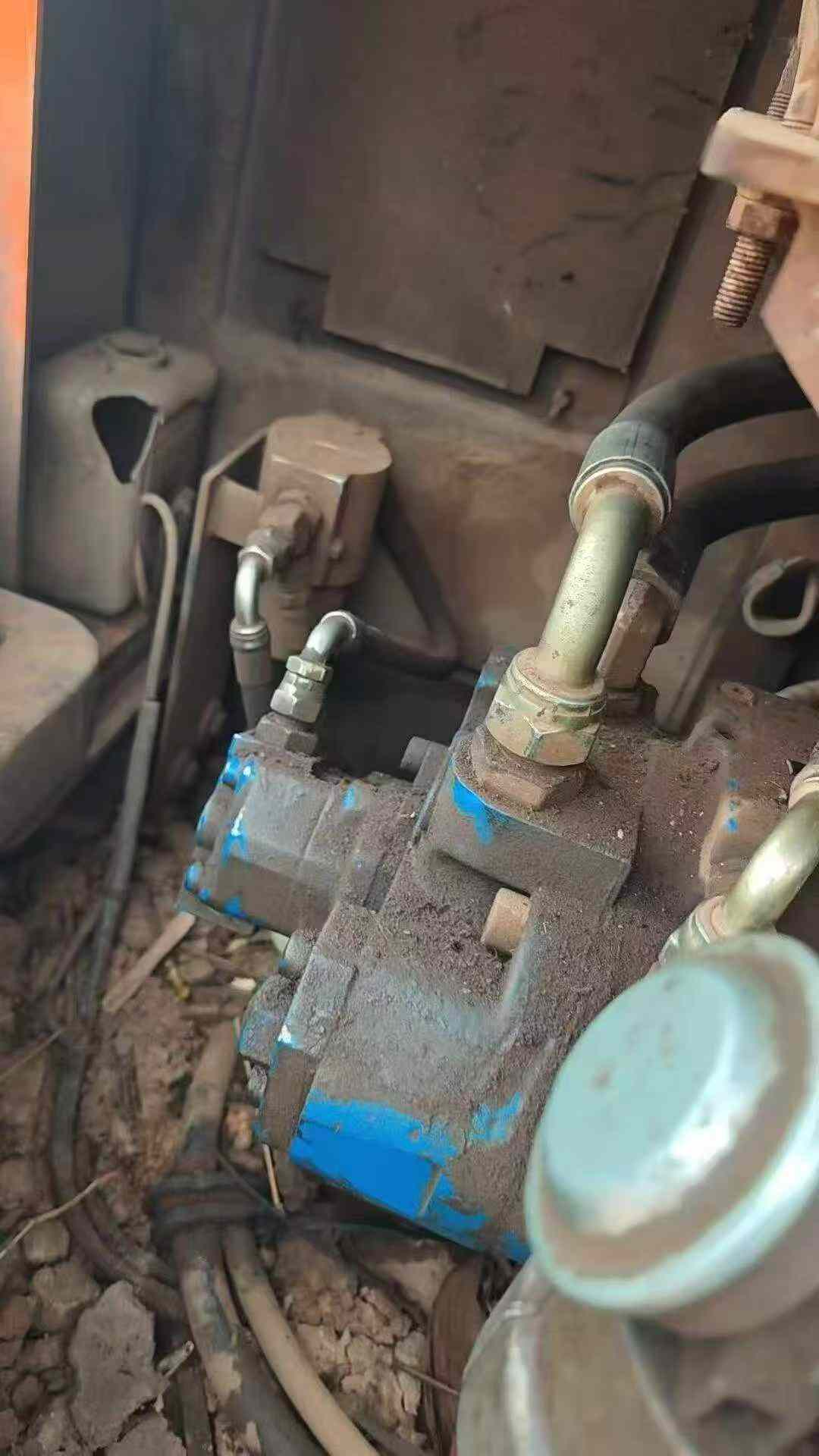

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
