Product Description

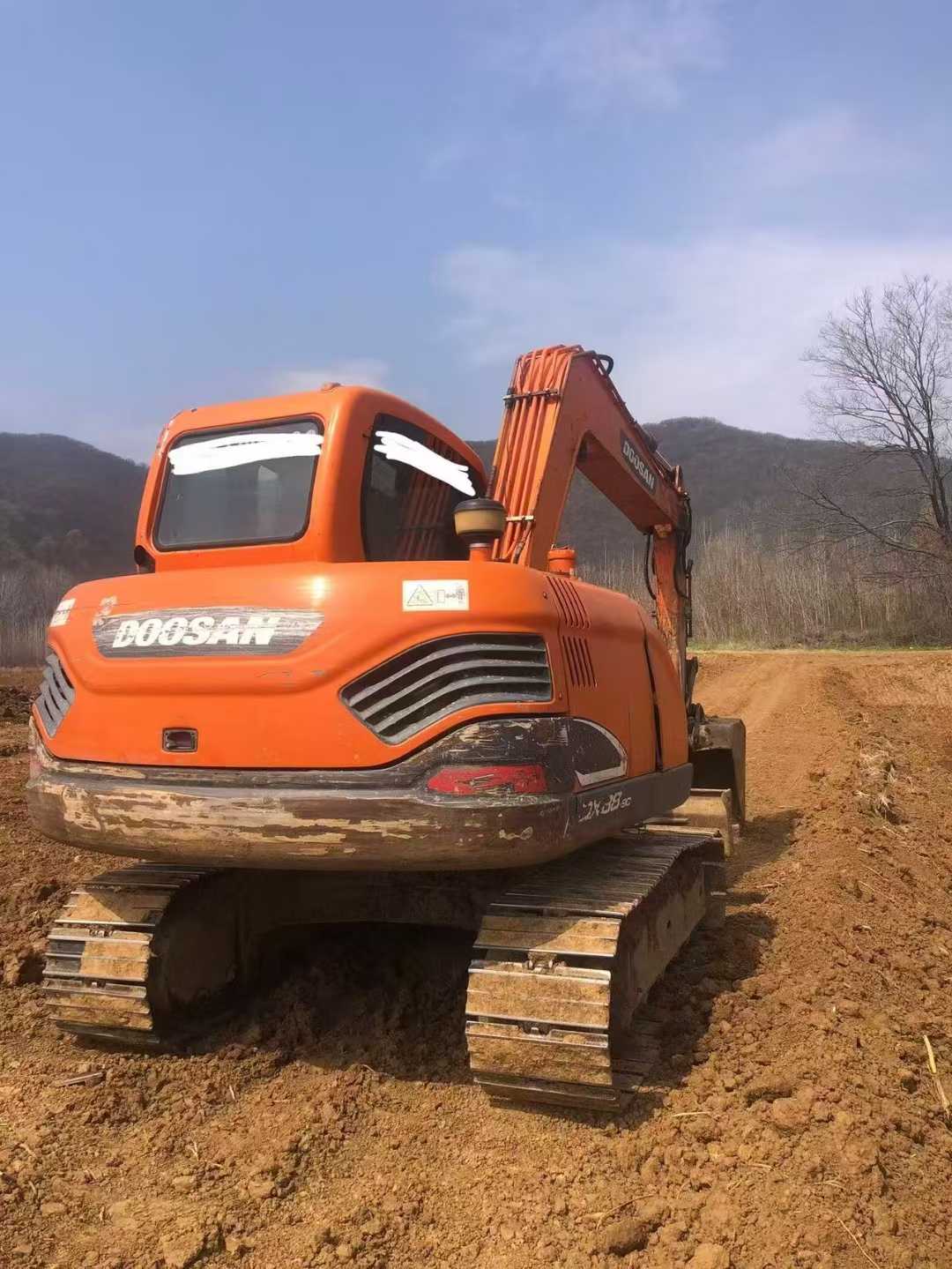

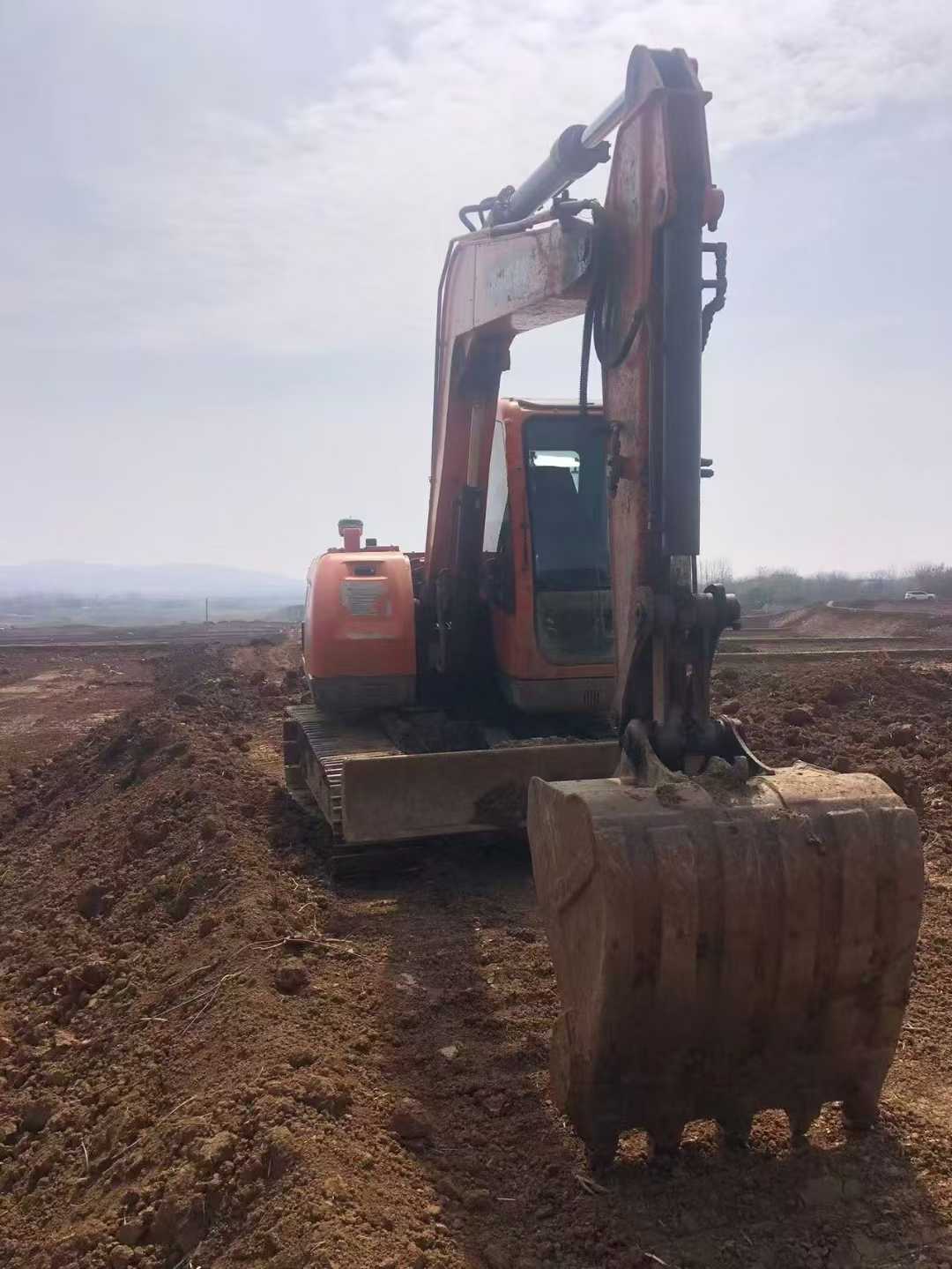

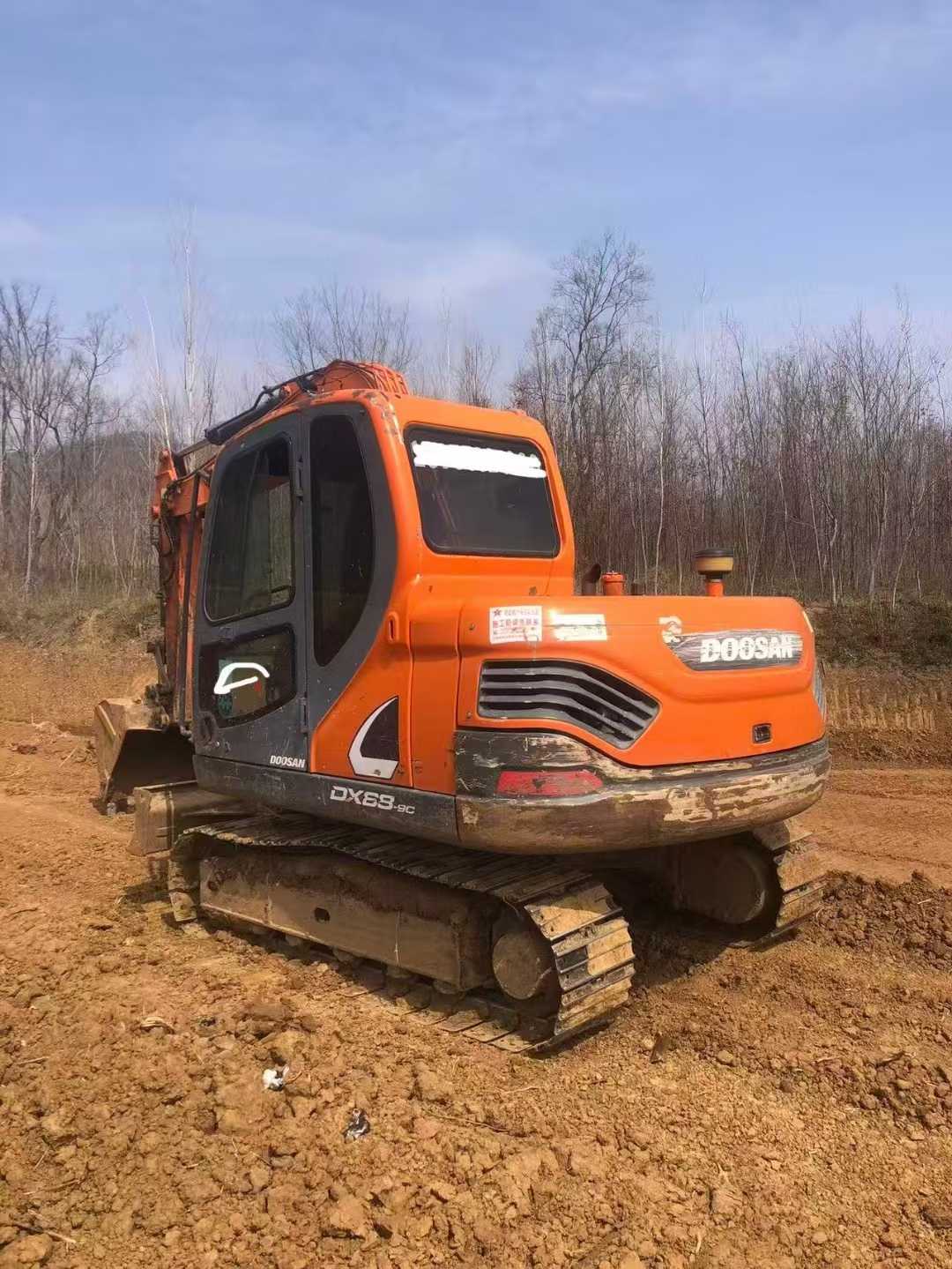

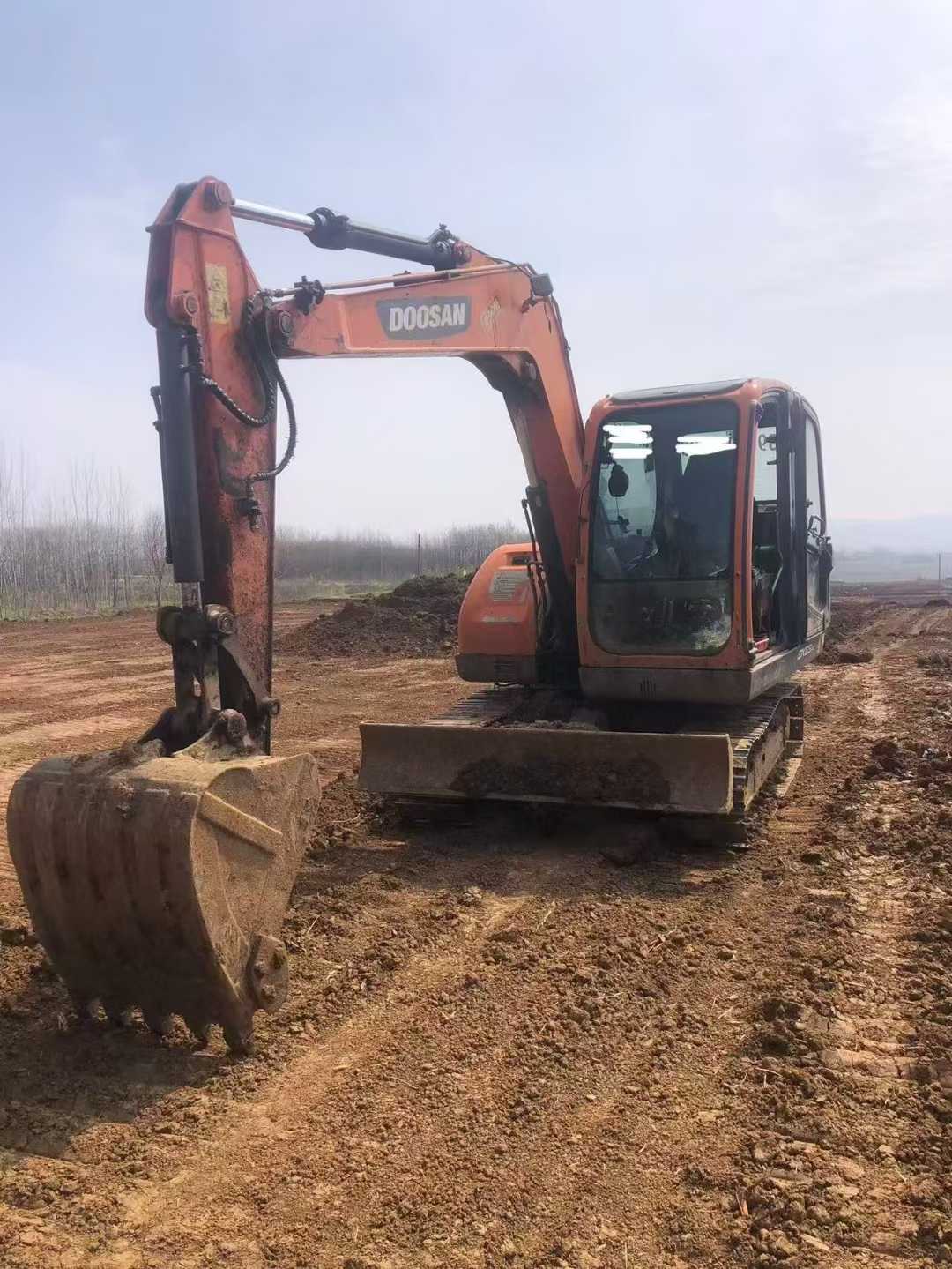

Backed by Doosan's joint-venture manufacturing pedigree, this 2018 DX75 excavator delivers proven reliability in the 7-ton class with global parts support and strong resale retention. Powered by the dependable Yanmar 4TNV94L engine producing 39.7 kW at 2200 rpm, this Yantai-built machine combines robust digging performance with practical operating economics. Maximum digging depth reaches 3930mm while bucket digging force hits 53.4 kN—sufficient for diverse earthmoving applications.
- Brand Trust: Doosan's established dealer network ensures parts availability across major markets, minimizing downtime
- Operational Specs: 7350 kg working weight, 0.28 m³ bucket capacity, 6270mm maximum digging radius

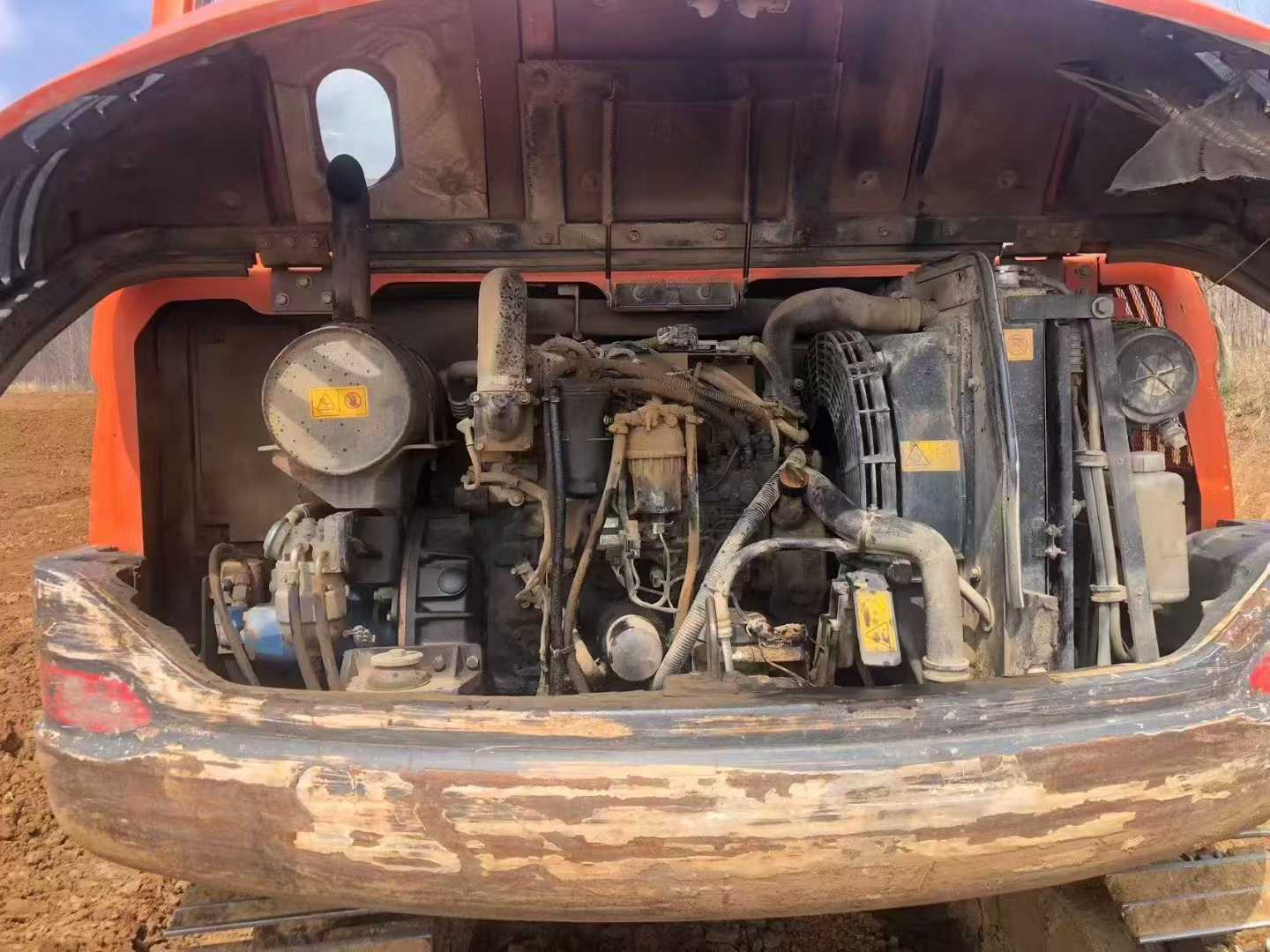

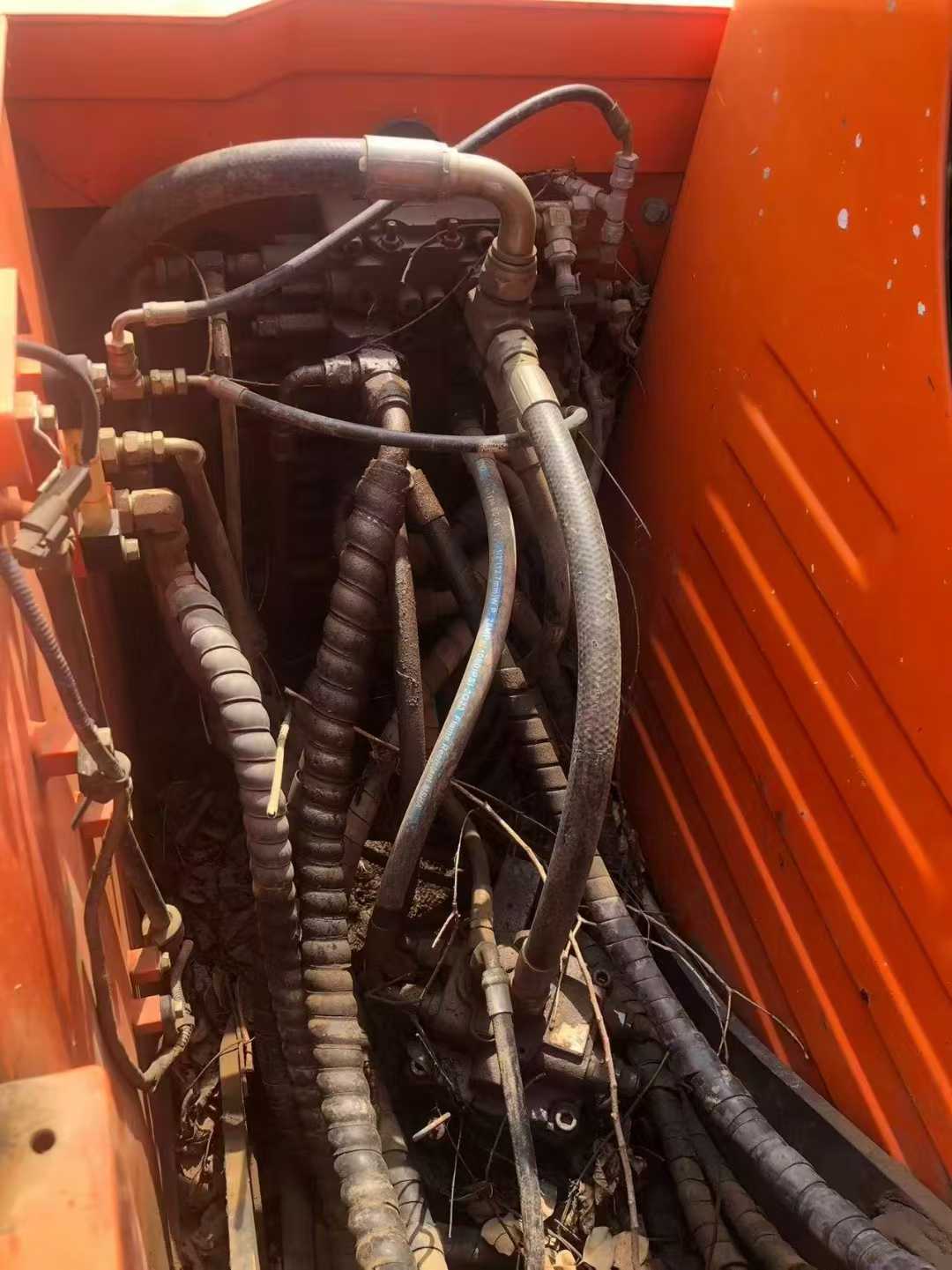

- Power System: Yanmar 4-cylinder diesel, 111L fuel tank, variable piston pump hydraulics
- Transport Dimensions: 6030mm length × 2100mm width × 2680mm height
- Performance: 30° climbing ability, 10.7 rpm rotation speed, dual travel speeds (3.0/4.7 km/h)
- Current Location: Hubei Province, ready for inspection
Doosan's reputation for value retention makes this DX75 a financially
| Specifications | Value |
|---|---|
| No. | 1038514 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

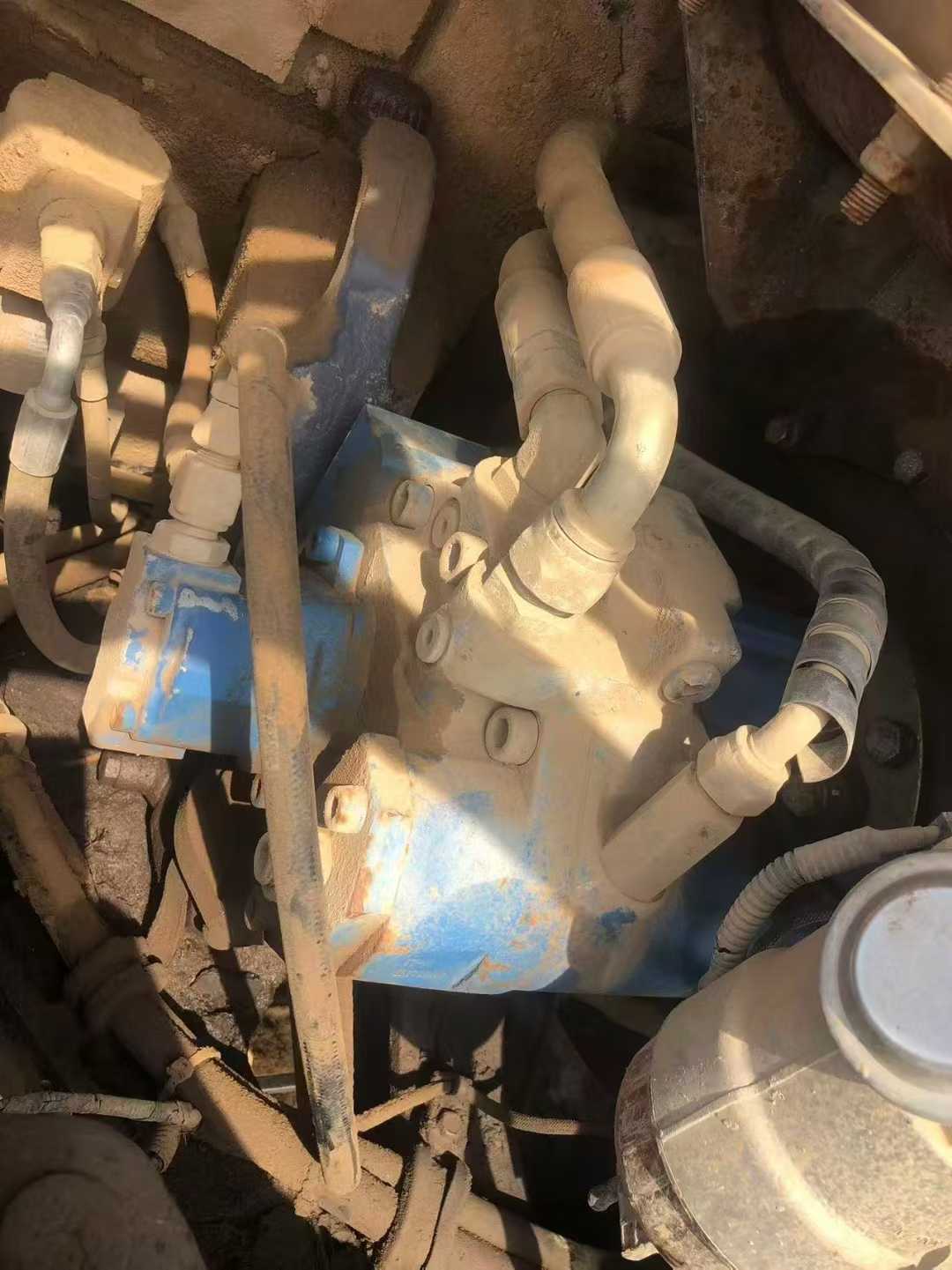

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
