Product Description

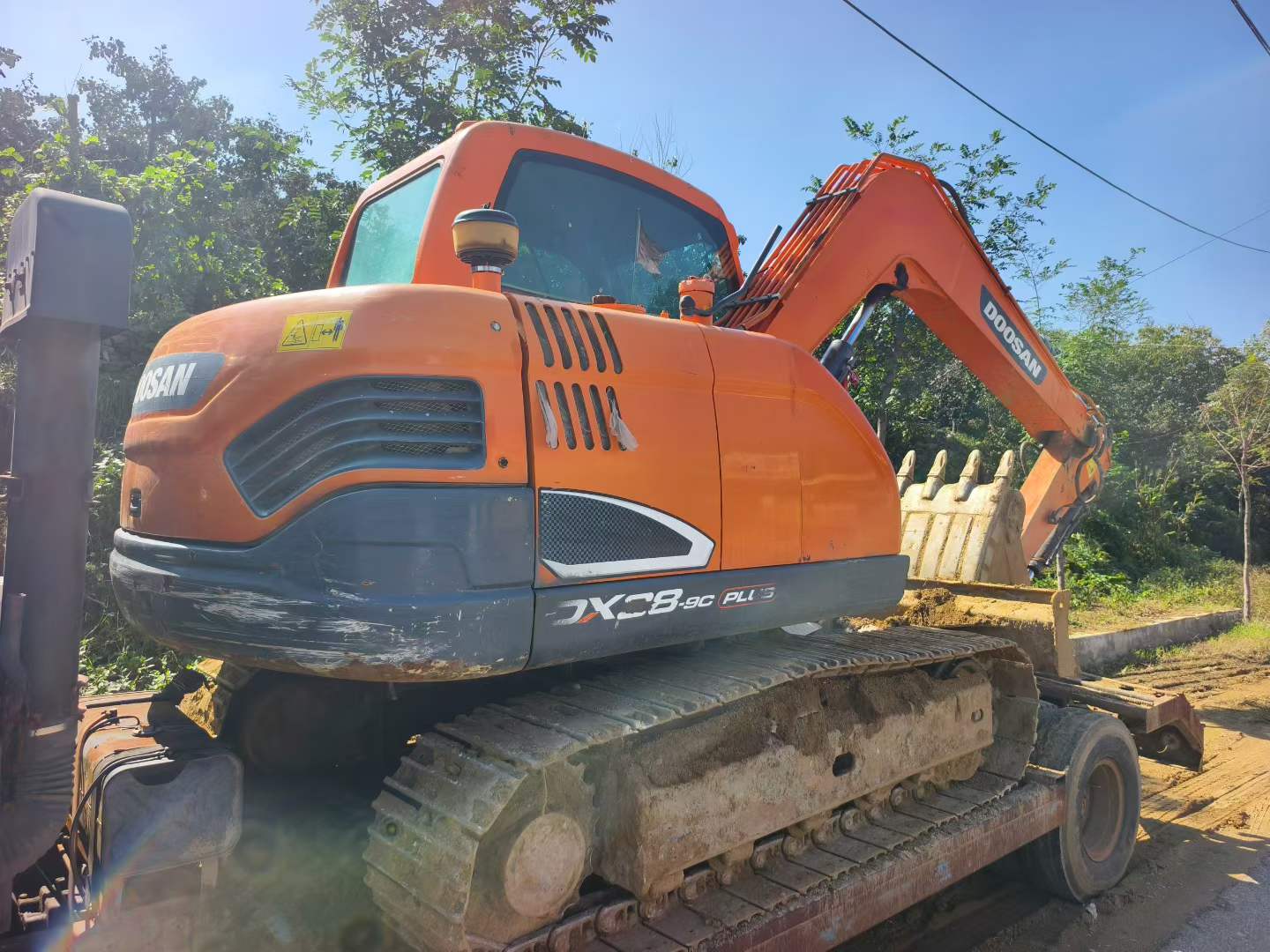

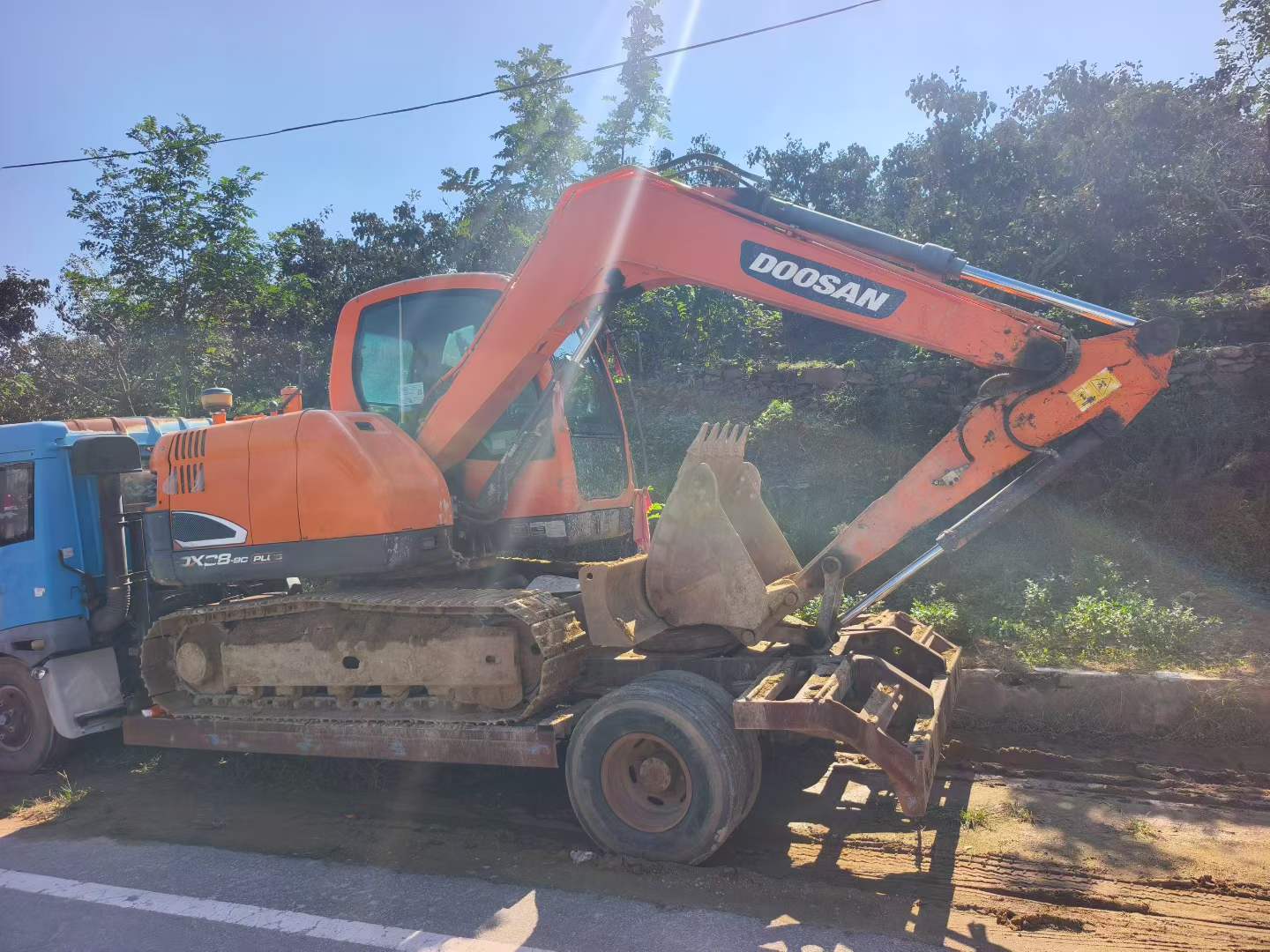

Built for precision and power, this 2020 Doosan DX75 excavator arrives from Shandong ready to tackle your next project. Operating at 7 tons with a robust Yanmar 4TNV94L engine delivering 39.7 kW, this machine combines compact dimensions with serious digging capability. Reach 6,270mm maximum digging radius and penetrate 3,930mm deep while maintaining exceptional stability across challenging terrain.
- Bucket digging force: 53.4 kN for tough excavation tasks
- 0.28m³ bucket capacity optimized for trenching and grading operations
- 10.7 rpm rotation speed ensures efficient cycle times
- Dual travel speeds (3.0/4.7 km/h) for site maneuverability
- 2,100mm transport width navigates confined jobsites
- 30° climbing ability handles sloped ground conditions
- 111L fuel tank supports extended work shifts
Variable piston pump hydraulics provide responsive control for digging, grading, and demolition work. With 370mm ground clearance and proven Doosan joint-venture construction, this excavator is inspection-ready and prepared for immediate deployment on residential, commercial, or utility projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1015091 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
