Product Description

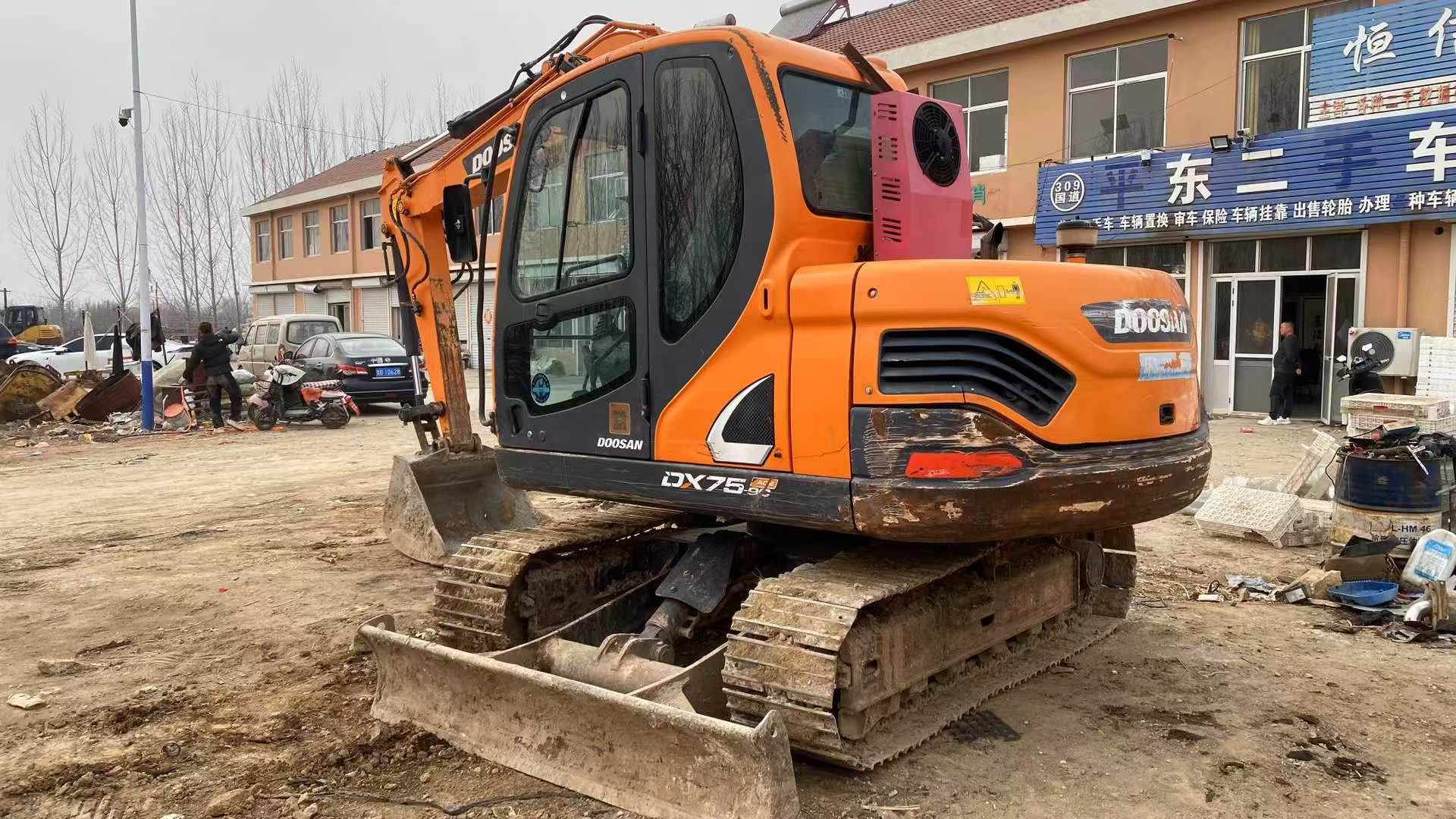

Engineered with precision in Yantai, this 2020 Doosan DX75 mini excavator delivers exceptional performance through superior hydraulic integration and proven mechanical design. Powered by a robust Yanmar 4TNV94L four-cylinder engine generating 39.7 kW at 2200 rpm, this 7-ton machine combines a variable piston pump system with optimized hydraulic circuits to produce 53.4 kN bucket digging force and 36.9 kN arm digging force—figures that outclass comparable models in its weight category.
Key technical specifications include:
- Operating weight: 7,350 kg with 0.28 m³ bucket capacity
- Maximum digging reach: 6,270 mm with 3,930 mm depth capability
- Rotation speed: 10.7 rpm for rapid cycle times
- Compact transport dimensions: 6,030 × 2,100 × 2,680 mm
- Dual travel speeds: 3.0/4.7 km/h with 30° grading ability
- 111-liter fuel capacity for extended operation
Currently located in Qingdao, Shandong, this joint-venture manufactured excavator represents Doosan's commitment to hydraulic efficiency and structural integrity in the compact excavator segment.
| Specifications | Value |
|---|---|
| No. | 1029692 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

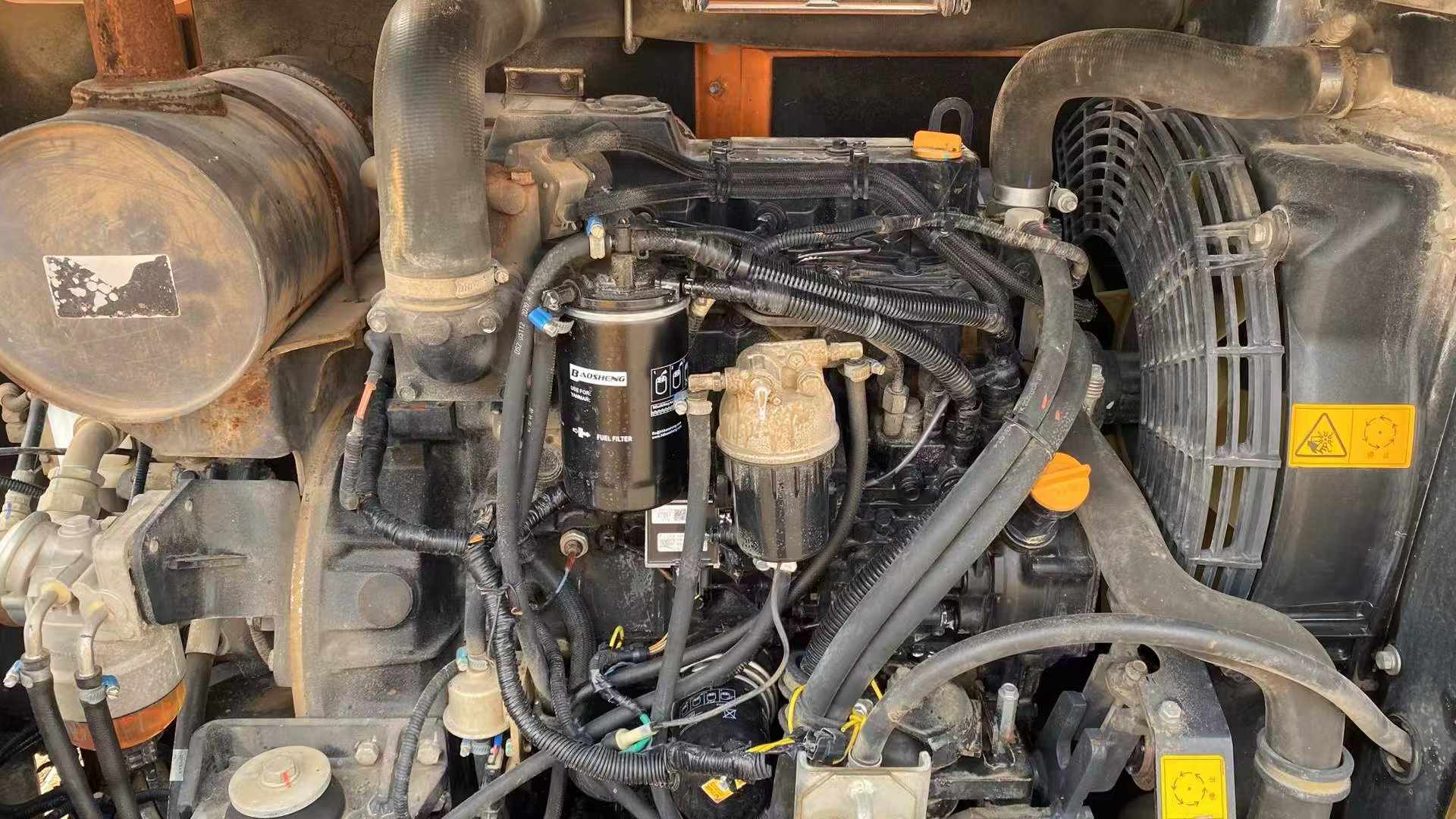

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

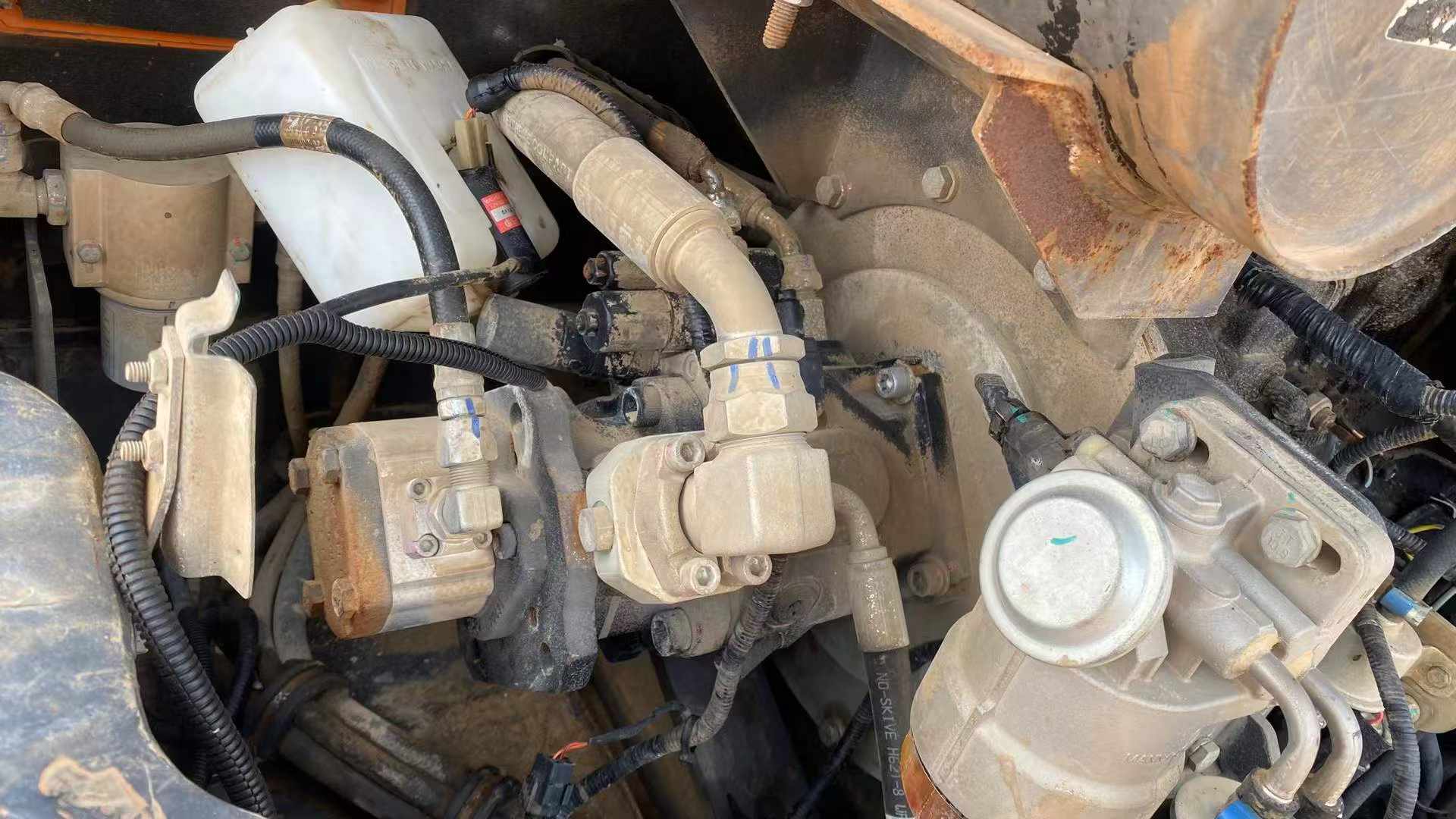

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
