Product Description

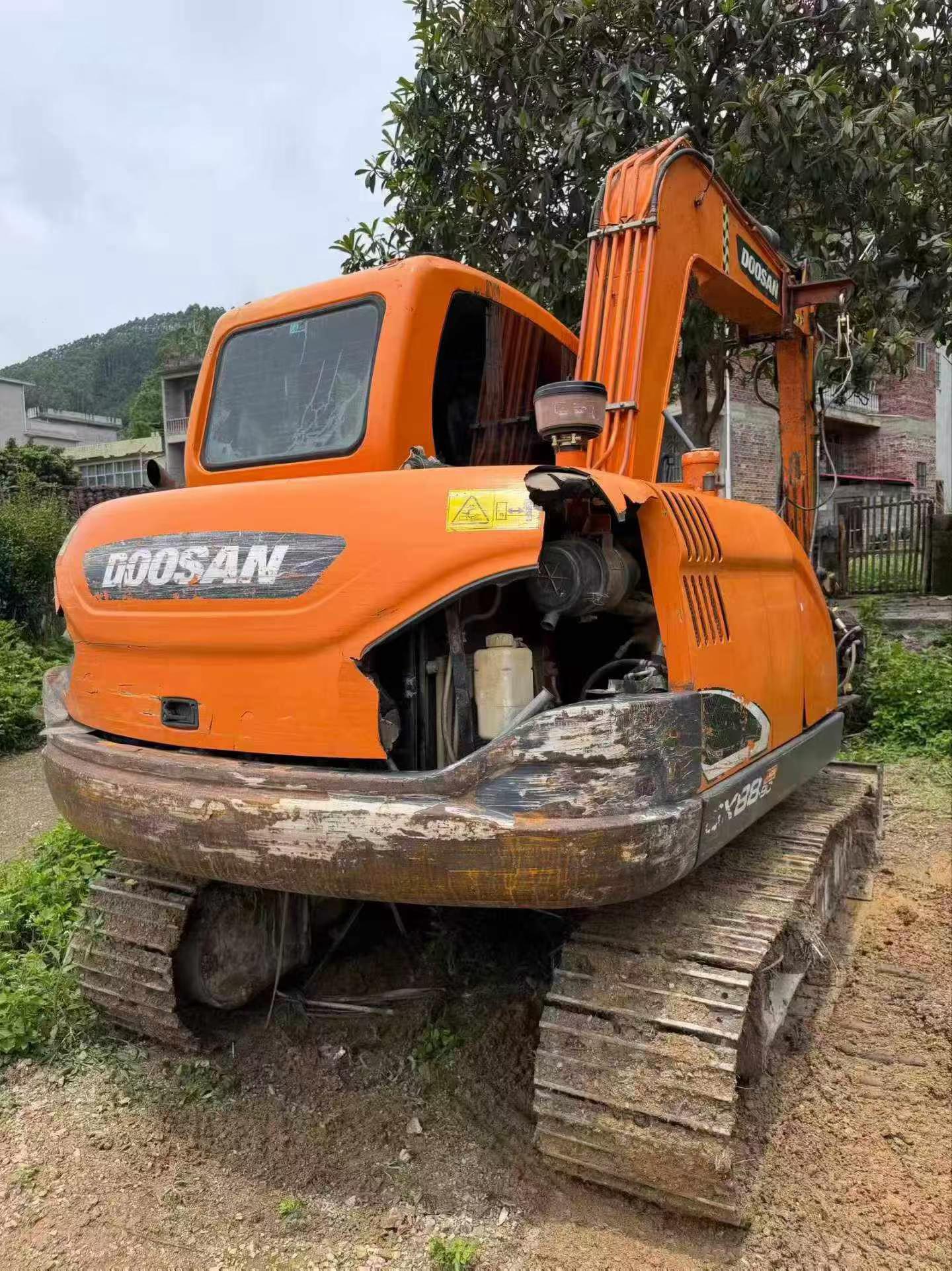

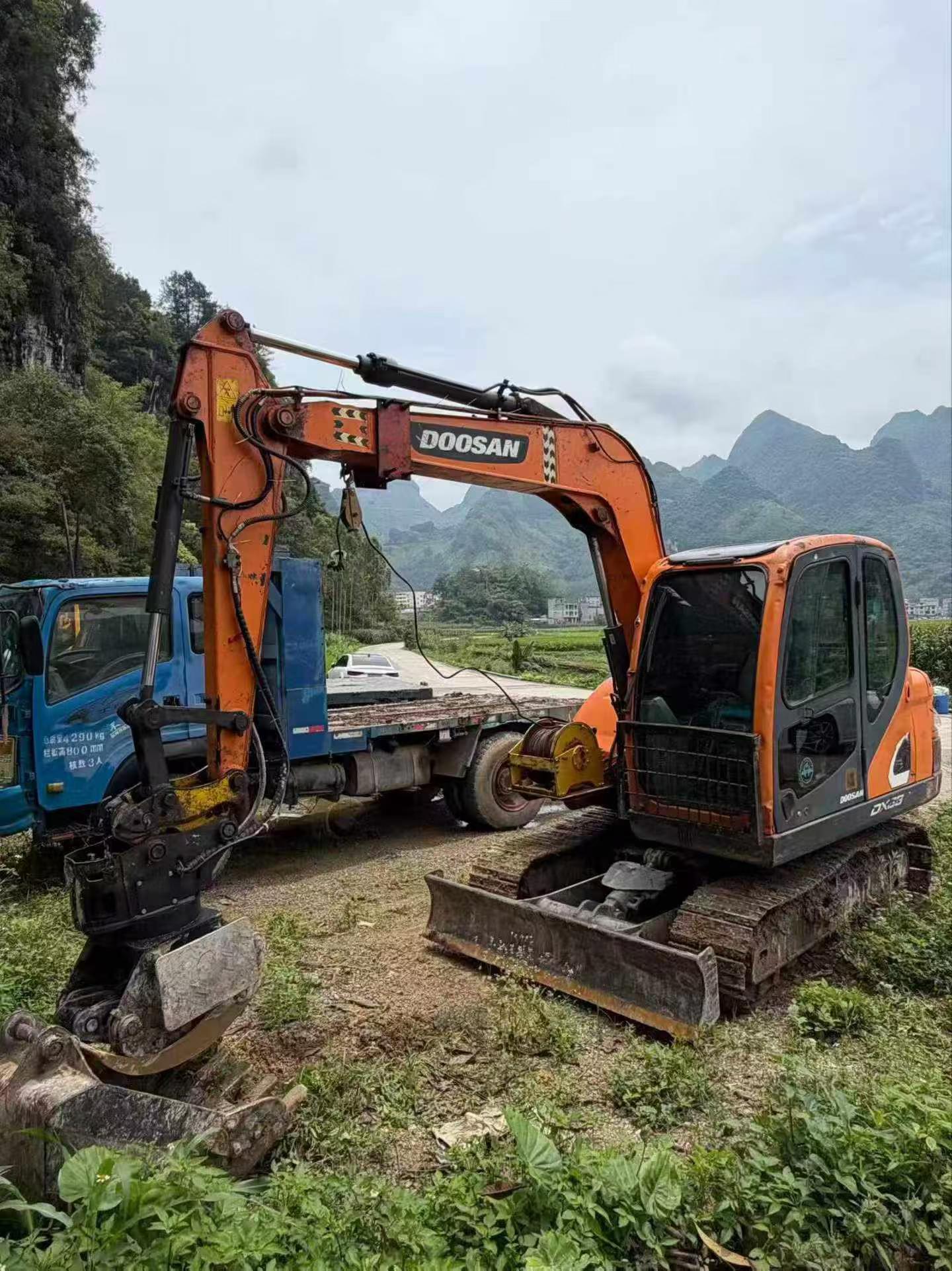

Ready to ship from Guangxi, China — this 2020 Doosan DX75 puts a field-proven 7-ton mini excavator in your hands without the factory wait. Skip the lead times and get productive equipment moving to your site fast, whether you're working locally across Southeast Asia or coordinating an international freight run.
Powered by a Yanmar 4TNV94L 4-cylinder engine producing 39.7 kW at 2200 rpm, this machine delivers reliable, fuel-efficient performance on tight urban sites and confined excavation work. The variable piston main pump ensures responsive hydraulic output, while a 53.4 kN bucket digging force and 36.9 kN arm digging force handle compacted soil and graded material without hesitation.
- Operating weight: 7,350 kg | Bucket capacity: 0.28 m³
- Maximum digging depth: 3,930 mm | Maximum digging radius: 6,270 mm
- Maximum excavation height: 7,050 mm | Unloading height: 5,165 mm
- Travel speed: 3.0 / 4.7 km/h | Gradeability: 30°
- Fuel tank: 111 L | Transport dimensions: 6,030 × 2,100 × 2,680 mm
Sourced directly from Guangxi and available for immediate dispatch — coordinate your logistics today and put this DX75 to work on your next project without delay.
| Specifications | Value |
|---|---|
| No. | 1091437 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
