Product Description

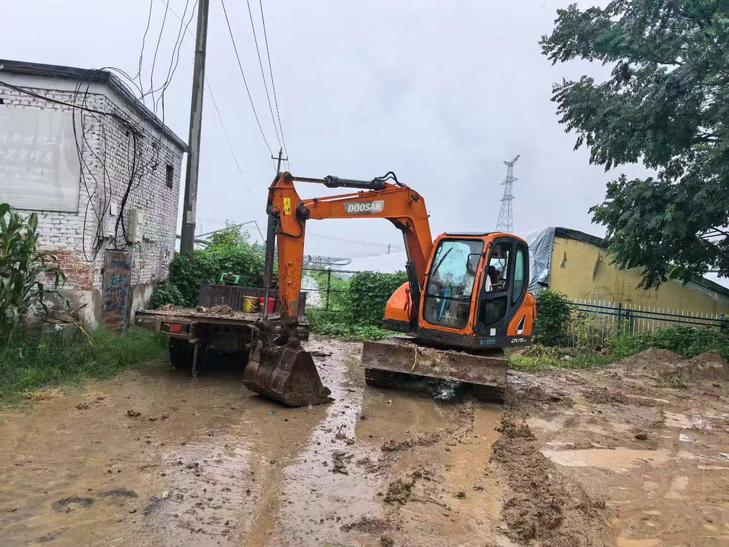

Discover the reliability and performance of the 2020 Doosan DX75, available for purchase from our location in Shandong, China. This used excavator is an excellent choice for construction and excavation projects, offering a blend of efficiency and durability. With a solid reputation for robust design and user-friendly operation, the DX75 model is equipped to handle a variety of tasks with ease.
- Year: 2020
- Brand: Doosan
- Model: DX75
- Location: Shandong, China
- Comprehensive detailed images and video available upon request
| Specifications | Value |
|---|---|
| No. | 1129468 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
