Product Description

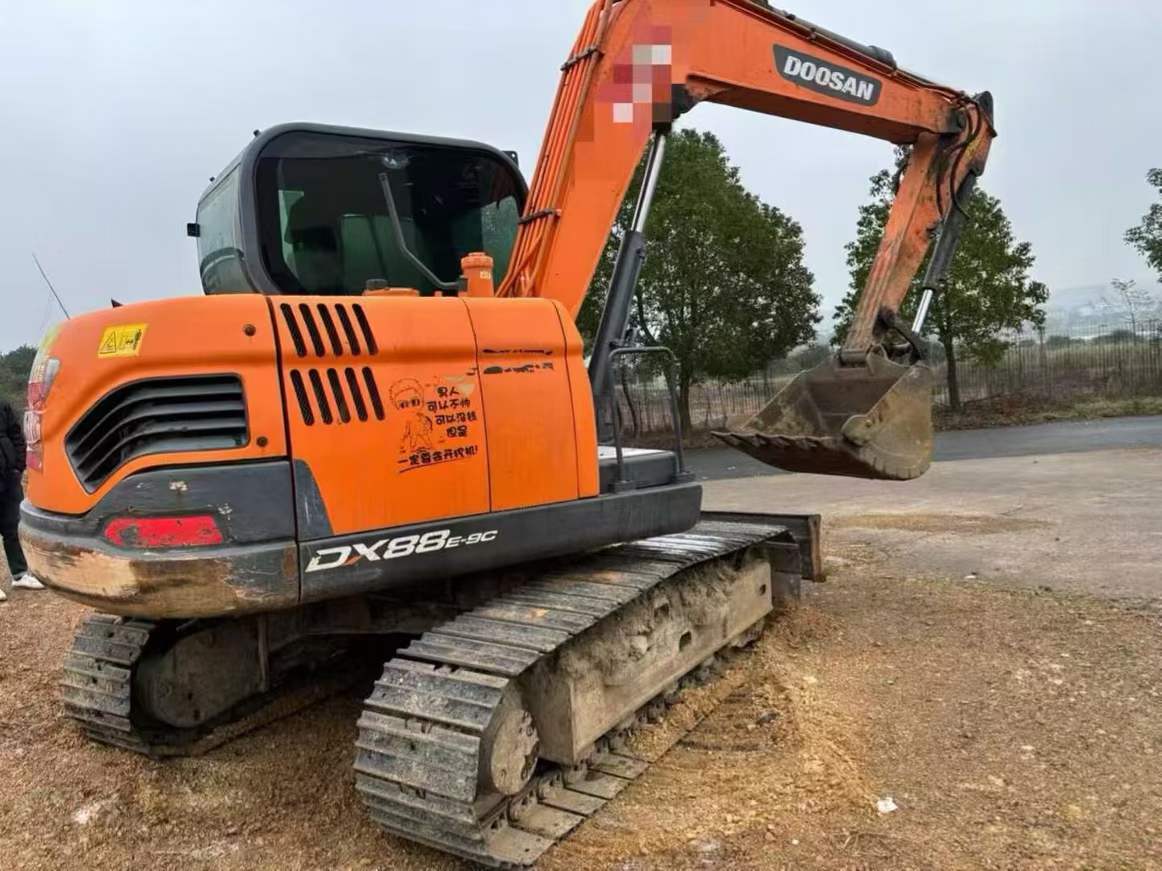

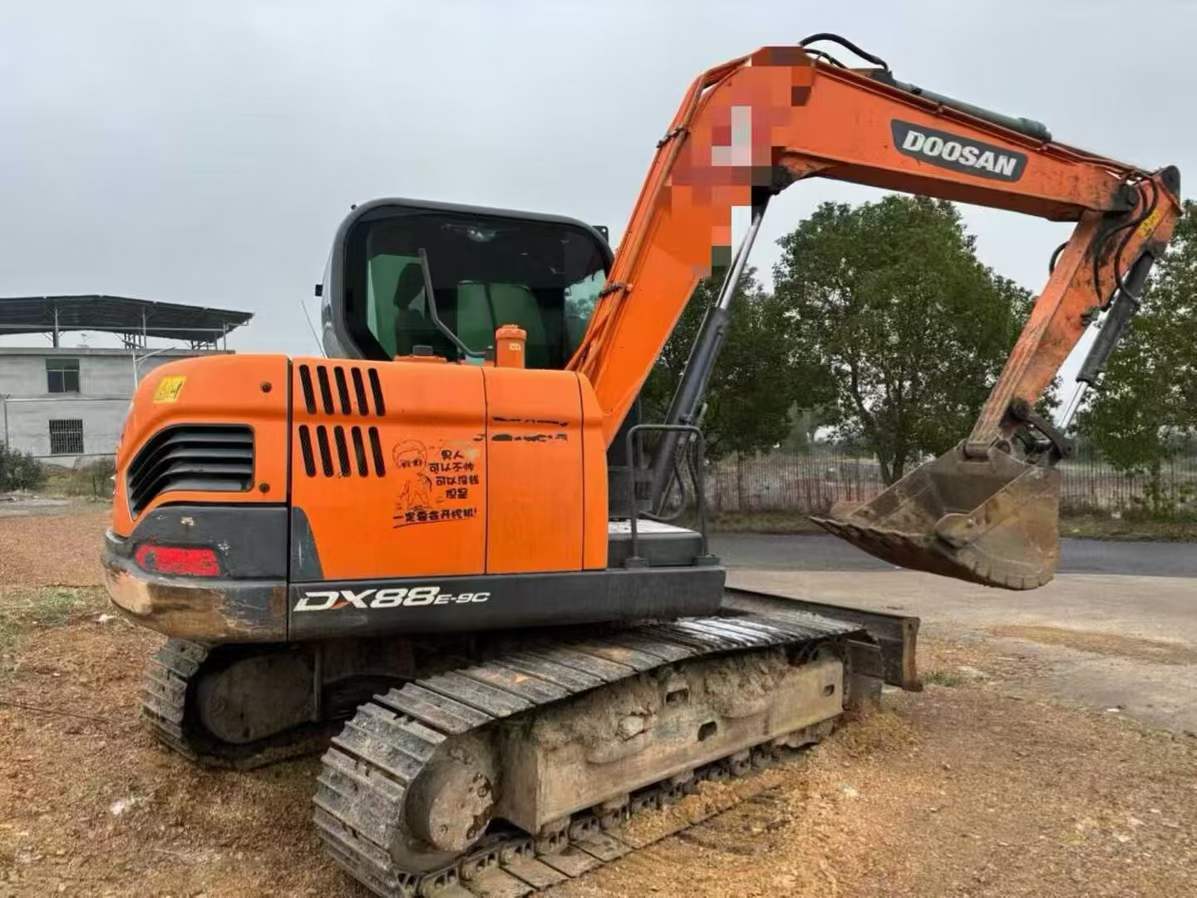

Cut through factory wait times with this 2021 Doosan DX75 excavator, ready for immediate deployment from 湖南 (Hunan). Powered by a proven Yanmar 4TNV94L engine delivering 39.7 kW at 2200 rpm, this 7-ton compact performer combines reliability with versatile site capability. Maximum digging depth reaches 3930mm, while the 6270mm working radius tackles confined urban plots and utility projects with precision.
- Immediate Availability: Located in 湖南—no overseas shipping delays or 6-month factory queues
- Proven Power: Yanmar 4-cylinder diesel with 53.4 kN bucket force and 36.9 kN arm force
- Compact Transport: 2100mm width fits standard lowboys; 6030mm length simplifies logistics
- Dual Travel Speeds: 3.0/4.7 km/h for efficient repositioning across jobsites
- Full Factory Specs: 111L fuel capacity, 10.7 rpm swing speed, 30° gradeability
Operating weight of 7350 kg ensures stability without requiring special permits. Variable piston pump hydraulics deliver smooth control for trenching, grading, and loading operations. Secure this machine now and start billing hours within days, not quarters.
| Specifications | Value |
|---|---|
| No. | 1032698 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

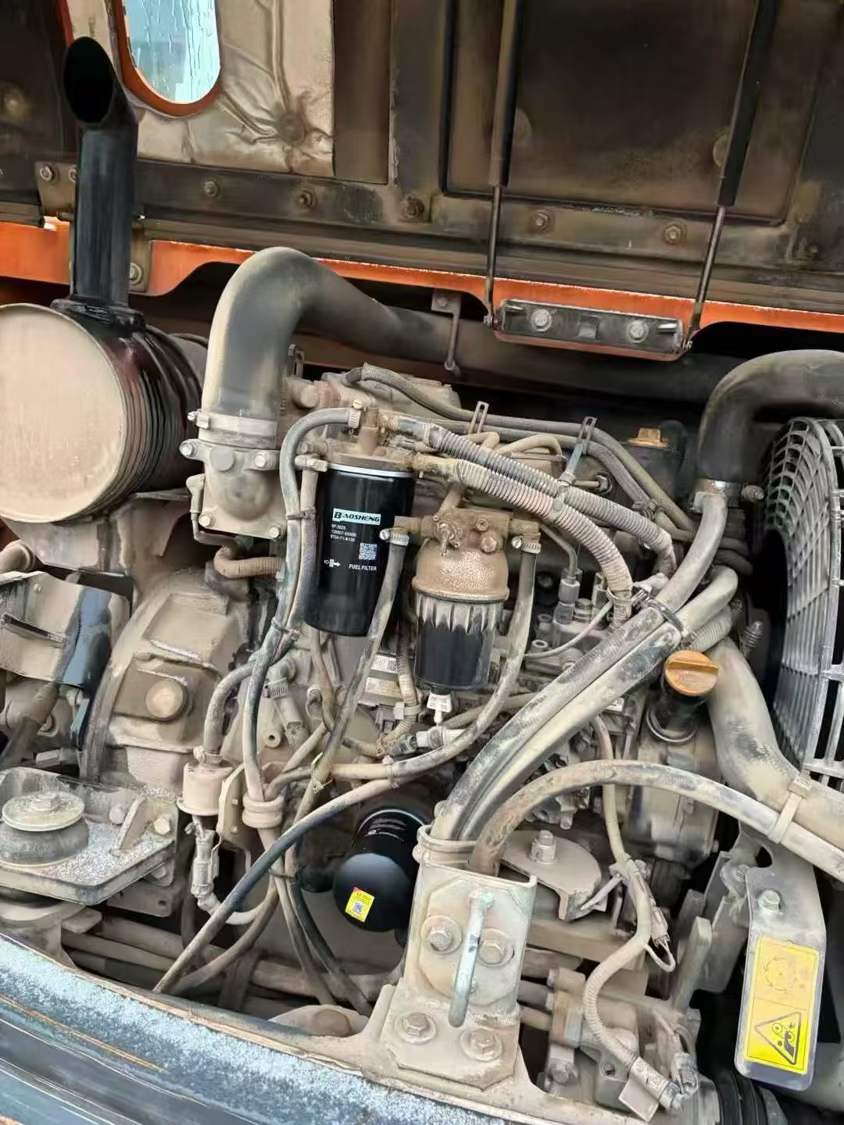

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

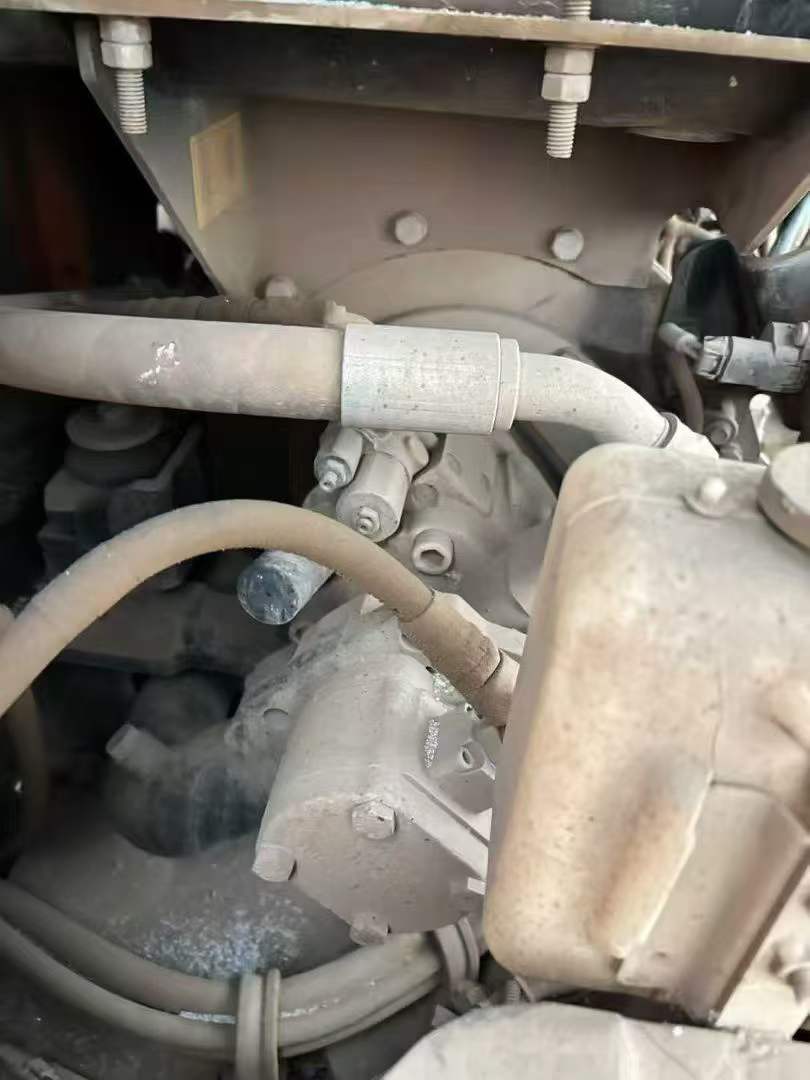

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
