Product Description

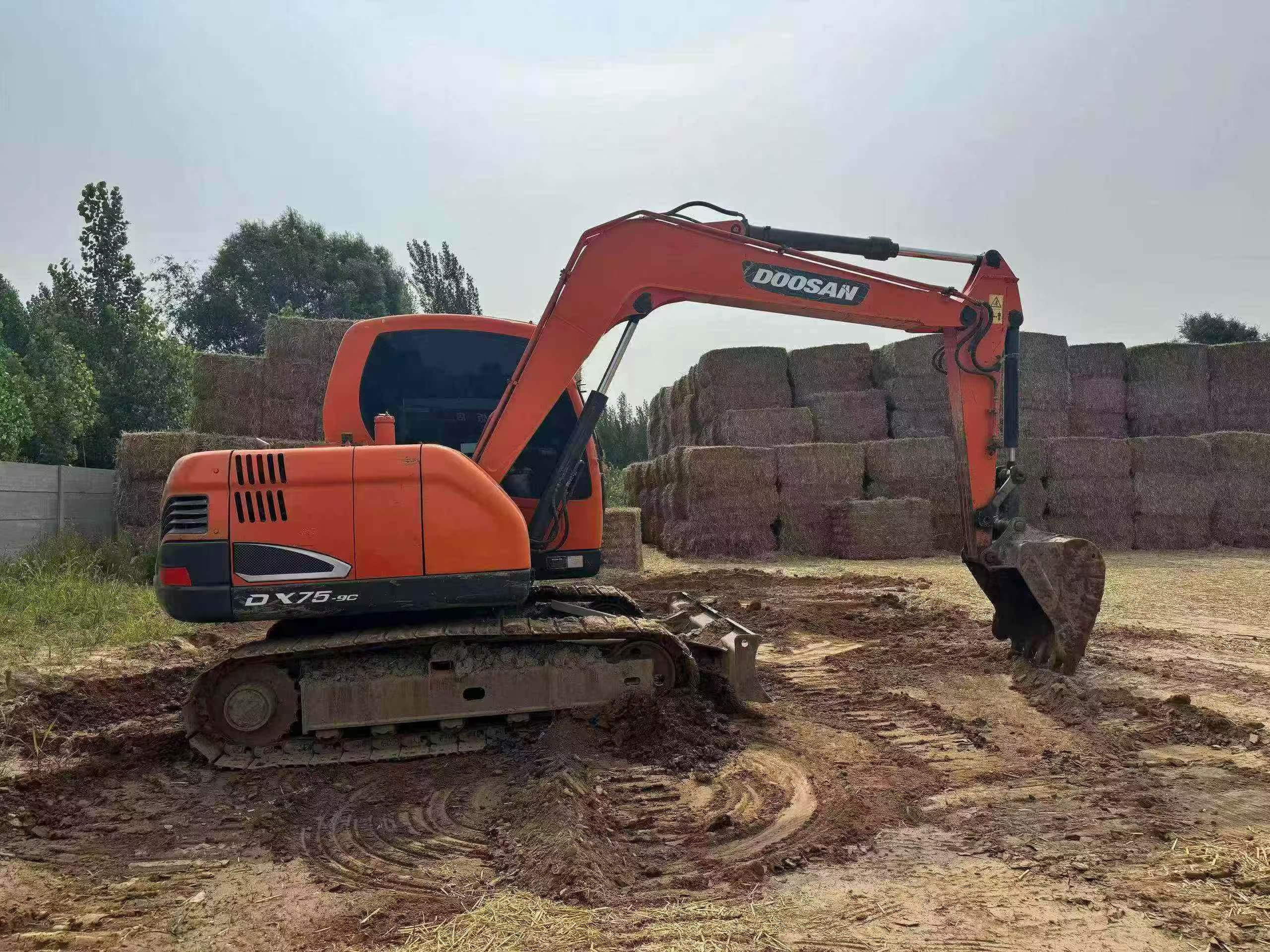

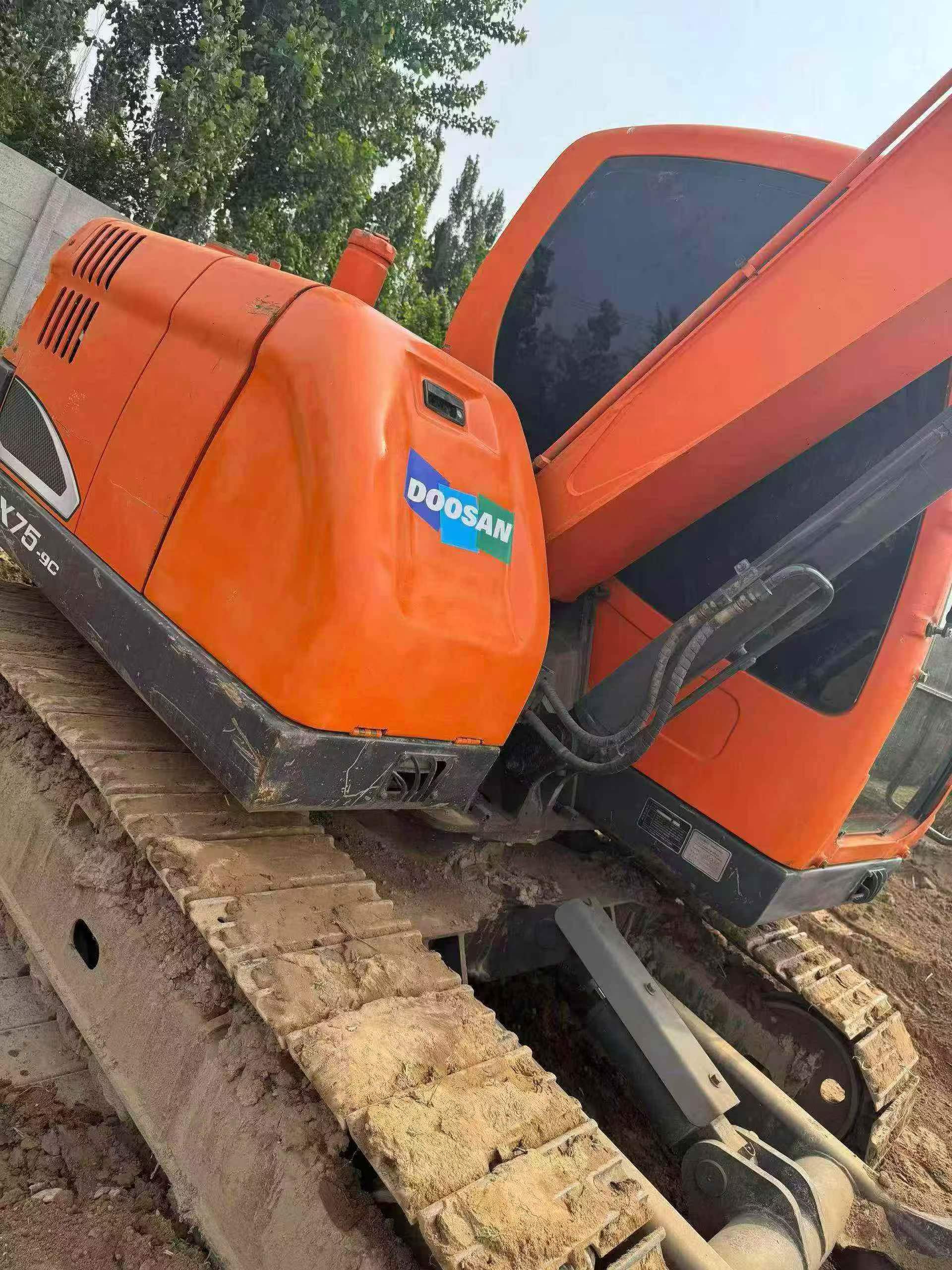

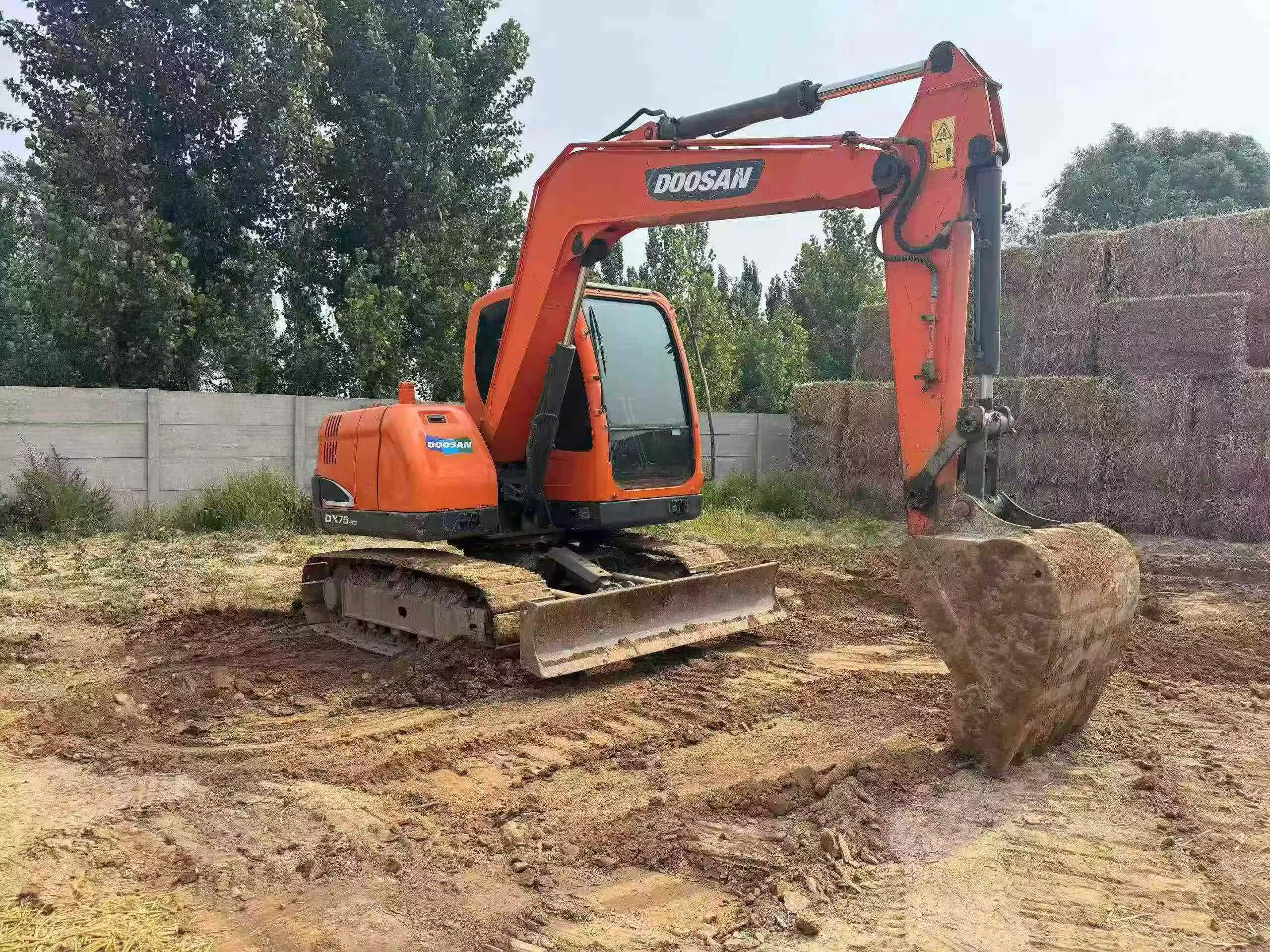

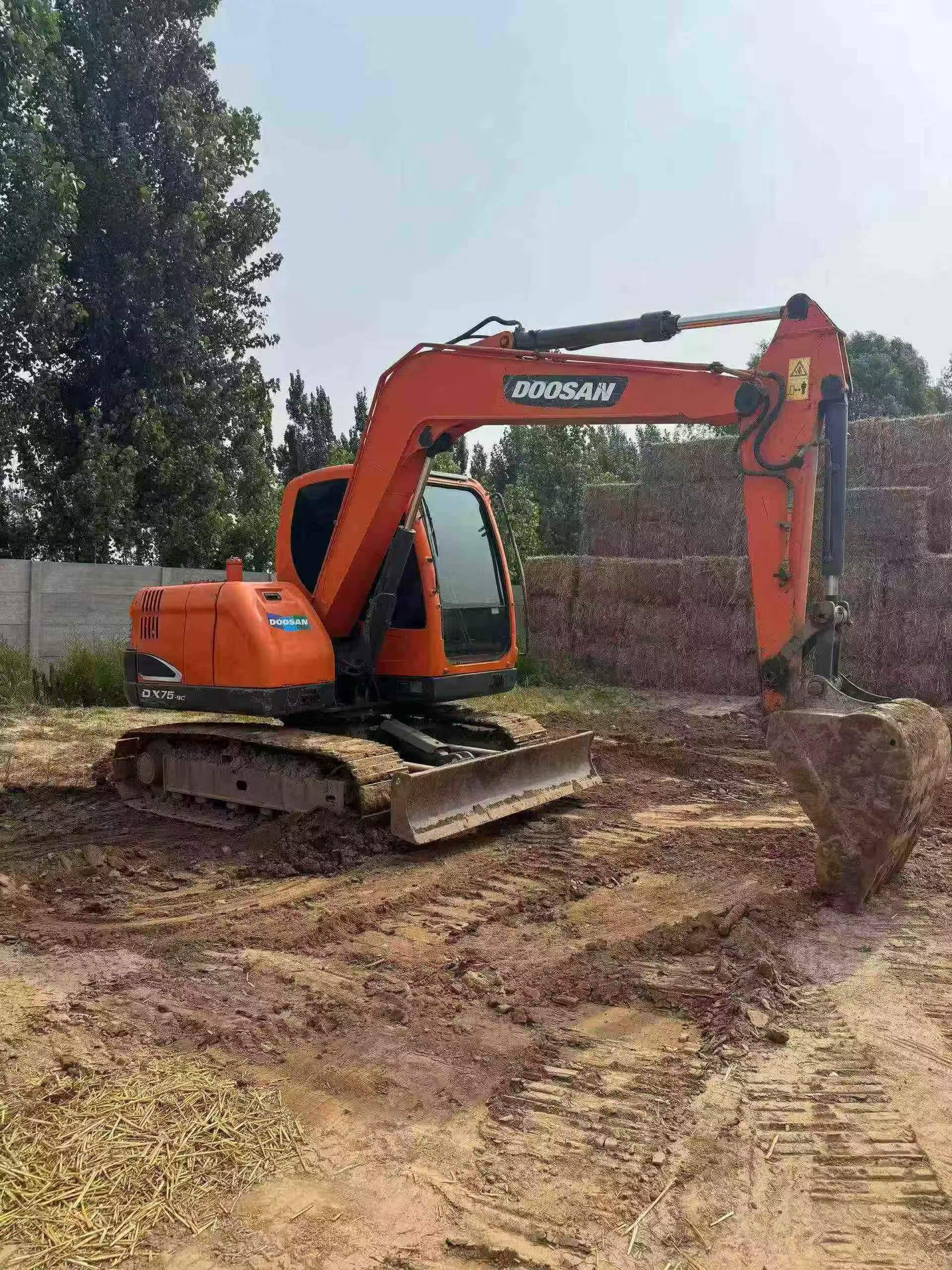

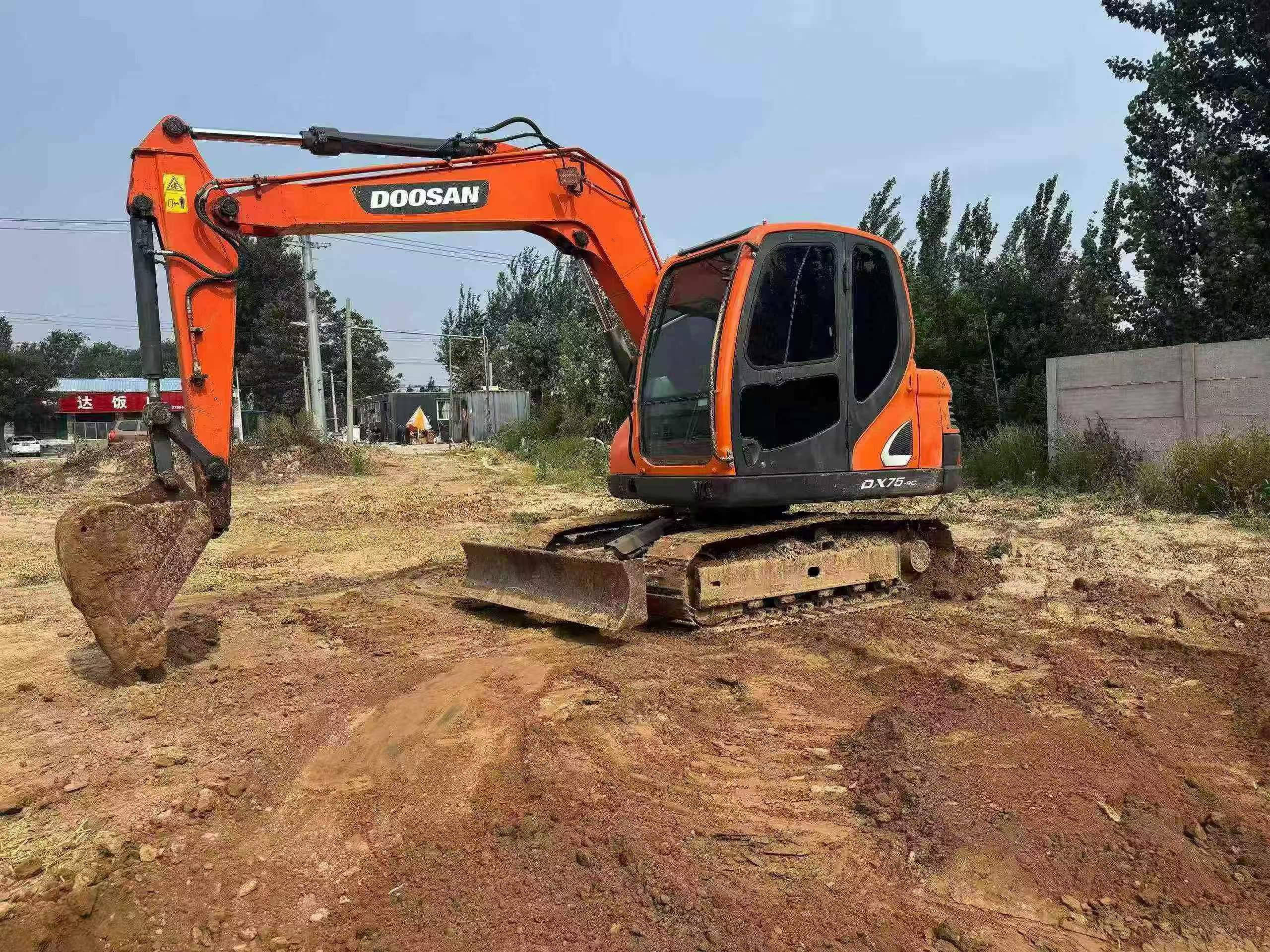

This 2020 Doosan DX75-9C midi excavator represents an exceptional opportunity for operators seeking reliable performance in a compact package. Currently located in Hebei, China, this machine showcases original factory paint and remains unmodified, with all major components in their factory-original condition. The well-maintained air conditioning system ensures operator comfort during extended work shifts.

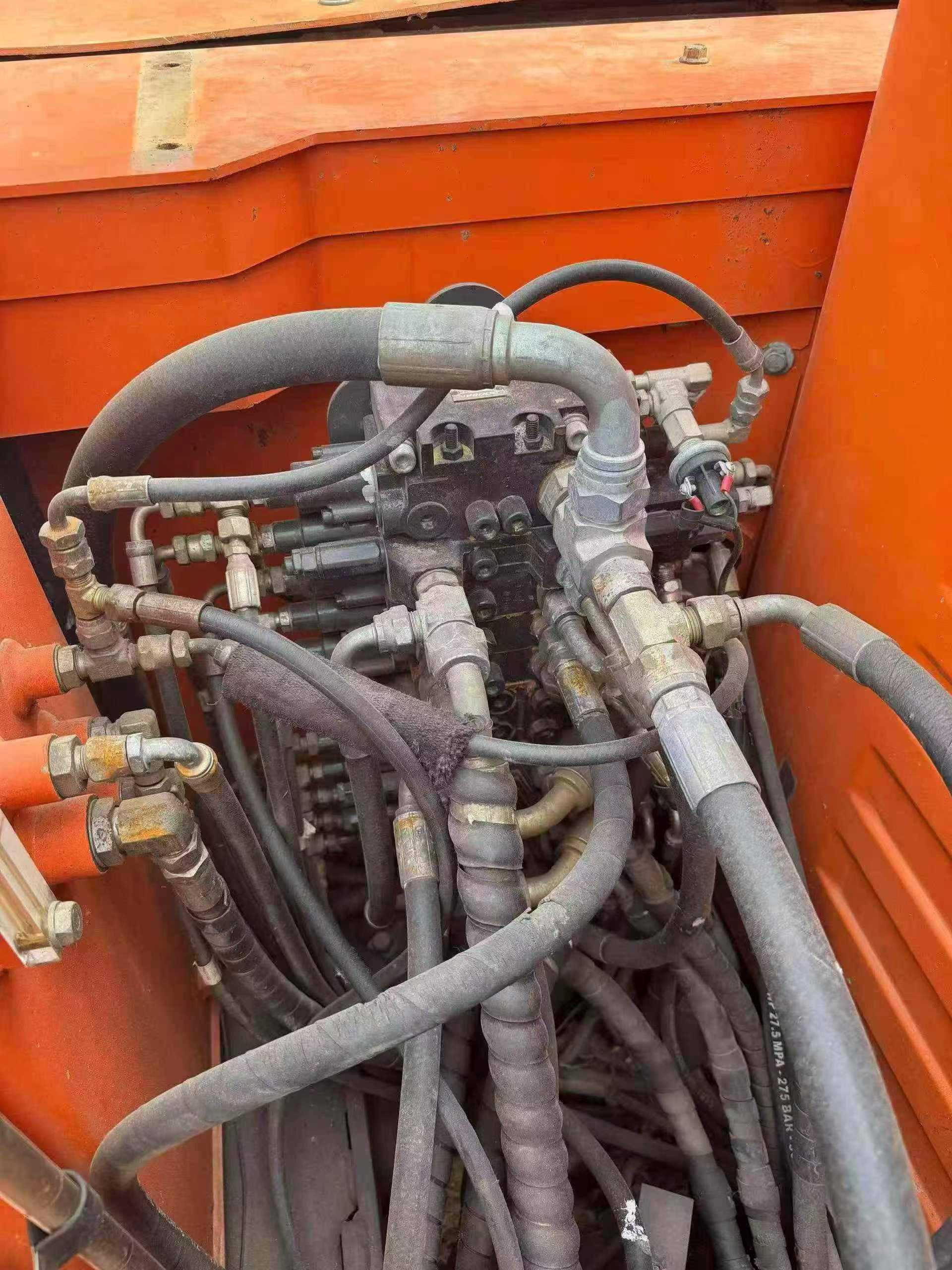

Detailed inspection photos and operational videos are available, demonstrating the excavator's excellent maintenance history and current working condition. The DX75-9C is known for its robust hydraulic system and fuel efficiency in its weight class, making it suitable for urban construction, utility work, and general excavation applications.
- Year: 2020
- Model: Doosan DX75-9C
- Location: Hebei, China
- Condition: Original paint, unmodified major components
- Features: Factory air conditioning system
| Specifications | Value |
|---|---|
| No. | 1095111 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7420 |
| Bucket capacity (m³) | 0.3 |

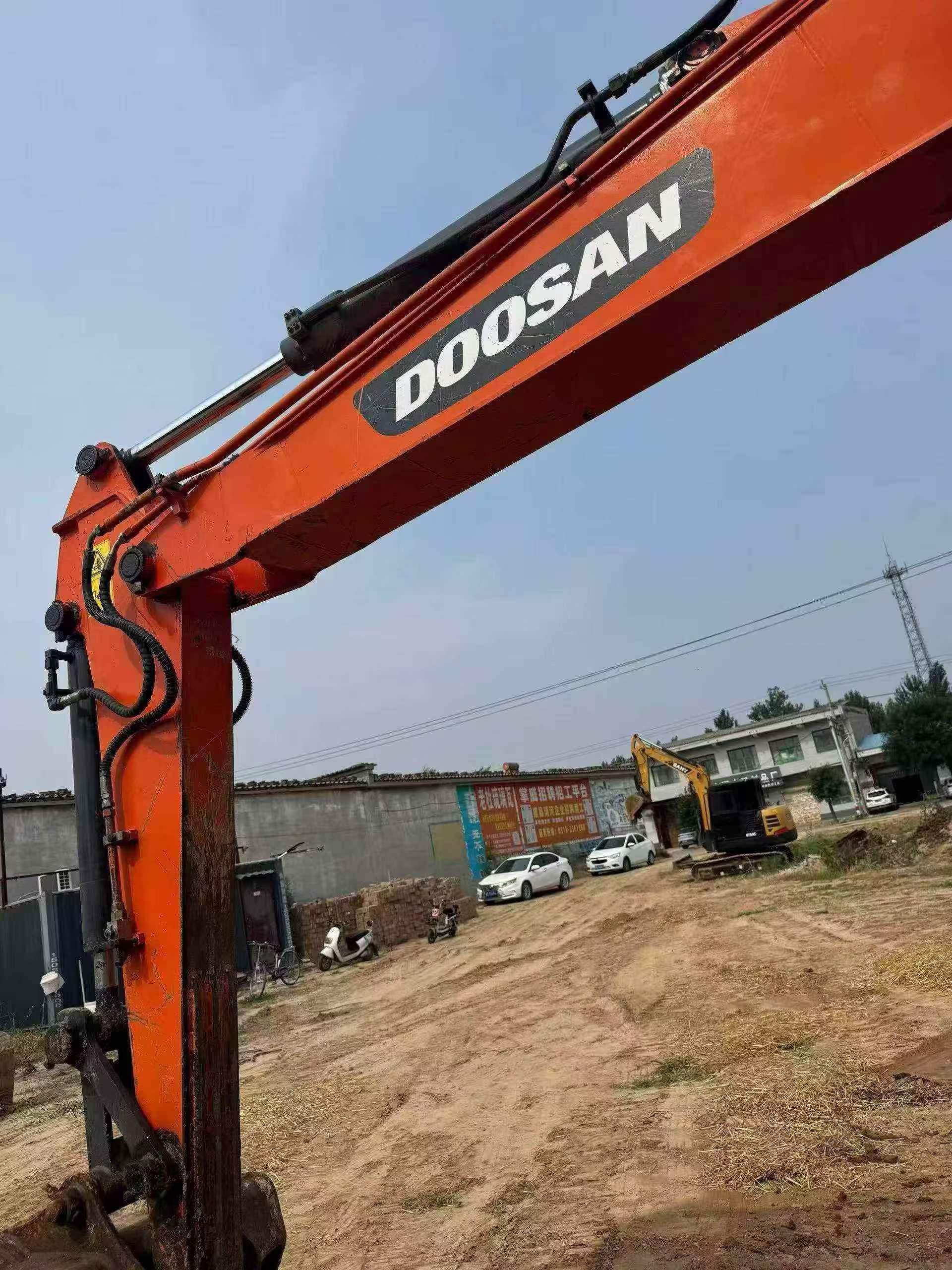

| Boom length (mm) | |3620 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

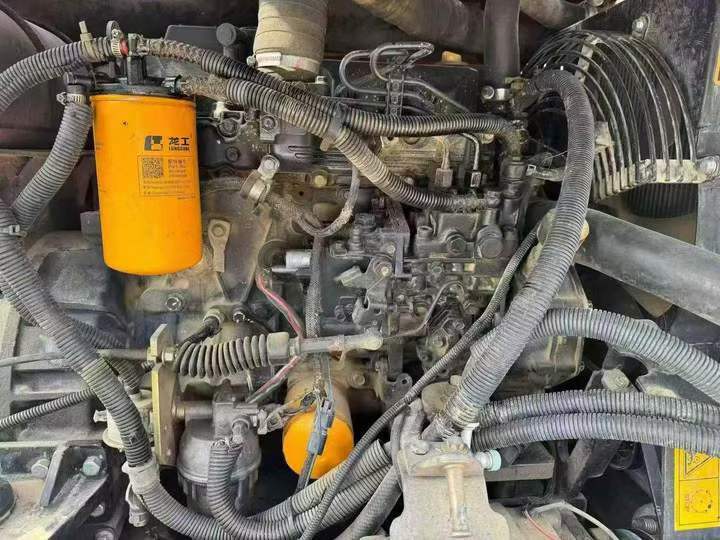

| Engine type | Yanmar 4TNV98-EXS |
| Rated power (kw/rpm) | 39/2200 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Straight, naturally aspirated. |
| Ground specific pressure (Kpa) | 34 |
| Rotation speed (rpm) | 10.4 |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | High: 4.5 / Low: 2.8 |
| Turning torque (Nm) | 1760 |
| Rotary hydraulic motor type | | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Control Hydraulic Circuit (Mpa) | 3.9 |

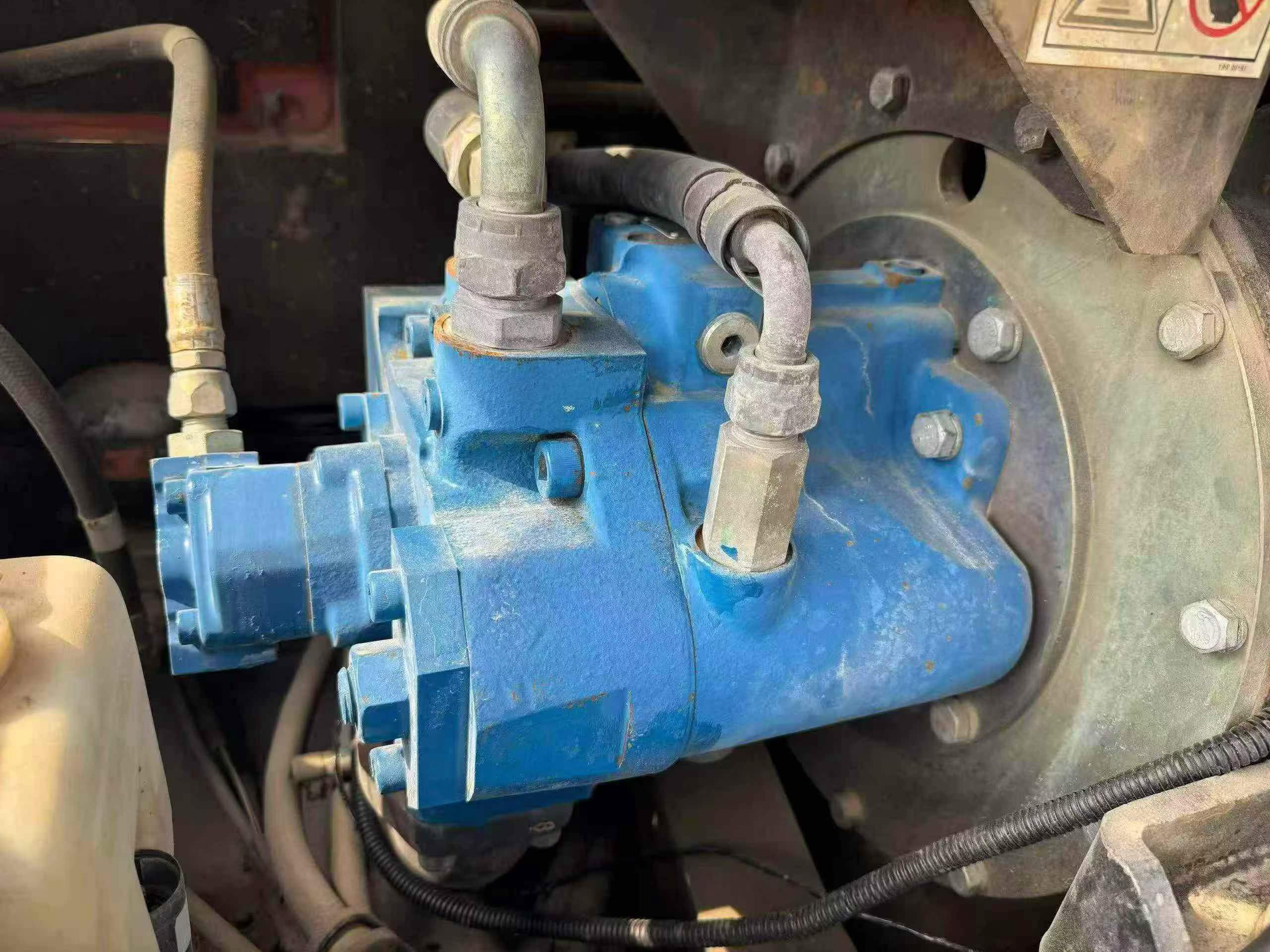

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Hydraulic Tank (L) | 90 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2180 |
| Total transport height (mm) | 2680 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2100 |
| Track ground length (mm) | 3670 |
| Maximum height at minimum turning radius (mm) | 7180 |
| Maximum digging radius (mm) | 6115 |
| Maximum digging depth (mm) | 4080 |
| Maximum excavation height (mm) | 7100 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 2670 |
| Dodging plate width × height (mm) | 2100 x 418 |
| Maximum excavation radius of stop surface (mm) | 6270 |
| Maximum effective digging depth (mm) | 3725 |
