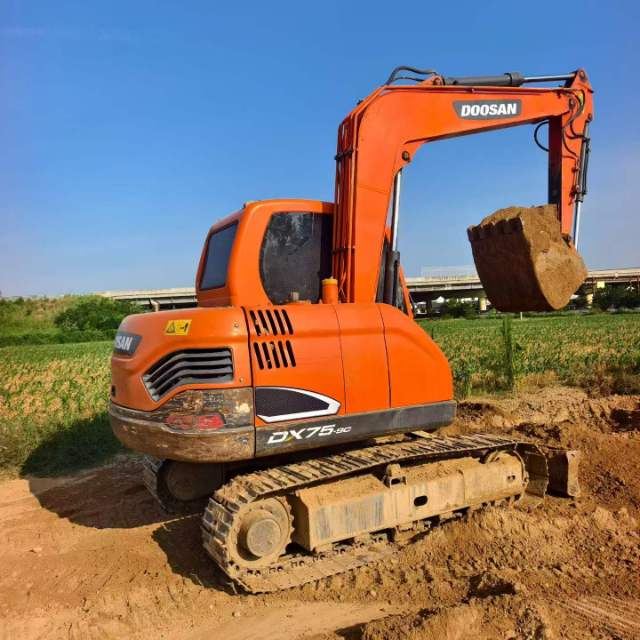

2021 Doosan DX75-9C

1/9
Buy Doosan DX75-9C Used Excavator / 1
Buy Doosan DX75-9C Used Excavator / 2
Buy Doosan DX75-9C Used Excavator / 3
Buy Doosan DX75-9C Used Excavator / 4
Buy Doosan DX75-9C Used Excavator / 5
Buy Doosan DX75-9C Used Excavator / 6
Buy Doosan DX75-9C Used Excavator / 7
Buy Doosan DX75-9C Used Excavator / 8
Buy Doosan DX75-9C Used Excavator / 9

Product Description

Discover the exceptional 2021 Doosan DX75-9C, a robust and reliable excavator available in Peking, China. This machine is in pristine condition, featuring its original paint and a well-maintained air conditioning system. Known for its durability and performance, this DX75-9C has been thoroughly inspected and is ready to deliver top-notch functionality right from the start. Ideal for construction and excavation projects, it offers excellent value with its high-quality maintenance and operational efficiency. Secure this deal now and benefit from a cost-effective solution that promises to enhance your productivity.

  • Year: 2021
  • Brand: Doosan
  • Model: DX75-9C
  • Location: Peking, China
  • Condition: Excellent, with original paint and well-maintained AC
  • Inspection: Fully inspected and in perfect working order
SpecificationsValue
No.1113817
Tonnage (tons)7
Working weight (kg)7420
Bucket capacity (m³)0.3
Boom length (mm)|3620
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

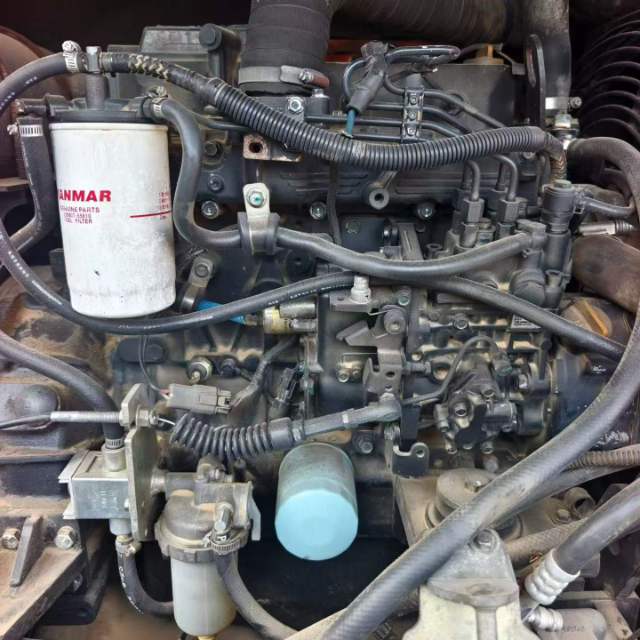

Engine typeYanmar 4TNV98-EXS
Rated power (kw/rpm)39/2200
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Displacement (L)6.494
Working formStraight, naturally aspirated.
Ground specific pressure (Kpa)34
Rotation speed (rpm)10.4
Bucket digging force (kN)53.4
Rod digging force (kN)36.9
Travel speed (km/h)High: 4.5 / Low: 2.8
Turning torque (Nm)1760
Rotary hydraulic motor type| Axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable piston pump
Fuel Tank (L)111
Hydraulic Tank (L)90
Total transport length (mm)6030
Total transport width (mm)2180
Total transport height (mm)2680
Full cab height (mm)2950
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1750
Onboard width (mm)2130
Total track length (mm)2750
Track gauge (mm)1650
Track plate width (mm)450
Total track width (mm)2100
Track ground length (mm)3670
Maximum height at minimum turning radius (mm)7180
Maximum digging radius (mm)6115
Maximum digging depth (mm)4080
Maximum excavation height (mm)7100
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)2670
Dodging plate width × height (mm)2100 x 418
Maximum excavation radius of stop surface (mm)6270
Maximum effective digging depth (mm)3725
