Product Description

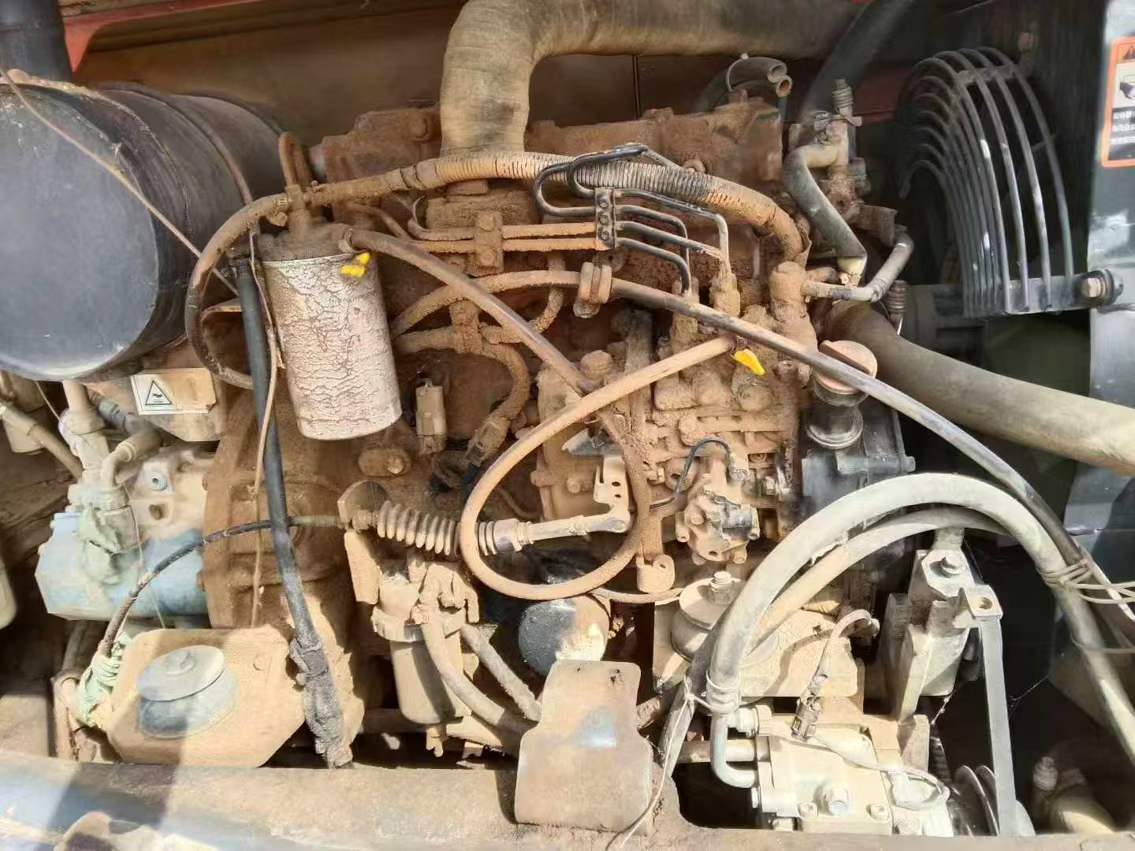

Proven in demanding conditions since 2013, this Doosan DX80 excavator demonstrates the durability that makes it a reliable workhorse for medium-duty applications. Operating at 7,900 kg working weight with a robust Yanmar 4TNV98 engine delivering 41.4 kW at 2,100 rpm, this 8-ton machine combines power with precision. Built as a joint venture model in Yantai, China, it features exceptional digging capabilities with 56 kN bucket force and 41 kN arm force, handling 0.30-0.32 m³ bucket capacity efficiently.
- Maximum digging reach: 6,350 mm with 4,165 mm depth capability
- Compact footprint: 6,000 mm transport length, 1,800 mm tail swing radius

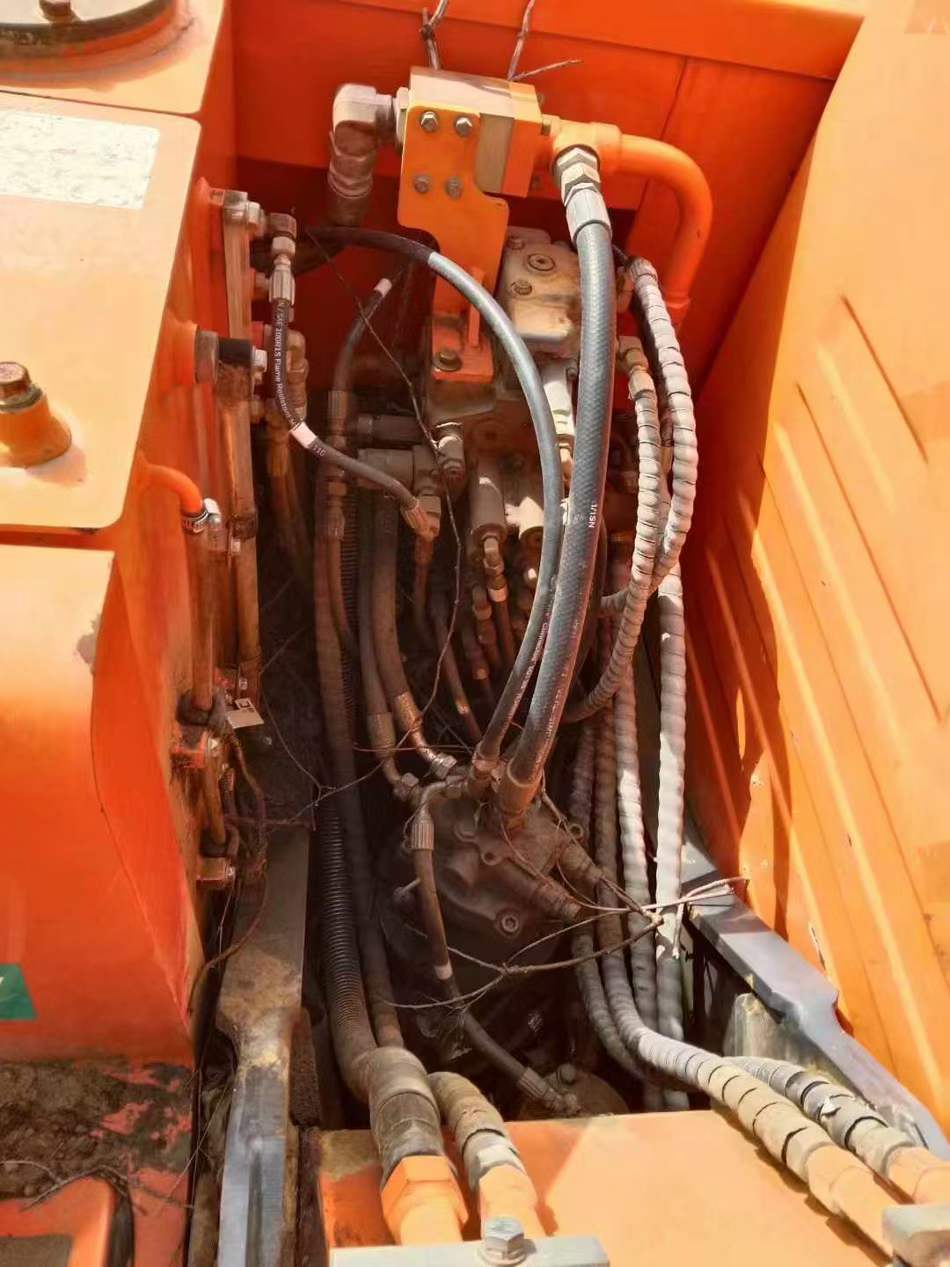

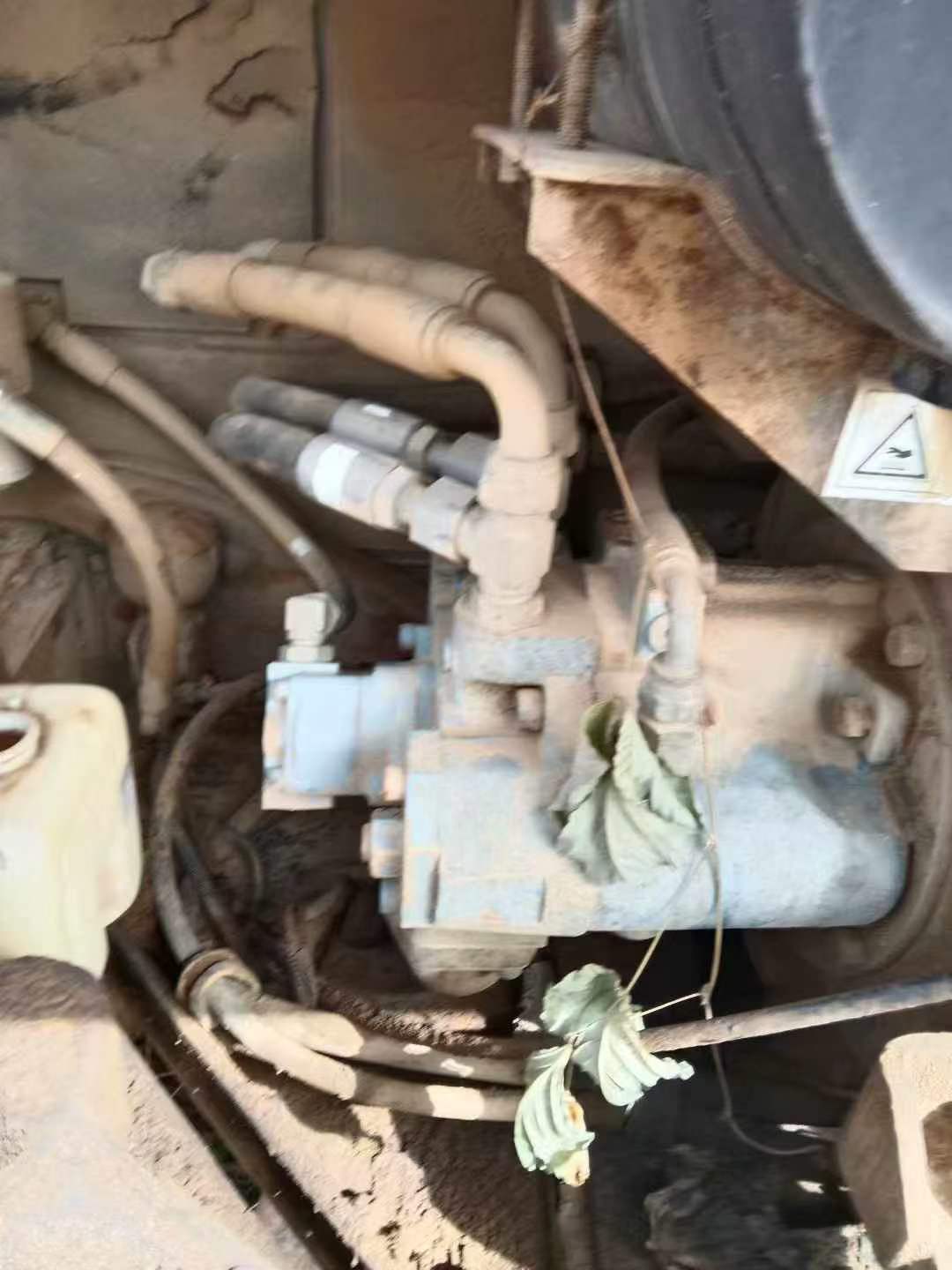

- Dual main pumps: 75.6 L/min × 2 plus 18.7 L/min for consistent hydraulic performance
- Impressive mobility: 30° climbing ability, 4.9 km/h travel speed
- Currently located in Ningde, Fujian, ready for deployment
With nearly a decade of service, this excavator exemplifies the build quality and engineering that keeps contractors returning to the DX80 platform for versatile earthmoving tasks.
| Specifications | Value |
|---|---|
| No. | 1013861 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
