Product Description
Skip the factory lead times with this immediately available 2016 Doosan DX80 excavator, strategically positioned in 山东菏泽 for rapid deployment across China. Built with proven Yanmar 4TNV98 engine technology delivering 41.4kW of reliable power, this 8-ton workhorse combines Japanese engineering precision with practical Chinese manufacturing efficiency.

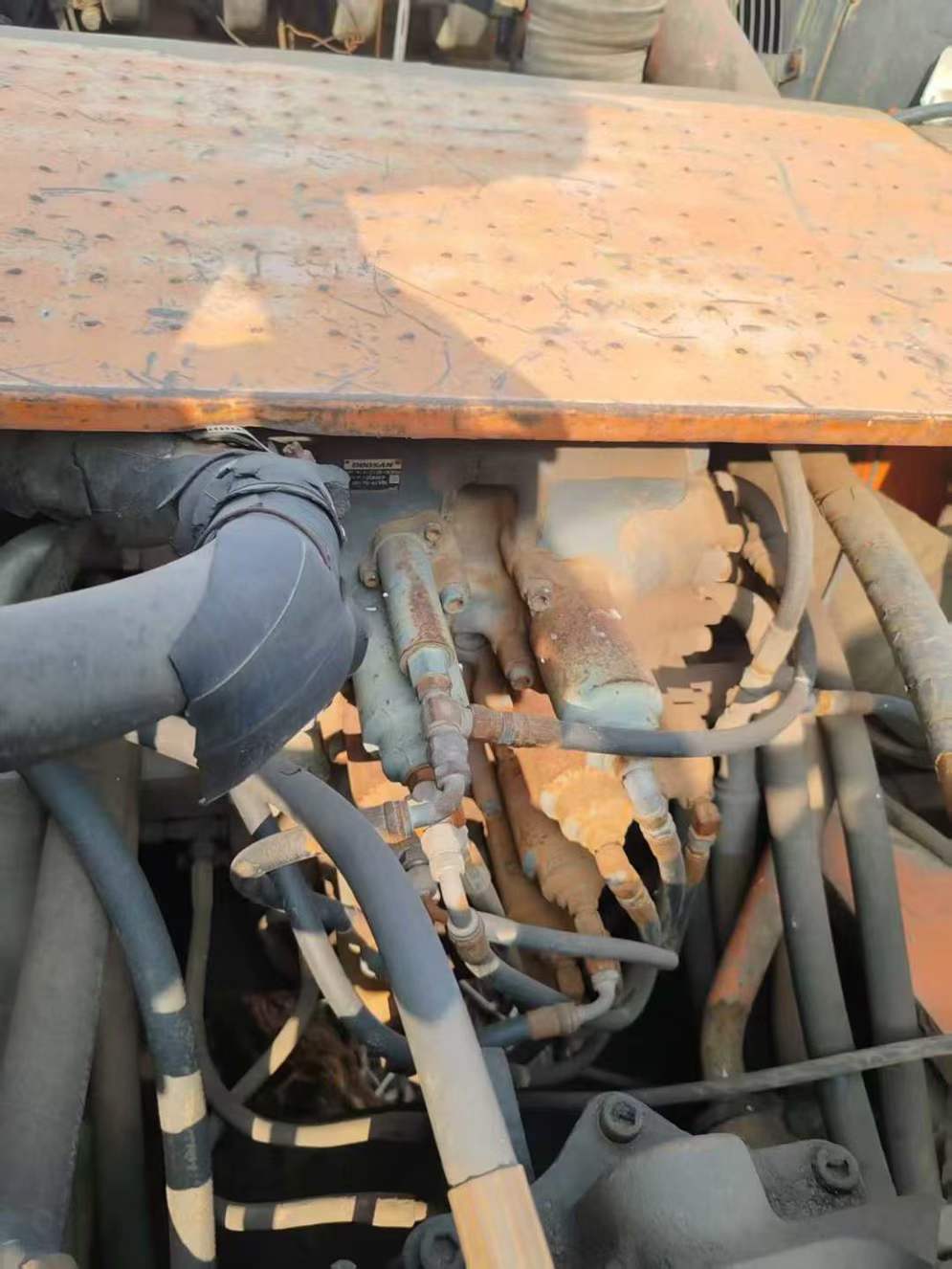

Engineered for versatility, the DX80 features a compact 6-meter transport length while maintaining impressive reach capabilities of 6.35 meters maximum digging radius and 4.165 meters digging depth. With 56kN bucket digging force and dual hydraulic pumps providing 75.6 L/min flow rates, this machine handles demanding excavation tasks with consistent performance.
- Available now from 山东菏泽 - no waiting periods
- Proven Yanmar engine with 4-stroke, water-cooled reliability
- Compact dimensions: 6000mm × 2290mm × 2685mm for easy transport
- 145L fuel capacity for extended operation cycles
- Fast deployment to your construction site
Ready for immediate mobilization with complete operational specifications verified. Contact us today for swift delivery arrangements.
| Specifications | Value |
|---|---|
| No. | 992672 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
