Product Description
Proven performance meets engineering excellence in this 2019 Doosan DX80 excavator, currently located in Hebei. With over four years of operational history, this 8-ton machine demonstrates the durability that has made Doosan a trusted name in construction equipment. Powered by the reliable Yanmar 4TNV98 engine delivering 41.4 kW at 2100 rpm, this workhorse combines consistent power output with fuel efficiency from its 145-liter tank.
Built for demanding jobsites, the DX80 offers impressive digging capabilities with a maximum reach of 6,350mm and depth of 4,165mm. The 0.30-0.32m³ bucket capacity, backed by 56kN of digging force, handles diverse excavation tasks with confidence. Weighing 7,900kg with a compact transport length of 6,000mm, this excavator balances substantial performance with maneuverability on congested sites.

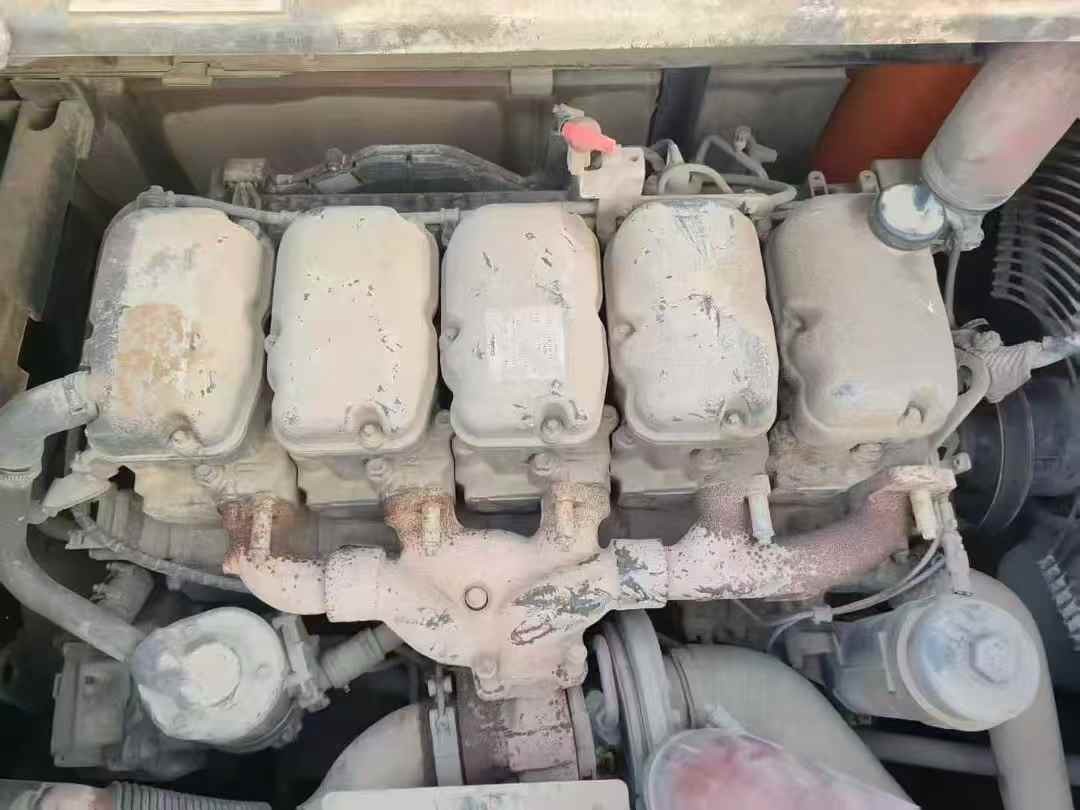

- Yanmar 4TNV98 engine: proven reliability in heavy-duty applications
- Maximum digging height: 7,120mm for versatile reach
- 30° climbing ability: tackles challenging terrain

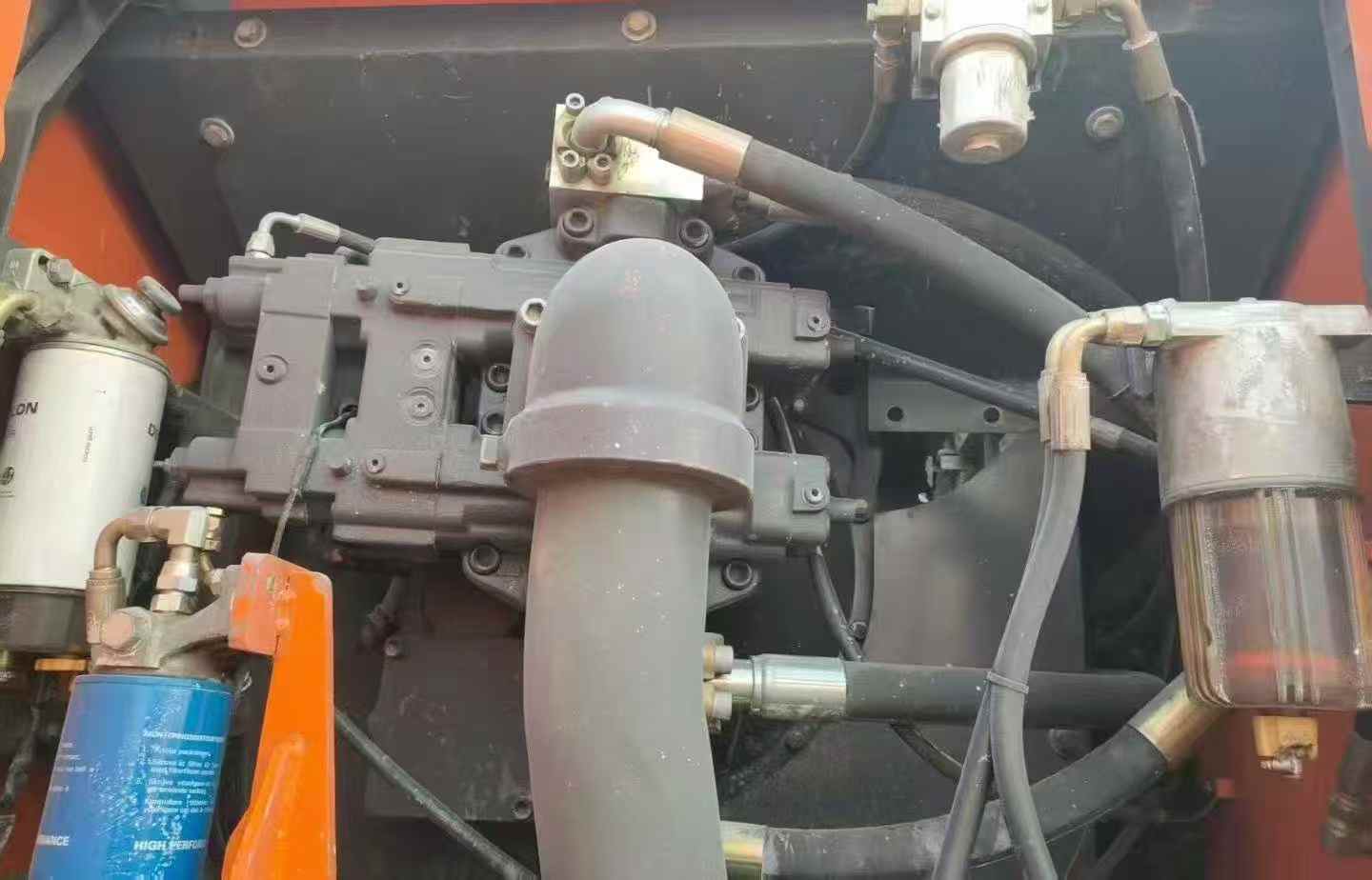

- Dual main pump system (75.6 L/min × 2): responsive hydraulic performance
- 450mm track plates: optimal stability and ground pressure distribution
Contact Fair Trade Machinery
| Specifications | Value |
|---|---|
| No. | 1018611 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
