Product Description
Proven in demanding jobsites worldwide, this 2022 Doosan DX80 delivers 8-ton performance with the backing of a manufacturer known for long-term value retention. Powered by a reliable Yanmar 4TNV98 engine producing 41.4 kW at 2100 rpm, this excavator combines robust digging force—56 kN bucket force and 41 kN arm force—with a versatile 0.30-0.32 m³ bucket capacity for trenching, grading, and loading applications.
Doosan's joint-venture manufacturing ensures access to genuine parts through established global supply chains, a critical advantage when purchasing used equipment. With a 6,350 mm maximum digging reach and 4,165 mm digging depth, this DX80 handles utility work, landscaping, and residential construction with confidence. The compact 2,290 mm transport width and 1,800 mm tail swing radius enable work in confined spaces without sacrificing stability.
Currently located in Shandong Linyi, this machine represents a smart investment for operators prioritizing uptime and resale strength. Doosan's reputation for durability translates directly to lower ownership costs and higher residual values compared to lesser-known brands.
| Specifications | Value |
|---|---|
| No. | 1014430 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

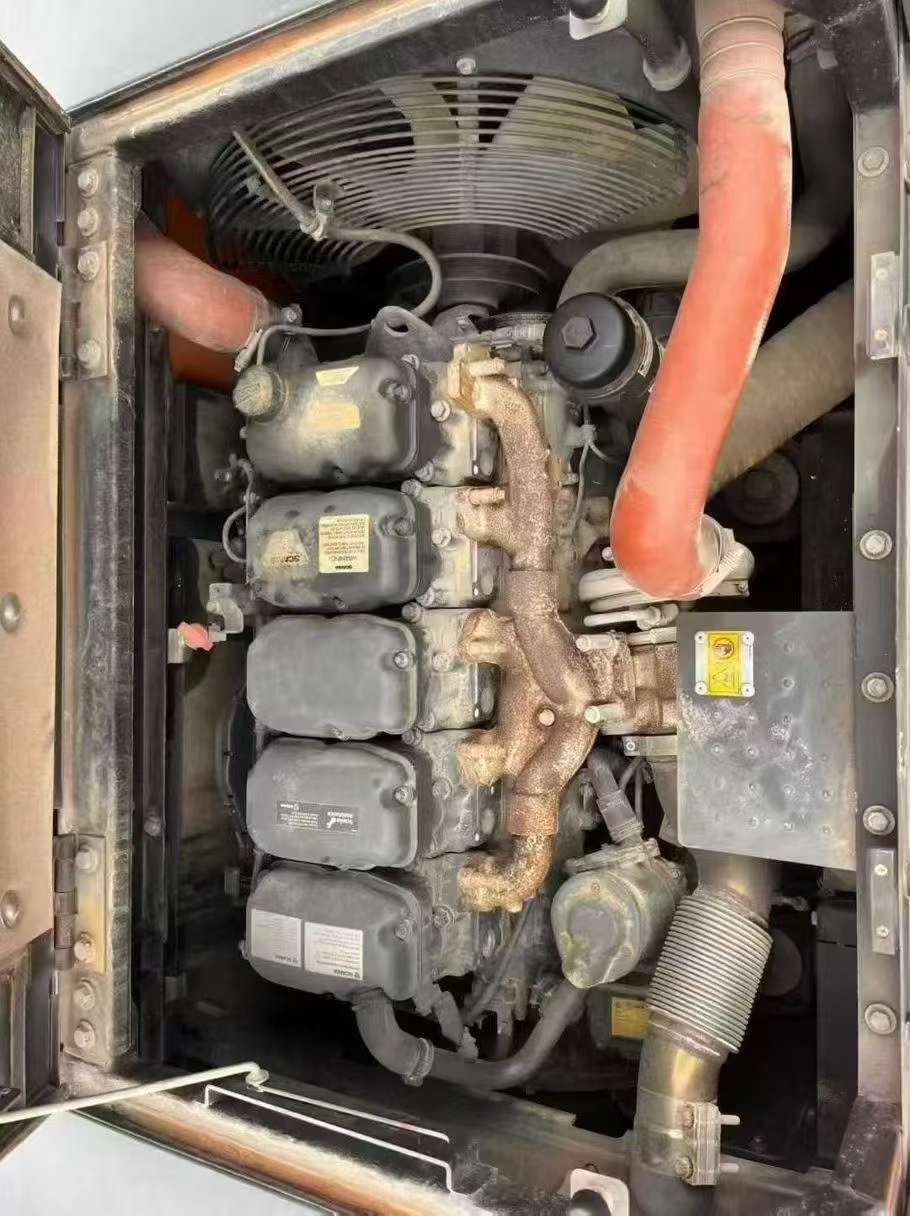

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |

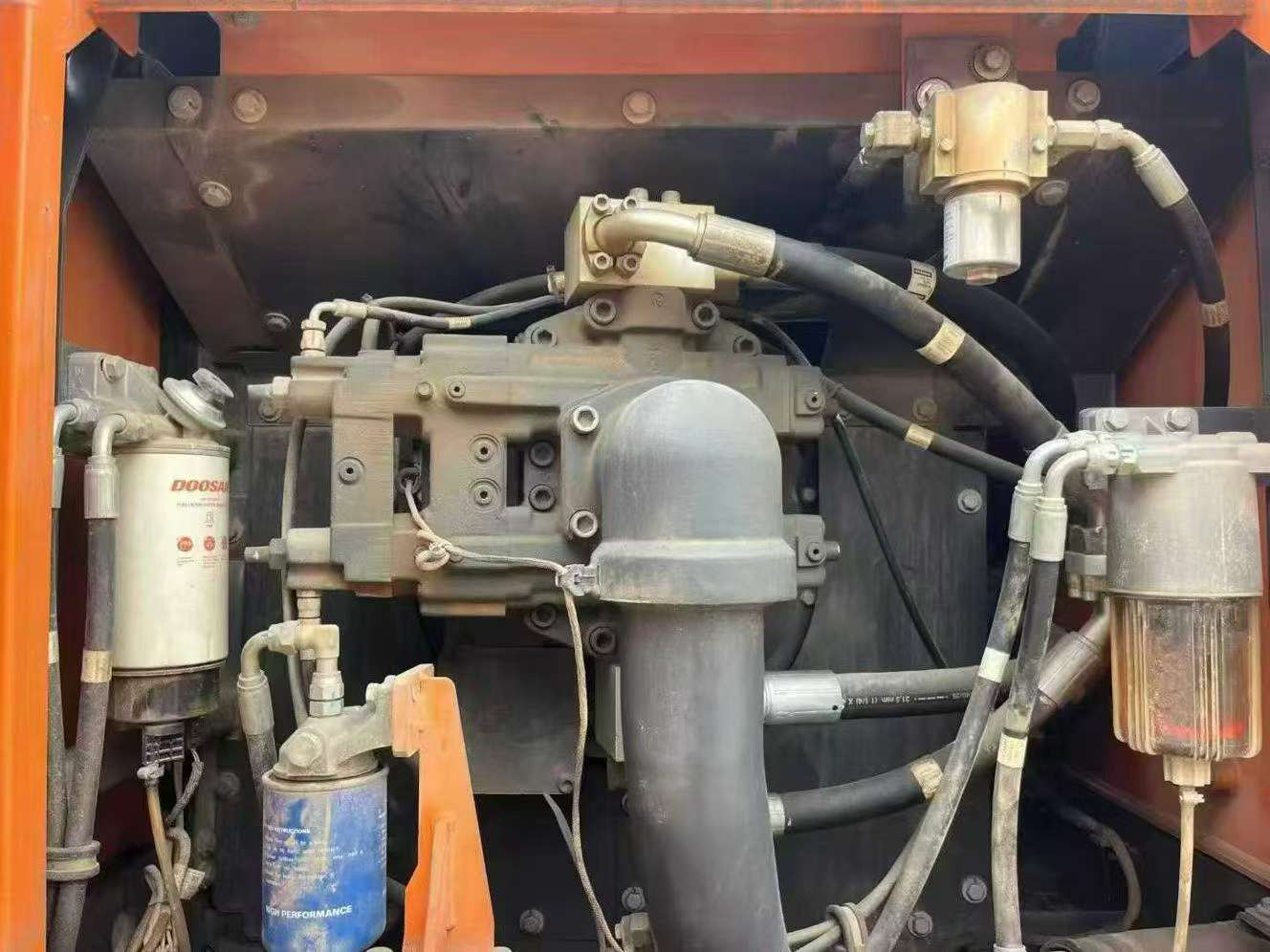

| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
