Product Description

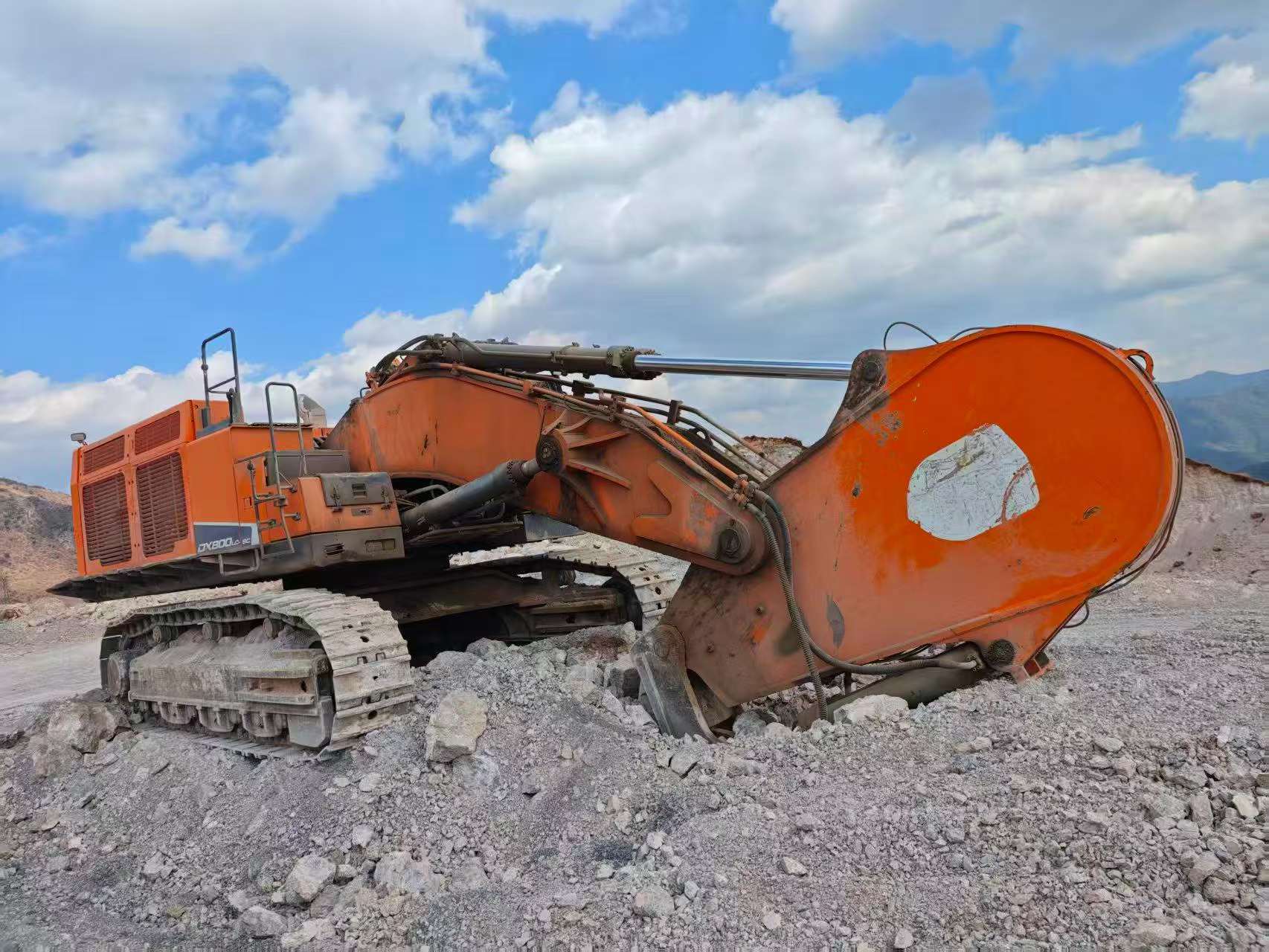

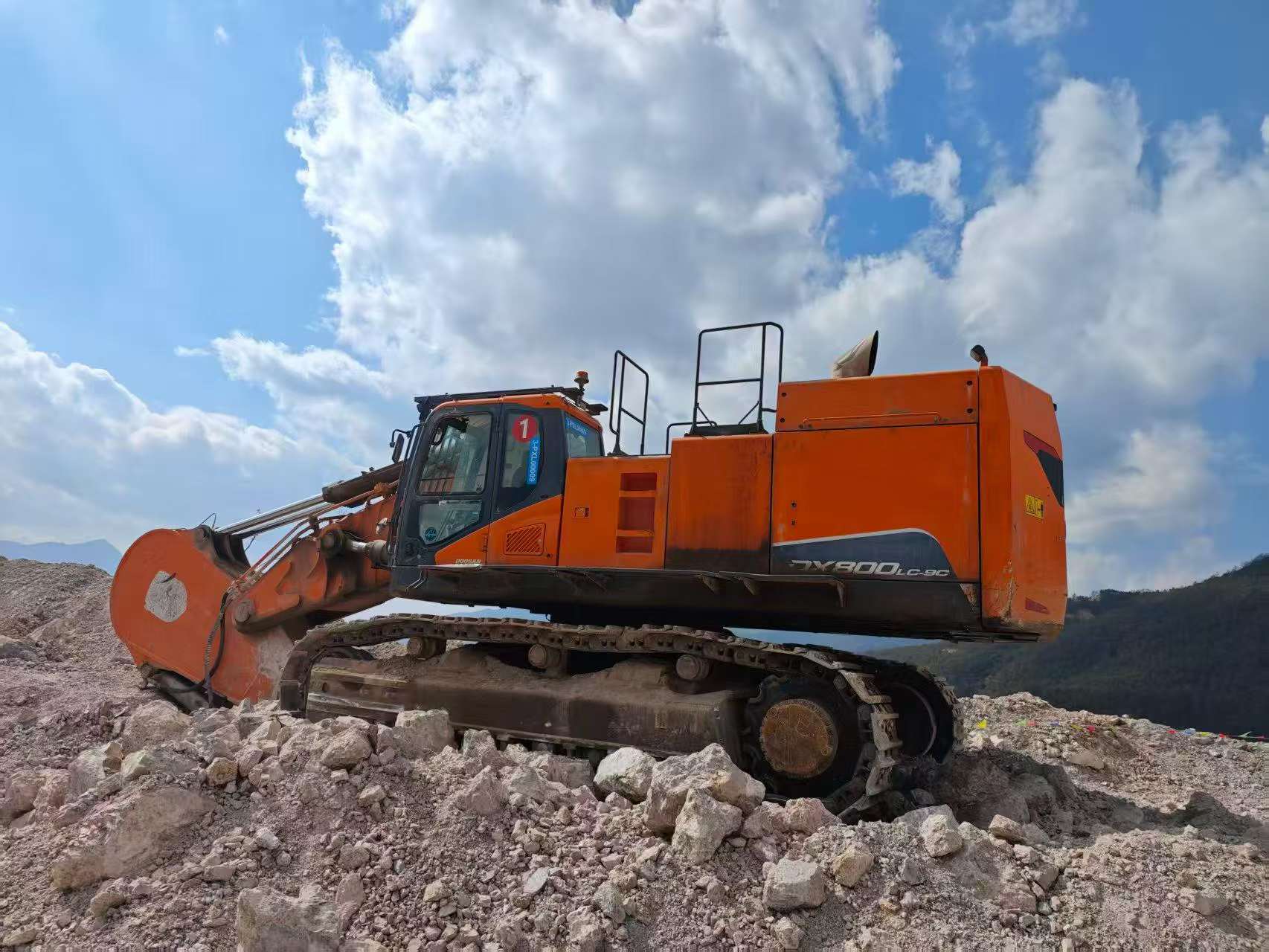

Expand your fleet capacity with this 2019 Doosan DX800HD, an 80-ton hydraulic excavator built for high-volume earthmoving and heavy extraction work. Powered by a Perkins 2506J engine delivering 402 kW at 2,100 rpm, this machine offers the reliability and performance contractors need when primary units are maxed out or project demands surge beyond normal capacity.
- Operating Weight: 80,000 kg
- Bucket Capacity: 4.64–5.58 m³
- Maximum Digging Depth: 7,120–7,725 mm
- Maximum Digging Radius: 11,595–12,670 mm
- Bucket Digging Force: 40.5 kN
- Travel Speed: 4.8/2.9 km/h
Currently located in Jinhua, Zhejiang, this China-manufactured unit integrates seamlessly into existing Doosan fleets or serves as a dependable backup during peak production cycles. With proven hydraulics, solid fuel efficiency, and straightforward maintenance protocols, the DX800HD minimizes downtime and keeps projects on schedule when every machine hour counts.
| Specifications | Value |
|---|---|
| No. | 1048246 |
| Tonnage (tons) | 80 |
| Working weight (kg) | 80,000 |
| Bucket capacity (m³) | 4.64~5.58 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Perkins 2506J |
| Rated power (kw/rpm) | 402/ 2,100 |
| Bucket digging force (kN) | 40.5 |
| Rod digging force (kN) | 34.3 |
| Travel speed (km/h) | 4.8/2.9 |
| Total transport length (mm) | 12,320/13,370 |
| Total transport width (mm) | 3,400/4,000 |
| Total transport height (mm) | 4,905/4,420 |
| Full cab height (mm) | 3,540 |
| Back end turning radius (mm) | 4,100 |
| Total track length (mm) | 5,960 |
| Maximum digging radius (mm) | 11,595/12,670 |
| Maximum digging depth (mm) | 7,120/7,725 |
| Maximum excavation height (mm) | 10,470/11,910 |
| Maximum unloading height (mm) | 7,000/8,245 |
| Maximum vertical digging depth (mm) | 1,840/2,455 |
