Product Description
Engineered with precision hydraulics and a proven Yanmar 4TNV98-ZCV engine, this 2018 Doosan DX88-9C delivers 44.4 kW at 2100 rpm through a straight, naturally aspirated configuration. Dual variable piston pumps supply 2 × 70.4 L/min maximum flow, powering exceptional bucket digging force of 5.55 tons and rod force of 4.05 tons—critical metrics for demanding excavation tasks.
Operating at 7,970 kg working weight, this 8-ton compact excavator combines maneuverability with robust performance. Key specifications include:
- Maximum digging reach: 6,500 mm with 4,170 mm depth capability
- 0.38 m³ backhoe bucket capacity paired with 3,820 mm boom and 1,700 mm arm
- Compact transport dimensions: 6,300 × 2,340 × 2,680 mm
- Efficient fuel system: 135 L tank with 106 L hydraulic reservoir
- Dual-speed travel: 4.9 km/h high / 3.1 km/h low via axial piston hydraulic motors
Currently located in Nanning, Guangxi, this joint venture-manufactured machine represents Doosan's commitment to engineering excellence, offering reliable performance for contractors requiring precision excavation in confined spaces.
| Specifications | Value |
|---|---|
| No. | 1031130 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7970 |
| Bucket capacity (m³) | 0.38 |
| Boom length (mm) | 3820 |
| Rod length (mm) | 1700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

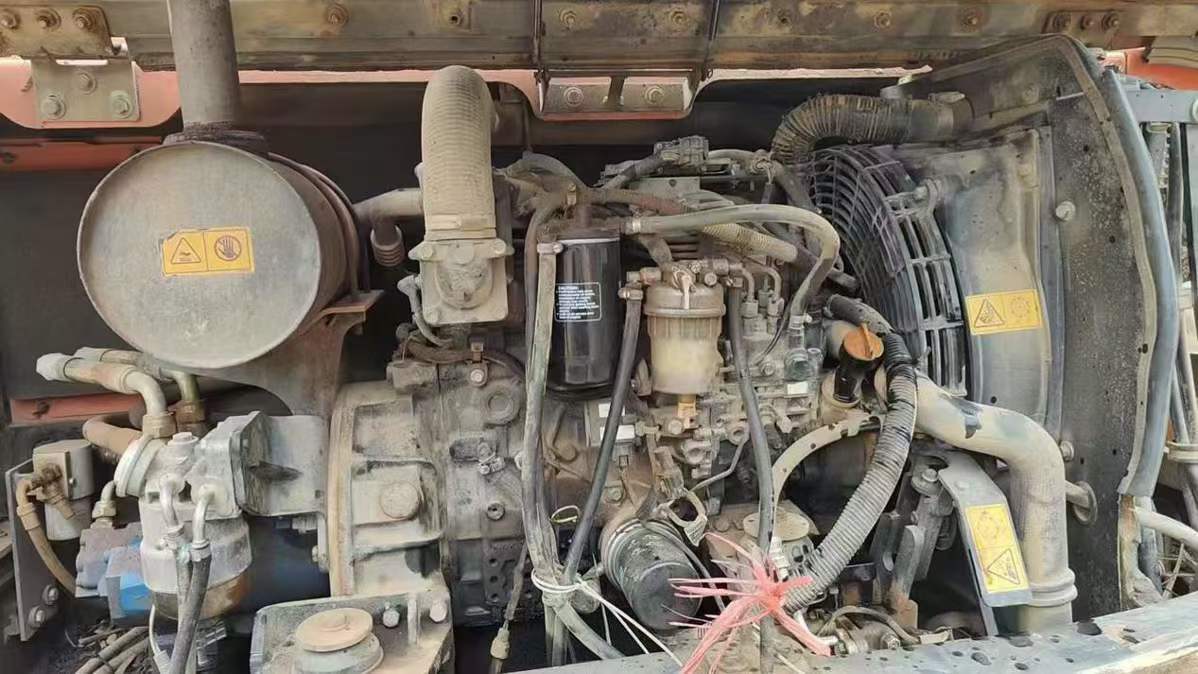

| Engine type | Yanmar 4TNV98-ZCV |
| Rated power (kw/rpm) | 44.4/2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | Straight, naturally aspirated. |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 5.55ton |
| Rod digging force (kN) | 4.05ton |
| Travel speed (km/h) | High: 4.9 / Low: 3.1 |
| Type of walking hydraulic motor | Axial piston hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 70.4 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 106 |
| Total transport length (mm) | 6300 |
| Total transport width (mm) | 2340 |
| Total transport height (mm) | 2680 |
| Minimum ground clearance (mm) | 365 |
| Minimum turning radius of front working device (mm) | 1875 |
| Back end turning radius (mm) | 1850 |
| Onboard width (mm) | 2240 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Maximum digging radius (mm) | 6500 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7270 |
| Maximum vertical digging depth (mm) | 2660 |
| Dodging plate width × height (mm) | 2300 x 430 |
| Maximum excavation radius of stop surface (mm) | 6370 |
| Maximum effective digging depth (mm) | 3835 |
