Product Description

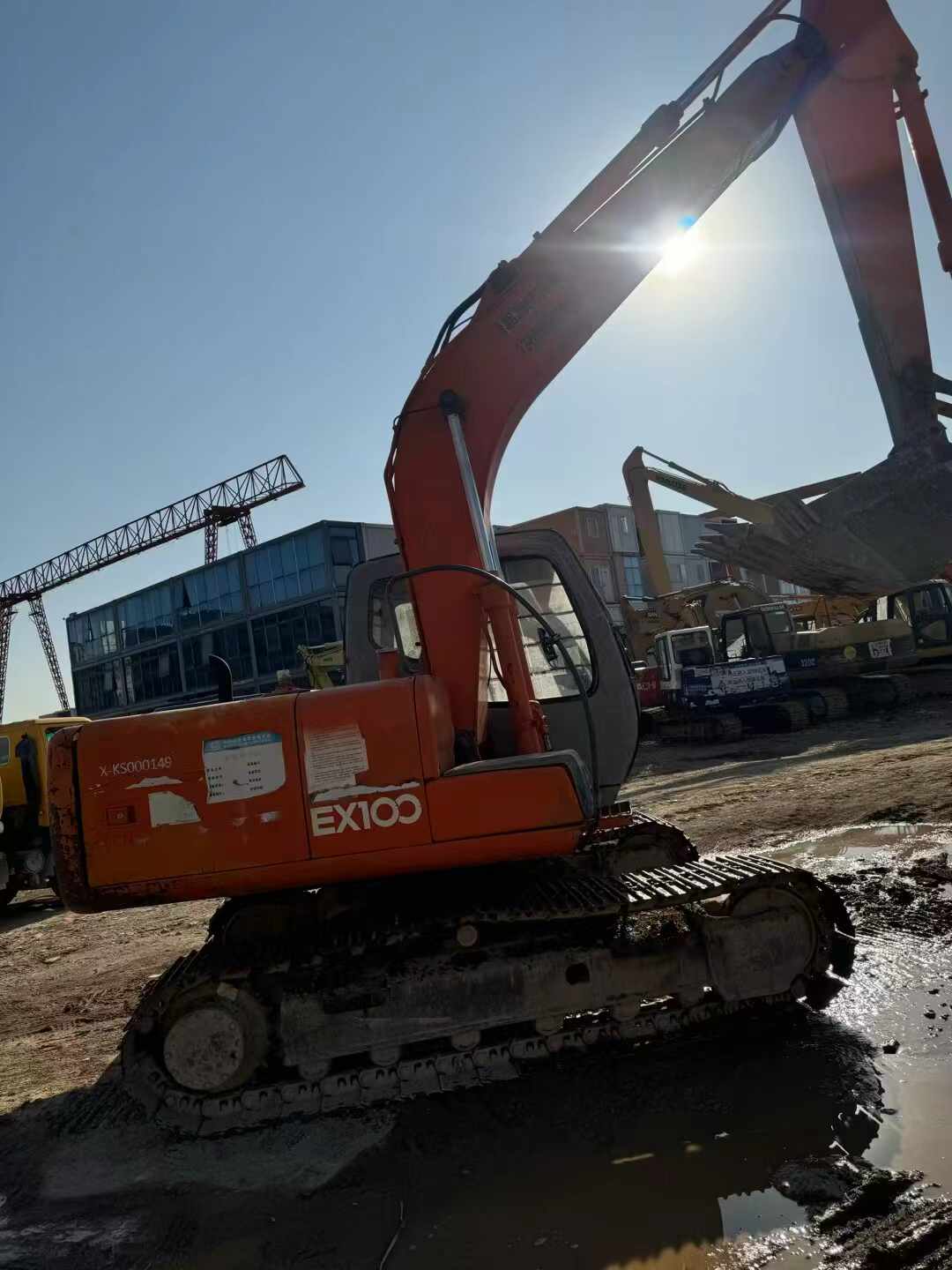

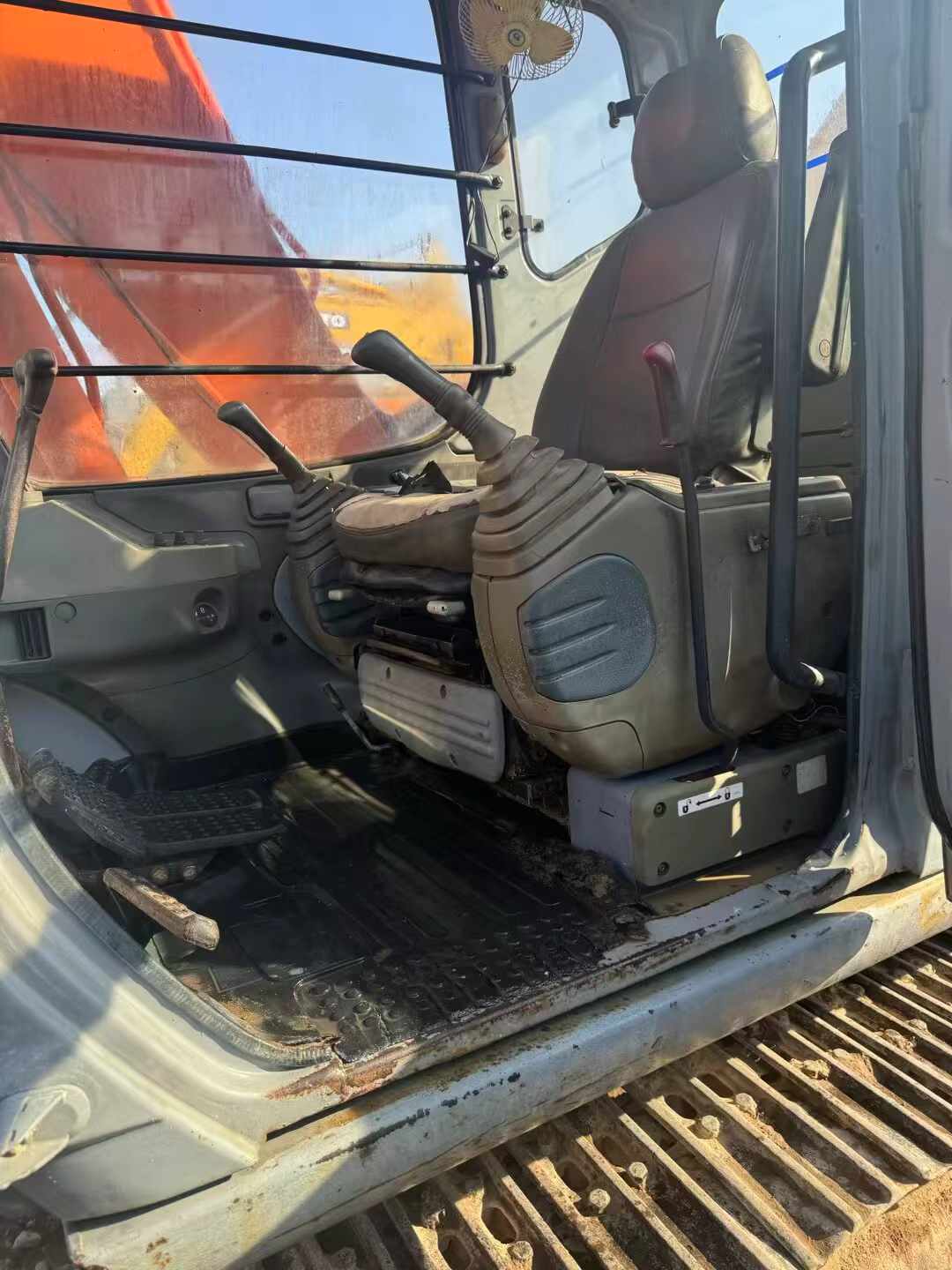

Engineered for precision and operator confidence, this 2016 Hitachi EX100-5 delivers reliable performance in the 10-ton excavator class. Powered by a proven Isuzu A-4BG1 engine producing 56.7 kW, this machine combines responsive hydraulics with exceptional stability for demanding jobsite conditions. Operators benefit from superior cabin visibility and intuitive controls that reduce fatigue during extended shifts.
- Working weight of 10,704.8 kg provides solid ground engagement and digging force
- Maximum digging depth of 4,780 mm and excavation radius of 7,290 mm offer versatile reach
- Compact 2,130 mm rear turning radius enables efficient operation in confined spaces
- 500 mm track plates and 37.2 kPa ground pressure ensure stable performance across varied terrain
- 250L fuel capacity supports full-day productivity without frequent refueling
- Multiple bucket options (0.3/0.19/0.59 m³) adapt to specific application requirements
Currently located in Shenzhen, Guangdong, this joint venture-manufactured excavator represents proven Hitachi engineering with straightforward maintenance access and durable construction for long-term operational value.
| Specifications | Value |
|---|---|
| No. | 993474 |
| Tonnage (tons) | 10 |
| Working weight (kg) | 10704.8 |
| Bucket capacity (m³) | 0.3/0.19/0.59 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1 |
| Rated power (kw/rpm) | 56.7 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 37.2 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7190 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2620 |
| Maximum digging depth (mm) | 4780 |
| Maximum excavation height (mm) | 7930 |
| Maximum unloading height (mm) | 5530 |
| Maximum vertical digging depth (mm) | 4320 |
| Maximum excavation radius of stop surface (mm) | 7290 |
