2020 Hitachi EX120-2

1/9

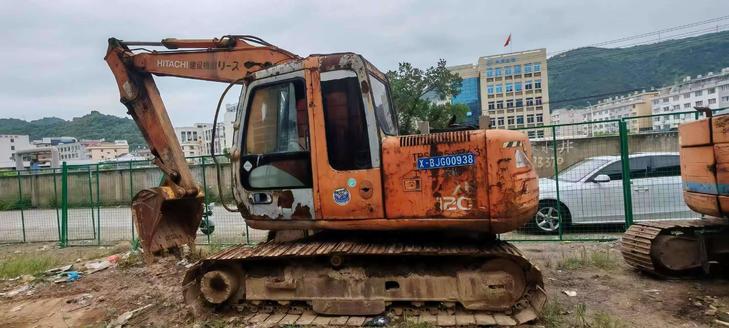

Buy Hitachi EX120-2 Used Excavator / 1
Buy Hitachi EX120-2 Used Excavator / 2
Buy Hitachi EX120-2 Used Excavator / 3
Buy Hitachi EX120-2 Used Excavator / 4
Buy Hitachi EX120-2 Used Excavator / 5
Buy Hitachi EX120-2 Used Excavator / 6
Buy Hitachi EX120-2 Used Excavator / 7
Buy Hitachi EX120-2 Used Excavator / 8
Buy Hitachi EX120-2 Used Excavator / 9

Product Description

2020 Hitachi EX120-2 hydraulic excavator available in Zhejiang, China. This Japanese-manufactured unit features the original hydraulic pump system, ensuring reliable performance and authentic OEM components. The machine is offered at a competitive price point, reflecting its well-maintained condition and operational readiness.

  • Year: 2020
  • Model: Hitachi EX120-2
  • Location: Zhejiang Province, China
  • Hydraulic System: Original factory pump installed
  • Documentation: Comprehensive photo and video documentation available
  • Condition: Operational, suitable for immediate deployment

Ideal for mid-sized excavation projects, earthmoving operations, and general construction applications. The EX120-2 offers proven reliability in the 12-ton class. Detailed visual inspection materials including multiple photographs and operational videos are available upon request to qualified buyers.

SpecificationsValue
No.1084592
Tonnage (tons)12
Working weight (kg)11800
Boom length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu 4BD1T
Rated power (kw/rpm)63/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 118
Maximum torque (N.m)299/1600
Number of cylinders (PCS)4
Displacement (L)3.856
Working form4 Direct injection
Ground specific pressure (Kpa)37.3
Rotation speed (rpm)11
Climbing ability (%)35
Bucket digging force (kN)78.5
Rod digging force (kN)64.7
Maximum tractive force (kN)94.1
Travel speed (km/h)High speed: 0~5.5 / Medium speed: 0~3.4 / Low speed: 0~2.5
Maximum flow of main pump (l/min)1 x 198
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)34.8
Main pump type1 variable axial piston pump
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.9
Pilot pump flow (L/min)37
Fuel Tank (L)250
Hydraulic Tank (L)69
Engine Oil changes (L)16.2
Coolant (L)16.4
Hydraulic System (L)134
Total transport length (mm)7560
Total transport width (mm)2500
Total transport height (mm)2700
Counterweight ground clearance (mm)890
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2370
Back end turning radius (mm)2130
Onboard width (mm)2460
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Maximum digging radius (mm)7900
Maximum digging depth (mm)5150
Maximum excavation height (mm)8330
Maximum unloading height (mm)5920
Maximum vertical digging depth (mm)4640
Maximum excavation radius of stop surface (mm)7770
Maximum effective digging depth (mm)4920
see more

Overview

No.1084592

Brand Name:

Hitachi

Model Number:

EX120-2

Year:

2020

Location:

Zhejiang China

Pub Date
