Product Description

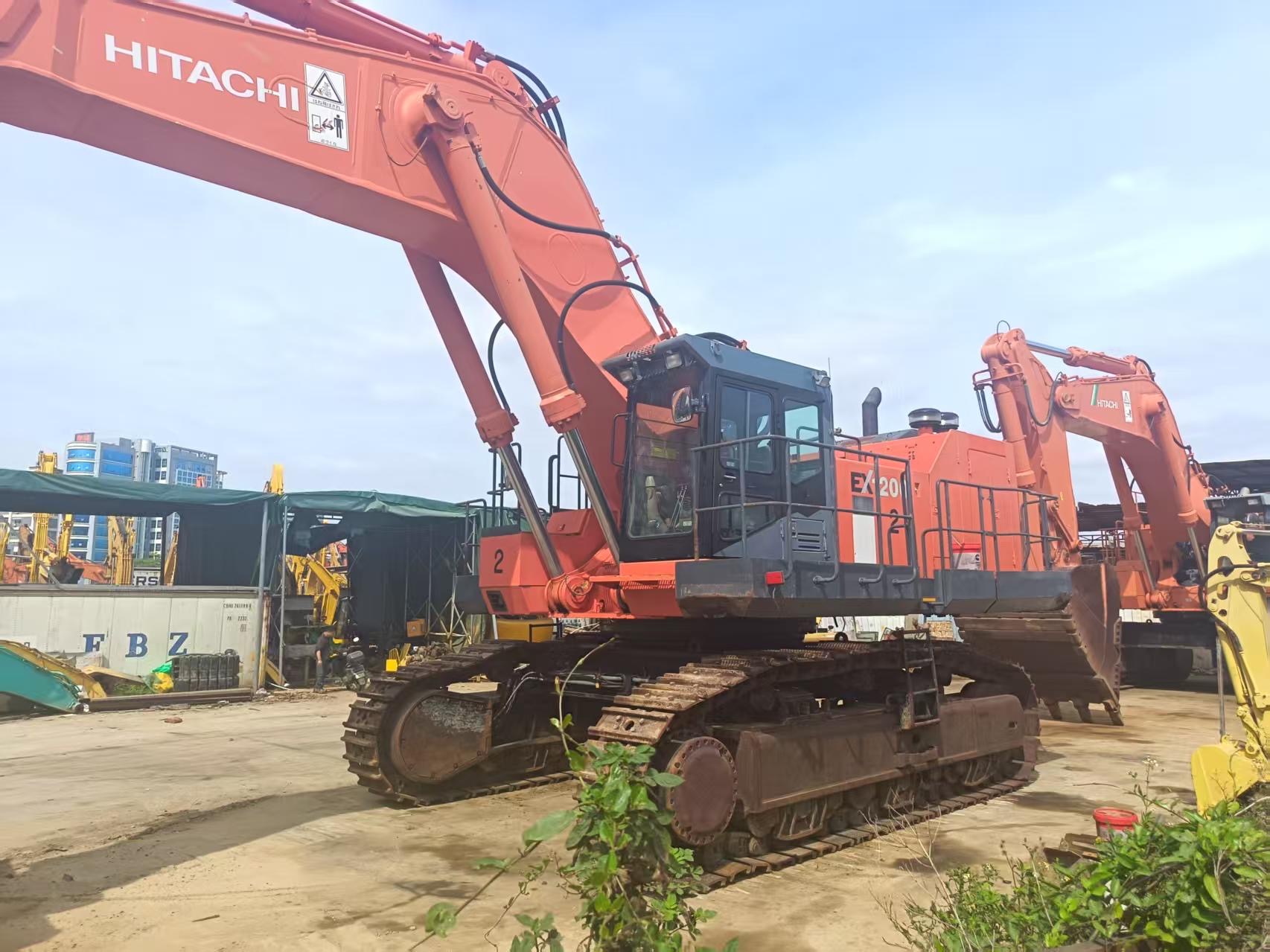

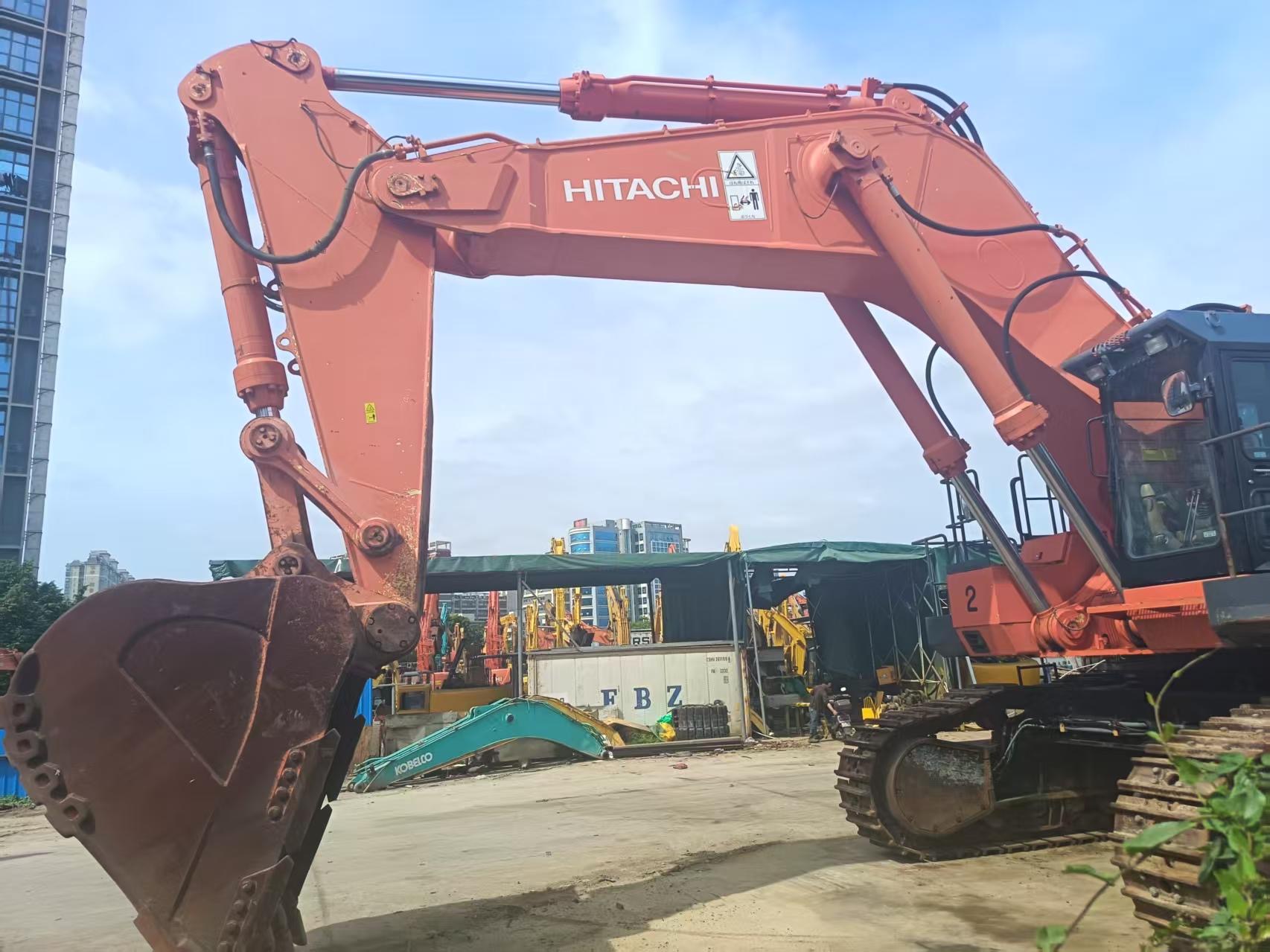

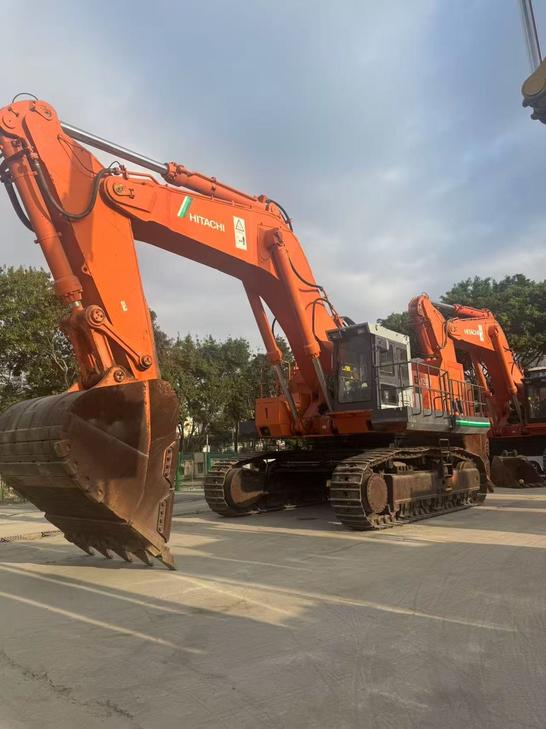

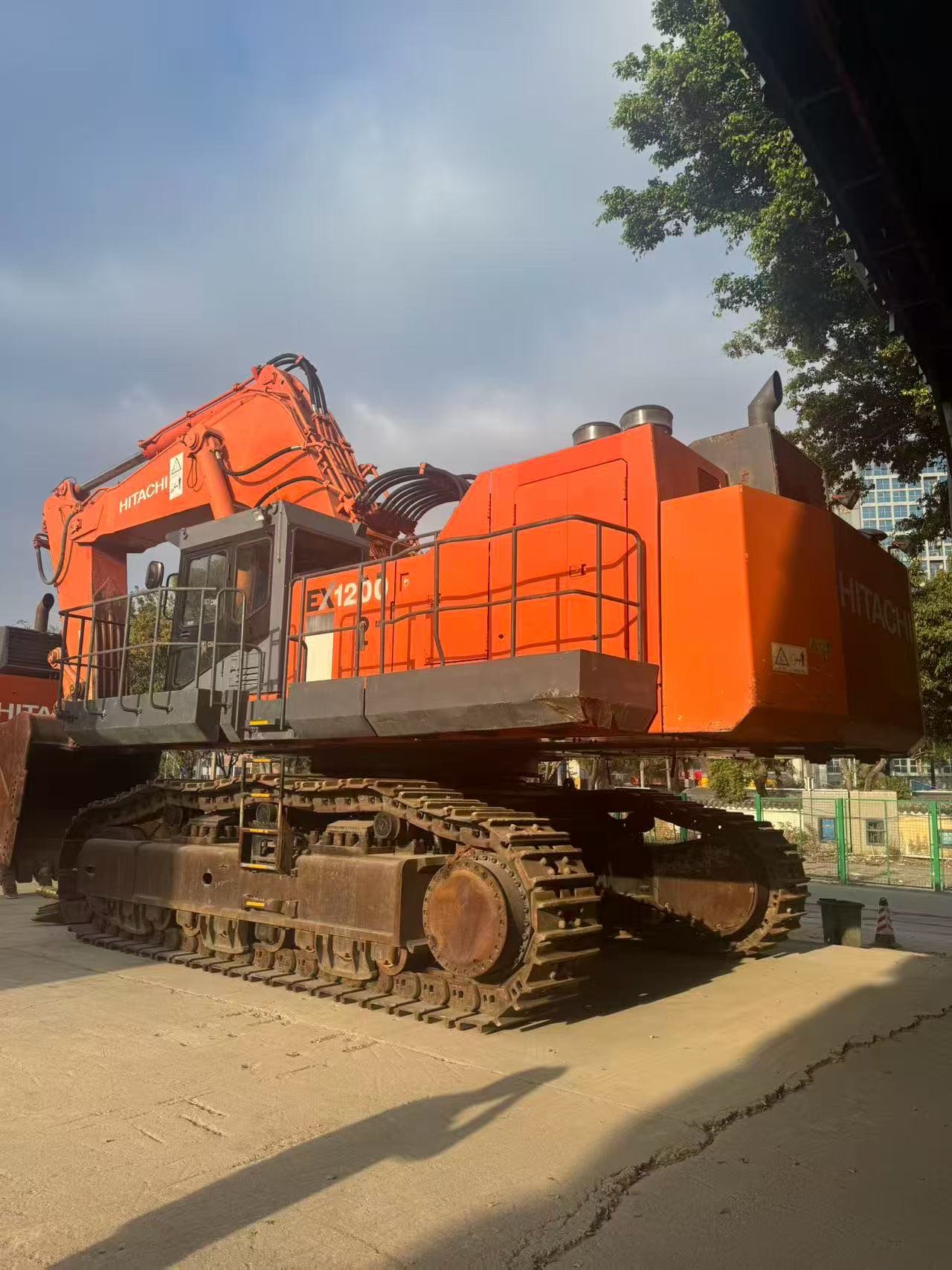

Discover the robust performance and reliability of the 2016 Hitachi EX1200-6, a premier choice for demanding excavation and mining operations. This used heavy machine, located in Guangdong, China, is designed to deliver exceptional productivity and efficiency, making it an ideal investment for any industrial project.
- Year: 2016
- Brand: Hitachi
- Model: EX1200-6
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1103585 |
| Tonnage (tons) | 120 |
| Working weight (kg) | 108000 |
| Bucket capacity (m³) | 5.2 |
| Boom length (mm) | 9000 |
| Rod length (mm) | 3600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSK23-C |
| Rated power (kw/rpm) | 567/1800 |
| Rotation speed (rpm) | 5.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 482 |
| Rod digging force (kN) | 430 |
| Travel speed (km/h) | 3.5/2.4 |
| Full cab height (mm) | 4350 |
| Counterweight ground clearance (mm) | 1820 |
| Minimum ground clearance (mm) | 1020 |
| Back end turning radius (mm) | 4850 |
| Onboard width (mm) | 5380 |
| Track gauge (mm) | 3900 |
| Track plate width (mm) | 700 |
| Maximum digging radius (mm) | 15350 |
| Maximum digging depth (mm) | 9380 |
| Maximum unloading height (mm) | 9080 |
| Maximum vertical digging depth (mm) | 6450 |
