Product Description

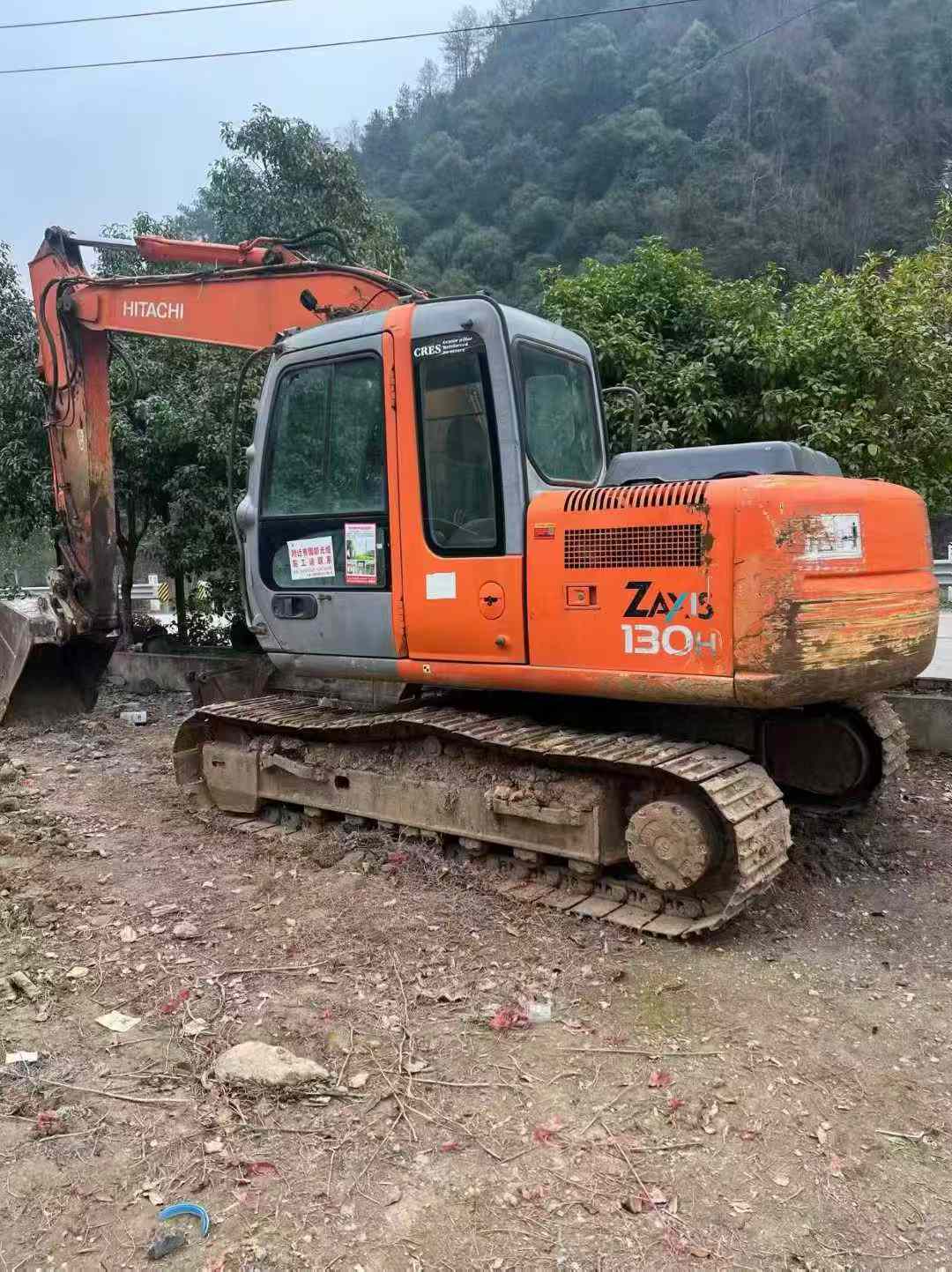

Built for immediate deployment on demanding worksites, this 2012 Hitachi EX130H-5 delivers proven performance across excavation, grading, and material handling operations. Powered by a reliable Isuzu A-4BG1T engine producing 60.4 kW, this 13-ton machine combines efficient fuel consumption with robust hydraulic power to tackle diverse earthmoving tasks without compromise.
Equipped with versatile bucket configurations (0.3/0.19/0.66 m³), this excavator adapts quickly between trenching, precision grading, and bulk excavation. Maximum digging depth reaches 5,360 mm with an excavation radius of 8,140 mm, providing exceptional reach for foundation work, utility installation, and site preparation. Compact transport dimensions (7,580 × 2,490 × 2,720 mm) ensure straightforward logistics between jobsites.
- Working weight: 12,201.6 kg with optimal stability
- Fuel capacity: 250 L for extended operating shifts
- Travel speed: 5.5 km/h for efficient repositioning
- Maximum excavation height: 8,550 mm
- Currently located in Hangzhou, Zhejiang
Site-ready condition. Immediate availability for contractors requiring dependable mid-size excavation capacity.
| Specifications | Value |
|---|---|
| No. | 1027071 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

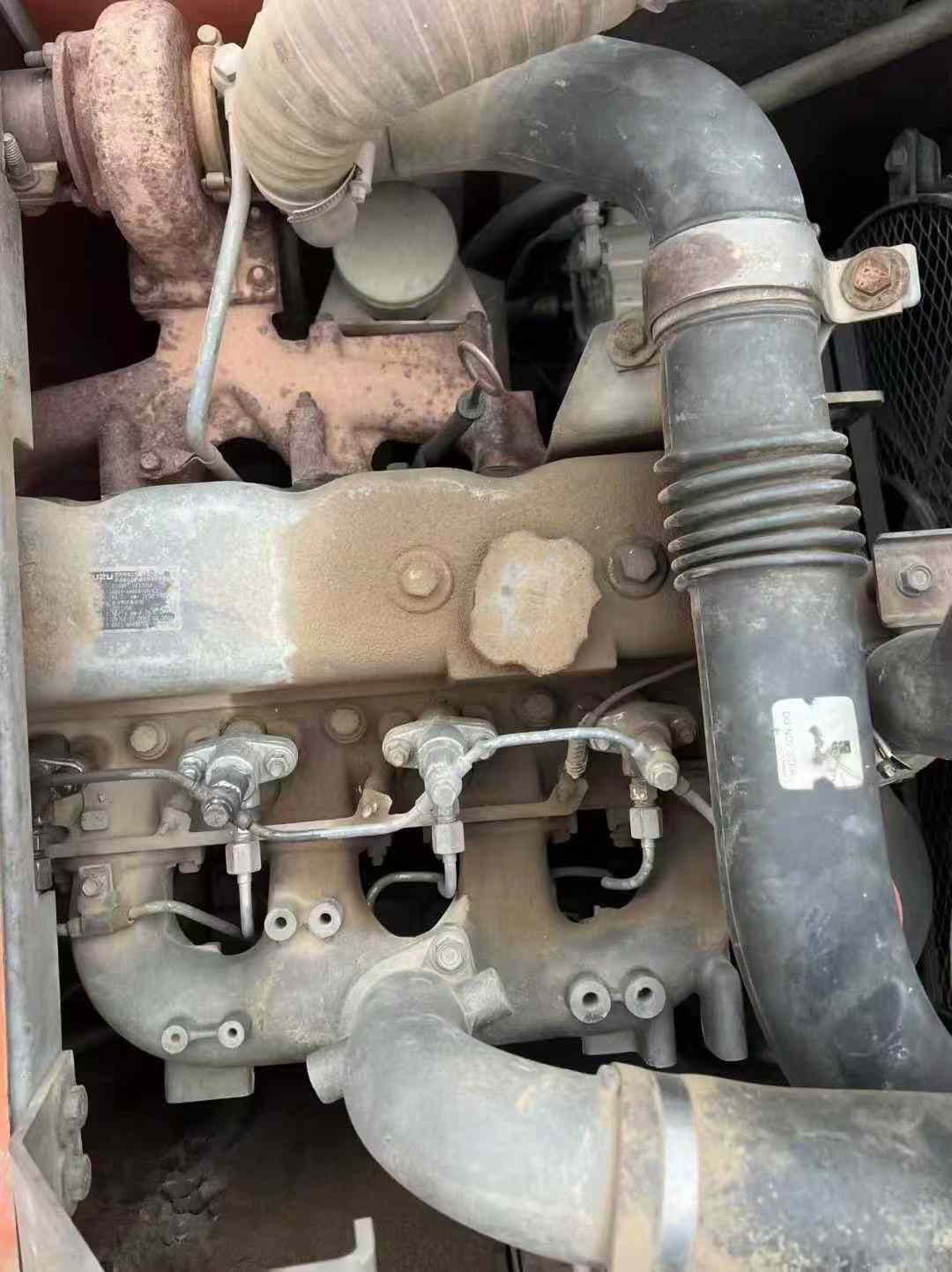

| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
