Product Description

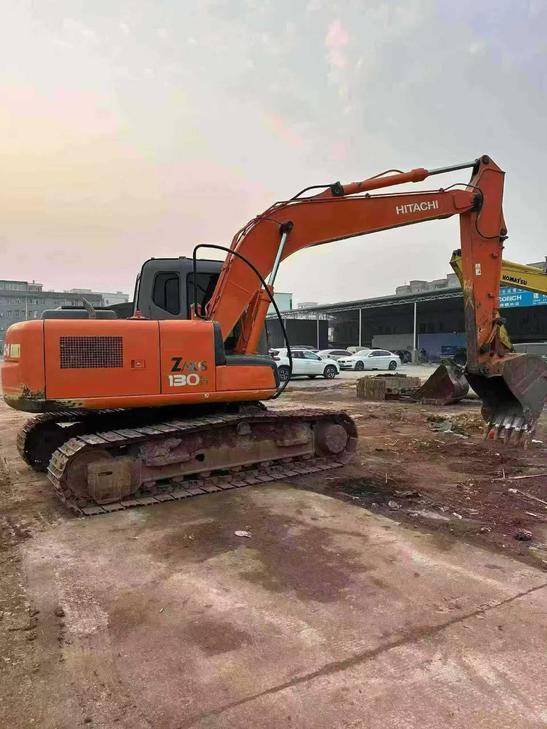

With a working weight of 12,201.6 kg and a bucket capacity ranging from 0.3 to 0.66 m³, this 2015 Hitachi EX130H-5 excavator is site-ready for a variety of tasks including digging, grading, and demolition. Powered by an Isuzu A-4BG1T engine, it delivers a rated power of 60.4 kW, ensuring robust performance on any job site.
- Equipped with a backhoe bucket, ideal for deep digging and precise excavation.
- Travel speed of 5.5 km/h for efficient movement around the site.
- Maximum digging depth of 5,360 mm and maximum excavation height of 8,550 mm, making it versatile for various construction needs.
- Ground specific pressure of 38.3 Kpa, minimizing ground disturbance during operations.
- Full cab height of 2,720 mm and a counterweight ground clearance of 890 mm, providing stability and operator comfort.
Located in Jiangxi, this excavator is ready to work immediately, offering reliability and efficiency for your next project.
| Specifications | Value |
|---|---|
| No. | 1020163 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
