Product Description

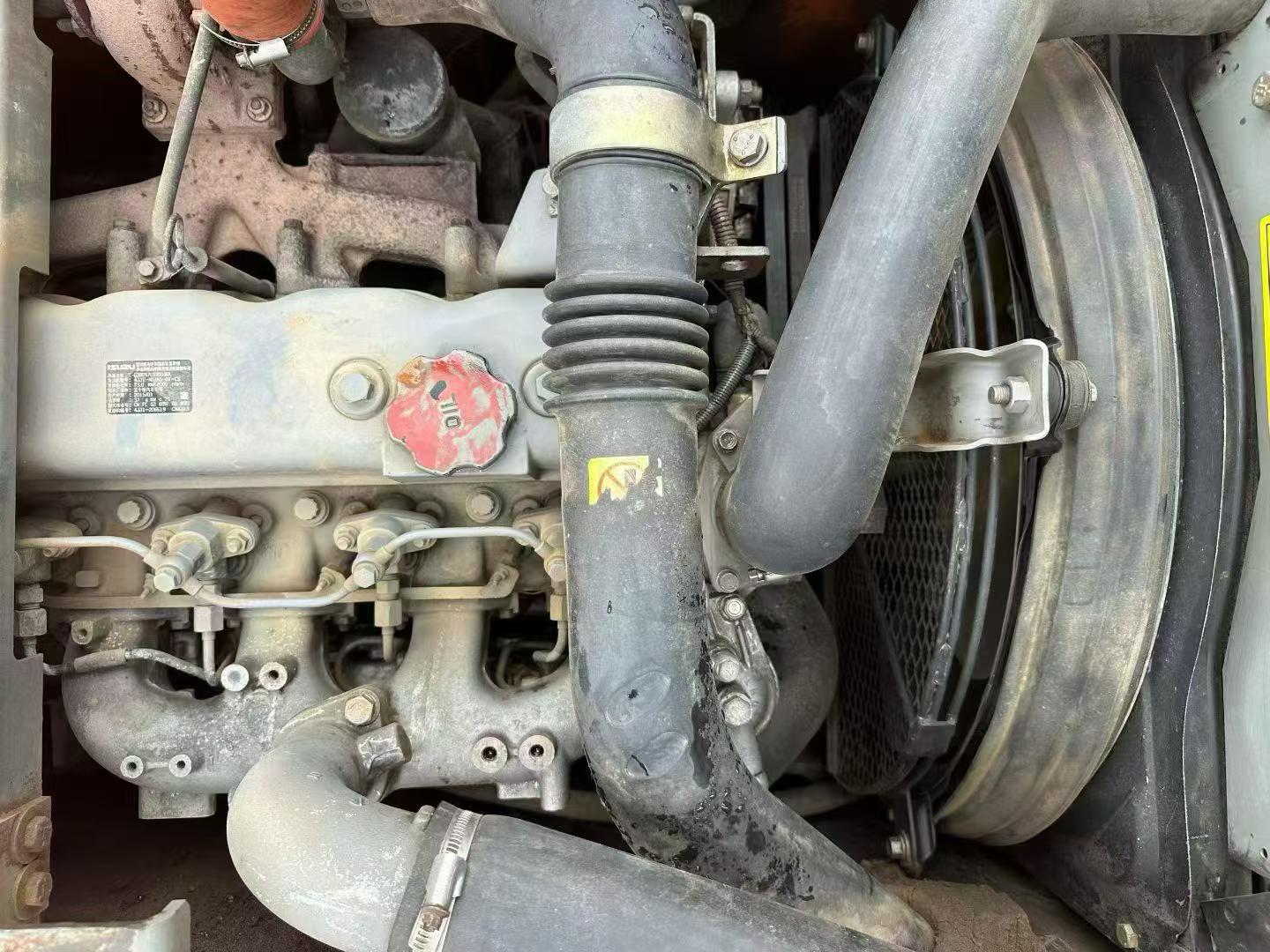

Engineered with precision, this 2015 Hitachi EX130H-5 delivers 13-ton class performance through a proven Isuzu A-4BG1T engine producing 60.4kW of rated power. The 4.3L displacement engine drives a 134-liter hydraulic system designed for consistent breakout force and cycle times across demanding applications. With a maximum digging depth of 5,360mm and excavation radius of 8,140mm, this machine provides substantial reach for medium-scale earthmoving operations.
- Operating weight: 12,201.6 kg with optimal balance for stability
- Bucket capacity options: 0.3/0.19/0.66 m³ for application versatility
- Ground pressure: 38.3 kPa for reduced surface impact
- Travel speed: 5.5 km/h with 2,880mm track ground contact
- Compact transport dimensions: 7,580mm × 2,490mm × 2,720mm
- Fuel capacity: 250L for extended operation periods
Currently located in Hunan, China, this joint-venture manufactured excavator represents Hitachi's commitment to durable construction equipment. The EX-5 series architecture ensures parts availability and serviceability for international buyers seeking reliable mid-size excavation equipment.
| Specifications | Value |
|---|---|
| No. | 1022472 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
