Product Description

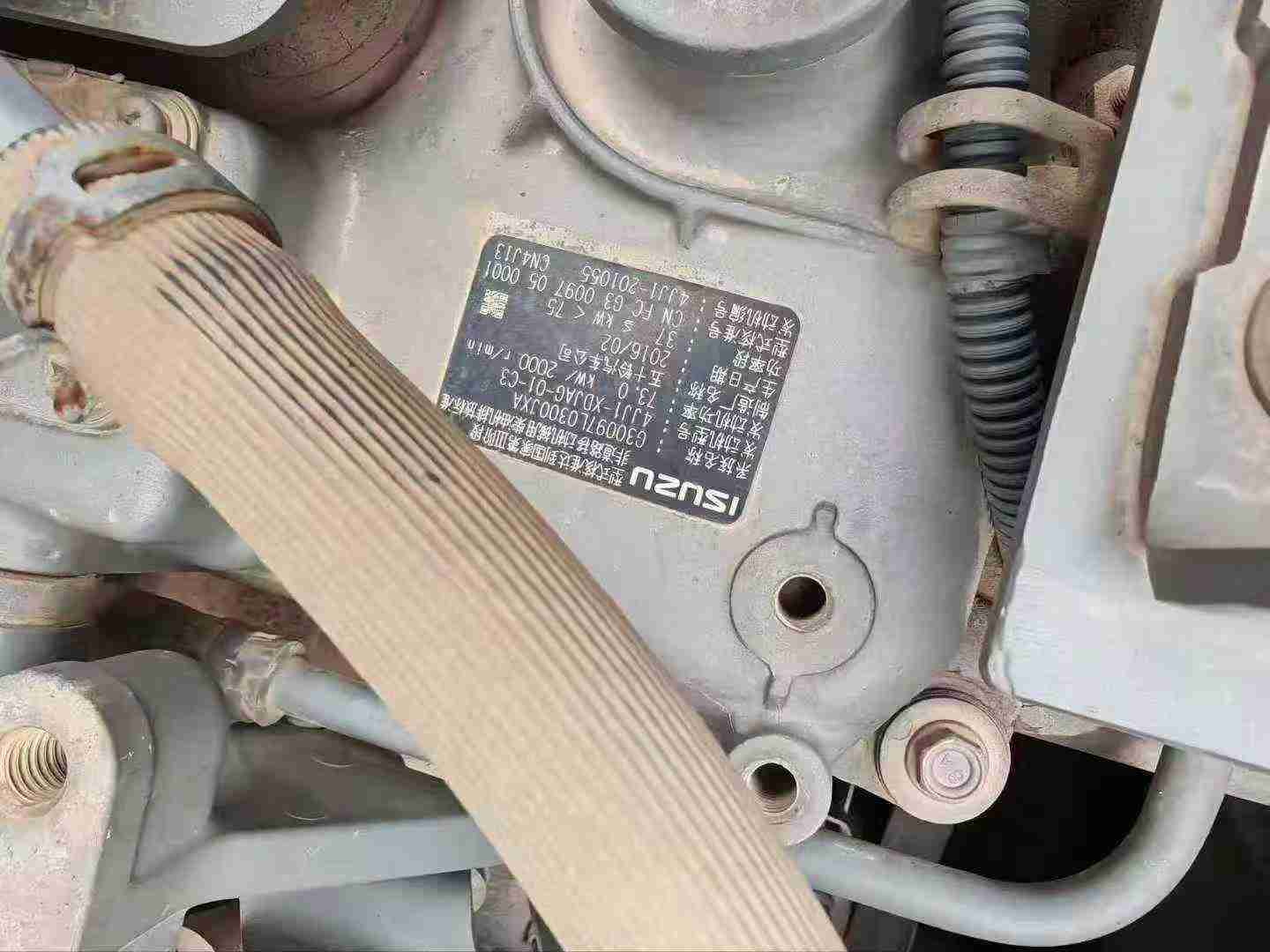

Engineered with precision by Hitachi's joint-venture manufacturing standards, this 2016 EX130H-5 delivers robust performance through proven mechanical architecture. Powered by an Isuzu A-4BG1T engine producing 60.4kW at 4.3L displacement, this 13-ton excavator combines reliable traditional power with a comprehensive 134L hydraulic system designed for consistent productivity across demanding applications.
Technical specifications demonstrate superior operational capability:
- Working weight: 12,201.6 kg with optimized 38.3 kPa ground pressure
- Maximum digging depth: 5,360mm; excavation radius: 8,140mm
- Bucket options: 0.3/0.19/0.66 m³ backhoe configurations
- Compact transport dimensions: 7,580mm (L) × 2,490mm (W) × 2,720mm (H)
- 250L fuel capacity supporting extended operational cycles
- 2,130mm rear turning radius for confined jobsite maneuverability
Currently located in Luzhou, Sichuan, this machine represents Hitachi's commitment to durable construction equipment. Complete hydraulic, engine oil, and coolant service capacities ensure straightforward maintenance protocols for fleet managers prioritizing uptime and total cost of ownership.
| Specifications | Value |
|---|---|
| No. | 1024518 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
