Product Description

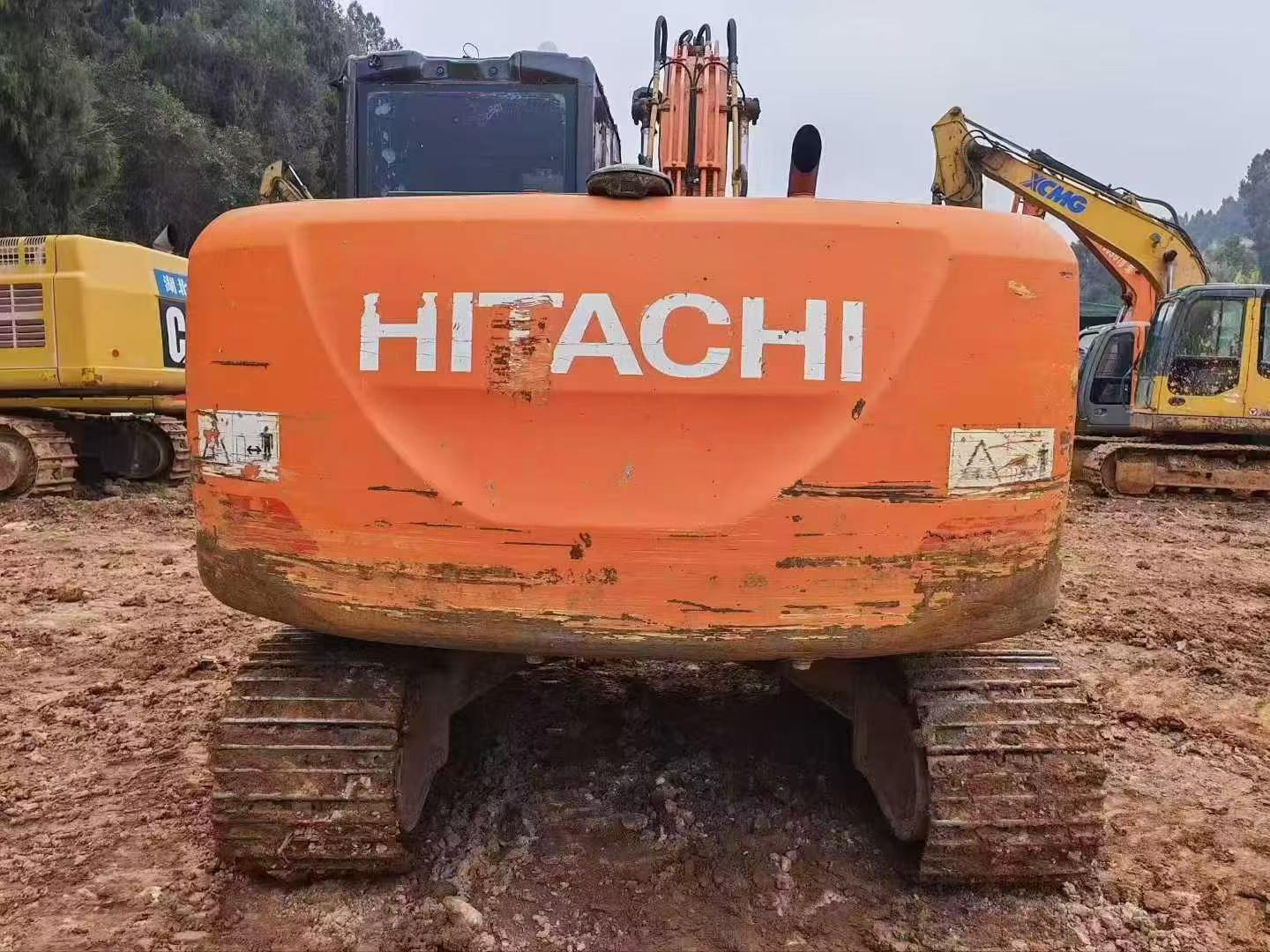

Secure proven Japanese engineering at a fraction of new equipment cost with this 2016 Hitachi EX130H-5 excavator from Hunan. Operating at 13 tons with a robust Isuzu A-4BG1T engine delivering 60.4 kW of rated power, this machine offers exceptional value for contractors seeking reliable performance without premium pricing. Its 0.66 m³ bucket capacity and 5,360 mm maximum digging depth handle demanding excavation tasks efficiently, while the compact 2,490 mm transport width ensures easy mobilization between job sites.
- Working Weight: 12,201.6 kg – optimal stability and lifting capacity
- Engine: Isuzu A-4BG1T, 4.3L displacement, proven durability
- Reach: 8,140 mm maximum excavation radius
- Fuel Efficiency: 250L tank for extended operation
- Hydraulic System: 134L capacity for smooth, responsive control
Buying pre-owned means immediate deployment with significant capital savings. This joint-venture manufactured unit combines Hitachi reliability with smart economics—delivering the performance your projects demand while protecting your bottom line.
| Specifications | Value |
|---|---|
| No. | 1024679 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
