Product Description

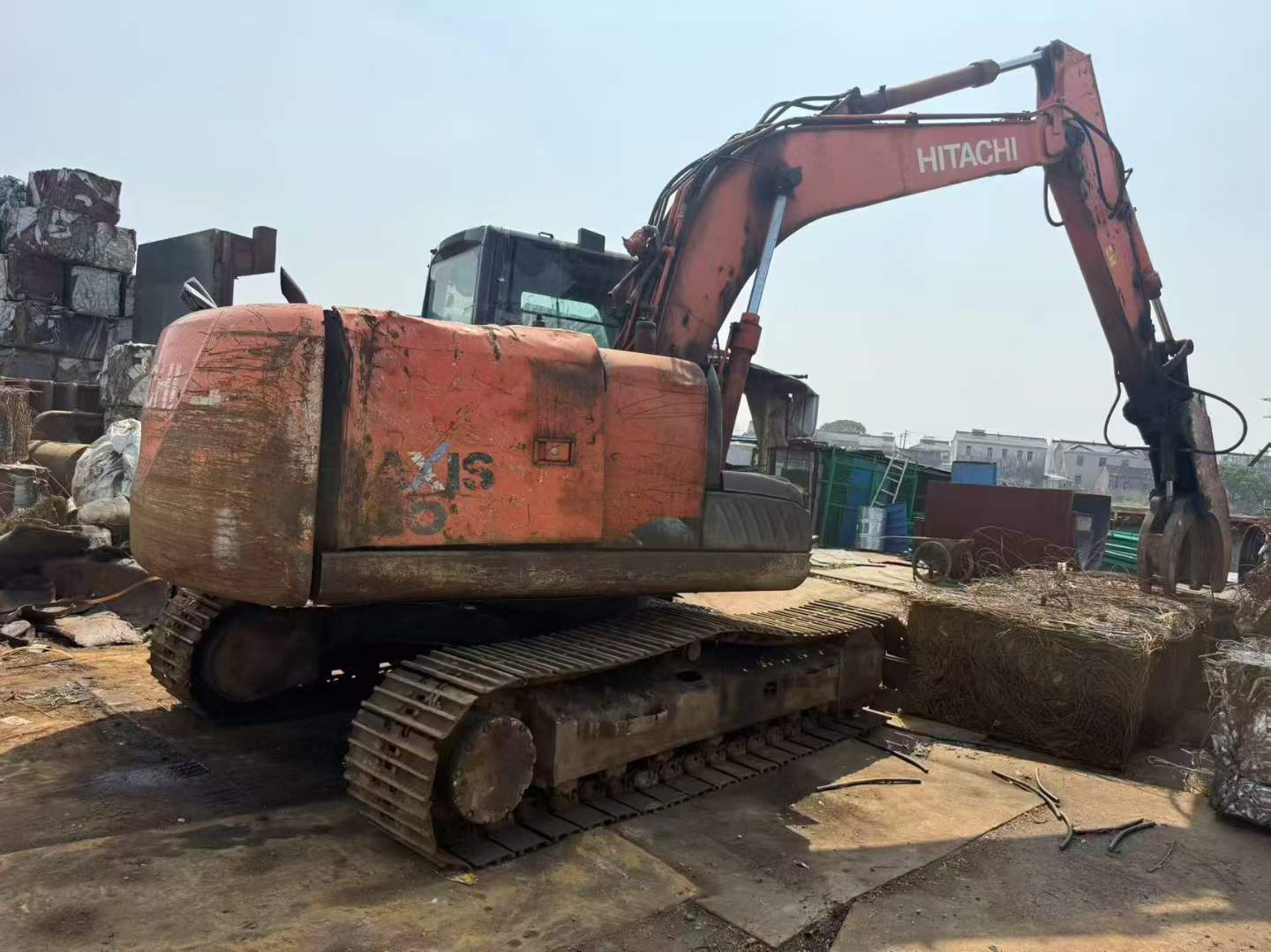

Engineered for precision and operator confidence, this 2017 Hitachi EX130H-5 delivers 13-ton performance with exceptional stability across demanding job sites. Powered by a reliable Isuzu A-4BG1T engine producing 60.4 kW, this excavator combines responsive hydraulics with a spacious cab designed for extended shifts and optimal visibility.
- Working Weight: 12,201.6 kg with balanced ground pressure of 38.3 kPa for superior stability

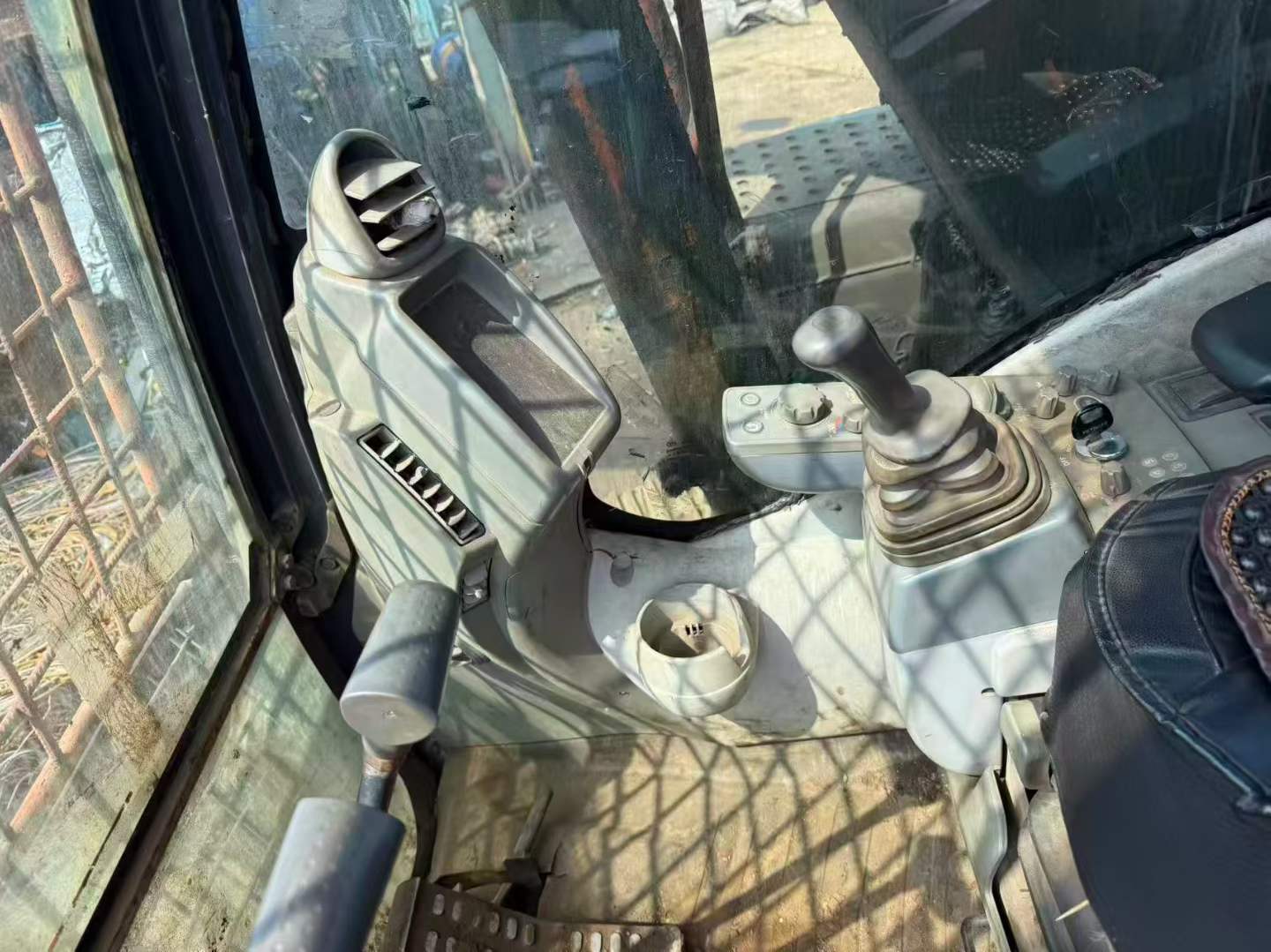

- Operator Comfort: Full cab height of 2,720 mm ensures excellent sightlines to bucket and work area
- Digging Reach: Maximum excavation radius of 8,140 mm with 5,360 mm digging depth
- Maneuverability: Compact 2,130 mm rear turning radius ideal for confined spaces
- Bucket Options: Versatile capacity range from 0.19 m³ to 0.66 m³
- Fuel Capacity: 250-liter tank minimizes refueling downtime
- Location: Currently in Lishui, Zhejiang
Built for operators who demand responsive controls and stable performance, this joint-venture manufactured excavator offers proven reliability for construction and earthmoving ap
| Specifications | Value |
|---|---|
| No. | 1025283 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
