Product Description
Proven over years of demanding service, this 2017 Hitachi EX130H-5 excavator demonstrates the durability that defines Japanese engineering. Operating at 13 tons with a robust Isuzu A-4BG1T engine delivering 60.4 kW of reliable power, this workhorse has established itself as a dependable partner for medium-duty excavation projects. Currently located in Shanghai, this machine combines efficient fuel consumption with the performance consistency that contractors depend on for project after project.
- Isuzu A-4BG1T engine with proven 4.3L displacement and consistent 60.4 kW output
- Impressive 5,360mm maximum digging depth and 8,140mm excavation radius
- Versatile bucket configurations: 0.3/0.19/0.66 m³ capacity options
- Compact 2,490mm transport width for excellent site mobility
- 250L fuel tank capacity minimizes refueling downtime
- Well-maintained joint venture/import quality standards
- 12,201.6 kg working weight balances power with maneuverability
Built to withstand years of rigorous operation, this EX130H-5 represents tested reliability backed by Hitachi's reputation for long-term performance. Contact Fair Trade Machinery for detailed inspection reports and ship
| Specifications | Value |
|---|---|
| No. | 1047712 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

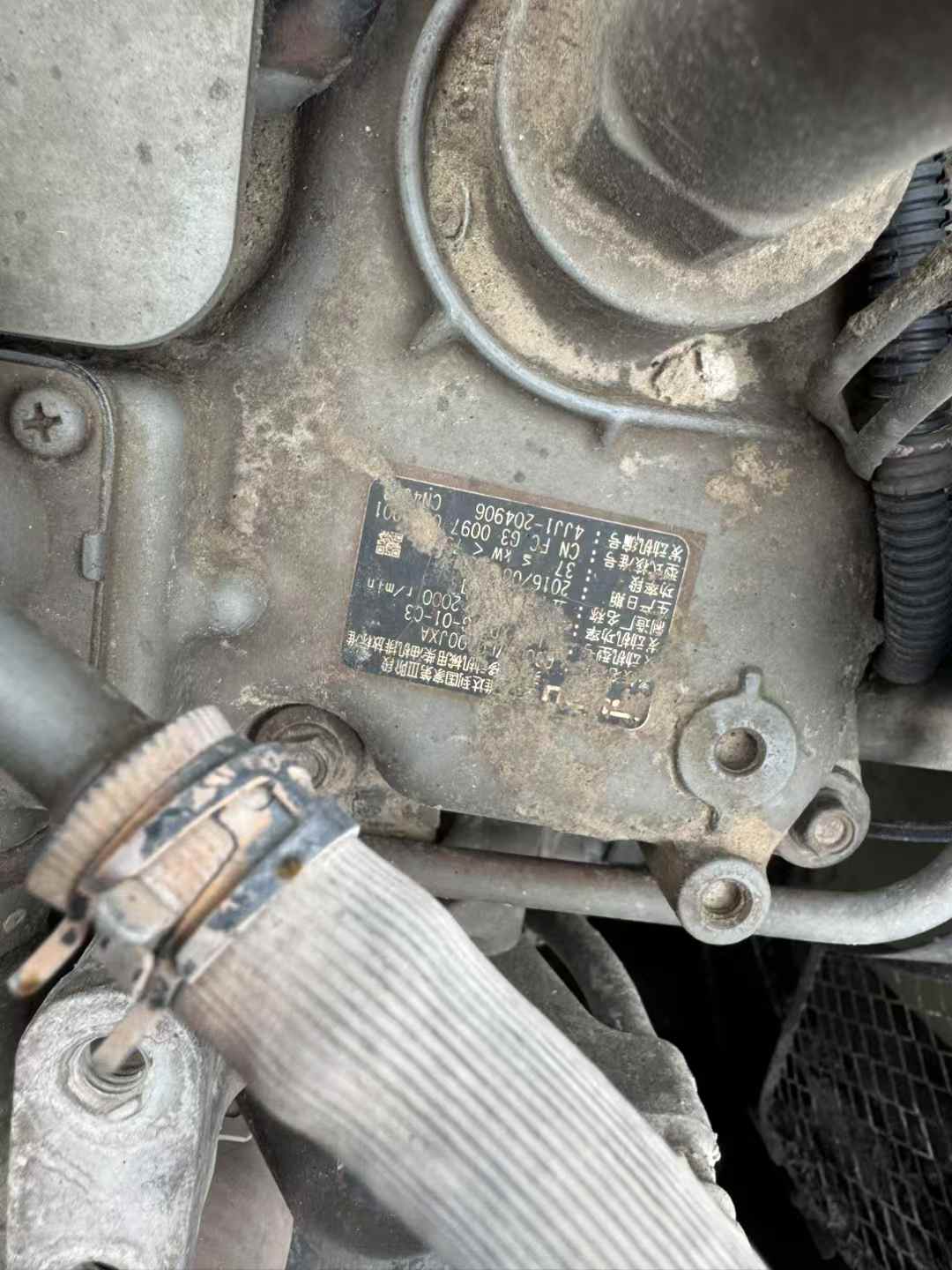

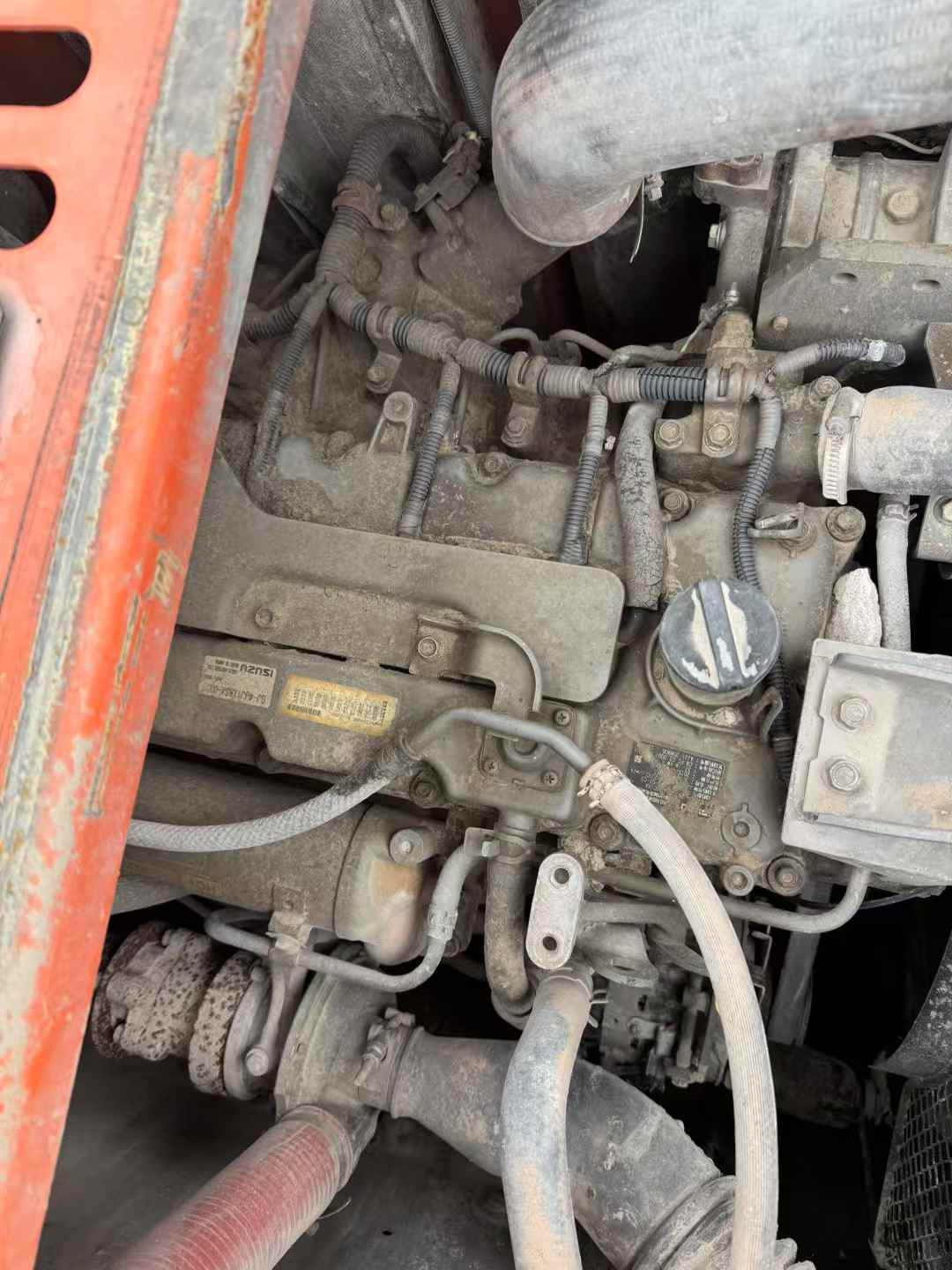

| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
