Product Description
With a rated power of 60.4 kW and an Isuzu A-4BG1T engine, this 2020 Hitachi EX130H-5 excavator delivers reliable performance for your construction needs. Designed with the operator in mind, it features a spacious cab offering excellent visibility, enhancing both safety and productivity on the job site. The backhoe bucket, with a capacity range of 0.3 to 0.66 m³, ensures versatility in various digging tasks.
- Travel speed of 5.5 km/h for efficient movement around the site
- Ground specific pressure of 38.3 Kpa, ensuring stability even on softer ground
- Total transport dimensions of 7580 mm x 2490 mm x 2720 mm, making it easy to transport
- Maximum digging depth of 5360 mm and maximum excavation height of 8550 mm, providing extensive reach and capability
- Counterweight ground clearance of 890 mm and minimum ground clearance of 440 mm, reducing the risk of damage from obstacles
| Specifications | Value |
|---|---|
| No. | 1032868 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

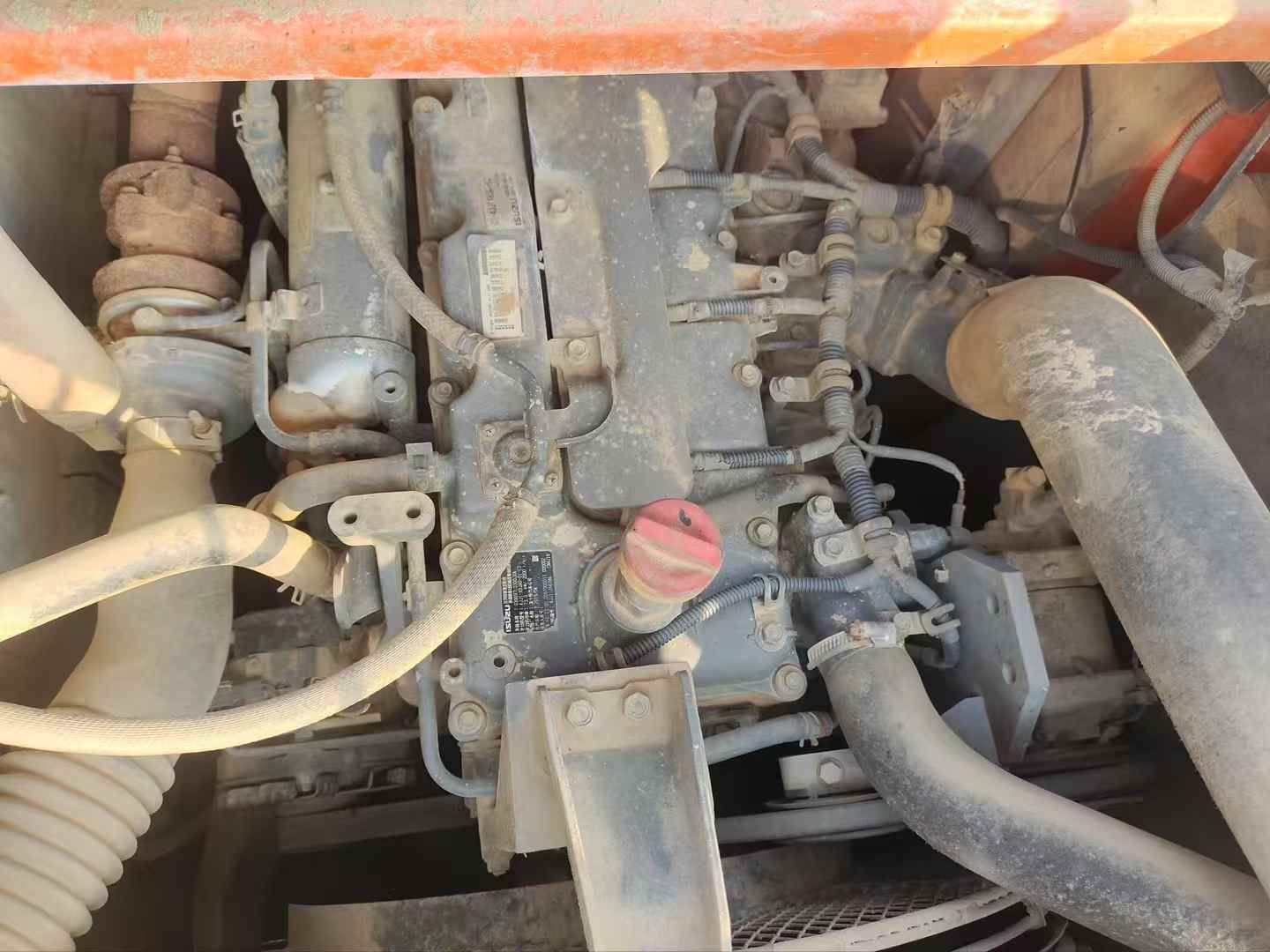

| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
