Product Description

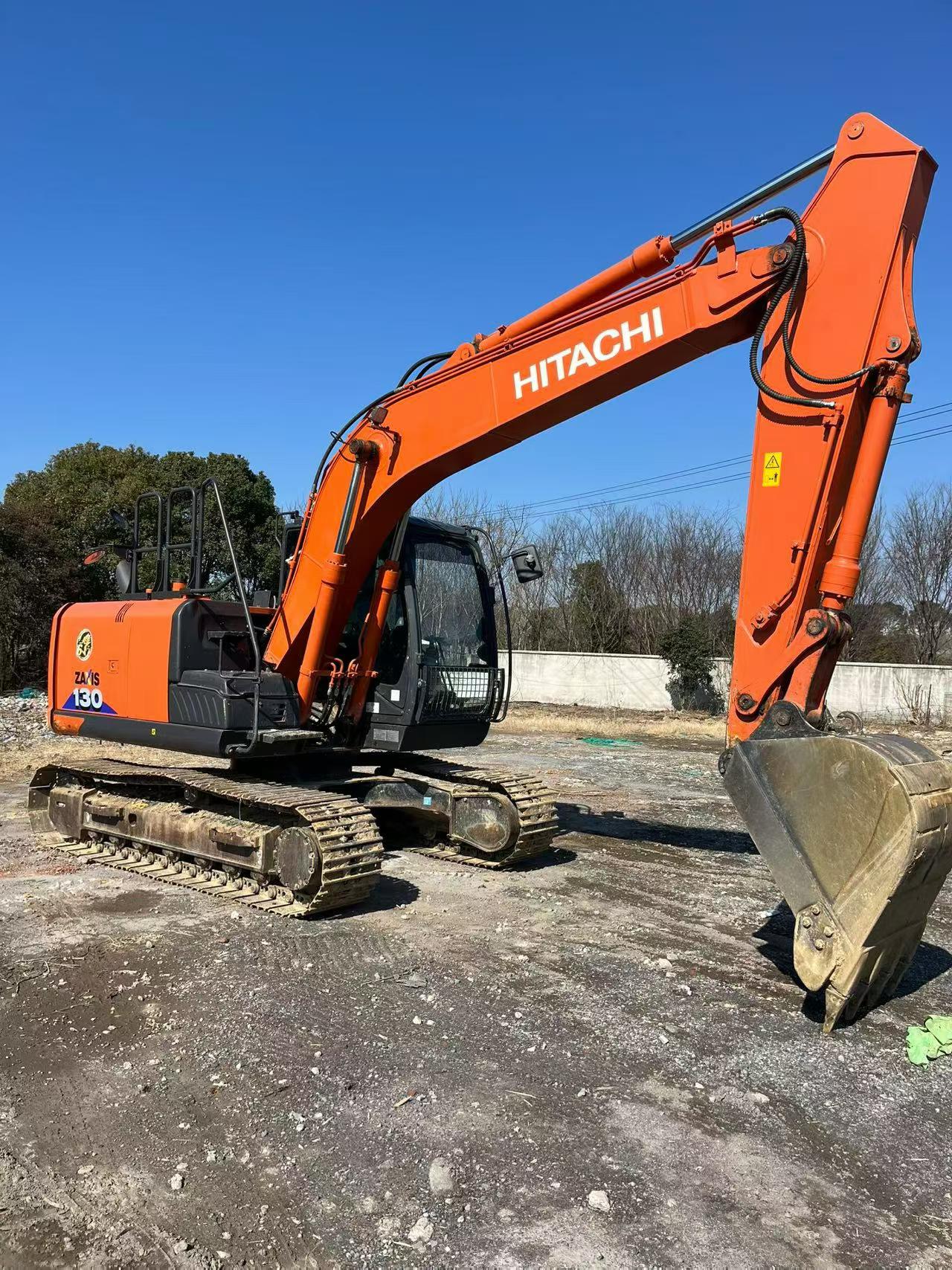

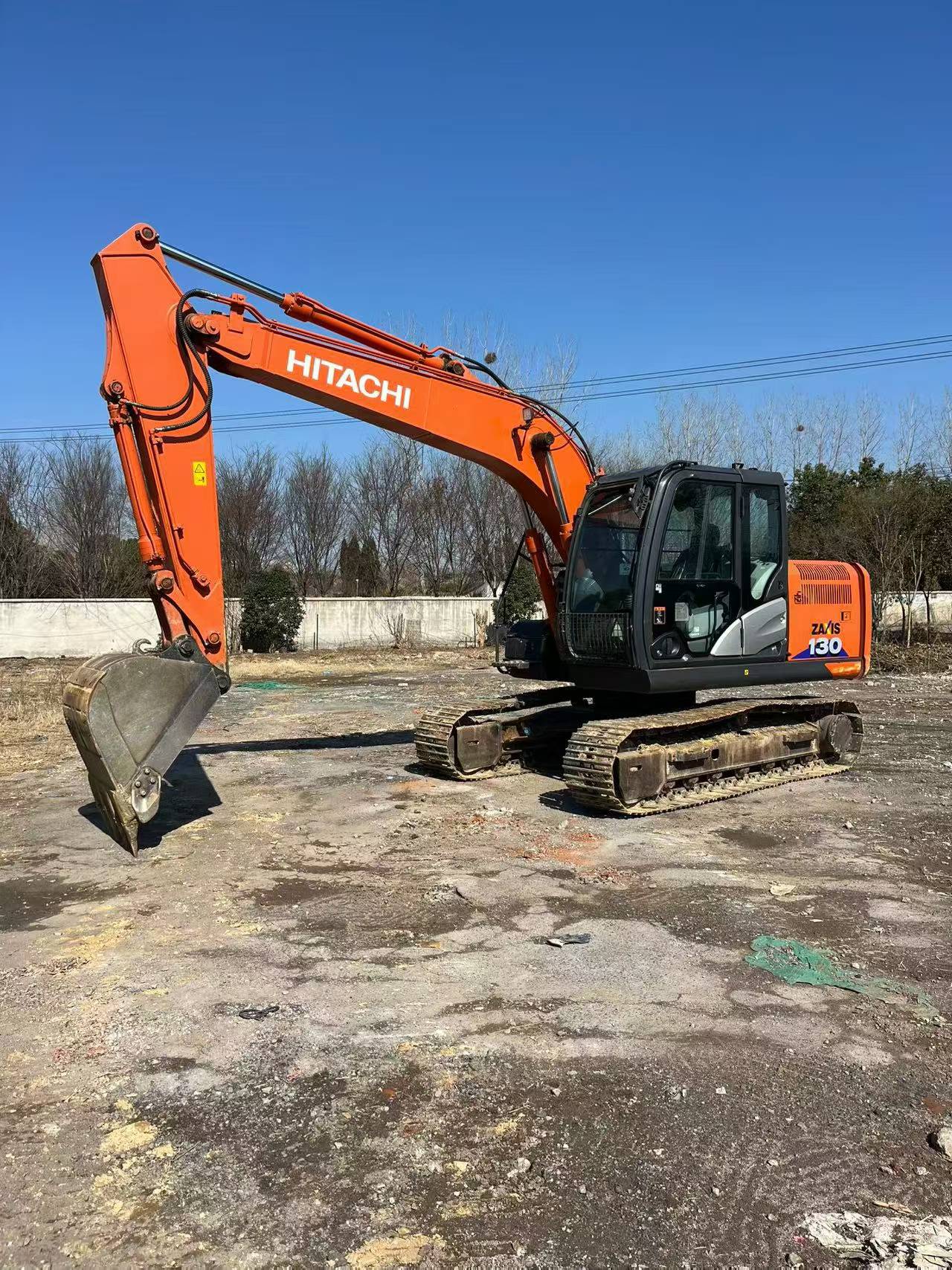

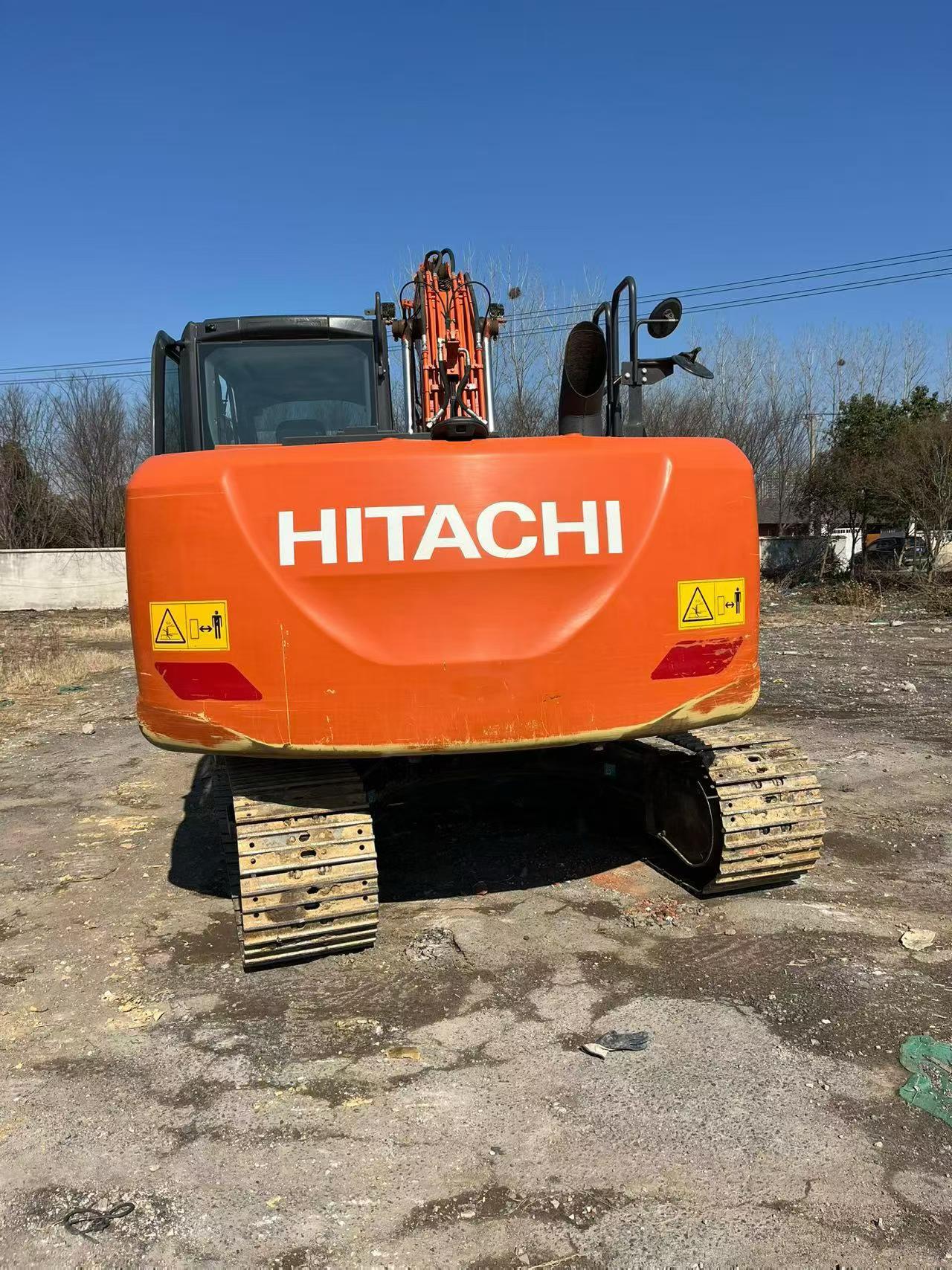

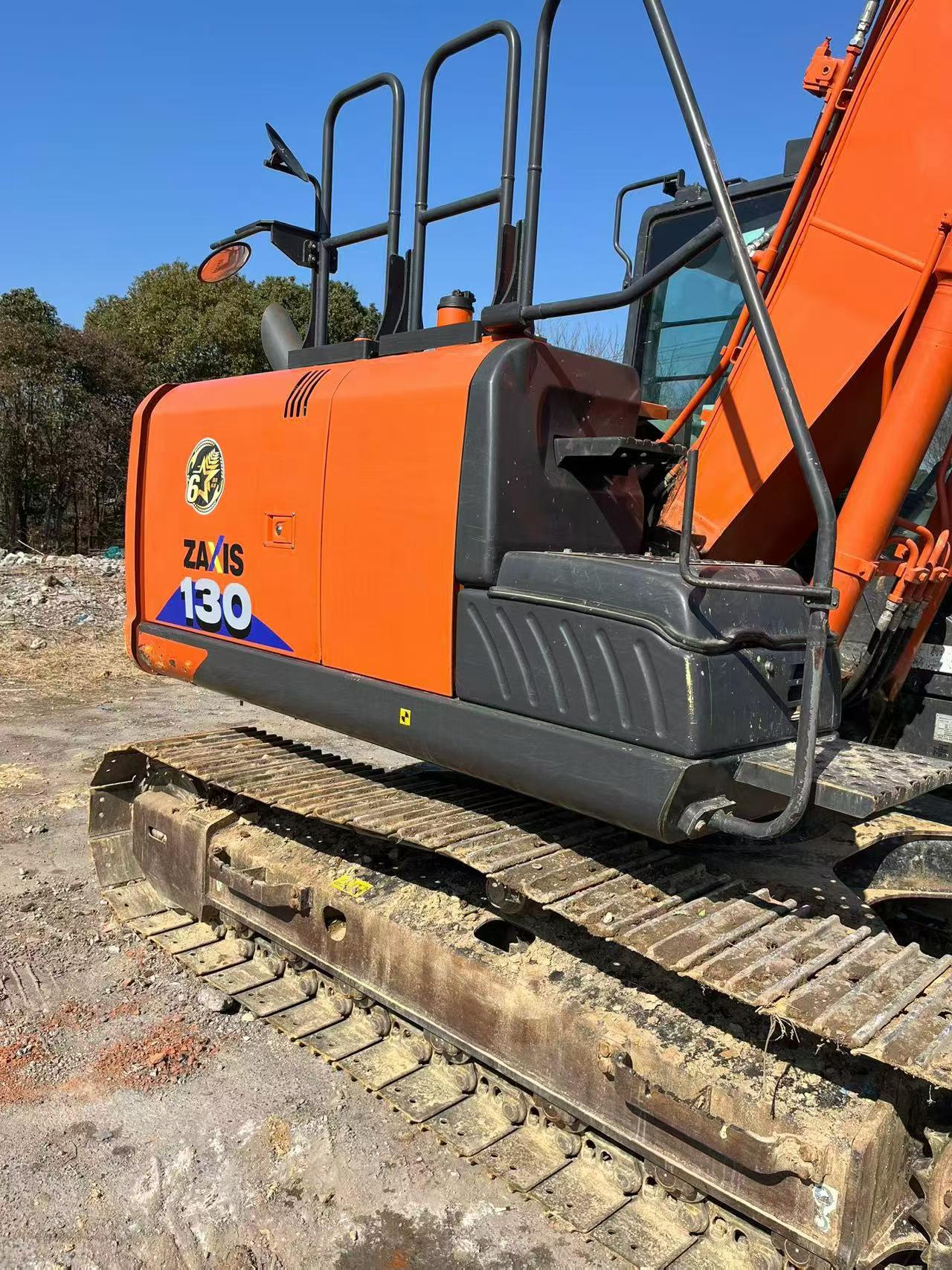

Discover the exceptional 2023 Hitachi EX130H-5, currently available in Shanghai, China. This machine has logged a genuine 4,000 hours of operation, ensuring it is in top-tier condition. All documentation and paperwork are complete, facilitating a smooth transaction process. Notably, this excavator features an original, unused hammer pipe, enhancing its value and operational versatility. Ideal for construction and excavation projects, this model is known for its robust performance and reliability. Don't miss out on this well-maintained, high-quality piece of equipment.
- Year: 2023
- Brand: Hitachi
- Model: EX130H-5
- Location: Shanghai, China
- Operating Hours: 4,000
- Features: Original, unused hammer pipe
| Specifications | Value |
|---|---|
| No. | 1086321 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12201.6 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 38.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7580 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5360 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 5010 |
| Maximum excavation radius of stop surface (mm) | 8140 |
