Product Description

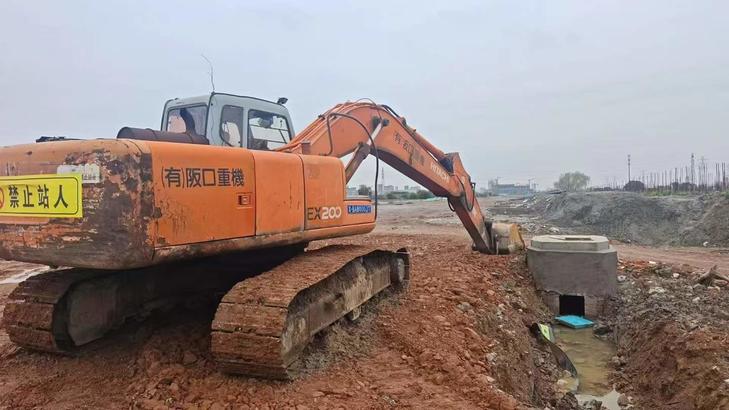

Engineered with precision by Hitachi's joint-venture manufacturing expertise, this 2016 EX200-5 delivers 20-ton performance anchored by proven ISUZU A-6BG1T diesel technology. The 6-cylinder, water-cooled powerplant generates 98.4 kW at 1950 rpm through a turbocharged 6.5L displacement system, providing consistent hydraulic flow across demanding jobsite conditions. Operating weight of 18,824 kg combines with 0.8 m³ bucket capacity and extended reach geometry—5,680 mm boom paired with 2,910 mm arm—to maximize productivity in excavation, trenching, and material handling applications.
Core technical specifications include:
- Dual-speed travel system: 3.4/5.5 km/h with 70% (35°) gradeability
- Ground pressure optimized at 42.1 kPa across 600 mm track plates
- 310L fuel capacity and 200L hydraulic reservoir for extended operation
- Compact 2,750 mm rear swing radius for confined site maneuverability
- Transport dimensions: 9,620 × 2,800 × 3,090 mm
Currently located in Hangzhou, Zhejiang. Japanese-origin reliability meets field-proven hydraulic architecture in this production-ready excavator.
| Specifications | Value |
|---|---|
| No. | 1021035 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 18824.1 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU A-6BG1T |
| Rated power (kw/rpm) | 98.4/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.5 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42.1 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.4/5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Total transport length (mm) | 9620 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3770 |
