Product Description

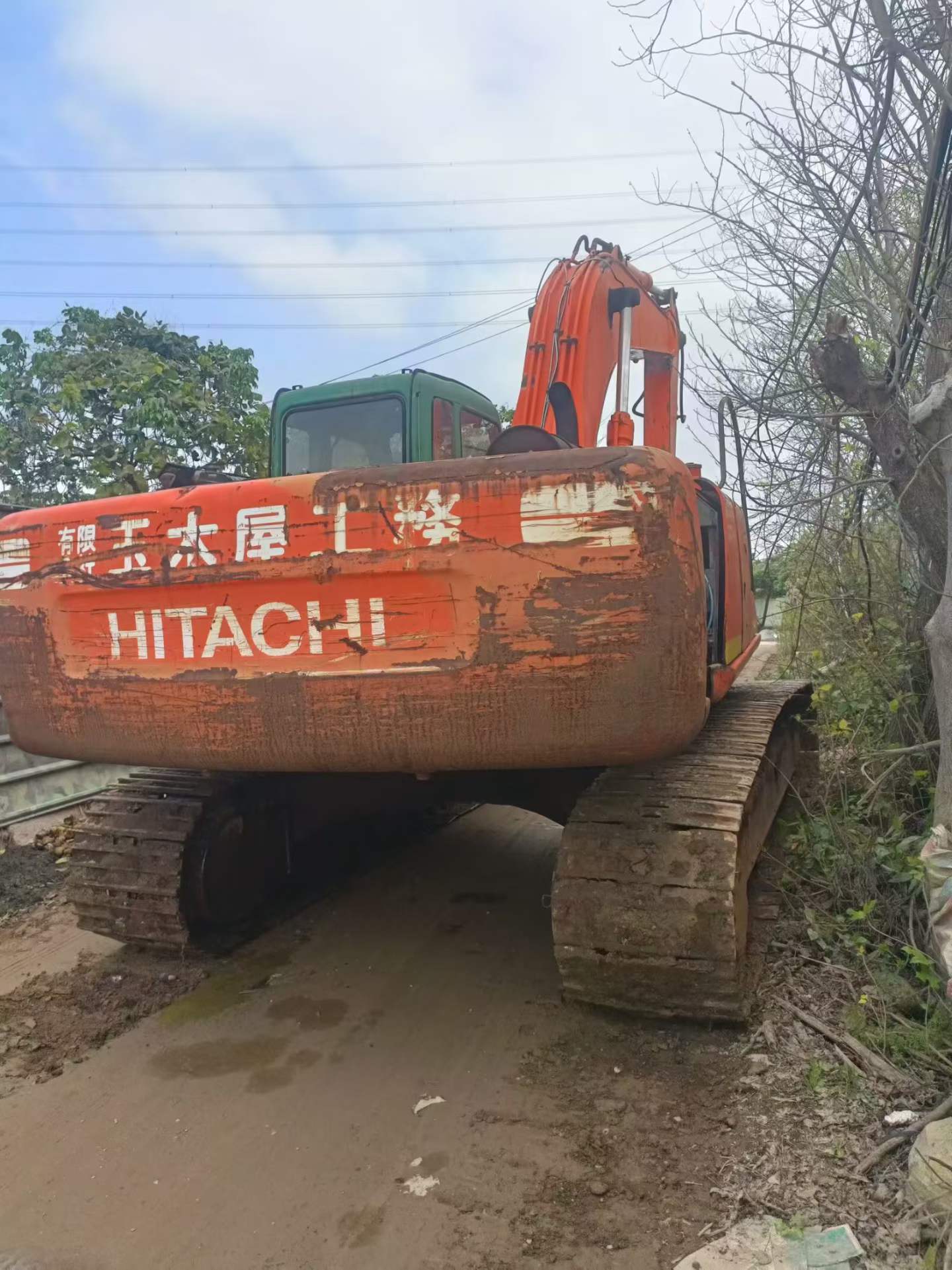

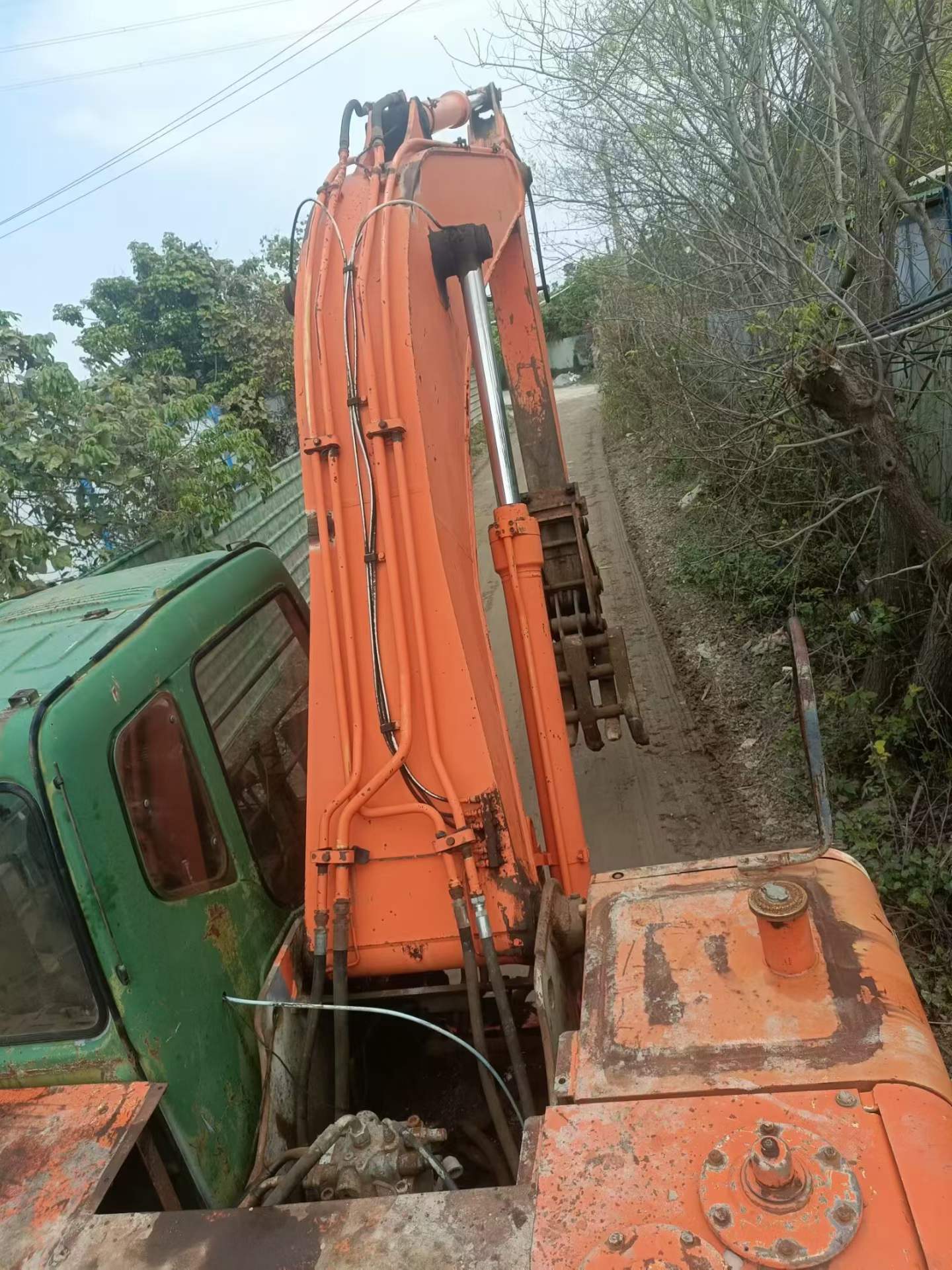

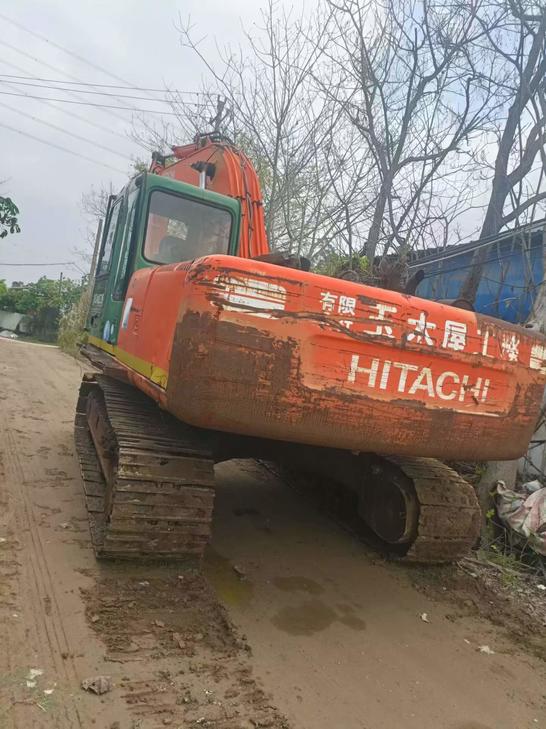

Built for demanding excavation work, this 2016 Hitachi EX200-5 delivers proven performance across digging, grading, and demolition applications. Operating at 20 tons with an 18,824 kg working weight, this machine combines the reliability of Japanese engineering with the robust ISUZU A-6BG1T water-cooled engine, generating 98.4 kW at 1950 rpm. The 0.8 m³ backhoe bucket, paired with a 5,680 mm boom and 2,910 mm arm, provides exceptional reach and productivity on-site.

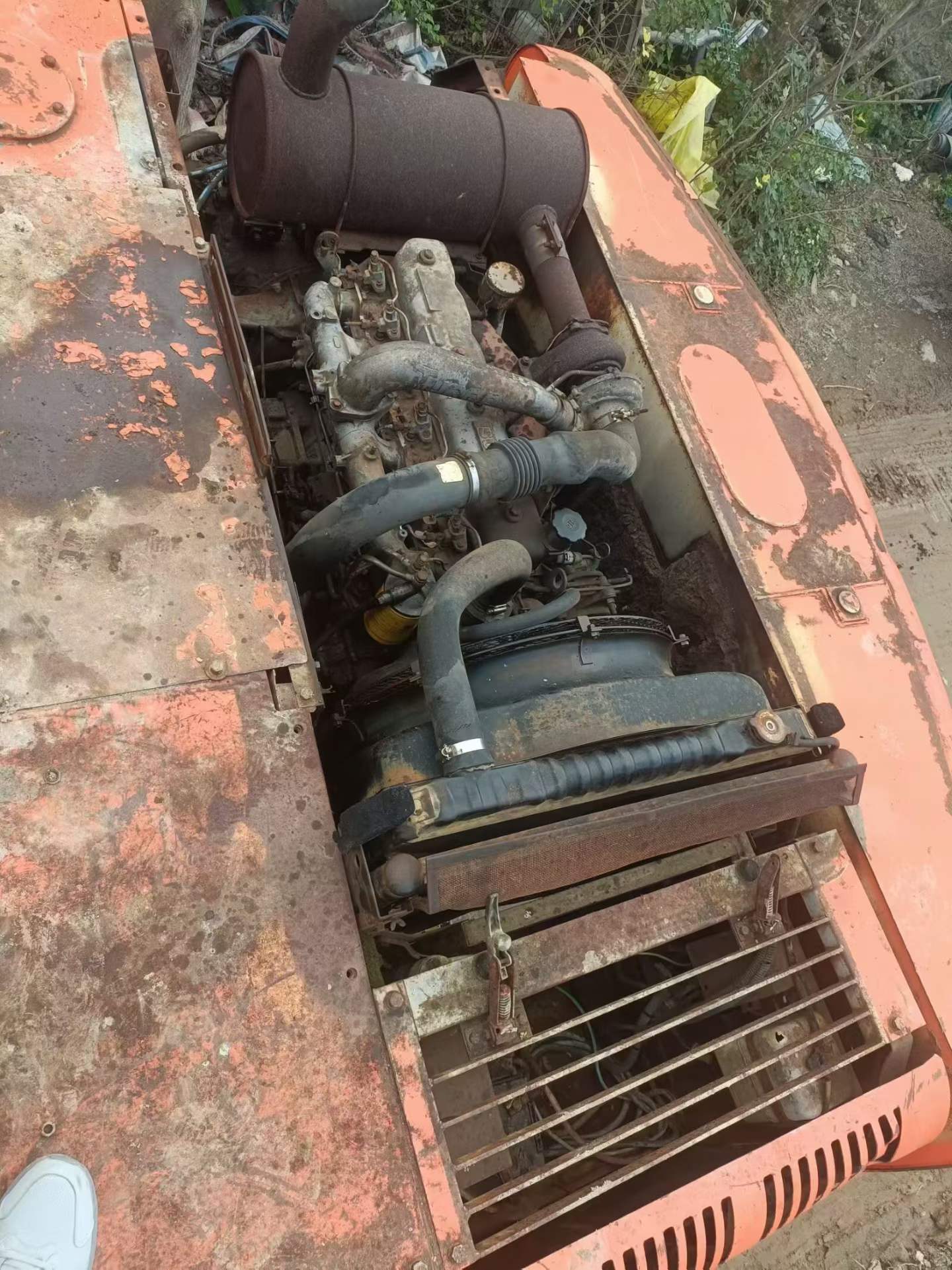

- Powerful 6-cylinder turbocharged diesel engine with 6.5L displacement
- Dual travel speeds (3.4/5.5 km/h) for efficient repositioning
- Impressive 70% (35°) climbing ability tackles challenging terrain
- 310L fuel capacity minimizes downtime during extended shifts
- 2,750 mm rear turning radius enables work in confined spaces
- Currently located in Huizhou, Guangdong—ready for immediate deployment
With comprehensive hydraulic and fuel systems designed for continuous operation, this EX200-5 arrives site-ready to handle your excavation, loading, and earthmoving requirements. Proven track record, immediate availability.
| Specifications | Value |
|---|---|
| No. | 1028348 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 18824.1 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU A-6BG1T |
| Rated power (kw/rpm) | 98.4/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.5 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42.1 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.4/5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Total transport length (mm) | 9620 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3770 |
