Product Description

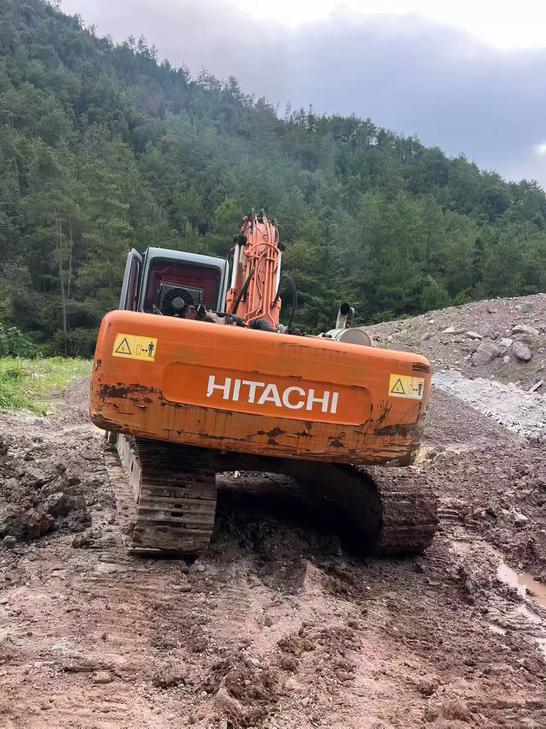

This 2020 Hitachi EX200-5 hydraulic excavator is currently located in Zhejiang, China and available for export. The EX200-5 represents Hitachi's proven -5 series design, known for reliable performance in construction and earthmoving applications.
Key features of this unit include:
- Operating weight class: approximately 20 tonnes
- Hitachi hydraulic system for efficient digging performance
- Suitable for general excavation, trenching, and material handling
- Established parts availability and service network globally
- Well-maintained condition from Chinese market
This excavator offers a cost-effective solution for contractors seeking dependable mid-size excavation equipment. Ideal for infrastructure projects, site development, and utility work. Inspection reports and additional documentation available upon request.
Contact FairTradeMachinery for detailed specifications, current condition assessment, and international shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1120941 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 18824.1 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU A-6BG1T |
| Rated power (kw/rpm) | 98.4/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.5 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42.1 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.4/5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Total transport length (mm) | 9620 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3770 |
