2014 Hitachi EX200-6

1/4
Buy Hitachi EX200-6 Used Excavator / 1

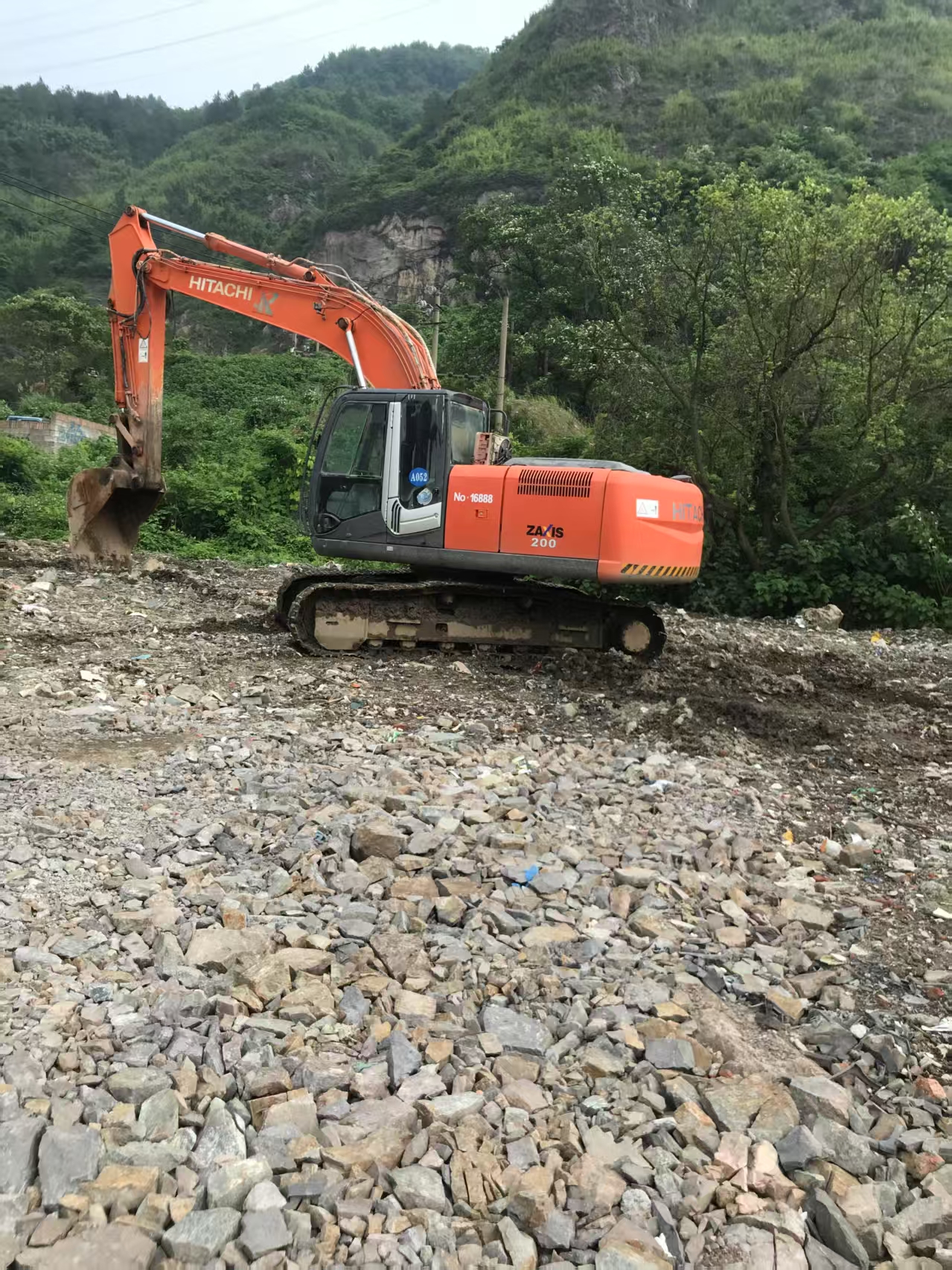

Buy Hitachi EX200-6 Used Excavator / 2

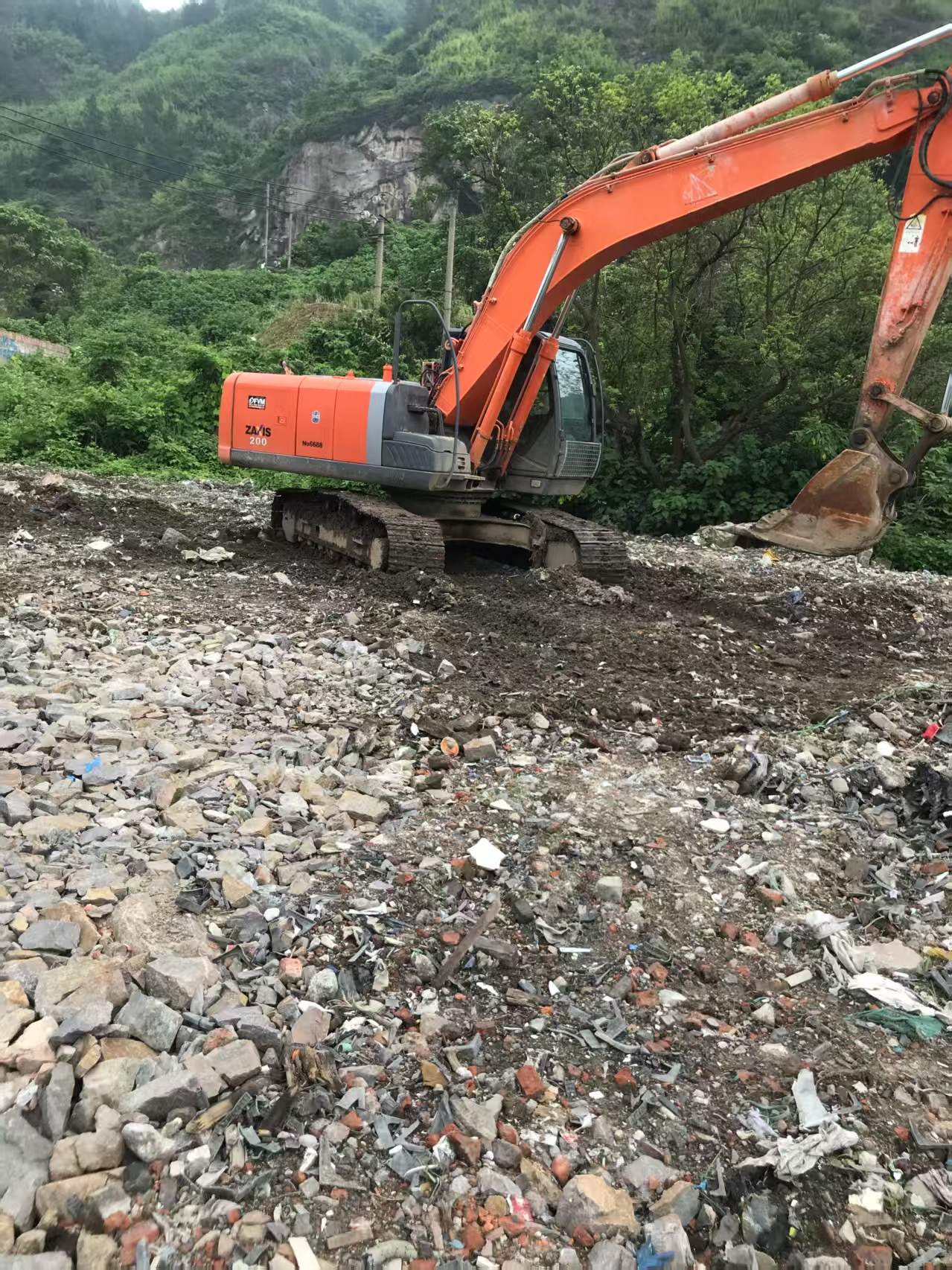

Buy Hitachi EX200-6 Used Excavator / 3

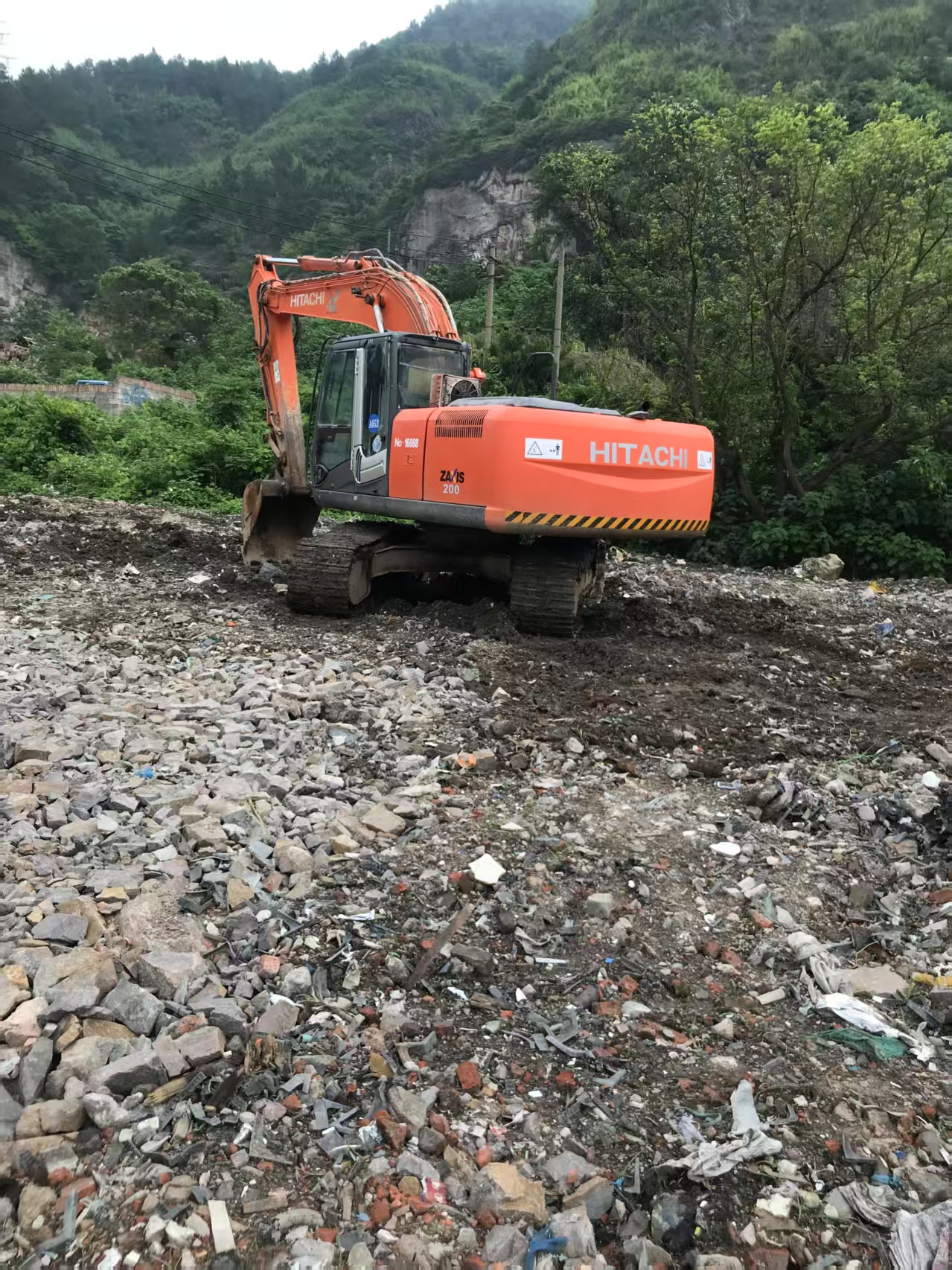

Buy Hitachi EX200-6 Used Excavator / 4

Product Description

This 2020 Hitachi EX200-6 excavator offers reliable performance for demanding construction and earthmoving applications. Sourced from Zhejiang, China, this machine demonstrates excellent operational condition with a well-maintained undercarriage showing minimal wear.

The EX200-6 is known for its robust hydraulic system, fuel efficiency, and operator comfort. This unit has been properly serviced and is ready for immediate deployment on your next project.

  • Operating weight: Approximately 20 tonnes
  • Bucket capacity: 0.8-1.0 m³ (standard)
  • Engine: Isuzu 6BG1 diesel
  • Undercarriage condition: 90% remaining
  • Suitable for excavation, loading, and grading work

Ideal for contractors seeking a dependable mid-size excavator with proven Japanese engineering. Available for inspection in Zhejiang province.

SpecificationsValue
No.1074181
Tonnage (tons)20
Working weight (kg)20300
Bucket capacity (m³)0.8
Boom length (mm)5.68 (H Type)
Rod length (mm)2.91 (H type)
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AI-4HK1X
Rated power (kw/rpm)122/2000
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)5.193
Working formDirect injection, turbocharged, with intercooler
Ground specific pressure (Kpa)45
Rotation speed (rpm)13.3
Climbing ability (%)70/35 °
Bucket digging force (kN)151
Rod digging force (kN)109
Travel speed (km/h)3.5/5.5
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeQuantitative plunger pump ×1
Type of walking hydraulic motorVariable piston pump ×2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)32.4
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump ×2+ gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)400
Hydraulic Tank (L)135(Full box 200)
Engine Oil changes (L)23
Total transport length (mm)9520
Total transport width (mm)2860
Total transport height (mm)3010
Full cab height (mm)2950
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)450
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9920
Maximum digging depth (mm)6670
Maximum excavation height (mm)10040
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)5990
Bulldozer lift or depth (mm)No bulldozer
