Product Description

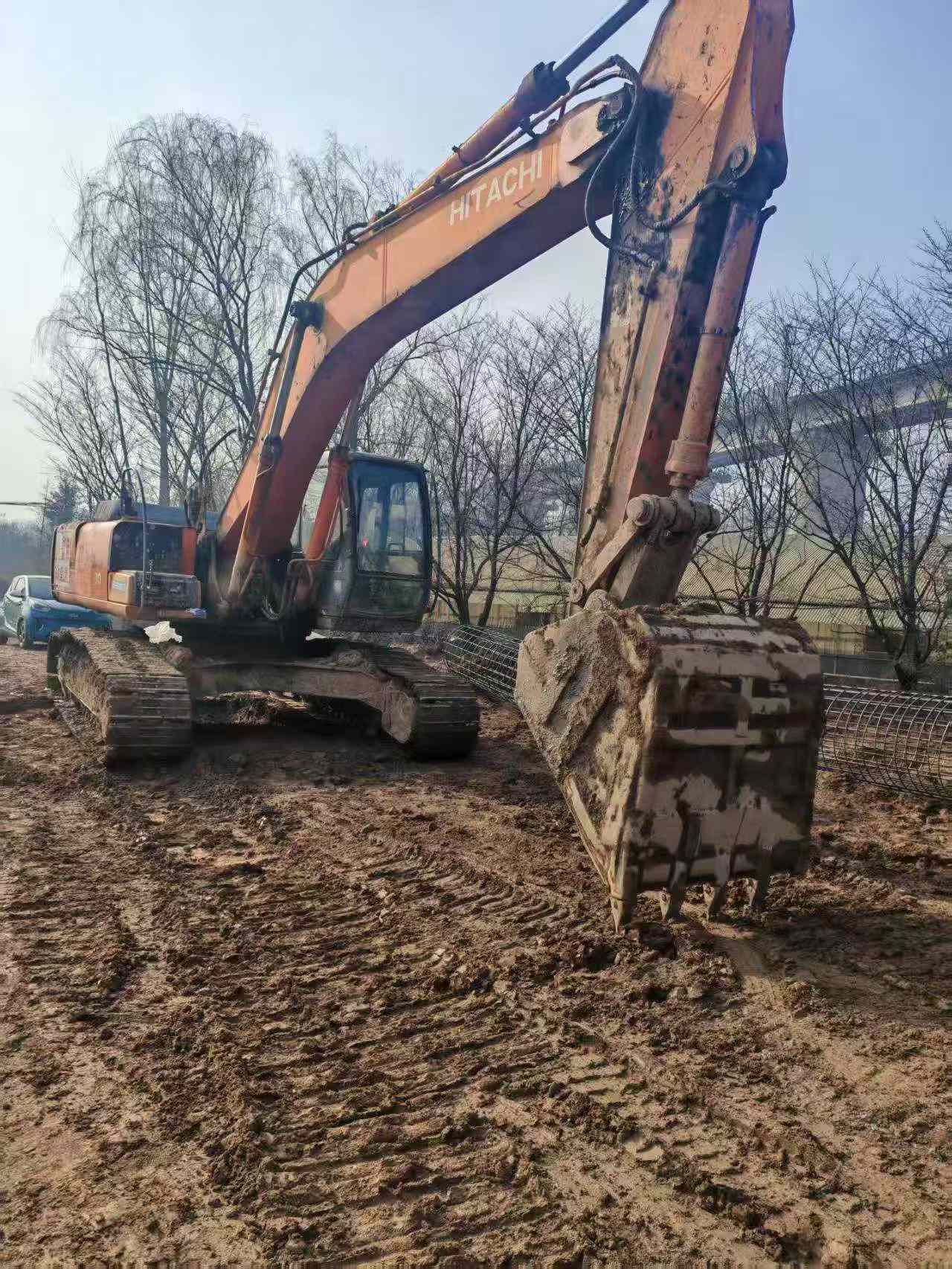

Built for daily excavation work, this 2016 Hitachi EX220-5 delivers 22 tons of operational power with a proven Hino H07C-TD engine rated at 116.3 kW. Currently located in Qingdao, Shandong, this backhoe excavator is site-ready with versatile bucket options of 1.0/0.8/1.4 m³ to match your digging, grading, or loading requirements. Maximum digging depth reaches 6,300mm while excavation radius extends to 9,530mm, providing substantial reach for foundation work, trenching, and material handling operations.
- Working weight: 22,798 kg with stable 49 Kpa ground pressure

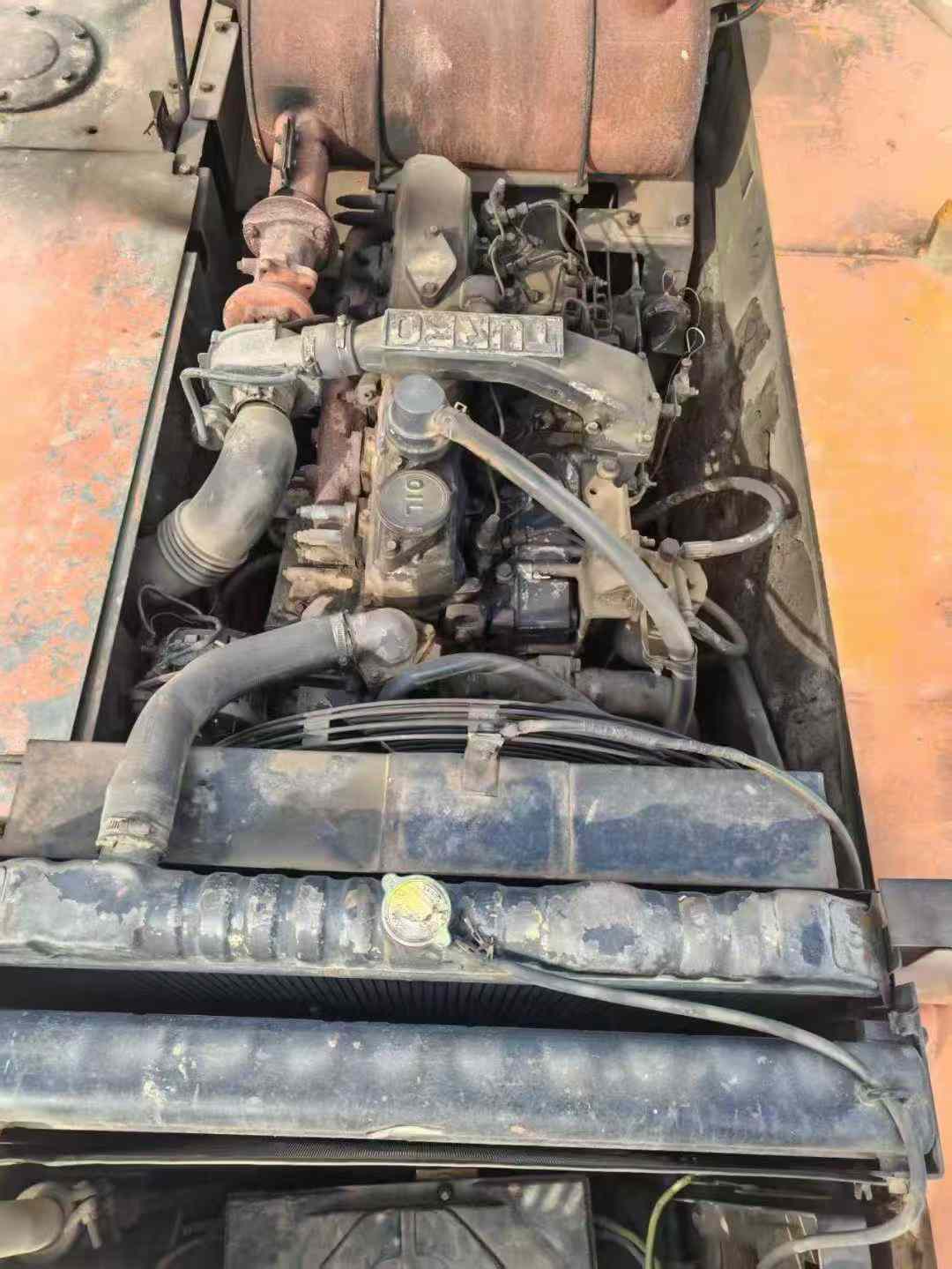

- Hino 6.7L diesel engine with traditional power delivery
- 380L fuel capacity supports extended work shifts
- 2,990mm transport width fits standard hauling equipment
- 239L hydraulic system ensures consistent performance
- Maximum excavation height of 9,410mm for loading applications
Manufactured as a joint venture/import model, this machine combines Japanese engineering with practical field capabilities. Hydraulic systems, filters, and fluids are accessible for routine maintenance, minimizing downtime between jobs.
| Specifications | Value |
|---|---|
| No. | 1032945 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22798.2 |
| Bucket capacity (m³) | 1/0.8/1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino Hino H07C-TD |
| Rated power (kw/rpm) | 116.3/2000 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 49 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 380 |
| Engine Oil changes (L) | 26 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 239 |
| Total transport length (mm) | 10260 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3290 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3460 |
| Maximum digging depth (mm) | 6300 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6540 |
| Maximum vertical digging depth (mm) | 5400 |
| Maximum excavation radius of stop surface (mm) | 9530 |
