Product Description
Equipped with an Isuzu A-6SD1TQA engine, this 2016 Hitachi EX300-3 delivers a robust 155.1 kW at 2000 rpm, ensuring reliable performance for demanding tasks. Featuring a 30-ton working weight and a versatile bucket capacity ranging from 1.4 to 1.9 m³, this excavator is designed for efficiency and power. The hydraulic system, with a capacity of 310 liters, provides precise control and smooth operation, enhancing productivity on any job site.

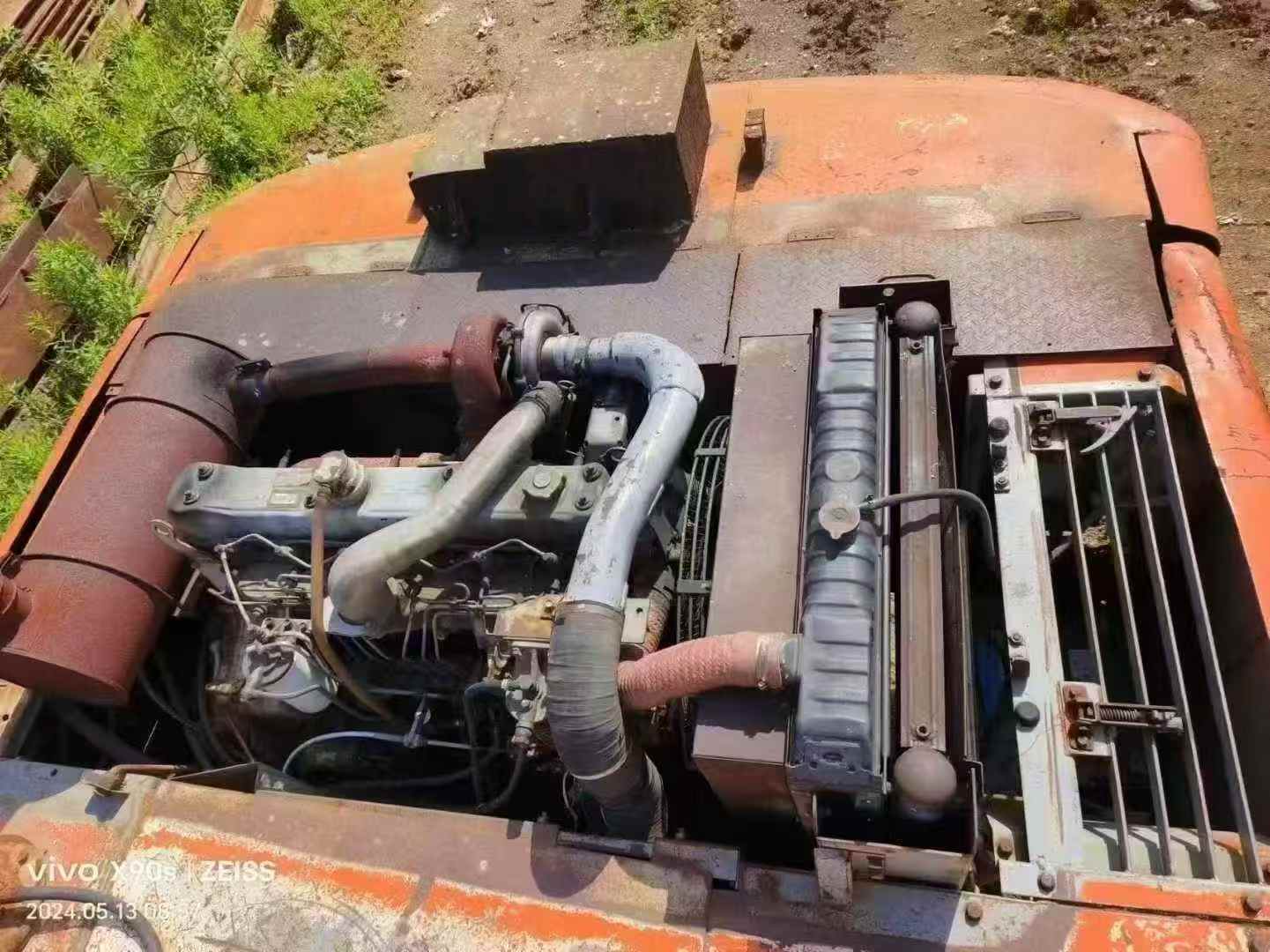

- Engine: Isuzu A-6SD1TQA, 155.1 kW at 2000 rpm
- Working Weight: 29,392.8 kg
- Bucket Capacity: 1.4/1.2/1.9 m³
- Hydraulic System: 310 L
- Travel Speed: 5.5 km/h
- Maximum Digging Depth: 6,840 mm
- Location: 贵州
With a ground specific pressure of 59.8 Kpa and a minimum ground clearance of 500 mm, the EX300-3 is built to handle rough terrains with ease. Its back end turning radius of 3,300 mm and track gauge of 2,590 mm further enhance maneuverability, making it an ideal choice for construction and excavation projects. This model series is a testament to Hitachi's commitment to engineering excellence and durability.
| Specifications | Value |
|---|---|
| No. | 1020287 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29392.8 |
| Bucket capacity (m³) | 1.4/1.2/1.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-6SD1TQA |
| Rated power (kw/rpm) | 155.1/2000 |
| Displacement (L) | 9.8 |
| Ground specific pressure (Kpa) | 59.8 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 510 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 33.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 11060 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3410 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3300 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3710 |
| Maximum digging depth (mm) | 6840 |
| Maximum excavation height (mm) | 9850 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5610 |
| Maximum excavation radius of stop surface (mm) | 10360 |
